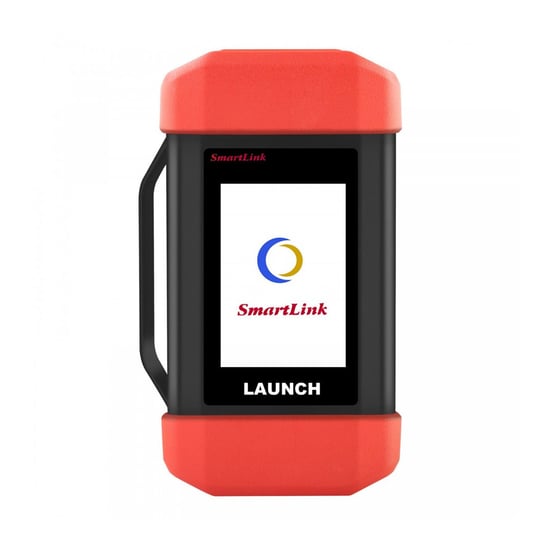

Launch X431 SmartLink C – Remote Diagnostic Device ( Vehicle Data Link Connector )
No Ip Restriction
MK22407
$750.00
(€697.50)
In Stock
In Stock
| Manufacturer | Launch |
| Condition | New |
| Weight | 3900 g |
Launch X431 SmartLink B – Remote Diagnostic Device ( Vehicle Data Link Connector )
Launch X431 SmartLink C Description:
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink C user, as a SmartLink Service Subscriber, can submit remote repair orders to vehicle repair companies (SmartLink B, the SmartLink Service Provider) via SmartLink Service Platform. The SmartLink C applies to vehicles that comply with CAN/ DoIP/ CAN FD/ J2534 diagnostic protocol standard.
Diagnostic Tools From Launch with Product Number: MK22407
This Weight Product: 3900g
Requires Activation card
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform. The SmartLink B applies to vehicles that comply with CAN/ DoIP/ CAN FD/ J2534 diagnostic protocol standard.
The SmartLink B system consists of the following two parts:
- SmartLink Service Platform – For binding the SmartLink B dongles and accepting the remote repair orders.
- SmartLink B Dongle – Works with the compatible diagnostic tool to perform diagnosis of the vehicle connected to the SmartLink C dongle.
Launch X431 SmartLink C Features
- Compatible with LAUNCH tools, OE tools or any other diagnostic tools
- SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
- Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
- Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Launch X431 SmartLink C Technical Parameters
- 3.97“ Single-Touch Screen, 320 x 480
- Working Voltage: DC 9V ~ 36V
- Communication method: Ethernet

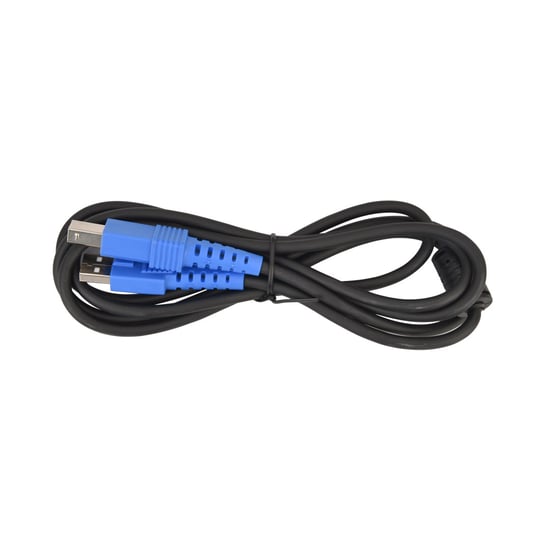

- Type B USB 2.0
- Storage: 8GB
- Memory: 256M
- Power Consumption: < 6W
- Working temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
- Dimension: 204 x 110 x 45 mm
Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.

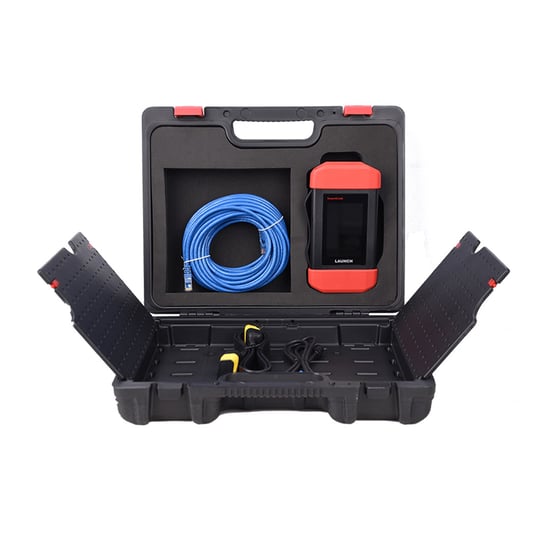

Launch X431 SmartLink C Packing List:
The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.
- SmartLink C Dongle – For SmartLink Service Provider

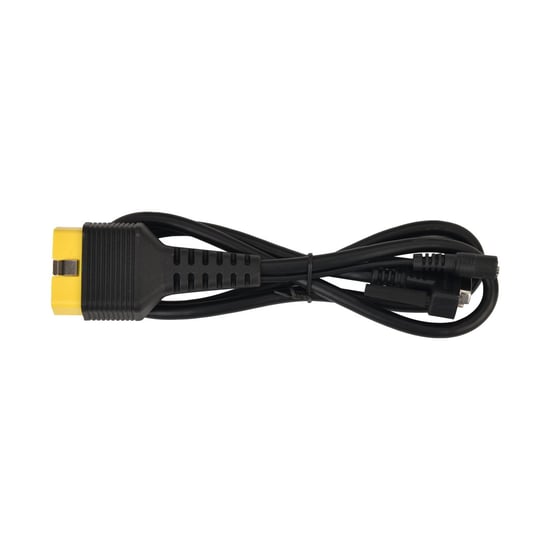

- OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool

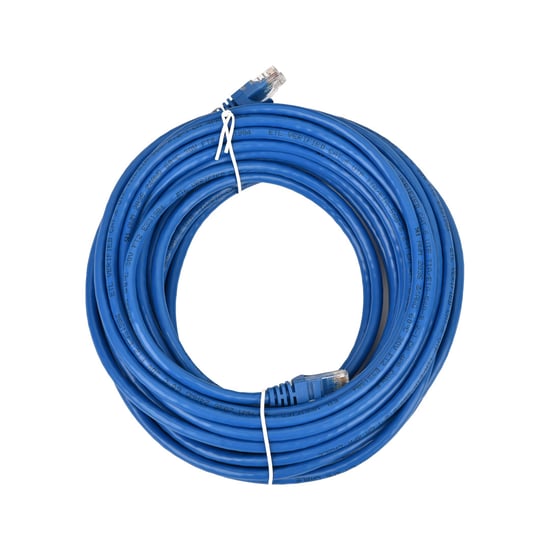

- CAT-6 Crossover Cable – Connects the dongle to the network modem
- Power Adaptor – Supplies power to the dongle through an AC outlet.
