Xhorse Condor XC-Mini Plus Automatic Key Cutting Machine
Product Number: MK5778
This Weight Product: 24000g
Condor XC-MINI Plus Key Cutting Machine Highlights:
- 1 YEARS warranty
- Online After Sales Support
- Free Lifetime online update
- Condor MINI Plus Update
- Add parts of Chinese car models
- Fix mahinda xylo key algin issue
- Advanced Design & Integrated Casting
- Best PCB and Motors, To provide High Quality, Accuracy and Stability
- Support More Than 60 Global Brands,2000 car Models and all key lost database.
- Free download the Xhorse_Condor_XC-Mini_Plus_Key_Cutting_Machine
- Language: English
- Support work with Xhorse app
- Bind with VVDI MB Tool, your VVDI MB Tool can get 1 free token every day.
- Support Cut Sided, Track, Dimple and Tibbe Keys, Household Keys
XC-MINI Plus Key Cutting Machine Optional Accessories：
1) Optional Clamps:

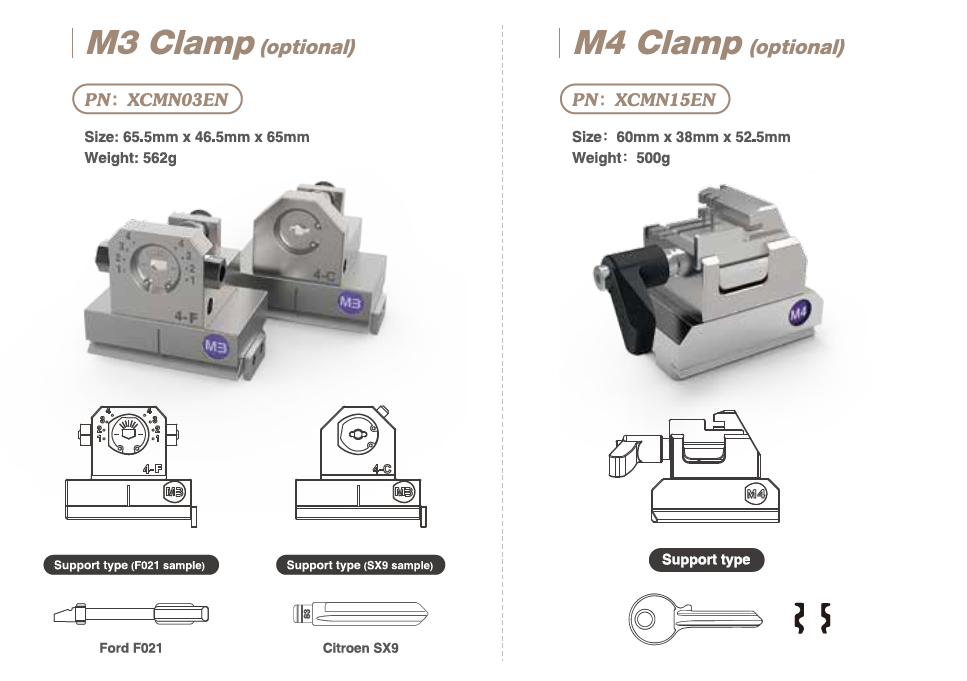

- Clamp M3(Optional) used for Ford FO21 & Citroen SX9 keys.
- Clamp M4(Optional) used for Household keys.
If you need M3 and M4 clamp, you need to order alone.
2) Key Cutting Machine Optional cutters and Probes:

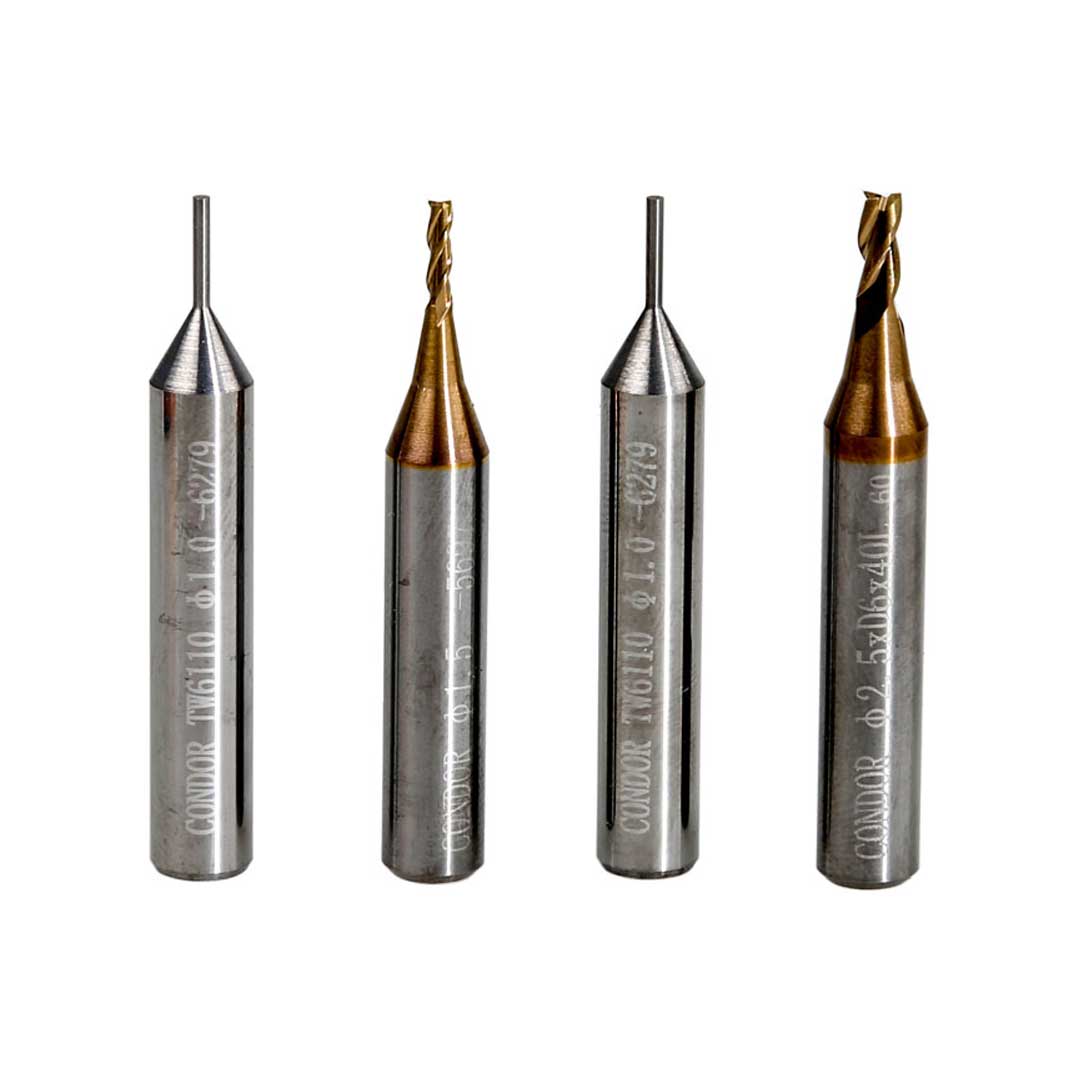

Condor Plus key cutting machine package only contain 1pcs x 1.5mm Cutter,1pcs x 2.5mm Cutter and 2pcs x 1.0mm Probe
if you need other cutters and probes, you need to order:
Condor plus Description:
CONDOR XC-MINI PLUS key cutting machine is an automatic key cutting machine for accurately and efficiently cutting all kinds of automotive and residential keys, it is designed by Xhorse and committed to providing security solutions for locksmiths worldwide.
It offers the greatest key cutting solutions for all the locksmiths whether one is a novice or an advanced locksmith expert.

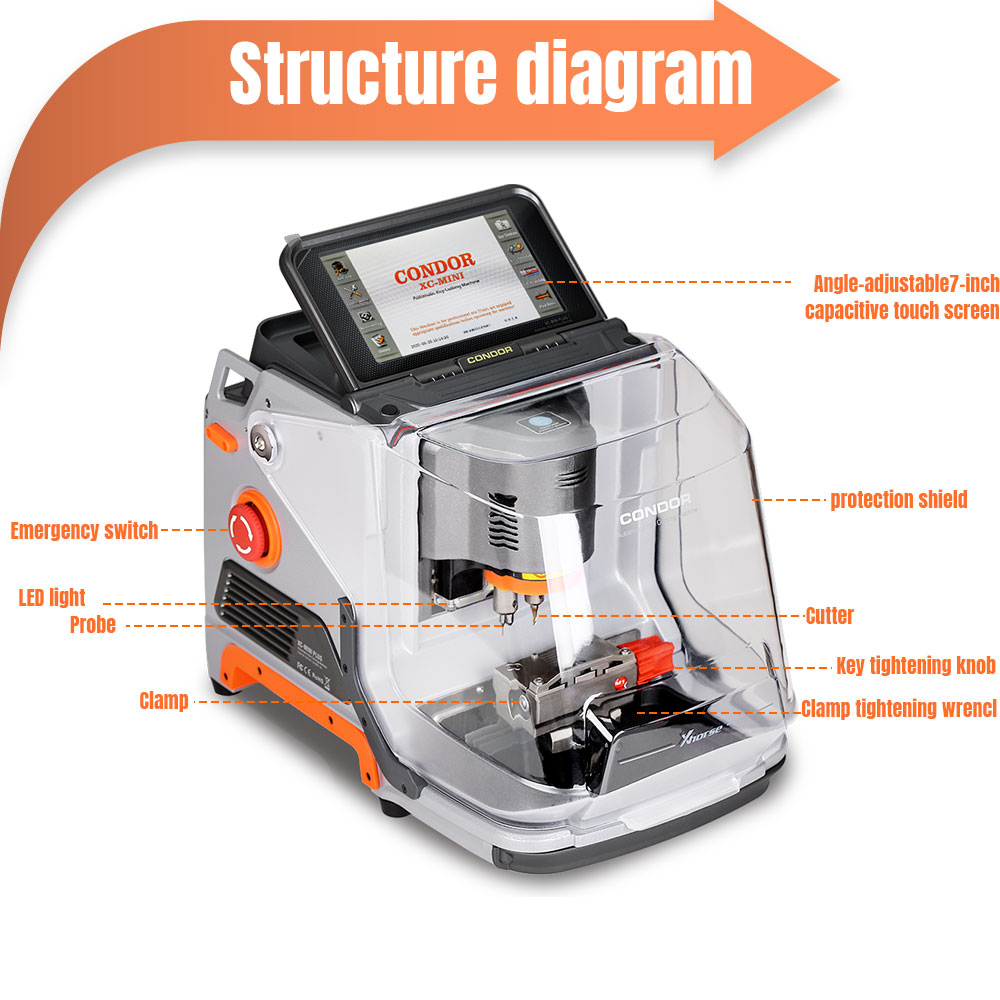

Xhorse Condor XC-Mini Plus New Features: (Update of XC-MINI)
- Space between cover and key is bigger than mini condor....
- for XC-MINI many keys with casings like VW flip key will not allow you to close the cover
- The screen is designed with adjustable angle
- Many time the machine is on a higher / desk and it's then difficult to operate and see what's on the screen
- Mounting support-to make it easier when mounting the machine on a Mobile unit as you don't
- want it flying around in the back of your VAN....
- Multiple sealing designs to avoid debris
MINI Plus Features:
Built-in actuate database, detailed parameters, schematic sample depth key tool available for users, according to the blank key data, edit key shape, space flat, depth for making a new key data. It is convent to synchronize the new key data to machine.
Condor XC-Mini Plus key cutting machine has appearance Patent Certificate, computer software copyright registration Certificate, Utility Model Patent Certificate etc.
3.Essential Tool for All Key Lost
Condor Mini Plus key cutting machine contains three powerful functions for all keys lost key database, cut by bitting & find bitting, essential tool for locksmith all key lost job easier to be completed.
Aluminum main body, partial made by 304 stainless steel materials. net weight 18KG is lightweight machine with stable structure.
Machine used 3-Axis precision Ball screw transmission with higher accuracy & stability than T screw transmission
- Adopting internal general full range AC (Alternating Current) input (90V-26V)
- Working efficiency up to 93%
- Can sustain surge voltage input (300V) for up to 5 seconds
- No-load power loss lower than 5 watts
- CONDOR built-in 200V brushless motors
- High rotation speed
- Low noise
- Minimal vibration
- Strong reliability
- Great stability

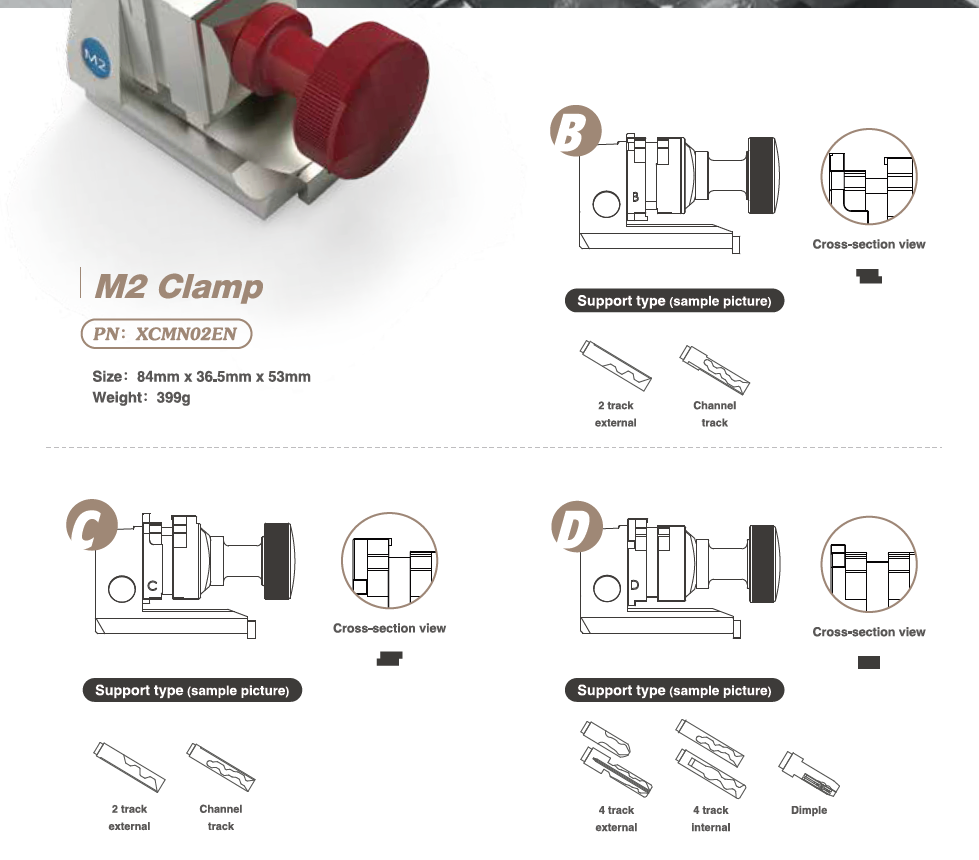

Condor XC-Mini Plus automatic key cutting machine standardly includes two Clamps M1 and M2 support sided, track, dimple and Tibble keys, some dimple/Tibble keys need
and M3, M4 clamps For Ford FO21 & Citroen SX9 keys and Housekeys.
CONDOR XC-MINI Plus key cutting machine supports online update. Users can update the machine by connecting the machine to internet-connected PC, update server is available 24/7 and free of region restriction for online updates.
Support Online file update. Update log will automatically display in software.
Xhorse technical support team provides professional and efficient online technical support for free.
Three Years warranty and lifelong after-sale customer service are included in order to guarantee the carefree
machine operation for customers. Customer’s feedback and suggestions are always appreciated.
How to Choose Condor MINI Plus and Dolphin XP005?
Xhorse Dolphin key cutting machine is an entry-level product of the CONDOR CNC machine family.
The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen,
you need to connect a mobile phone or tablet, and install a dedicated APN.
CONDOR XC-MINI Plus Specification:
- Working Temperature: 0-50℃
- Humidity: 10-90%
- Working Voltage: 90-264V/AC
- Input Frequency: 47-63Hz
- Package Dimension: 515 x480x380mm
- Machine Dimension: 250 x413x300mm
- Net Weight: 19kg
- Gross Weight: 24kg
- Power: 200W
- USB port: USB2.0
- LED Display: 1024x600
- Motor Rotation Speed: 9000rpm

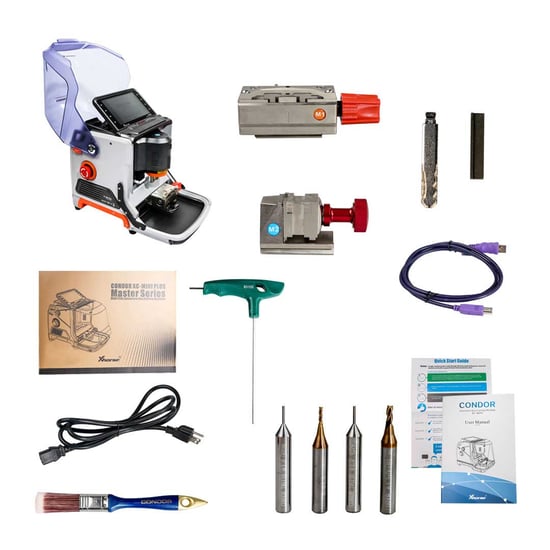

Xhorse CONDOR XC-MINI Plus Package List:
- Our Key Cutting Machine Package contains:
- 1pc x CONDOR XC-MINI Plus Machine Body

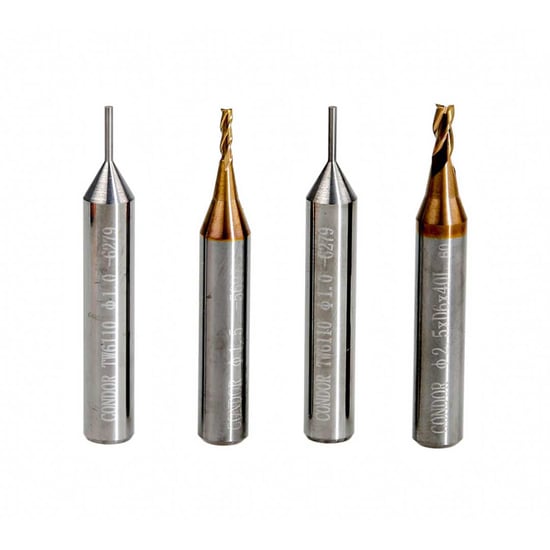

- 1pc x 1.5mm Cutter
- 1pc x 2.5mm Cutter
- 2pc x 1.0mm Probe

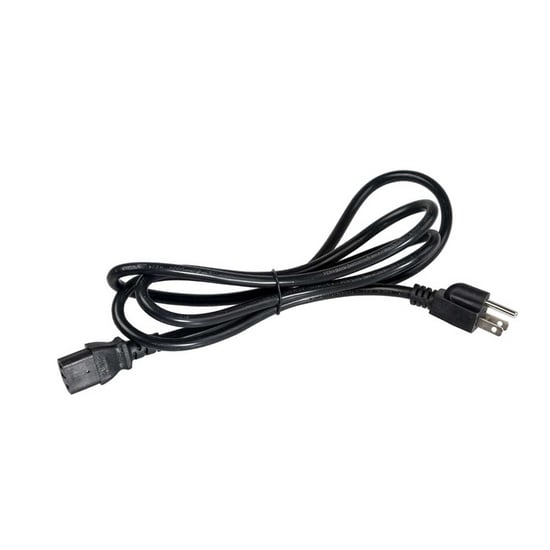

- 1pc x Power cord (1.5m) (Chinese Standard)
- 1pc x USB Cable (1.5m)
- 1pc x Brush

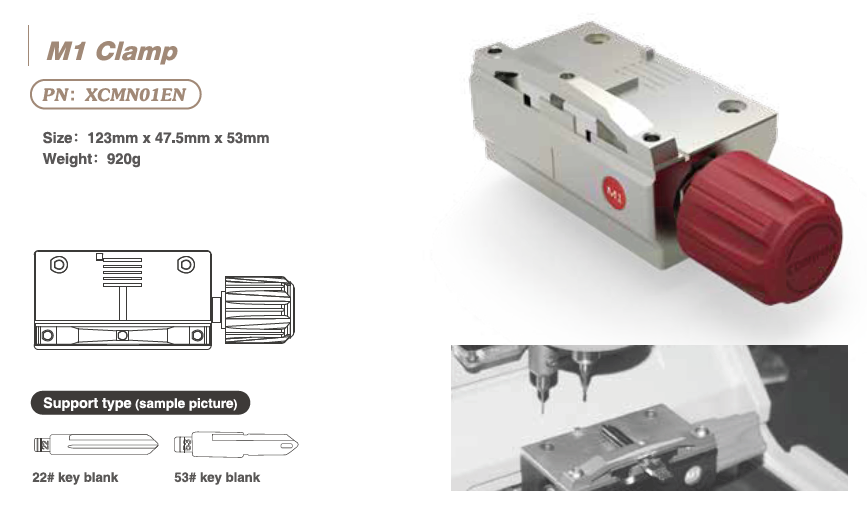

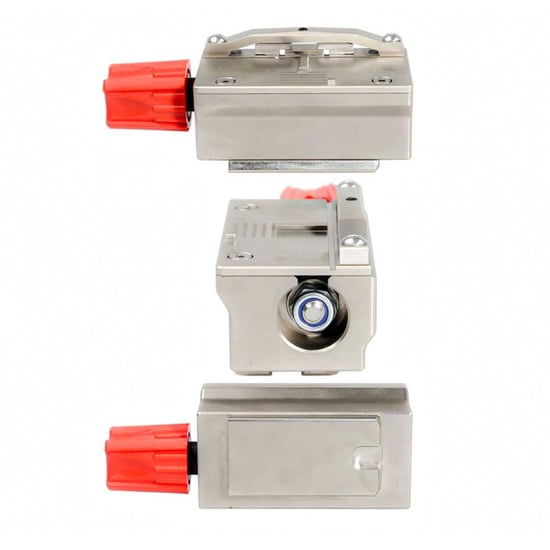

- 1pc x M1 Clamp for Single/Double sided keys

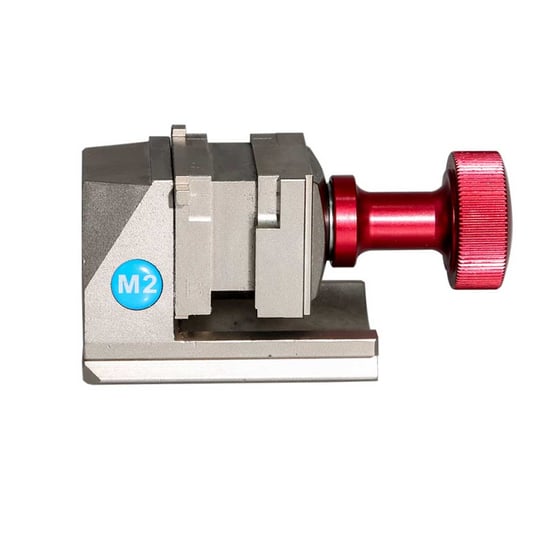

- 1pc x M2 Clamp for Channel-track keys
- 1pc x Quick Start Guide
- 1pc x User Manual
