Xhorse ID48 Chip Copy Data Collector VW Key Simulator for VVDI2

Be the first to review this product

(No Need Register Condor)

$100.00

Category: Additional Adapter

Manufacturer: Xhorse

Availability: In stock

SKU: ADD-XHO-18973

Old SKU: MK18973

GTIN: 880339119129

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Buttons	3
Color	Black
Manufacturer	Xhorse
Condition	New

Full Description:

Xhorse ID48 Chip Copy Data Collector VW Key Simulator for VVDI2 (No Need Register Condor)

Product Description:

Xhorse VVDI2 VAG 48 transponder copy adapter working together with VVDI can copy 48 transponder of 4th Immobilizer system

Additional Adapter From Xhorse with Product Number: MK8973
This Weight Product: 90g

Specs:

Manufacturer: Xhorse
Color: Black
Condition: New
Buttons: 3

Xhorse ID48 Chip Copy Data Collector VW Key Simulator for VVDI2

Data Collector (VW Key Simulator) can work together with
VVDI2 Authorization- prepare dealer key by ecu data
and VVDI2 Authorization- vag 48 copy authorization

Xhorse VVDI2 VAG 48 transponder copy adapter working together with VVDI can copy 48 transponder of 4th Immobilizer system. The supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.

How to :

1.How to use VVDI2 Copy 48 96bit Transponder?

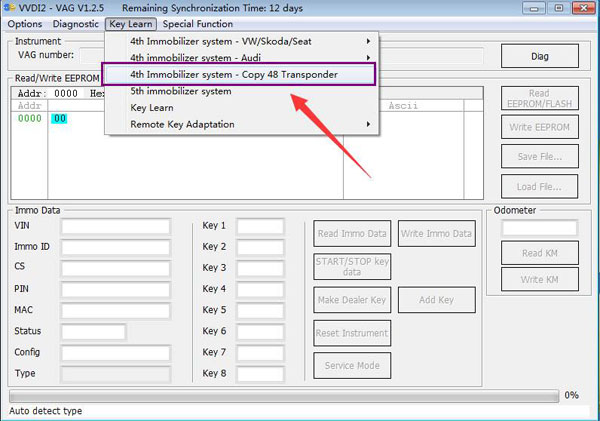

In V5.5.0 VVDI2 Newest software,you can click ID48 Copy software in Quick start tool software.

1.Prepare the working key and 48 collector.
Copy 48 tranponder(96bit), support all cars with ID48 transponder, support latest VAG cars with 48 transponder before 2018.
Support VW,AUDI,Skoda,Seat,Honda,Buick,Cadillac,Fiat,Greatewall,Zhonghua,Volvo etc.

2.Collect data
1)Connect VVDI-collector to VVDI2.
2)Put VVDI-collector neat to ignition switch or ignition coil.
3)Insert working key to switch ON ACC,take off working key from ignition switch, repeat this until finished.
4)If car with keyless go function,remove the battery and put working key nearby igniton coil,then remove key and switch OFF.
5)After collect data,input working key to vvdi2 coil to verify.

3.Upload the collected data to server.The cloud server will calcuate the result.
Attention:Every success calculate will cost 100 remote points.
After you get the success calculate result,no need calcuate anymore.

4.Query result from server, after success you can save the "Calculate 48 data".You can copy/prepare key with "Calculate 48 data".

5.Use "Calculate 48 data" to copy original working key.

Supported type:

48 chip copy function applies to 4th Immobilizer system, the supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.

Function:

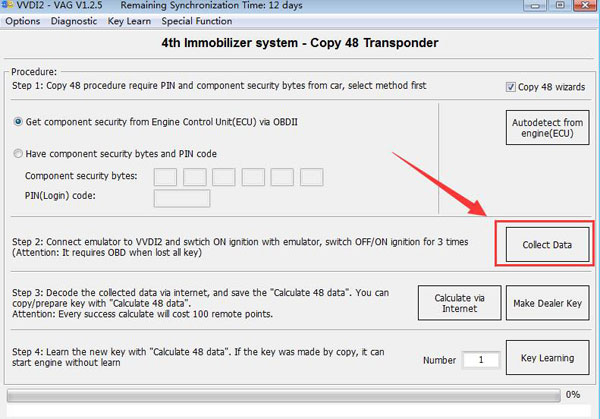

In the process of coping 48 chip, it requires PIN code and component security bytes from car, you can select any of following method:

1) VVDI2 can read out the PIN code from Engine Control Unit (ECU) via OBDII and CS

2) You have component security bytes and PIN code

It can copy 48 chip, add 48 chip, support 48 all key lost and support smart key.
