Yanhua ACDP 2 BMW BC2 / BC3 / BCP IMMO Package Description:

Key Programming Tools From YanhuaACDP with Product Number: MKON575
This Weight Product: 2300g

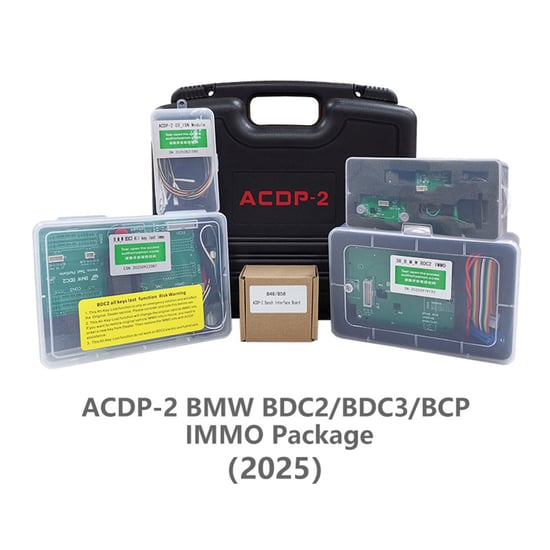

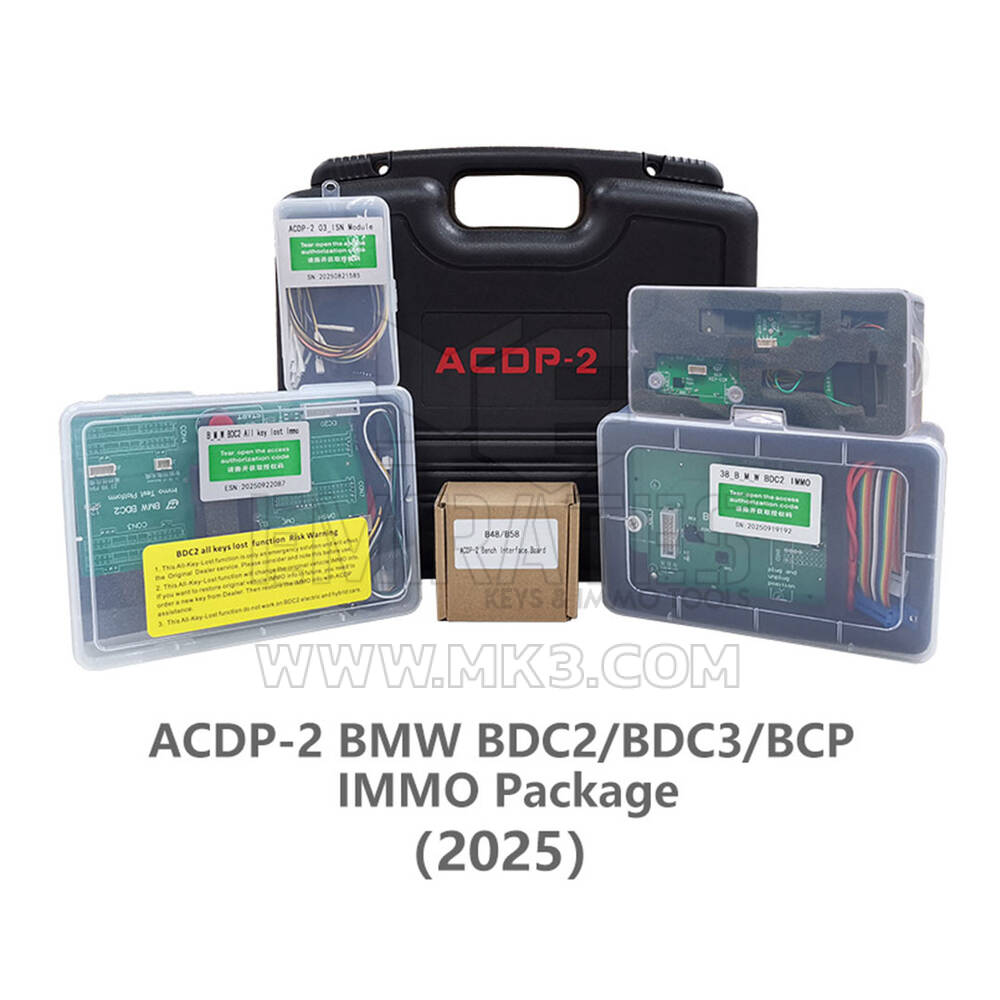

Yanhua ACDP 2 BMW BC2 / BC3 / BCP IMMO Package Included:

1. Yanhua Mini ACDP 2 Key Programming Master Basic Module
2. Yanhua ACDP 2 Module 3 for DME ISN Read and Write Without Soldering

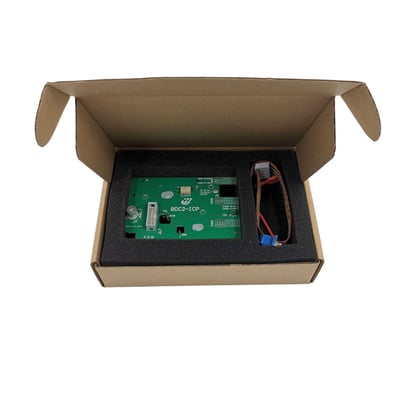

3. Yanhua ACDP BMW G Series Set Module 38

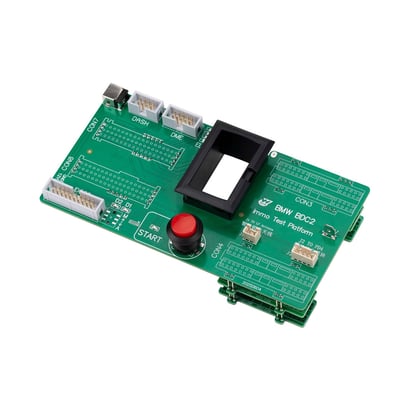

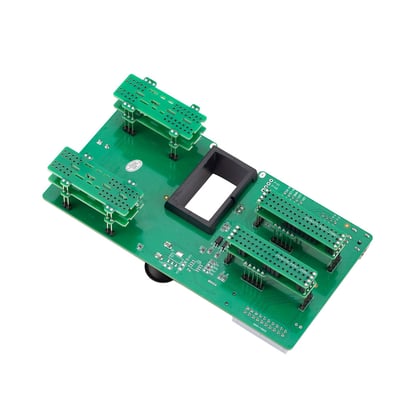

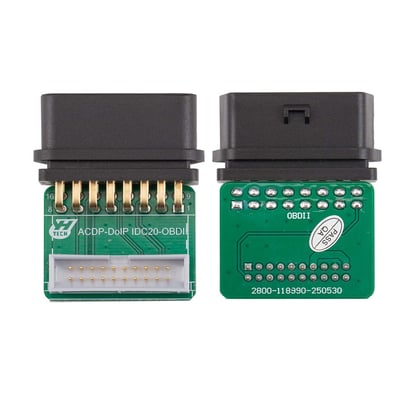

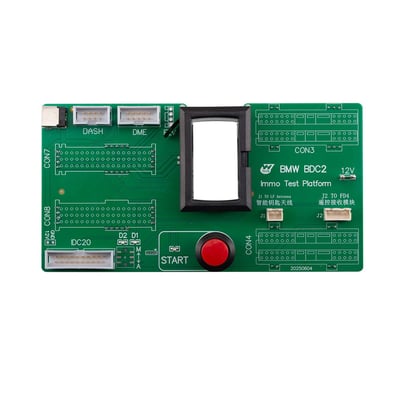

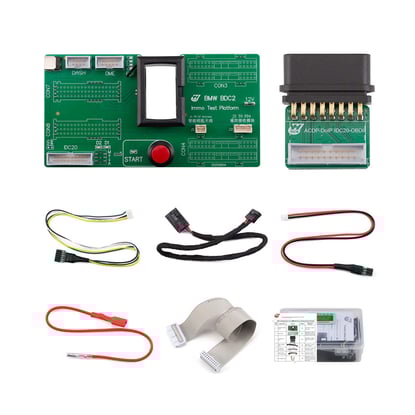

4. Yanhua ACDP BMW BDC2 Keys Learning Bench Platform works with Module 38

ACDP 1 vs ACDP 2:

ACDP 1: Wireless connection only
ACDP 2: Wireless and USB connection, connect ACDP host via Android, iOS and PC devices via USB without Bluetooth adapter.

ACDP-2 Basic Module features:

It supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP)andon adapter board programming(OBP).This module is a necessary basicconfiguration for other modules.

Extended Functions: By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.

Mini ACDP-2 Advantages:

1. No need removing chip,No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

How to Bind the second-generation ACDP:

1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.

Yanhua Mini ACDP 2 Key Programming Master Basic Module Package List:

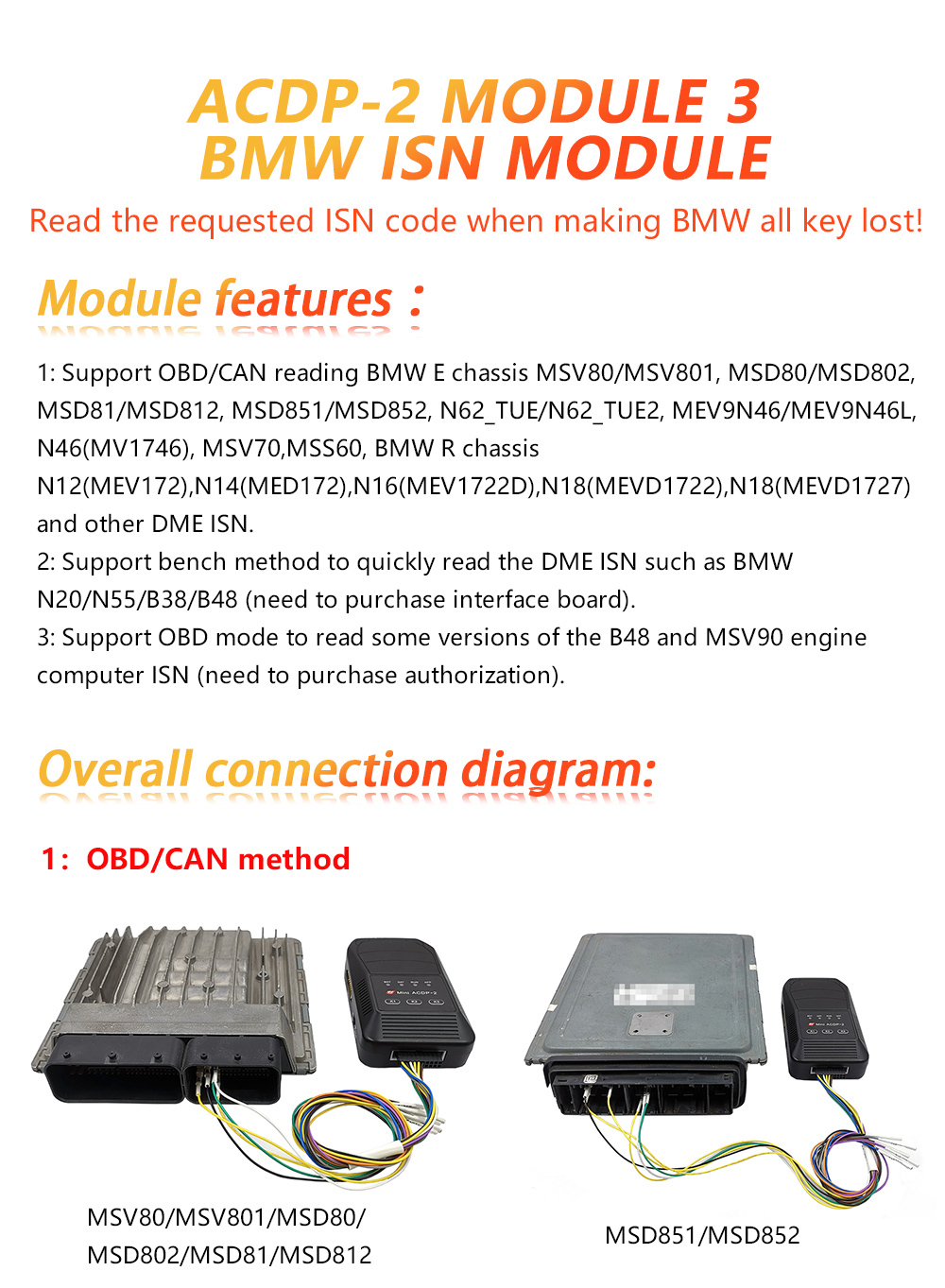

Yanhua ACDP 2 Module 3 Highlights

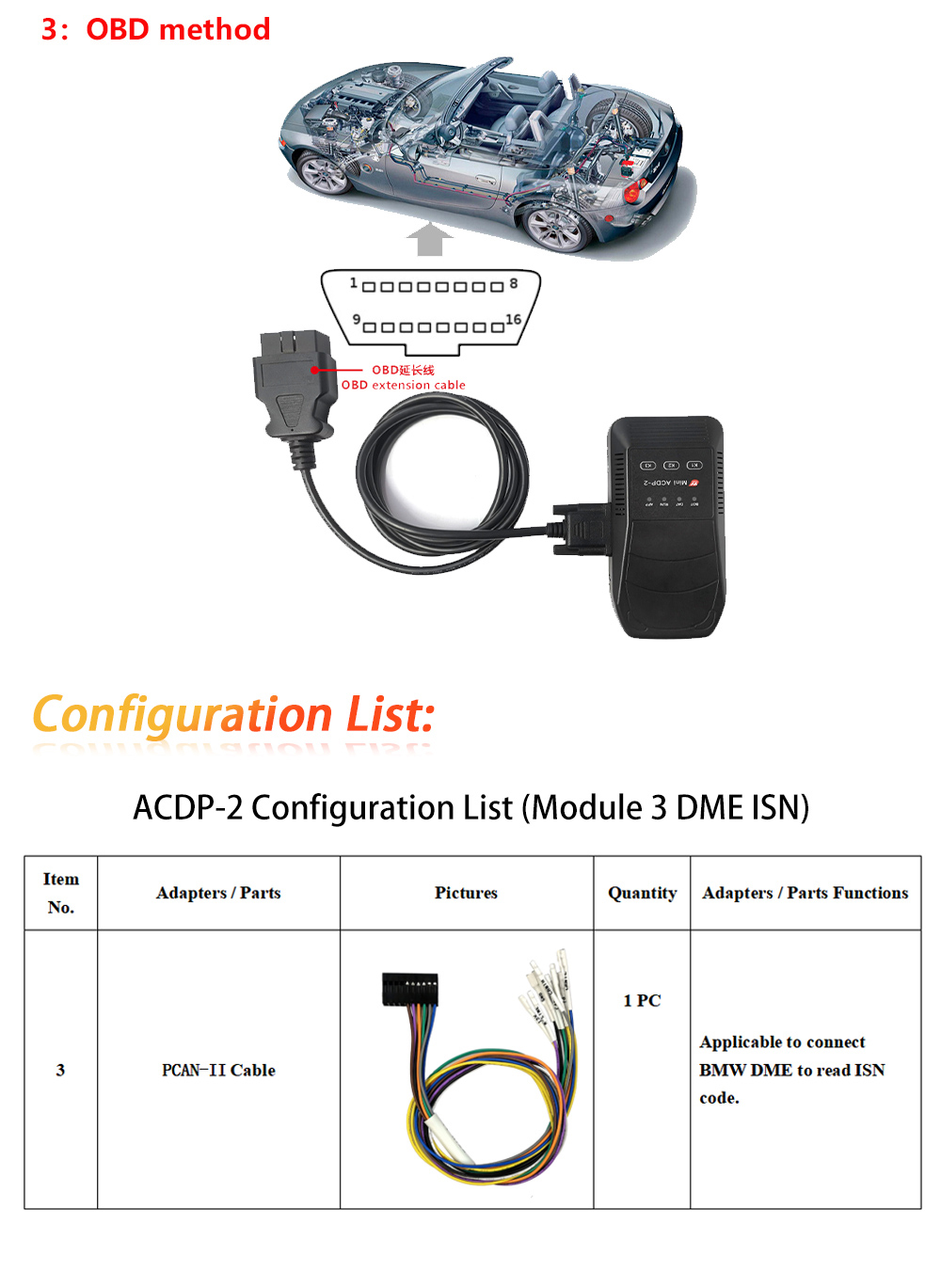

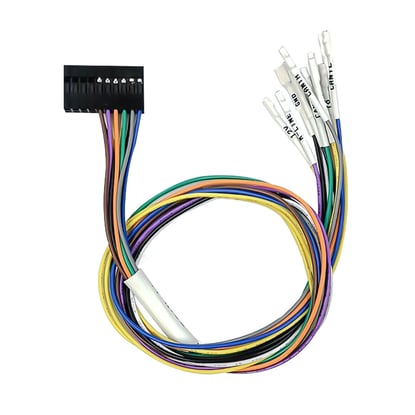

Read & Write BMW DME ISN Code by OBD when all key lost, no need soldering
Read/write N20/N55/N13 ISN code via OBD
Read/write MSV80/MSD85 ISN code without opening DME shell.
Read/write other DME ISN code by opening DME shell.
Supports BMW key programming for CAS, FEM & BDC systems

The ACDP-2 Module 3 must be used with Yanhua Mini ACDP 2 basic module (sold separately)

What's new on MODULE 3?

N13/N20/N63/S63/N55/B38 ISN read/write and ecu clone via bench mode

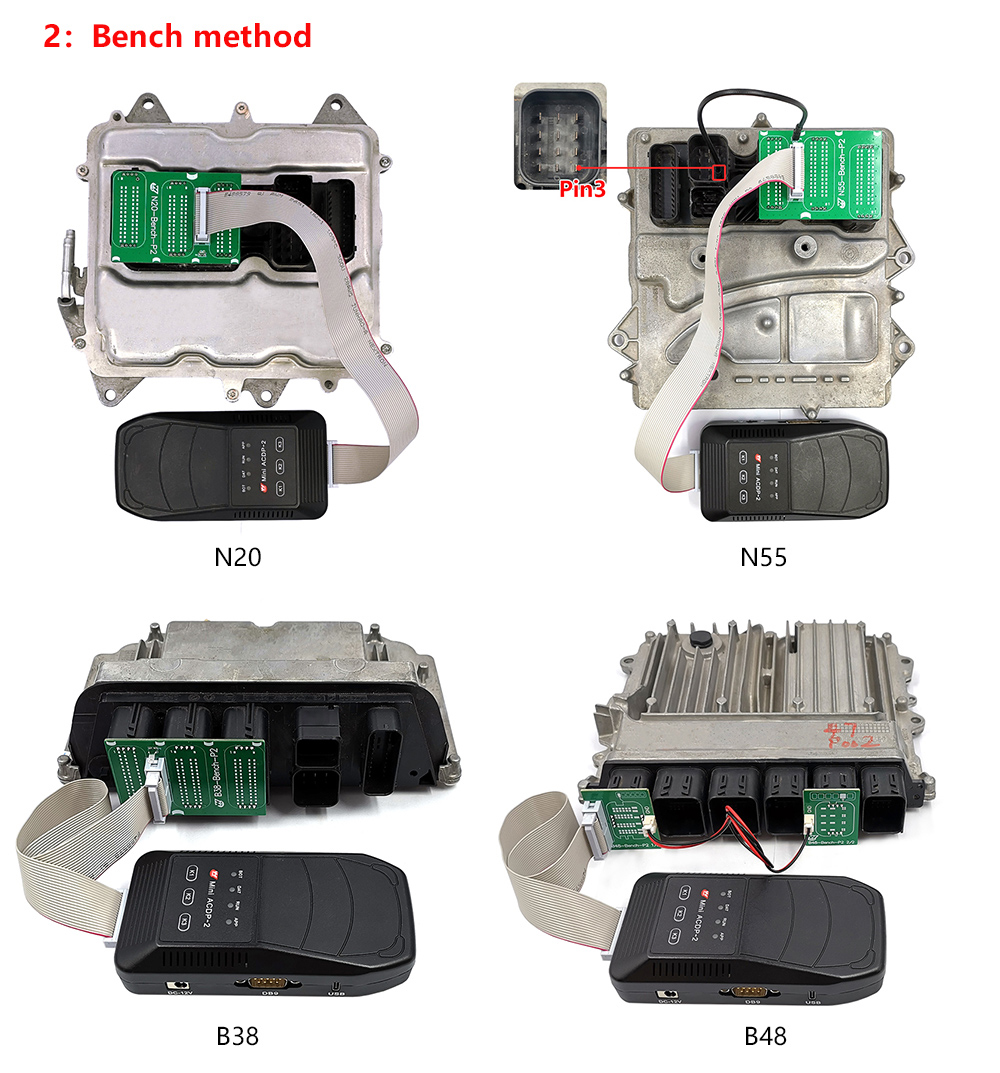

B48/B58 ISN Reading and Clone via Bench Mode
B37/B47/N47/N57 Diesel Engine Computer ISN Read/Write and Clone
N12/N14/N45/N46 DME ISN Read/Write and Clone
N47/N57 Diesel DME ISN Read/Write and Clone

ISN Supported List by MODULE 3:

Read and Write ISN Code:
N20(MEVD1724, MEVD172P, MEVD1729), N13(MEVD1725, ), N55(MEVD172, MEVD1726, MEVD172G, MEVD172S, MEVD17, ), MSV80, MSD81, MS085,
MSD85HY, MSD87, MSV90, MEVD1728(s63), MEV1722, MED172, MEVD1727, DDE701,DC17C50, BMSX...

ISN Read by OBD:
N20/N13/N55 DME
MSV80/MSV801/MSV85 DME
MSD80/MSD802 DME
MSD81/MSD812 DME
MSD851 (supports E-series only currently) DME
BMW MEV1722 Engine OBD ISN Function

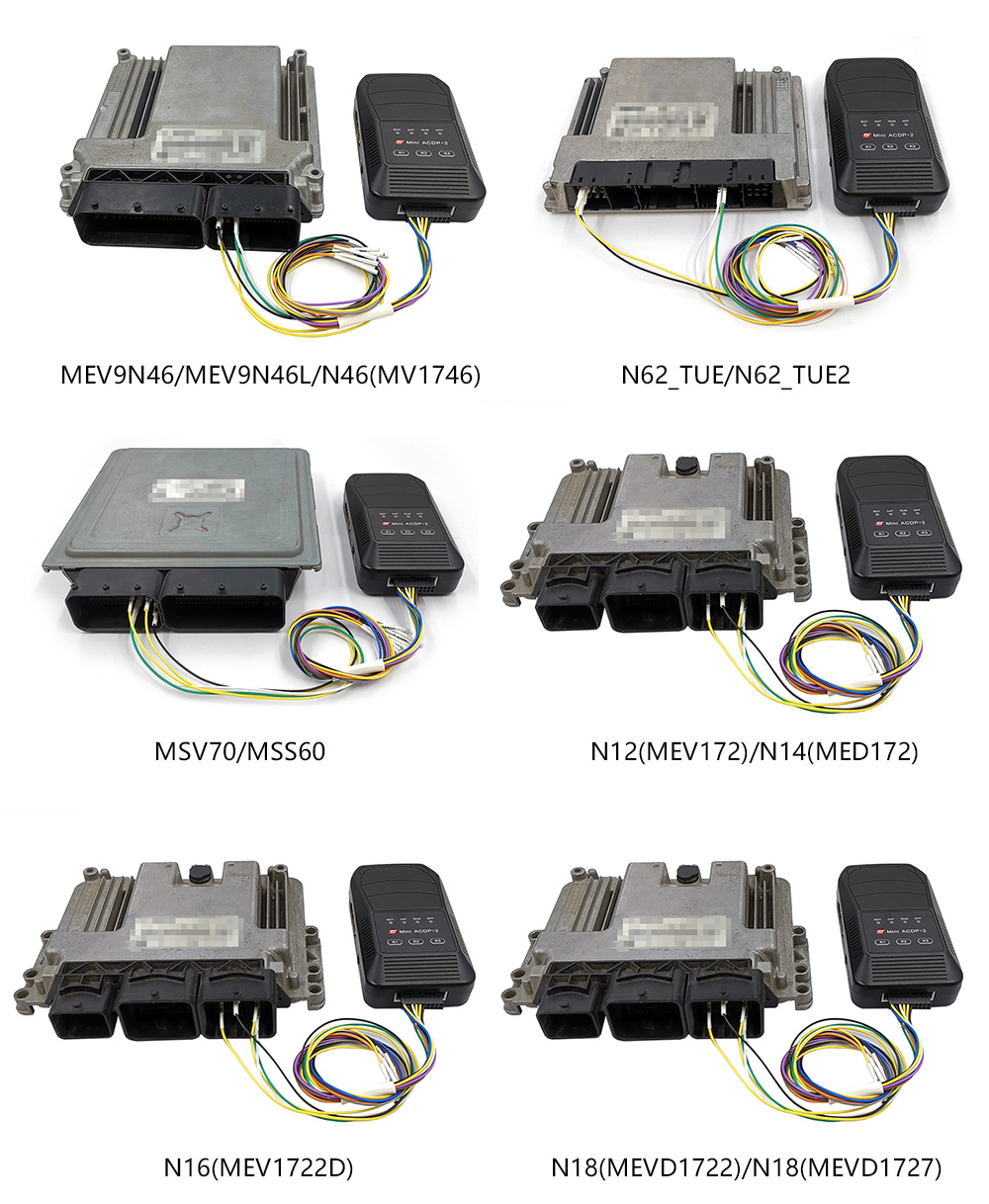

Read N62_TUE2 DME ISN(Supports E Chassis)
Read MEV9N46 DME ISN(Support E Chassis)
Read MEV9N46L DME ISN(Support E Chassis)

ISN Read (Remove DME)
E Series
DDE70_EDC17C06
DDE701_EDC17C50
DDE71_EDC17CP02
DDE721_EDC17C41
DDE73_EDC17CP09
DDE731_EDC17CP45
MEVD17(N55)
MEVD1724(N20)
MEVD1726(N55)
MEVD1729(N20)
MSV80
MSD80
MSD81
MSD85

F Series
DDE701A
DDE701P
DDE721B
DDE721P
DDE73A
DDE731A
DDE741A
DDE751A
MEVD172(N55)
MEVD1726(N55)
MEVD1724(N20)
MEVD1725(N13)
MEVD172G(N55)
MEVD172S(N55)
MEVD172P(N20)
MEVD1728(S63)
MEVD1729(N20)
MSD85
MSD85HY
MSD87
MSV90

R series
MEV1722
MED172
DDE701_EDC17C50
MEVD1727

M series
BMSX

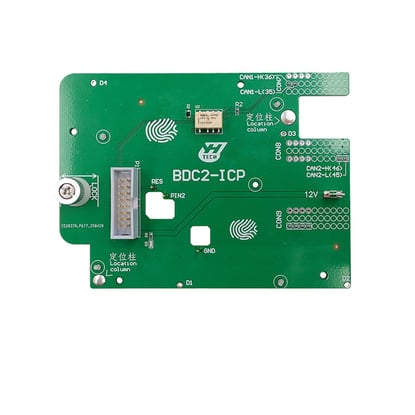

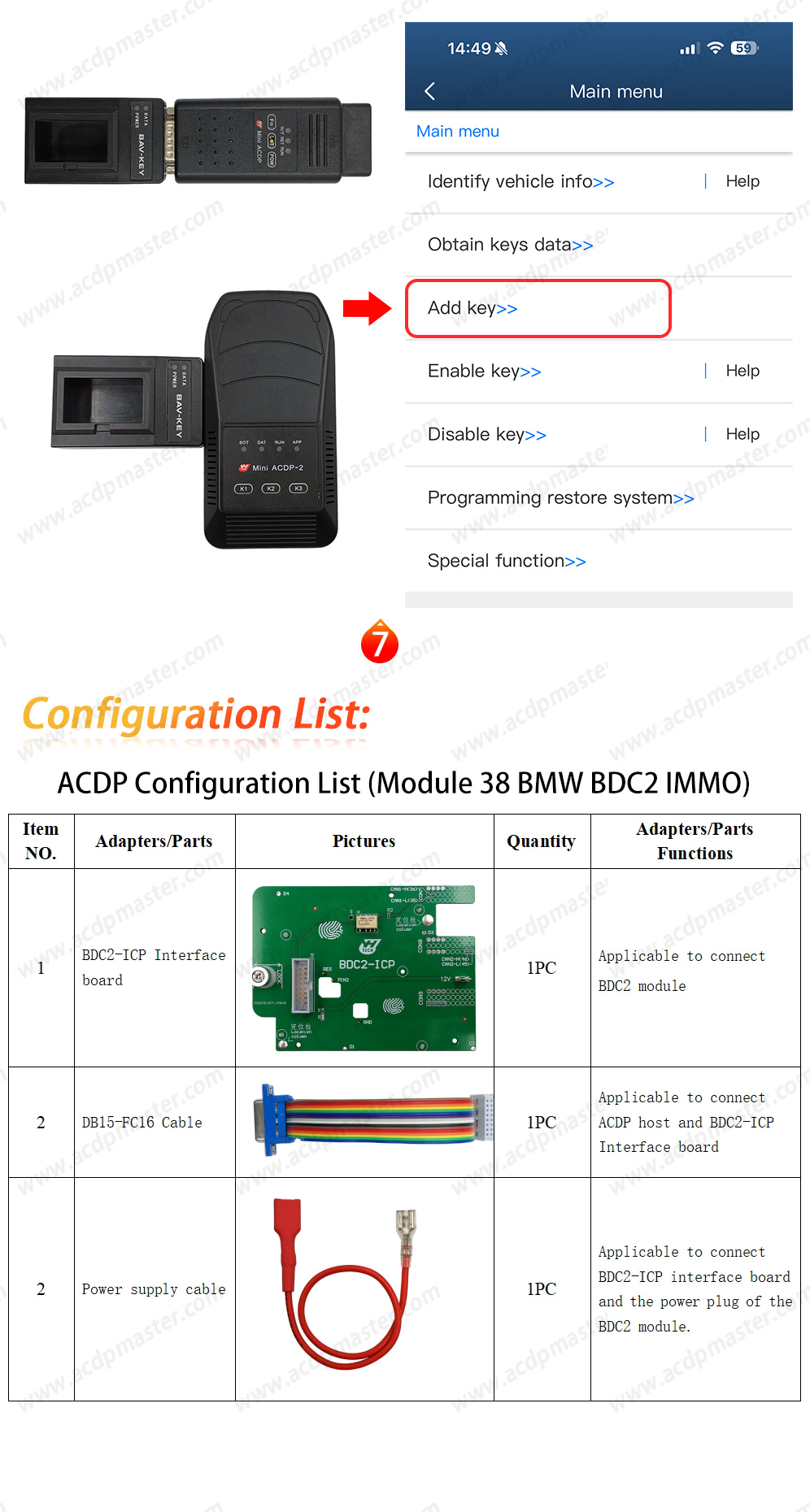

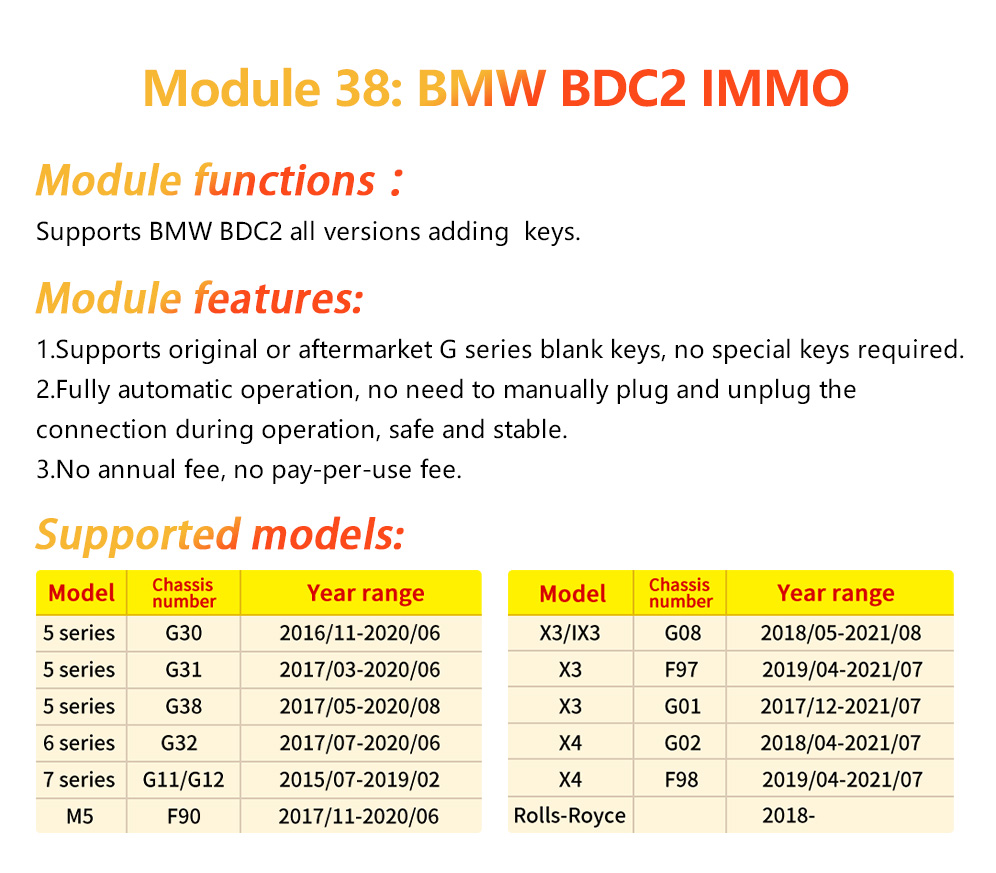

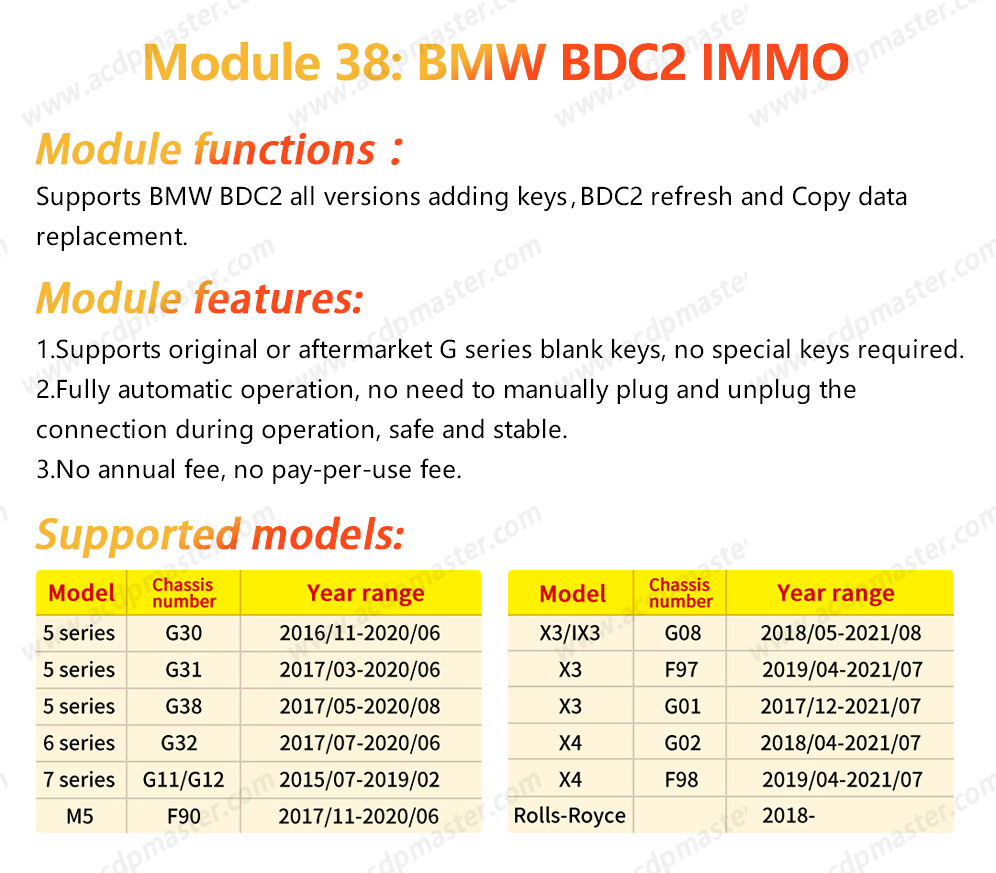

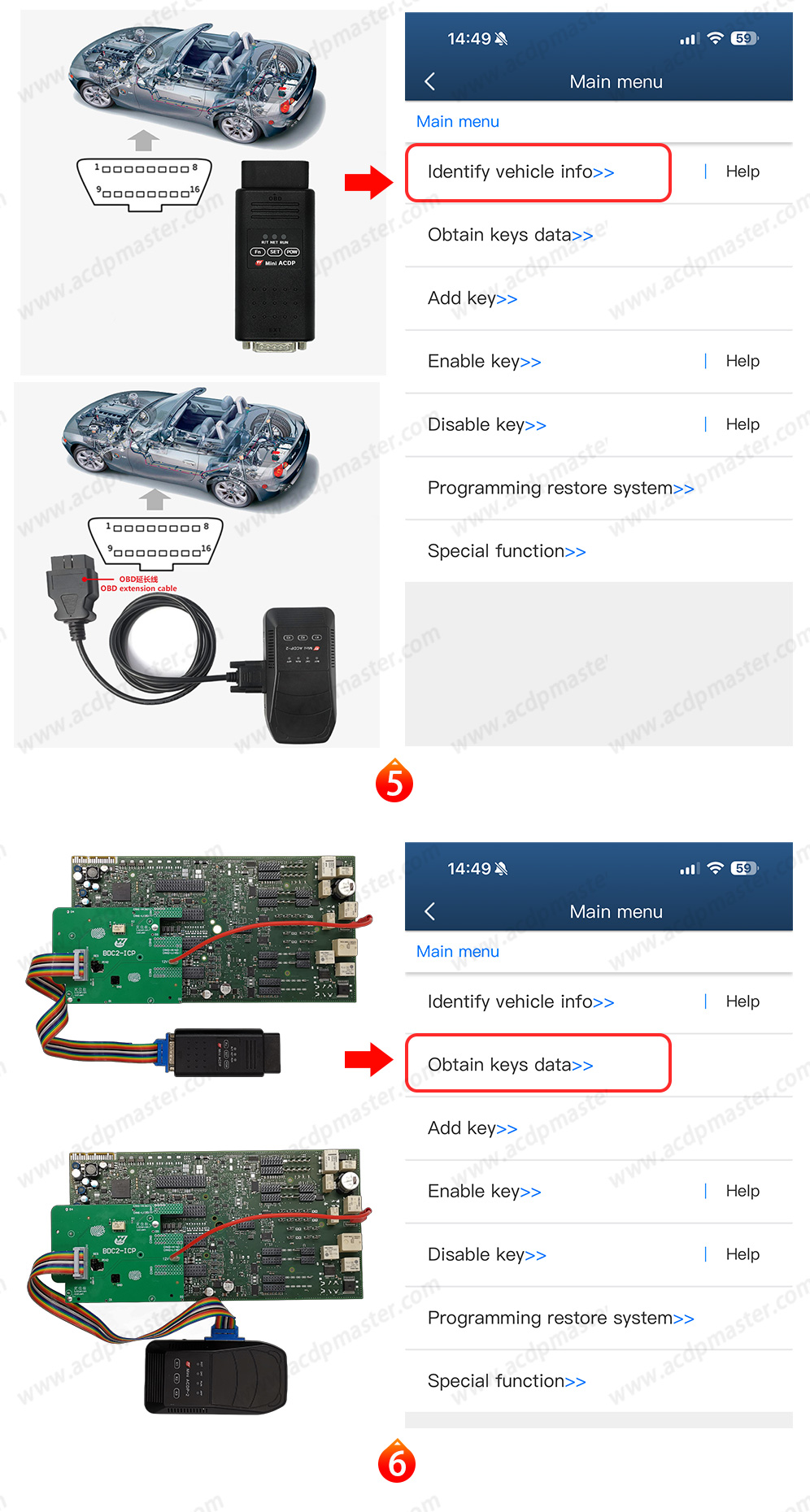

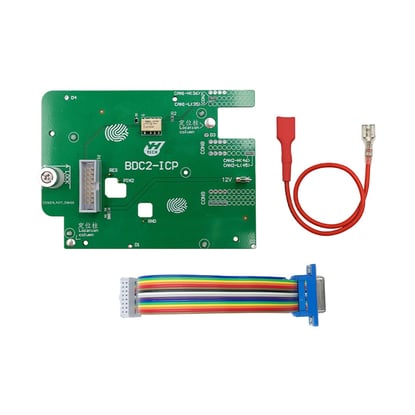

Yanhua ACDP BMW G Series Set Module 38 Features:

Add key, disable/enable key, reset starter motor, match headlight height. Cannot do All keys lost or renew key.
Supports BMW BDC2 module reflash and replacement function.

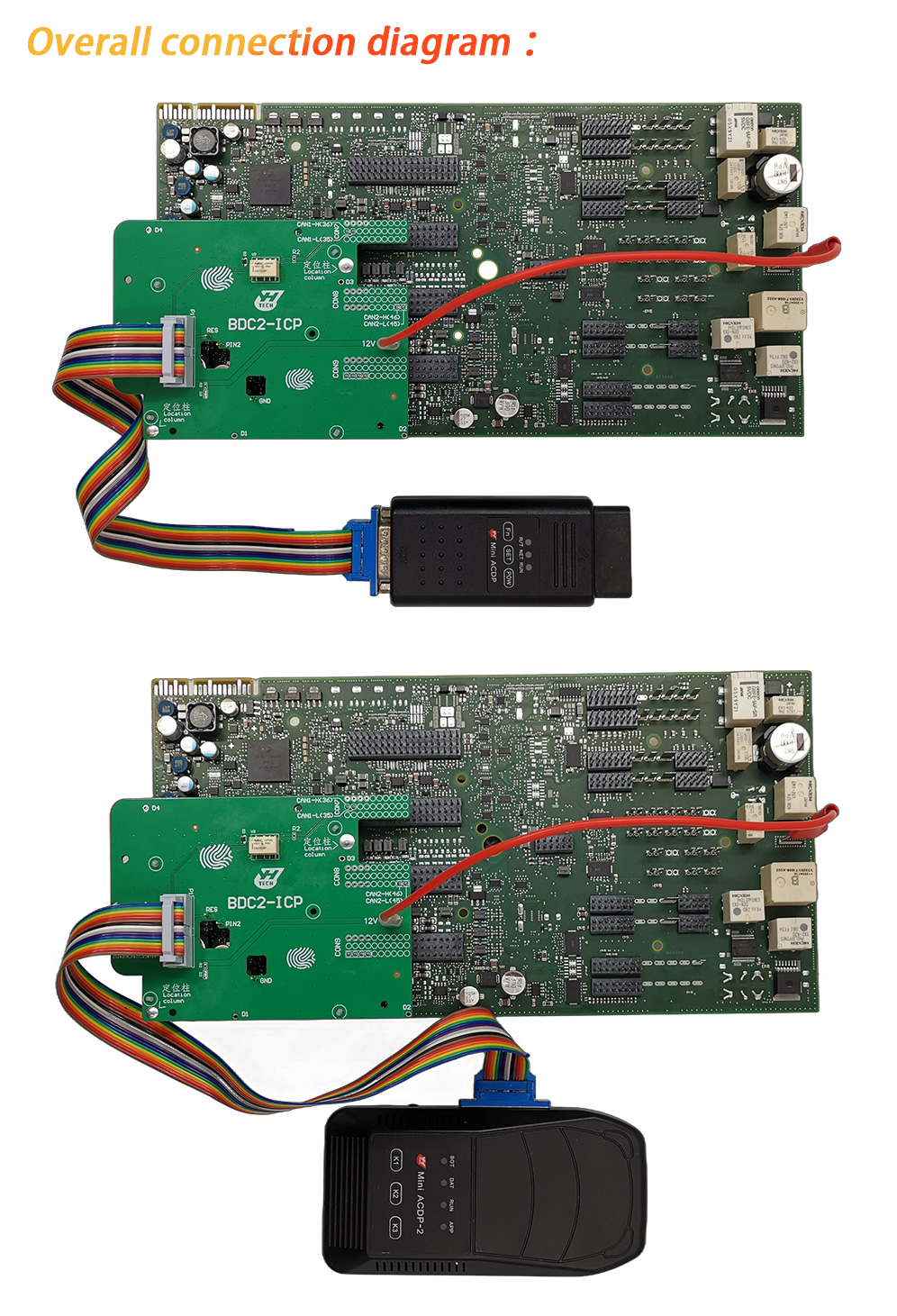

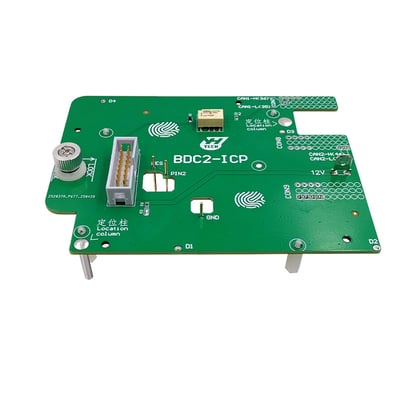

Just need to insert the interface board to the BDC2 module directly.
Fully automatic operation, no need to manually plug and unplug the connection during operation, safe and stable.
Supports original key and aftermarket key.
