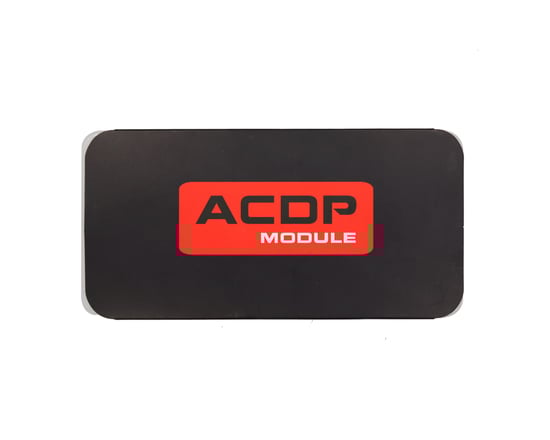

Yanhua ACDP Module 13-VW / Audi Gearbox Clone

Yanhua ACDP Module 13-VW / Audi Gearbox Clone

Product Description:

Additional Adapter Accessories From YanhuaACDP with Product Number: MK19869
This Weight Product: 200g

Specs:

Manufacturer: YanhuaACDP
Condition: New

ACDP Module13 VW / Audi Gearbox Clone

Module function：

Support VW (Volkswagen), Audi DQ200 (0AM / 0CW), DQ250 (02E / 0D9), DL382 (0CK), DL501 (0B5), VL381 (0AW) models and etc.

Module features：

The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

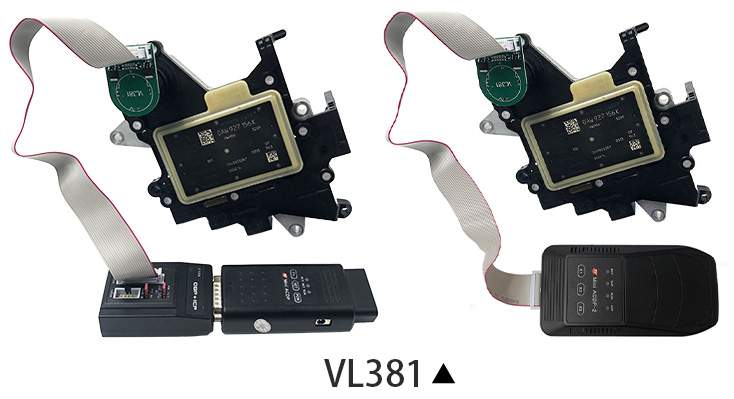

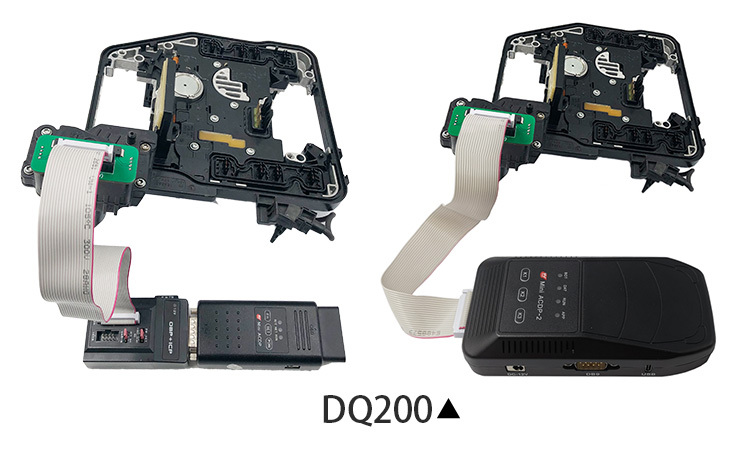

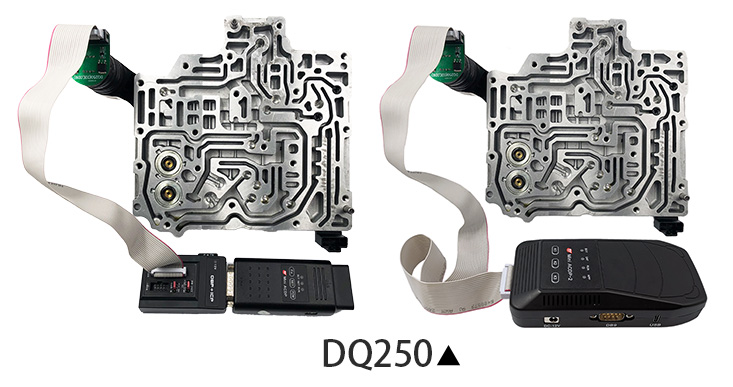

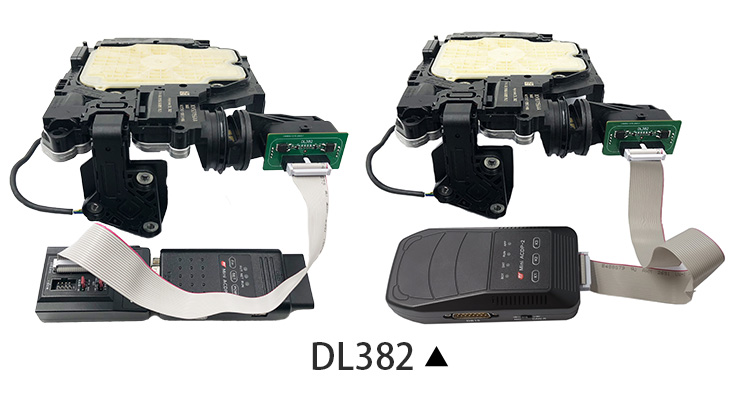

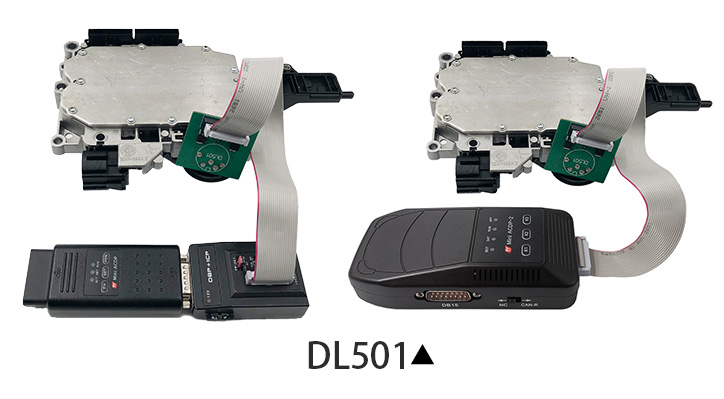

Overall connection diagram：

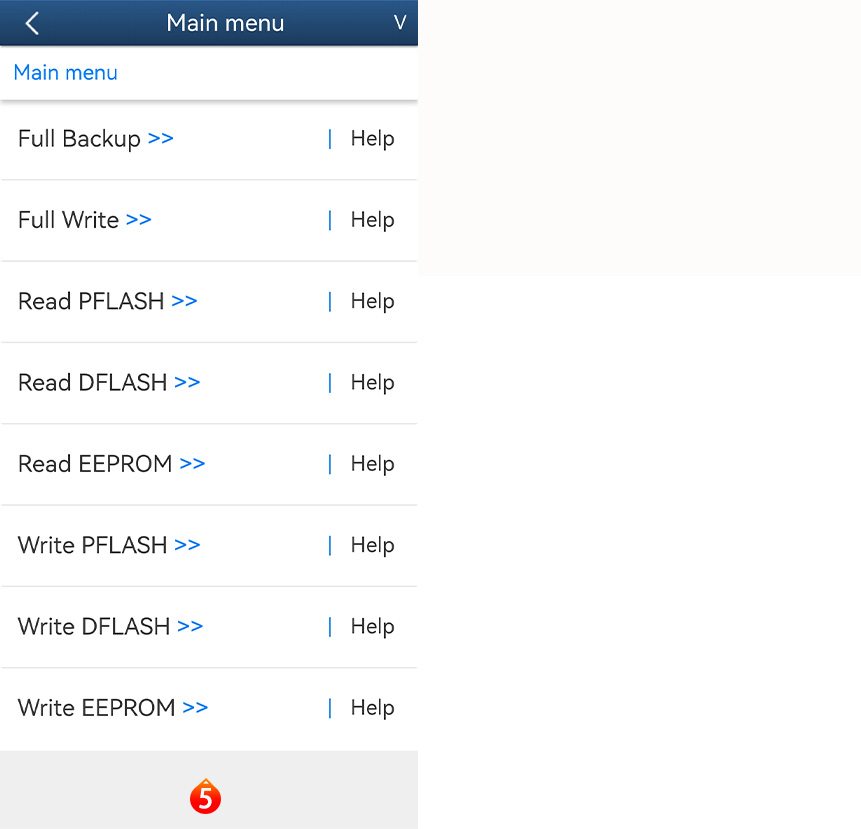

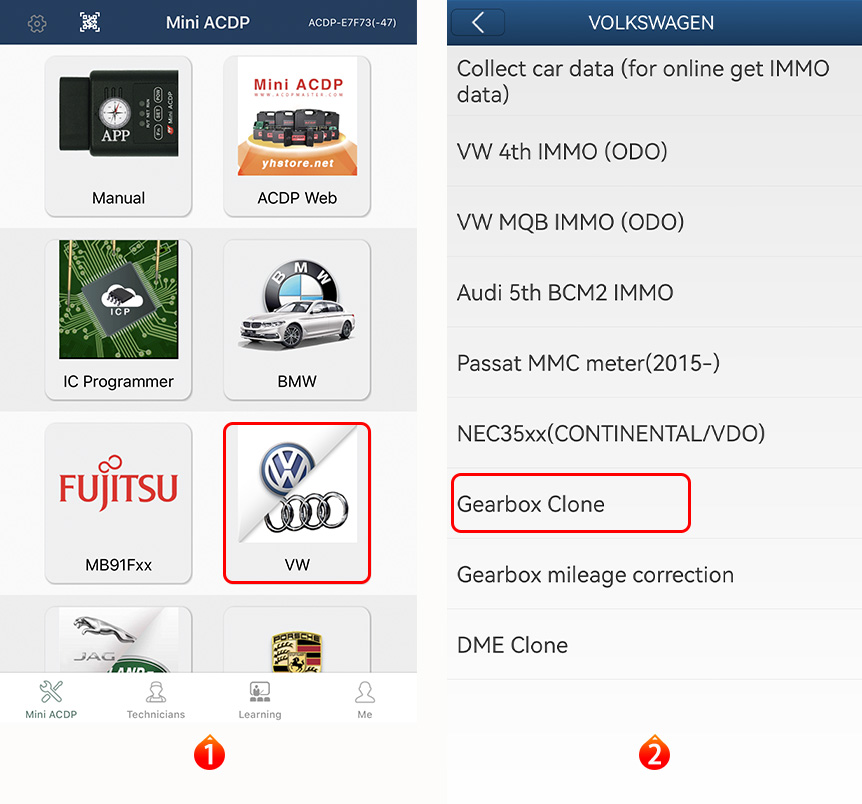

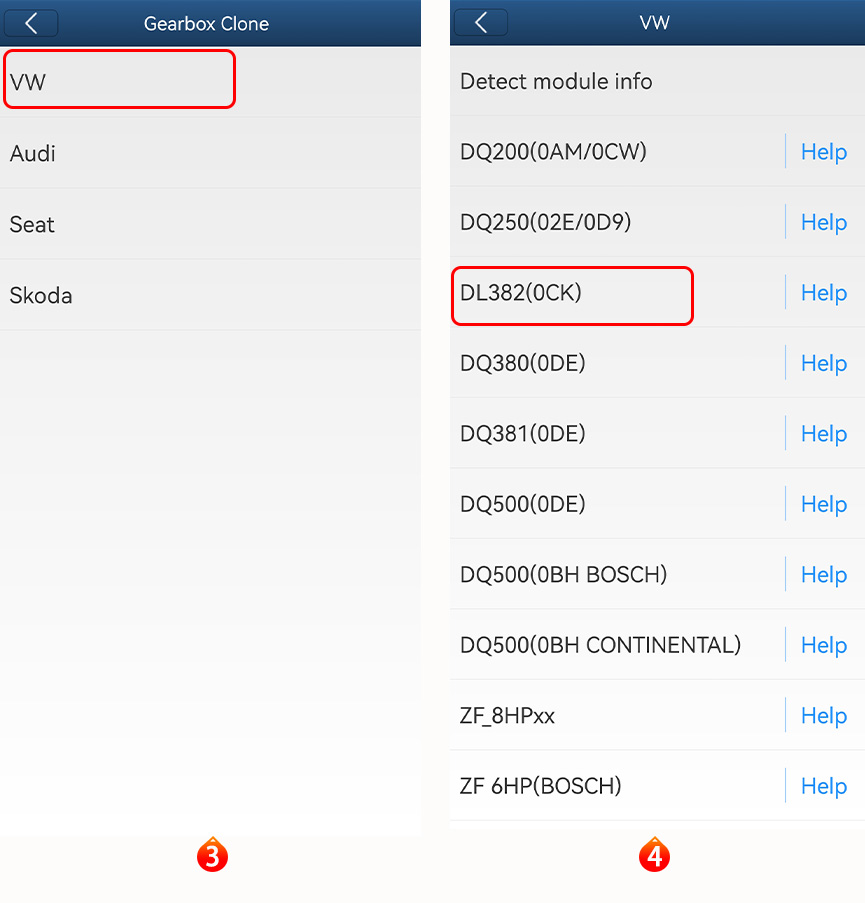

APP operation interface：

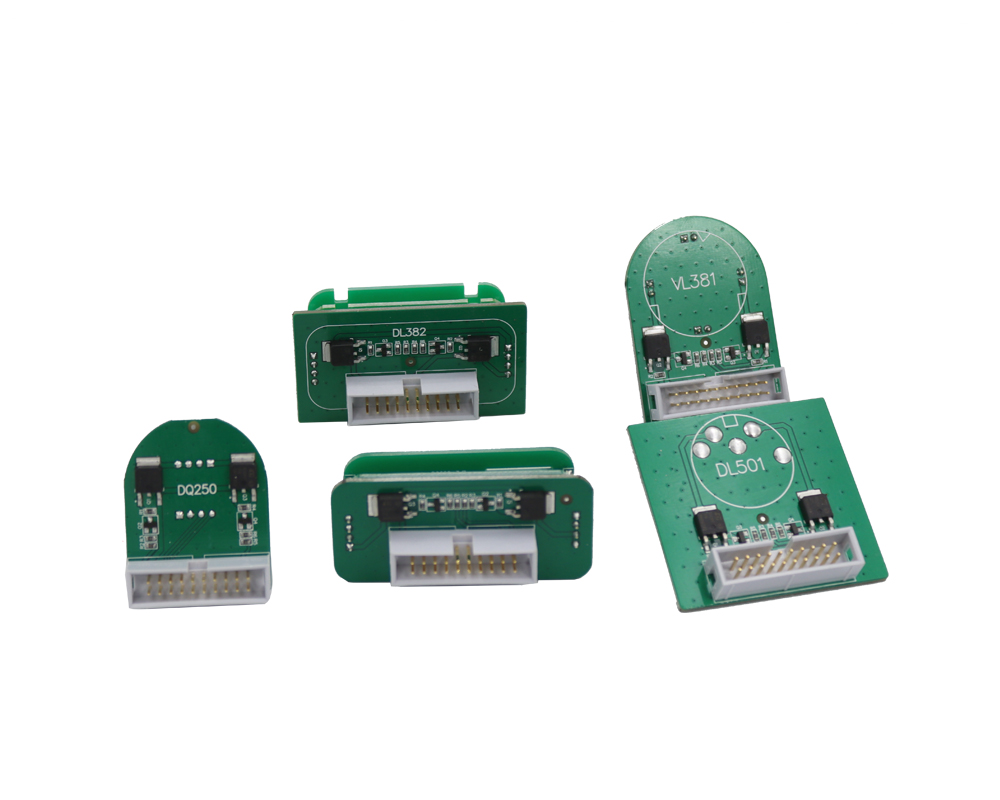

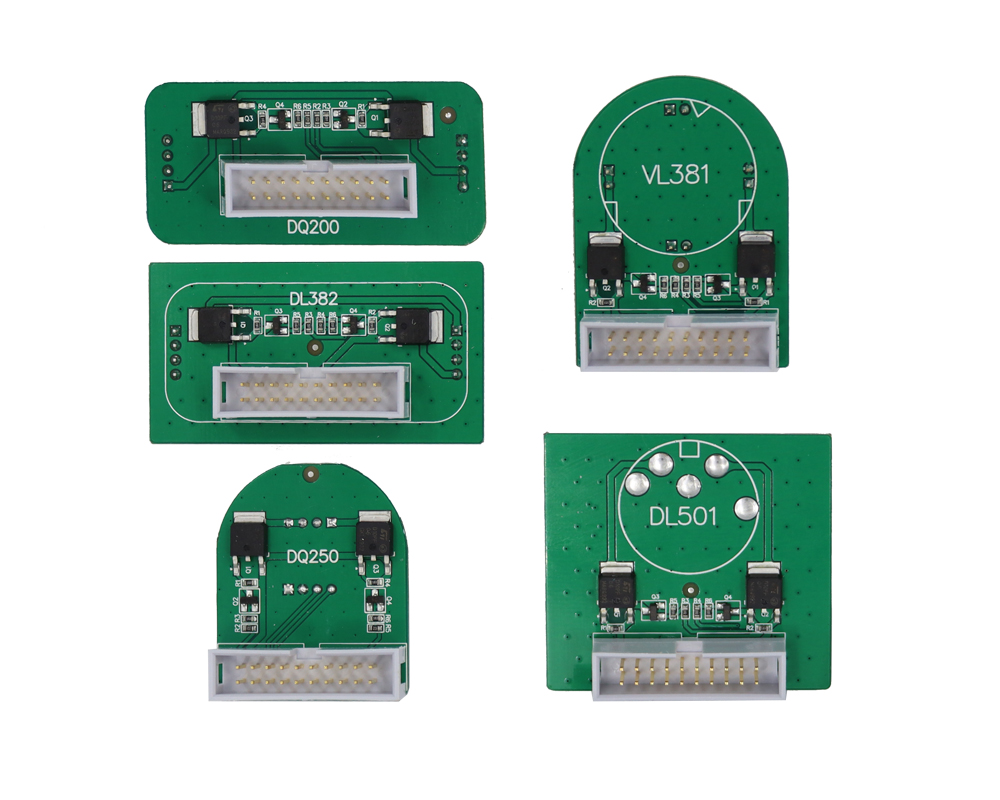

Configuration List:

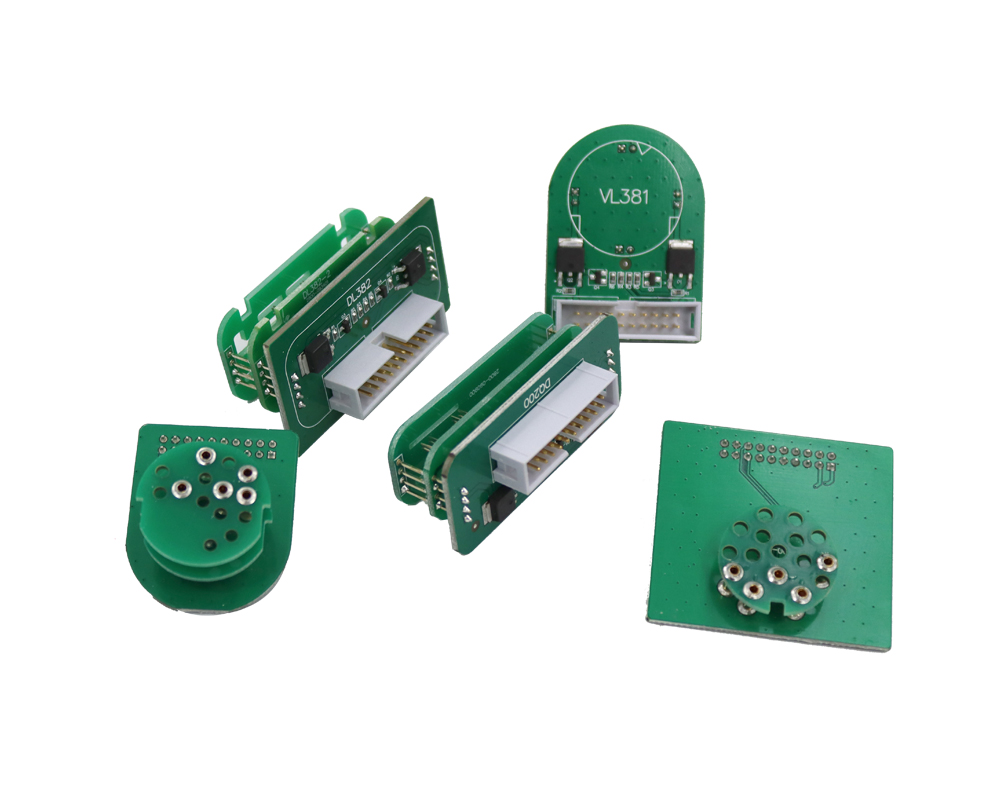

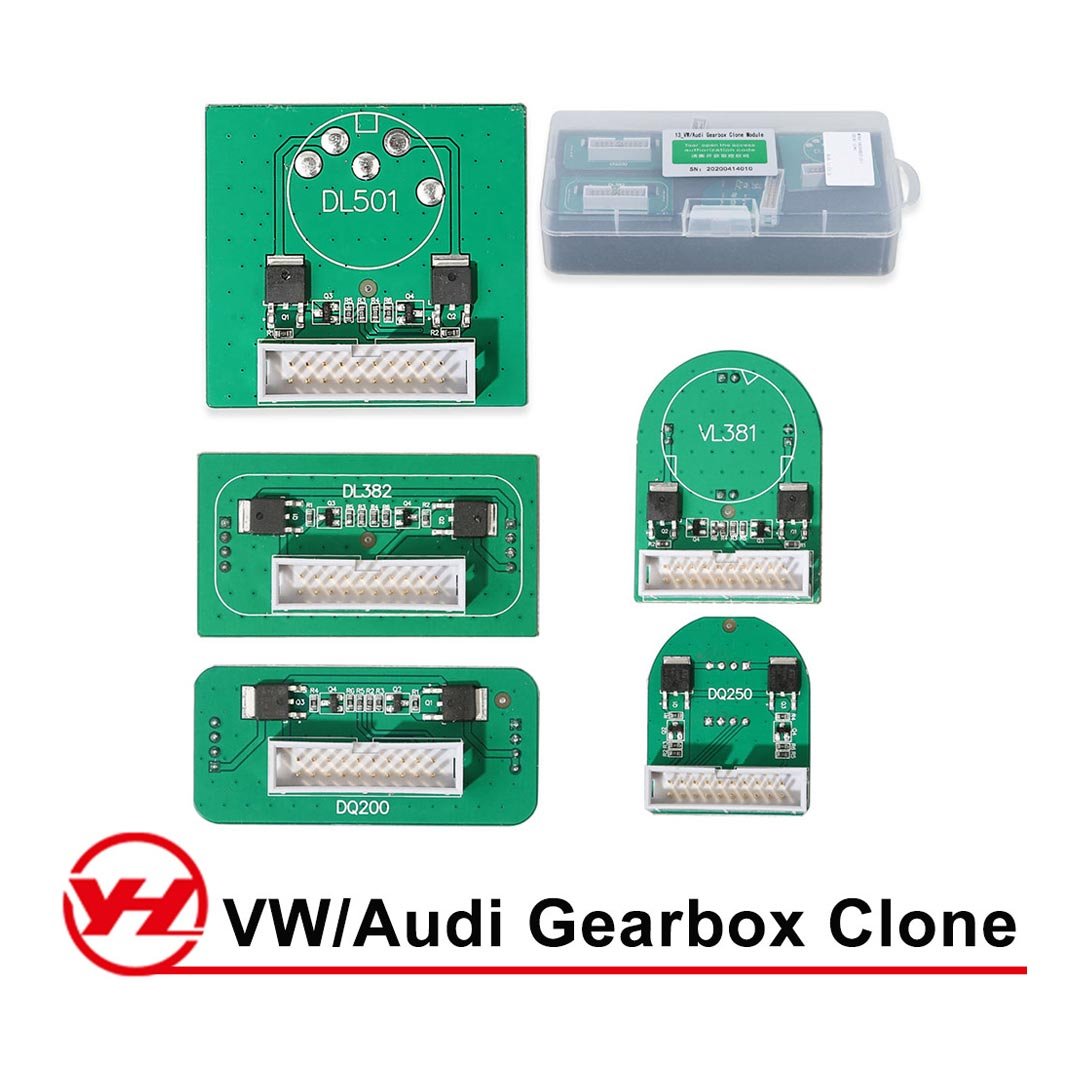

ACDP Configuration List (Module 13 VW/Audi Gearbox Clone)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	DL382 Interface board		Applicable to connect VM/Audi DL501 gearbox	1
2	DL501 Interface board		Applicable to connect VM/Audi DL501 gearbox	1
3	DQ200 Interface board		Applicable to connect VM/Audi DQ200 gearbox	1
4	DQ250 Interface board		Applicable to connect VM/Audi DQ250 gearbox箱	1
5	VL381 Interface board		Applicable to connect VM/Audi VL381 gearbox	1

Extra Details:
