Autel MaxiVideo MV480 Digital Inspection Videoscope Device No IP Restriction MK7512
Autel MaxiVideo MV480 Digital Inspection Videoscope Device
Autel MaxiVideo MV480 Digital Inspection Videoscope Device
Autel MaxiVideo MV480 Digital Inspection Videoscope Device | MK3 -| thumbnail

Autel MaxiVideo MV480 Digital Inspection Videoscope Device

No IP Restriction

Write Review
$275.00 (€261.25)
Add to Wishlist
Product Code: MK7512
Categories Diagnostic Tools
Manufacturer Autel
In StockIn Stock New ArrivalNew Arrival
Product Specifications
Manufacturer Autel
Condition New
Weight 2650 g

Autel MaxiVideo MV480 Digital Inspection Videoscope Device 2 Years Update Subscription


Product Description:

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device

Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK7512

Specs:

Manufacturer: Autel
Condition: New

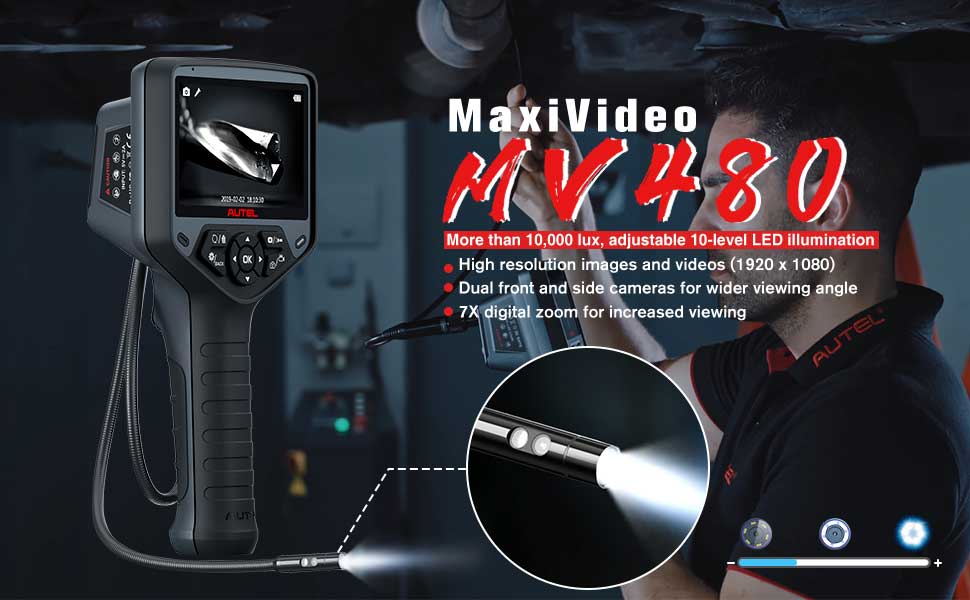

Autel MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

The Maxivideo MV480 Digital Videoscope is a professional imaging tool with a display from which it is used to display parts that are difficult to see in vehicles.

The Autel Maxivideo MV480 Digital Videoscope is a self-display professional imaging tool used to display parts that are difficult to see in vehicles.

The MV480 Videoscope, produced by Autel and the latest in the series, allows you to record images in MPEG1 or MPEG2 image formats.

It contains an external SD card so you can transfer the images you have saved to your computer.

You can also play this data through the digital display on the MV480.

Thanks to its dual front and side cameras, it has a wide viewing angle and great features designed to keep you from overlooking all the areas you want to view.

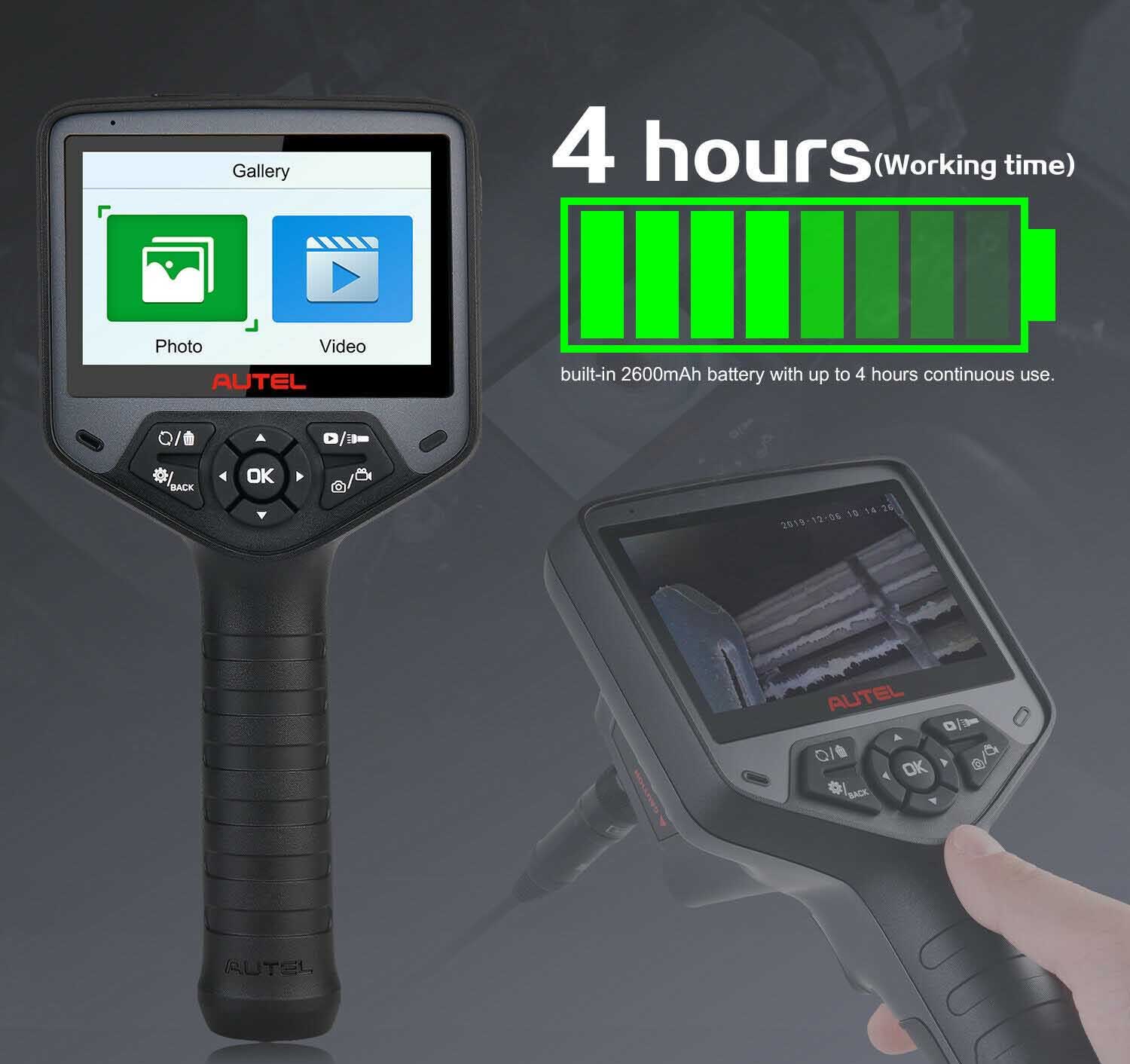

Thanks to its 2600 mAh battery, it offers uninterrupted use for 4 hours.

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device is a professional tool it is used to display parts that are difficult to see in vehicles

Why use the Autel MV480 Digital Videoscope?

It is sometimes impossible for us to see every point with the eye in terms of functionality in vehicles and in many areas.

The areas we want to view can be very narrow or difficult to reach.

With the MV480 Videoscope, which comes into play in these areas, you will be able to reach every point and even see the blind spots.

Autel MV480 Properties:

  • High-resolution images and videos (1920 x 1080)
  • Wide viewing angle for dual front and side cameras
  • 1-inch full color LCD display (1200 x720)
  • Quick image capture and video recording
  • 70 degree field of view for extended viewing angle
  • Audio function for detailed review
  • Micro HDMI output streams to larger monitors
  • Image freeze function (Freeze-Frame)
  • Ability to use the screen horizontally / vertically
  • Saves and plays images and video clips
  • 7x digital zoom camera feature
  • Supports up to 8GB Micro SD card (internal) up to 128GB
  • Mini USB cable for uploading images and videos (inclusive)
  • LED lighting to 10 Levels
  • Flashlight for higher visibility in low light environment
  • 4-hour continuous use with built-in rechargeable 2600 mAh battery
  • 1m (39.4") semi-hard, flexible waterproof cable
  • Includes magnet and hook cable accessories
  • 8.5 mm (0.33') probe fits many spark plugs
  • 5 mm compatible (0.22') camera head (not included)

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device is a professional tool it is used to display parts that are difficult to see in vehicles

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device is a professional tool it is used to display parts that are difficult to see in vehicles

Autel MV480 Specification

Optimal viewing Distance 0.79" to 2" (2 cm to 5 cm)
Image capture JPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)
Screen type display 4.1" TFT LCD
Display resolution 1200 x 720 pixels
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life Approximately 4 hours of continuous use
Dimensions 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight 0.422 kg (0.93lbs)
Recording medium Micro SD card (8GB Standard/128GB Max)
Image controls Zoom, low light vision
Lighting Fully adjustable LED, Flashlight
Cable reach 1m (39.4")
Imager heads 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports TF, Mini USB, Micro HDMI
Operating temp Main unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp -4°F to 158°F (-20°C to 70°C)
Operating humidity 5% - 95% non-condensing

Comparision of MV400 vs MV500 vs MV480 vs MV460 vs MV160

MaxiVideo
MV400
MaxiVideo
MV500
MaxiVideo
MV480
MaxiVideo
MV460
MaxiVideo
MV160
High resolution and full color digital LCD display 3.5" (320×240) 5” (1280×720) 4.1" (1200×720) 3.5'' (640 x 480) Smartphone-based

Record and play back high resolution still images and

videos

640×480 1280×720 1920 x 1080 1920 x 1080 1920 x 1080
Wireless monitor enables remote viewing -- -- -- --
Touchscreen for convenient operation -- -- -- --
Single button for quick photo and video recording -- --
Add audio annotation for detail presentation -- --
On-screen photo editing and markup -- -- --
Dual cameras see straight ahead or at a 90° angle -- -- --
Digital zoom for detailed viewing
View objects as close as 1"
BOn-screen horizontal/vertical reverse
On-screen 90° clockwise rotation --
Built-in & adjustable LED illuminates viewing area
HDMI port for monitor view -- --
Mini USB connector for uploading images and videos --
1 m long semi-rigid flexible watertight shaft
Narrow probe diameter available in both 5.5 mm and 8.5 mm 8.5 mm 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional)
Micro SD card slot for greater memory capacity --
Oil and scratch resistant tempered glass lens
Ergonomic and durable tool housing
Built-in rechargeable Li-ion battery
Multilingual support
Water Resistant Camera head

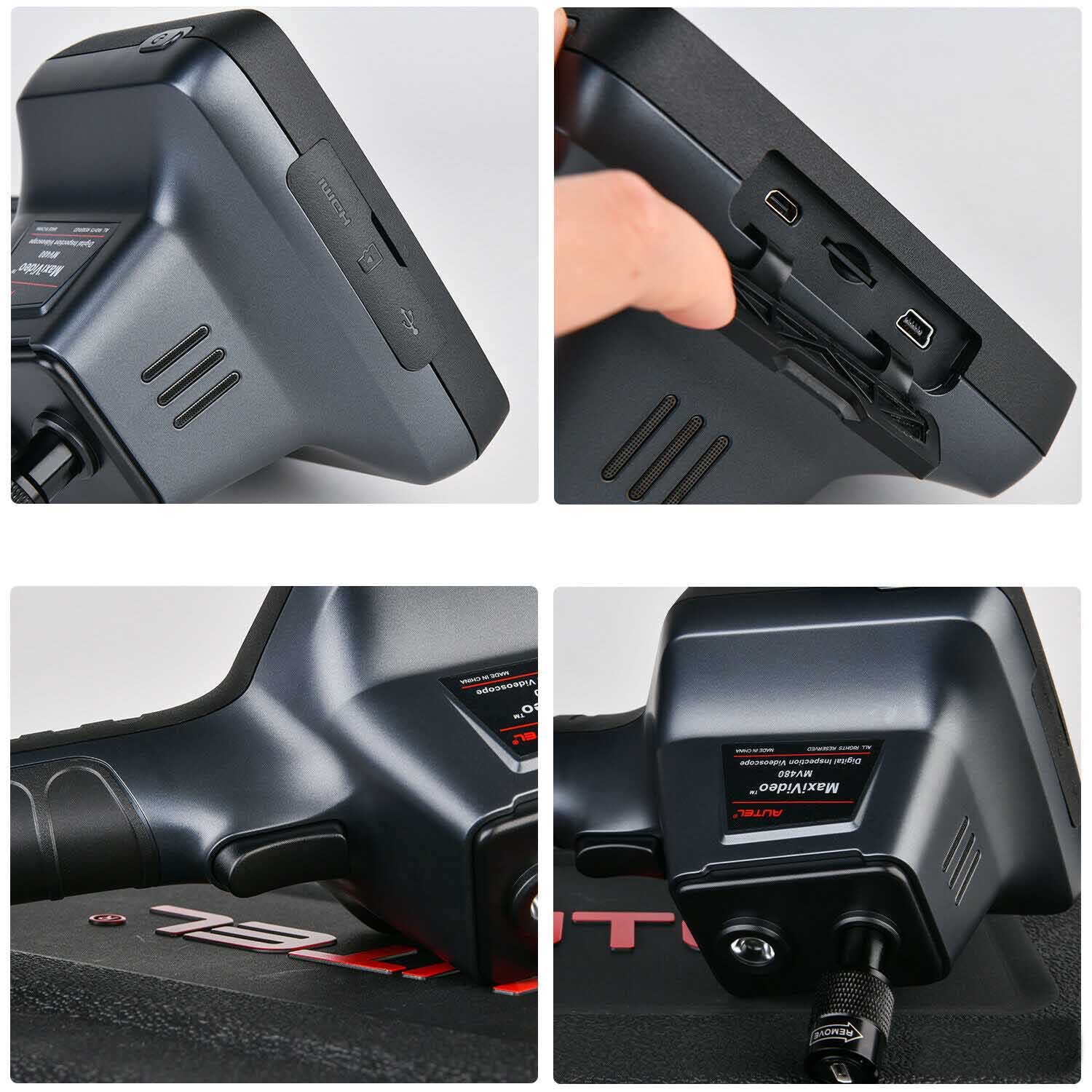

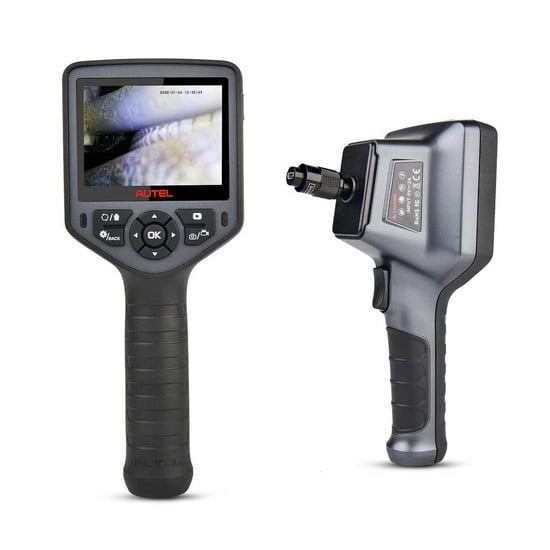

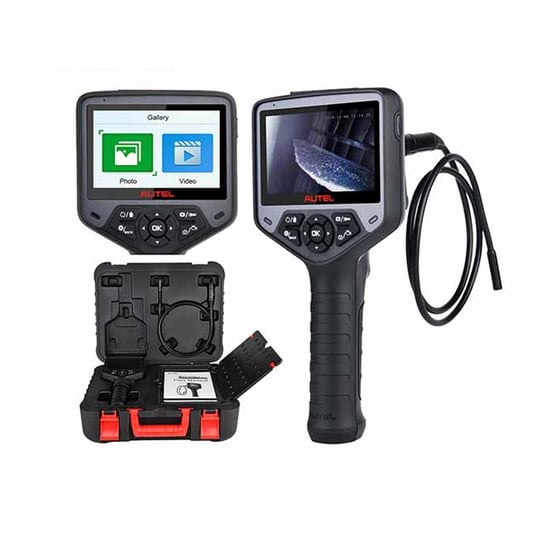

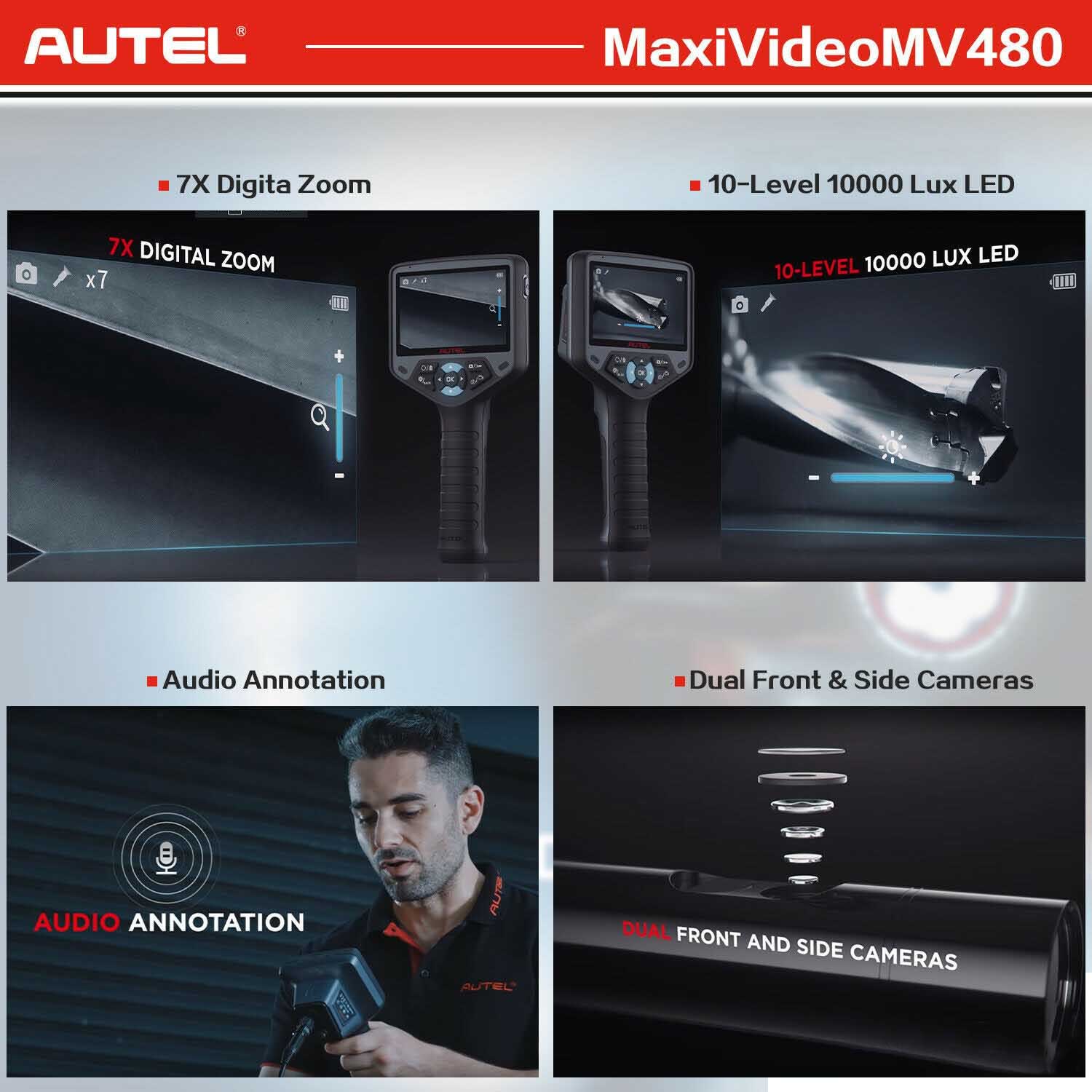

Autel MV480 Product Display:

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device is a professional tool it is used to display parts that are difficult to see in vehicles Product Display:

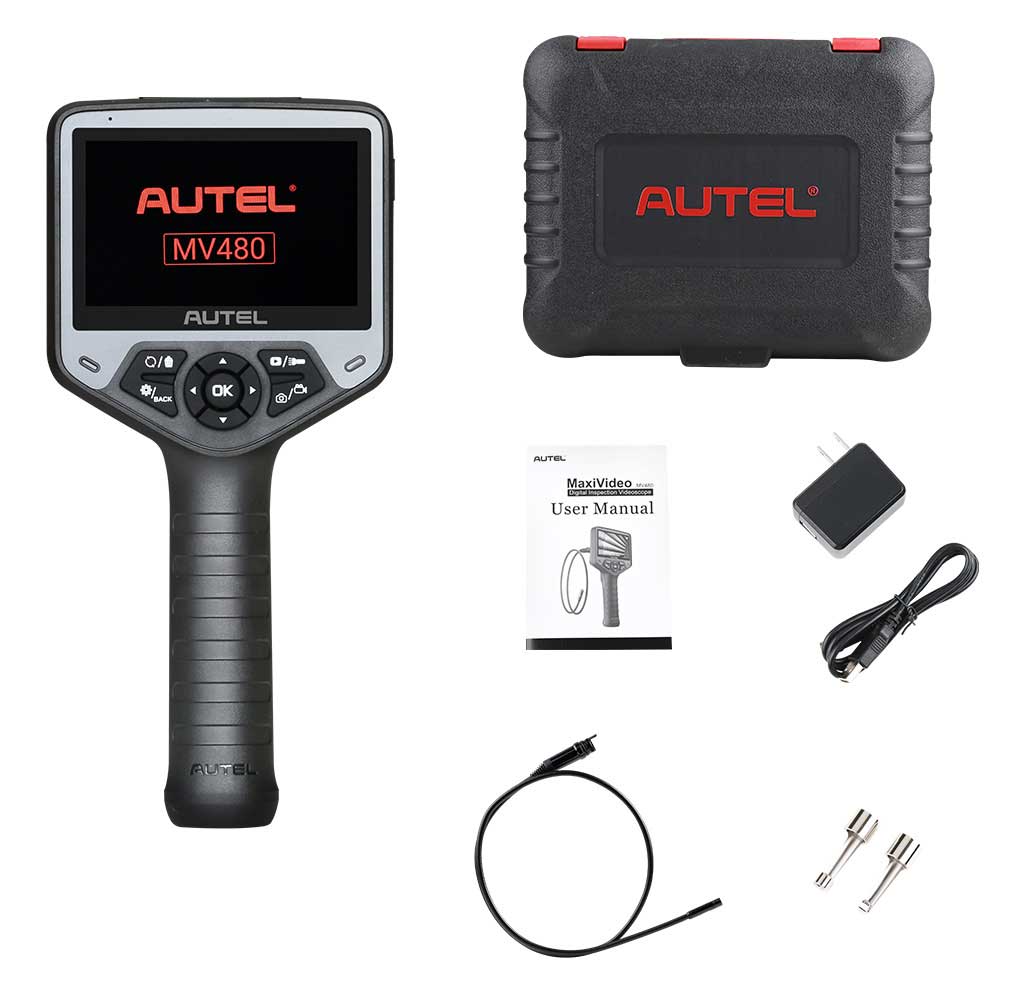

Autel MV480 Package Content:

  1. 1x MV480 main Unit
  2. 1x Magnet and Hook
  3. 1x Imager Heads and Cable (8.5 mm)
  4. 1x User Manual
  5. 1x Protective carrying case
  6. 1x Micro SD card
  7. 1x Charger
  8. 1x RS232 Serial Cable
  9. 1x Mini USB Cable

New Autel MaxiVideo MV480 Digital Inspection Videoscope Device is a professional tool it is used to display parts that are difficult to see in vehicles Package List:
