Fortin EVO‐ONE Remote Starter Engine, Security System And Data Interface

Fortin EVO‐ONE Remote Starter Engine, Security System And Data Interface

Product Description:

Keyless Entry & Engine Start Systems From Fortin with Product Number: MK20064

Specs:

Manufacturer: Fortin
Condition: New

The EVO-ONE is the ultimate and smallest ALL-IN-ONE HIGH POWER data immobilizer bypass, doorlock, security system & remote start interface. Compatible with all EVO-ALL T-Harnesses and also providing a new broad access to High Power T-Harnesses the EVO-ONE now sets the industry benchmark to a higher level. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple micro controller and bus architecture which redefines the word Remote Starter. This unit is much more powerful than most entry level vehicle's BCM. EVO-ONE is an impressive state of the art unit at reachable cost.

Fortin EVO-ONE WORKS WITH

• FLASH LINK MANAGER
• DCRYPTOR
• RF KITS
• TELEMATIC & GPS MODULES
• SENSOR MODULES
• EXTERNAL TRIGGERS

Fortin EVO-ONE FEATURES:

• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Harness part bag.
• 2 x 2-way datalink port for data-to-data (RS-232) communication with compatible external devices such as smartphones & GPS telematic units.
• 1 x All EVO-ALL I/O's for full fledge Data and Analog vehicle functions coverage.
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Fortin EVO-ONE SPECIFICATIONS:

• 5 x High power Onboard relay.
• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, LIN, Class 2, encrypted key etc.).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (Passlock, Parking lights, MUX).
• 10 x Data I/O controllers.
• 1 x Dual zone shock sensor input.
• 2 x Datalink RS232 ports.

Fortin EVO-ONE PARTS INCLUDED:

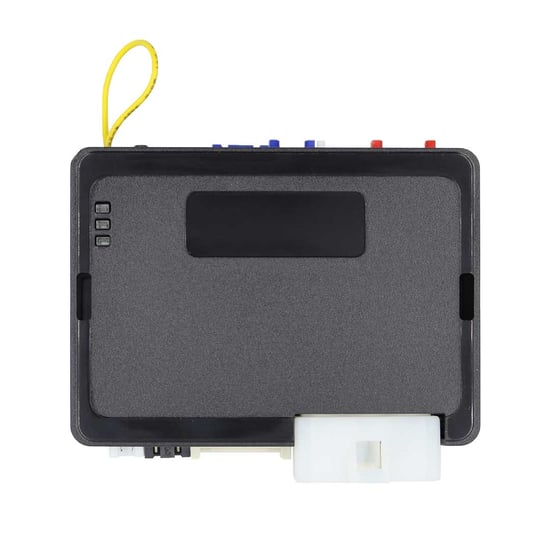

• 1 x EVO-ONE control module.
• 1 x Warning label.

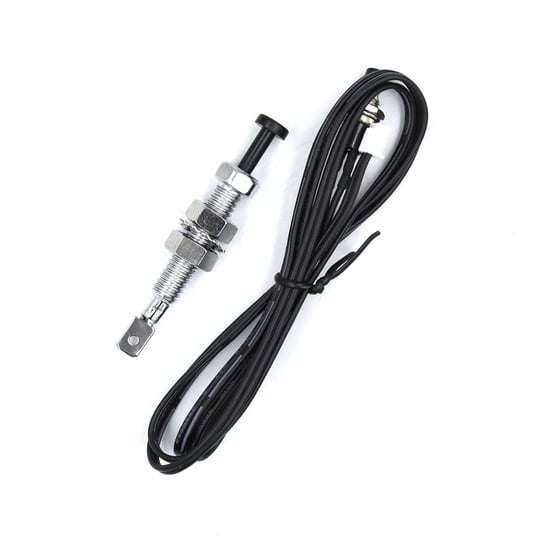

• 1 x Hood Pin switch.

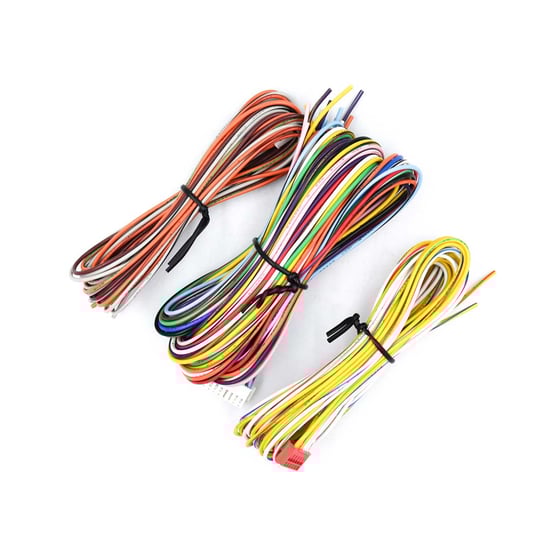

• 1 x 20 Pin general purpose harness.

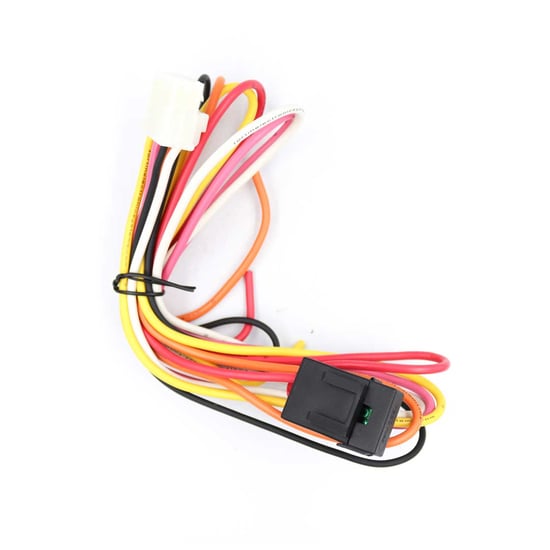

• 1 x 6 Pin High Power Harness.
• 1x 5-pin CAN-Bus harness.
• 1x 6-pin Relay harness.

Fortin EVO-ONE SUPPORTED VEHICLES:

7113 SUPPORTED VEHICLES
