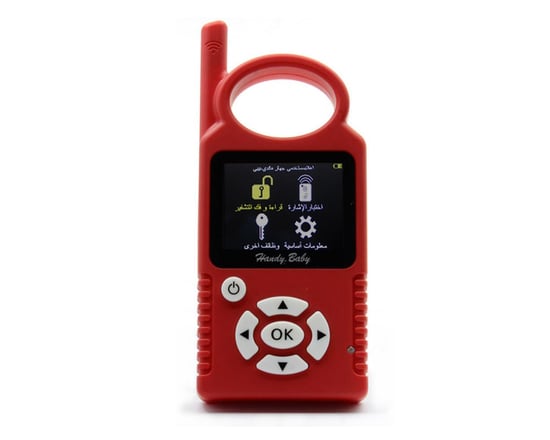

JMD / JYGC Handy Baby Hand-held Car Key Copy Auto Key Programmer for 4D 46 48 Chips Arabic Version with G Activation

JMD / JYGC Baby Hand-held Car Transponder Key Copy Auto Key Programmer for 4D 46 48 Chips Arabic Language with G Activation

Product Description:

Key Programming Tools From JMD with Product Number: MK5877
This Weight Product: 300g

Handy Baby Hand-held Car Transponder Key Copy Specs:

Manufacturer: JMD / JYGC
Color: Red
Condition: New
Language: Arabic

CBAY Key Copy Programmer Recognize and Copy:

Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68/71. Able to tell if 48 chip is from original or deputy factory.
Copy: Copy 46, 4D and a partial of original 48 I.E for Buick for Excelle, you have to use special GMT46/4D Chips, ID48 chips which can change ID.

Handy Baby Hand-held Car Transponder Key Copy Operation steps:

1. Turn on: long press the "On" button.
2. Turn off: long press the "On / off" button or "On / off" and "OK" button
3. Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.

Chip 46, 4D and 48 as a sample

Steps to copy 46:

1. Press "OK" to decode
2. Make antenna close to coil
3. Insert and turn the key (collection)
4. Put original key into coil to decode
5. Put new key into coil to copy

Steps to copy 4D:

• Press "OK" to decode, then put new key into coil to copy.

Steps to copy 48:

• Press "OK" to decode, then put new key into coil to copy.

CBAY Key Copy Programmer Initialize:

• Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased.
• Enter program, select the chip type, press "OK" to restore to factory settings.

CBAY Key Copy Programmer Test Frequency:

Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.

CBAY Key Copy Programmer Data read and write:

1) Read and write 46 chip

1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password.
4. After finish press "OK"to exit, then move cursor to "Read all" to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.

2) Read and write 48 chip

1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked or unlocked.
2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to "Write" to write data.
4. Unlock: if the chip is locked, then it needs to be unlocked before writing into data.
5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to "Unlock", press "OK" to unlock.

3) Read and write 4D chip

1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to "Write" to write data.
3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
5. Car ignition check: enter the verification code, then it will return corresponding signature.

4) Generate chip

Chip 67 and 68: need the unlocked 4D chip to generate.
48 chip: able to generate chip for only Seattle TA, VW TA, for Skoda TA, for Audi TA, for SEAT TP, VW TP, for Skoda TP, for Audi TP and for Jetta
