Tmpro SW 191 - BMW bike 2012 immobox EWS MK18391
Tmpro SW 191 - BMW bike 2012 immobox EWS
Tmpro SW 191 - BMW bike 2012 immobox EWS

Tmpro SW 191 - BMW bike 2012 immobox EWS

Write Review
$1,304.34 (€1,200.00)
Add to Wishlist
Product Code: MK18391
Categories Software Activation
Manufacturer TMPRO
In StockIn Stock Digital ProductDigital Product
Product Specifications
Manufacturer TMPro

Tmpro SW 191 - BMW bike 2012 immobox EWS


Product Description:

Software module 191 – BMW bikes 2012 immobox EWS Written transponder is ready programmed to start bike.

Software Activation From TMPRO with Product Number: MK8391

Specs:

Manufacturer: TMPro

Memory device is Motorola 9S12G128.
You can read Motorola 9S12G128 with TMPro

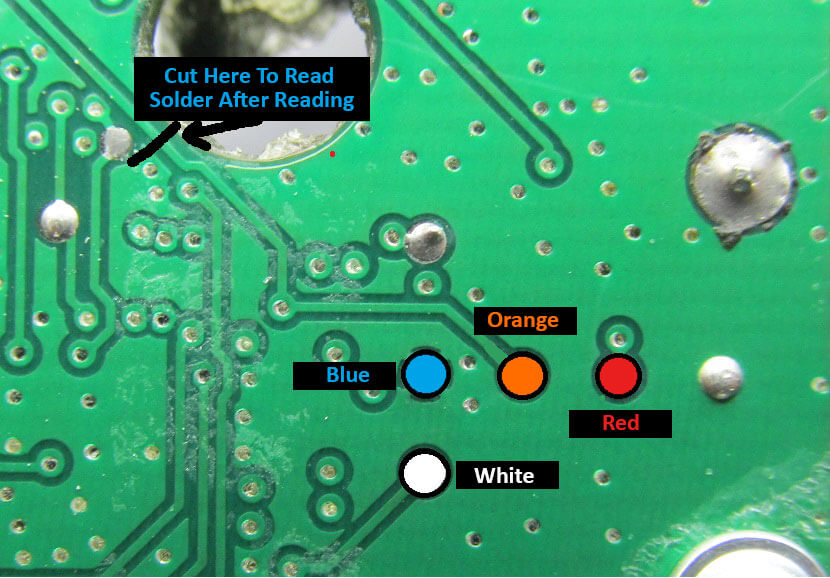

Module 191 Connect Motorola Diagram
If Motorola is locked, TMPro will unlock it automatically before to read eeprom area.
Expected file size is 4096 bytes.
Also you cansynchronise engine ECU and immobox if they are not matched pair.
Use Texas Crypto 40/80 bit transponder, for example Ford 80-bit


Below may be a procedure the way to match BMW immobox and engine ECU:
1.Read the EEPROM area from TRICORE MCU in engine ECU. you would like a tool which will read TRICORE MCU.
2.Connect EWS to TMPro and begin the software.
3.Select manually correct software - software 191 for normal key or software 198 for push-start.
4.Load the TRICORE enter TMPro.
5.Press the SELECT AND WRITE storage device button.
6.TMPro will open a window for file loading.
7.Here you want to select a file that you simply want to write down into EWS.
- if you would like to use your file for this EWS - select that file and press OK.
- if the file for EWS doesn`t matter - press Cancel.TMPro will use a built-in software EWS file.
8.TMPro will transfer VIN and synchro data from the ECU file to the EWS file. The procedure for matching will begin.
9.At end of the procedure TMPro will read the EEPROM area.
10.Program new transponder(s).
Job done.


Written transponder is ready programmed to start bike.
Vehicles equipped with this unit:
BMW motorbike: R1200GS, K1300, F800
