New MAGIC DC/DC Converter is a device suitable for control unit programming with Flex. Voltage values can be adjusted during chiptuning operations | MK3

New

MAGIC Motorsport DC/DC Dönüştürücü – Ayarlanabilir DC Stabilize Güç Kaynağı

MAGIC FLX4.92 DC/DC Dönüştürücü, Flex ile kontrol ünitesi programlaması için uygun bir cihazdır. Voltaj değerleri, chiptuning işlemleri sırasında ayarlanabilir.

$45.63

Category: Ek Adaptör

Üretici: MAGIC Motorsport

Stok Durumu: Stokta var

Stok Kodu: MK27726

GTIN: 3841654192232

Adet:

Ürün nitelikleri

Ürün nitelikleri

Nitelik Adı	Nitelik değeri
Manufacturer	MAGIC
Condition	Sıfır

Full Description:

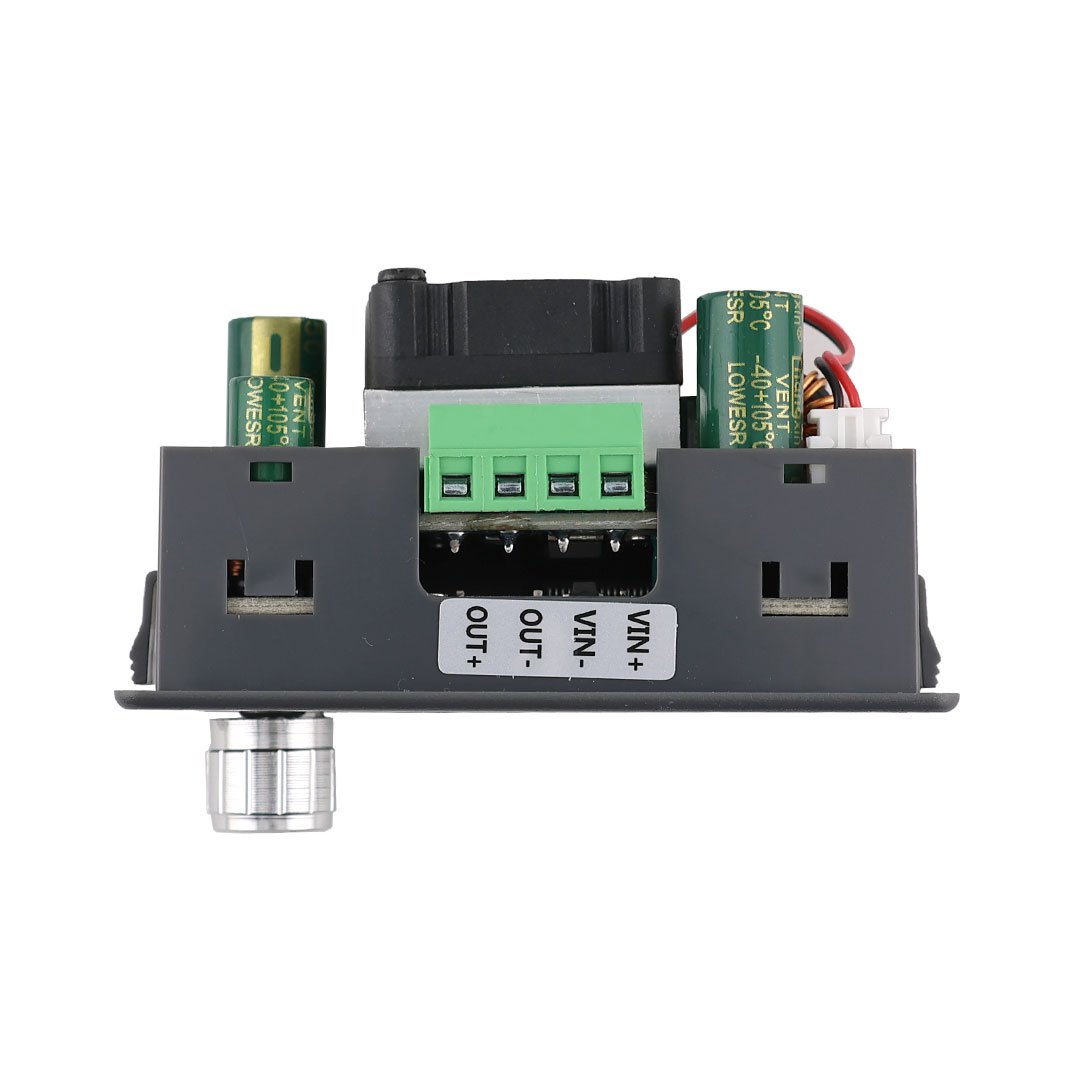

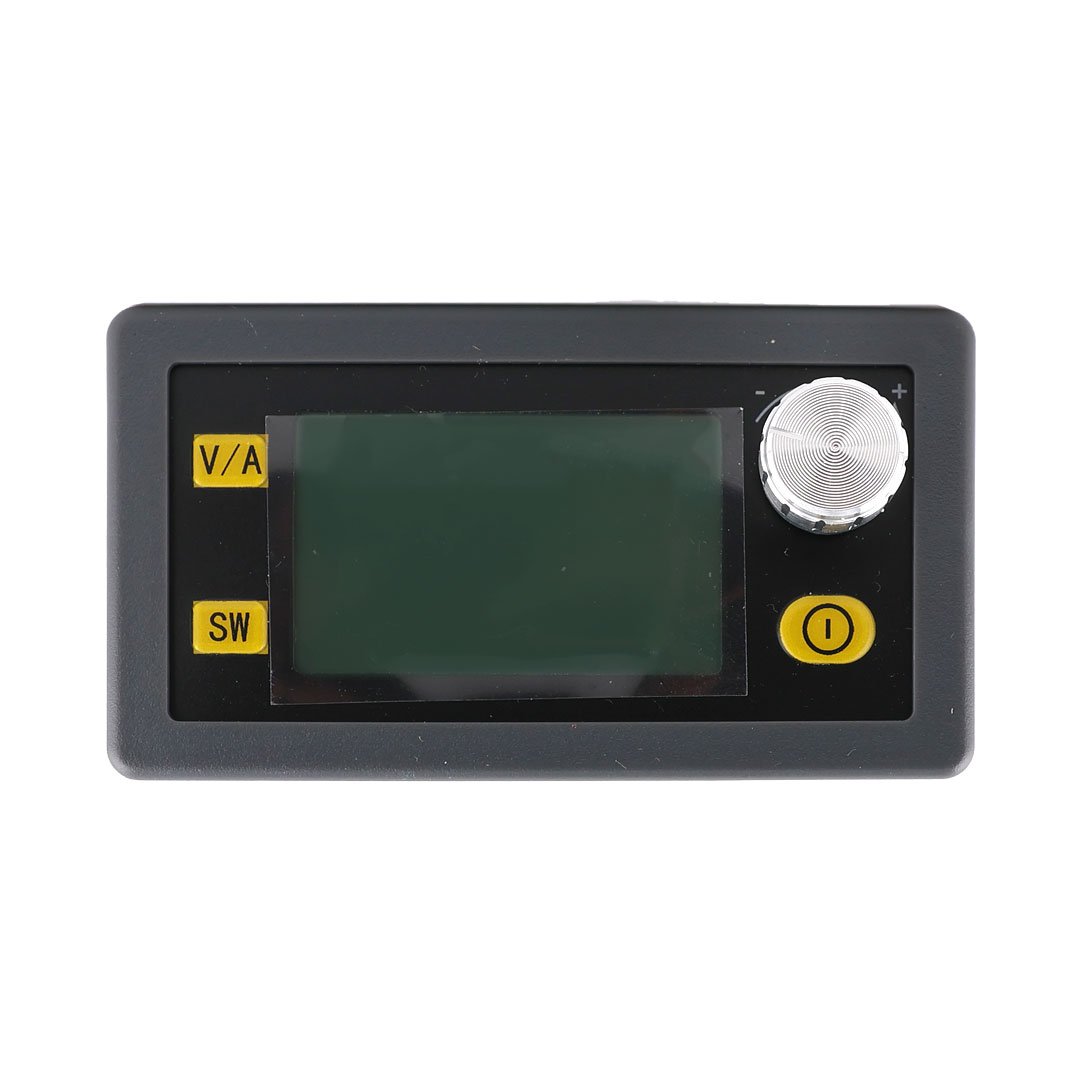

MAGIC FLX4.92 Motorsport DC/DC Converter - Adjustable DC Stabilized Power Supply

Product Description:

The DC/DC Converter allows you to adjust constant voltage values during control unit reading and writing with Flex.

Module connection occurs between the programmer and the electronic unit.

In specific operations, the Flex software will require the use of the DC/DC converter during unit programming.

Cables From MAGIC with Product Number: MK27726
This Weight Product: 120g

Main features:

Easily adjustable voltage
Compatible with Flex programmer
Compatible with electronic units in Bench mode
Display LCD

Compatible models:
Marelli 6F3 - Bench

Marelli 6JF - Bench

Marelli 6JO - Bench

Marelli 6O2 - Bench

Marelli 6O3 - Bench

Bosch MSE6.0 - Bench

Bosch US6.0 - Bench

Specifications

Item Type: Adjustable Power Module
Material: ABS
Input Voltage: 6.0-36V
Output Voltage: 0.6-36V
Output Current: 0-5.0A
Voltage accuracy: ±0.5% +1 word
Output Power: 80W
Current accuracy: ±0.5%+3 words
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Conversion efficiency: about 88%
Soft start: yes
Weight: approx. 110g / 3.9oz
