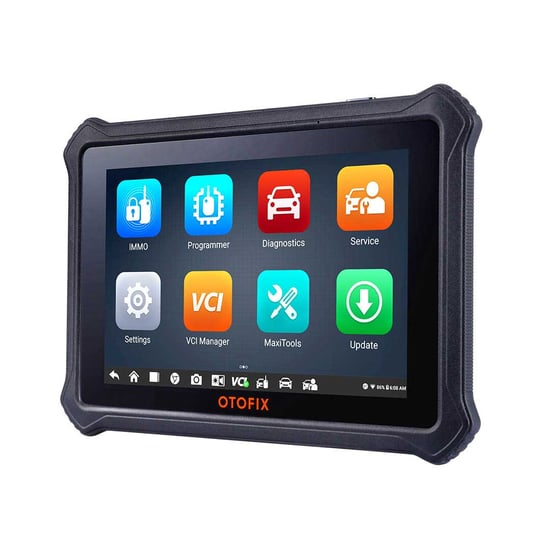

Autel Otofix IM1 Key Programming Tool Device

1 Year Update For The First Time

Write Review
$845.00 (€785.85)
Add to Wishlist
Product Code: MK7517
Categories Key Programming / ECU Diagnostics Tools
Manufacturer Otofix
In StockIn Stock
Product Specifications
Manufacturer Otofix
Condition New

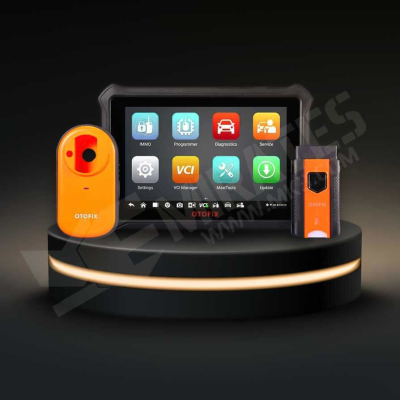

OTOFIX IM1 Professional Diagnostics at Your Fingertips


Smart IMMO Functions

  • Supports OBD key programming for 80% of vehicle models
  • Supports All Keys Lost programming via OBD for Volkswagen IV, V, and MQB IMMO system
  • Supports Add Key and All Keys Lost programming via OBD from CAS1 to CAS4 and IMMO system
  • Supports key programming bypassing PIN code for all 2005-2020 Ford models
  • Supports key programming bypassing PIN code for 2019-2020 Promaster, DT-RAM, Jeep Commander, etc.
  • Supports read password for Hyundai Kia key ID46, 47, 4A, 8A, etc.

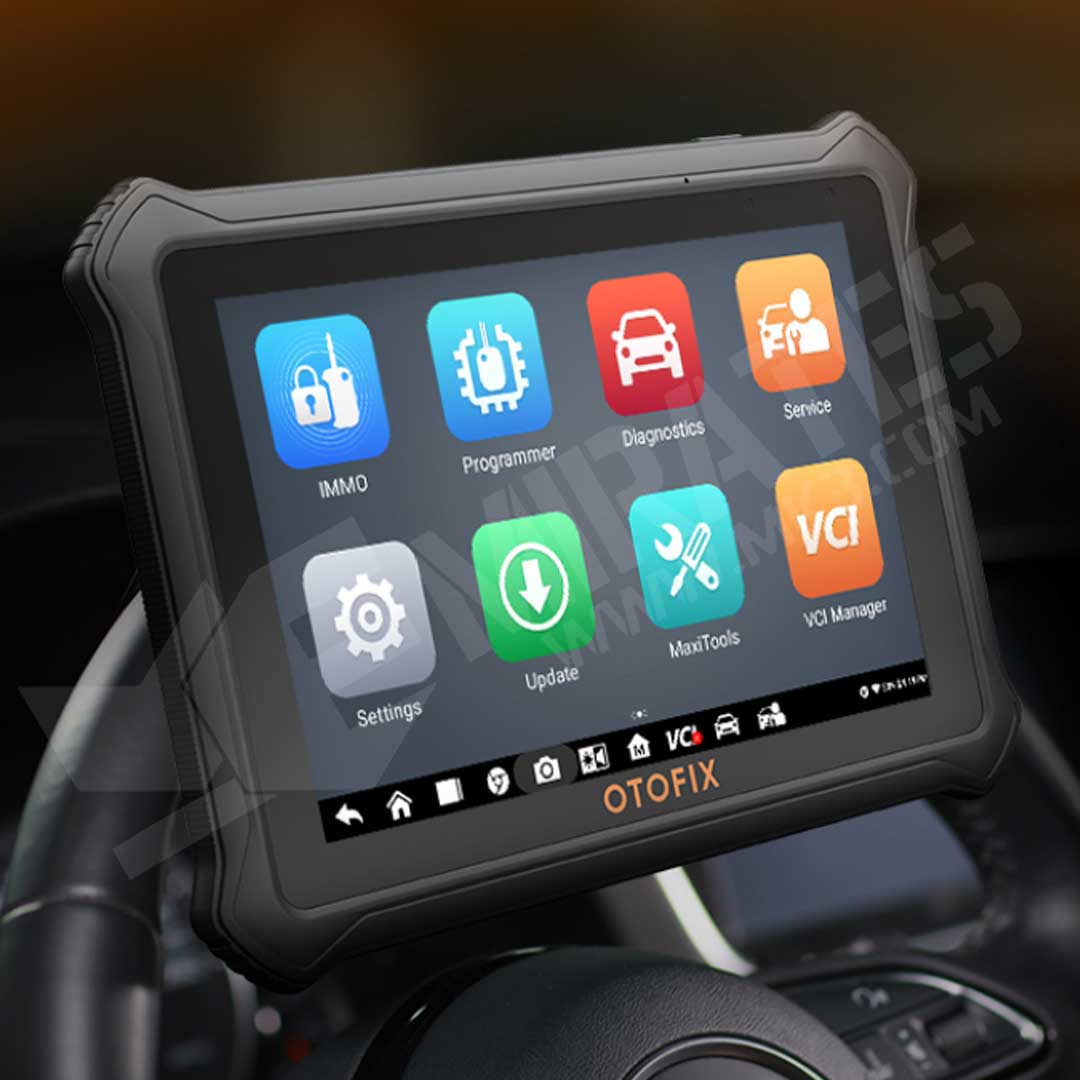

Supports OBD Keys Lost programming PIN code

Supports OBD key programming for 80% of vehicle models and All Keys Lost programming via OBD

Advanced Features

Full systems diagnostics and service by additional purchase for advanced features

  • Diagnostics: Full systems diagnostics and services functions
    • Need XP1 Pro
    • Need G-BOX2
    • Need APB112, G-BOX2, and 8A AKL Cable

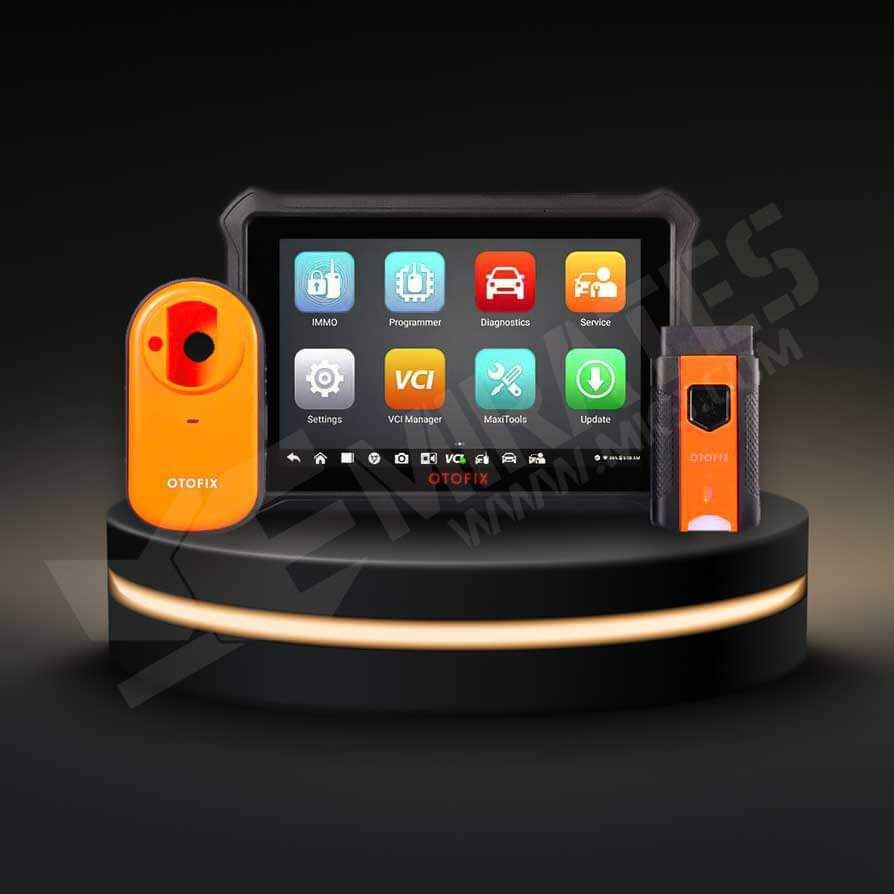

Full systems diagnostics and service by additional purchase for advanced features

One-stop Cloud Service

Our professional and reliable experts are online ready to assist you with any diagnostics problem
Highly detailed diagnostics cases are available for you to consult anytime. (Coming Soon)
All maintenance reports are stored in the cloud, allowing you to view device and test records anytime, anywhere. (coming soon)

Key Programming Coverage: More Than 95% of Common Vehicle Models

Supports key programming for more than 2000 models of more than 60 car series.

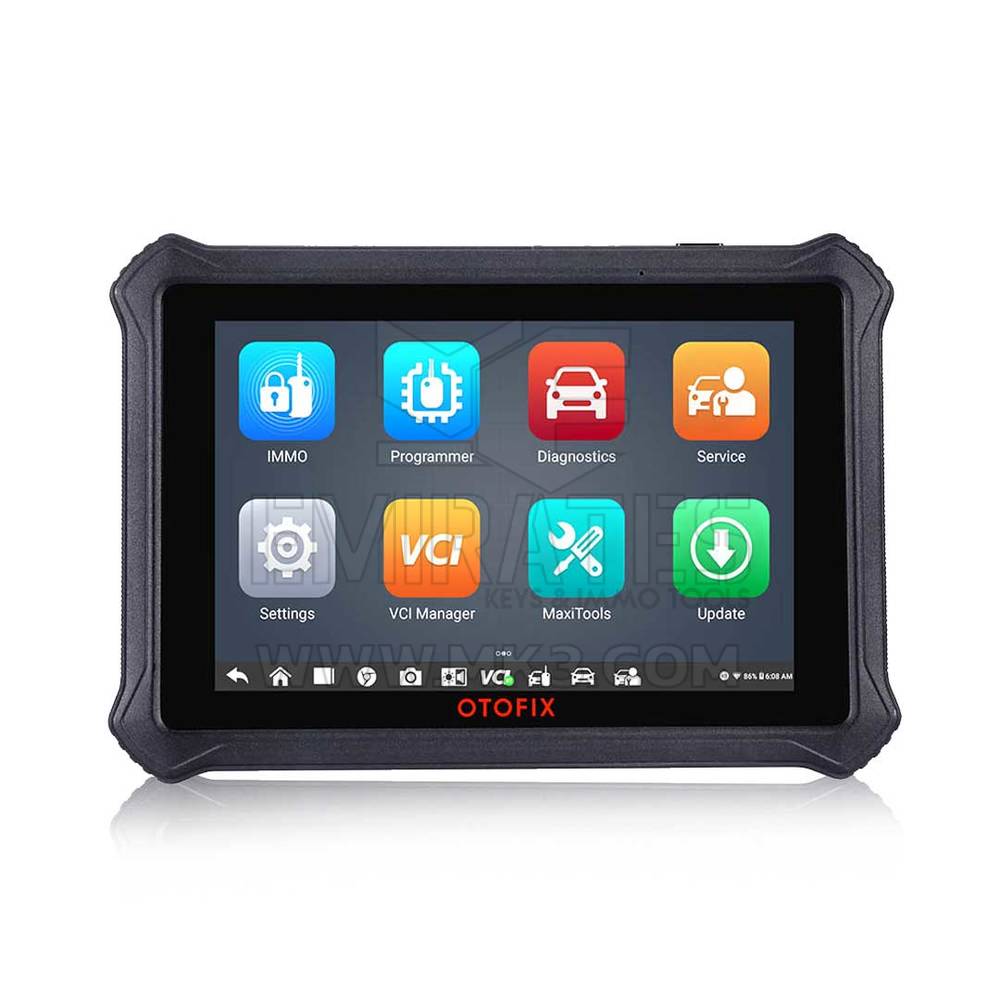

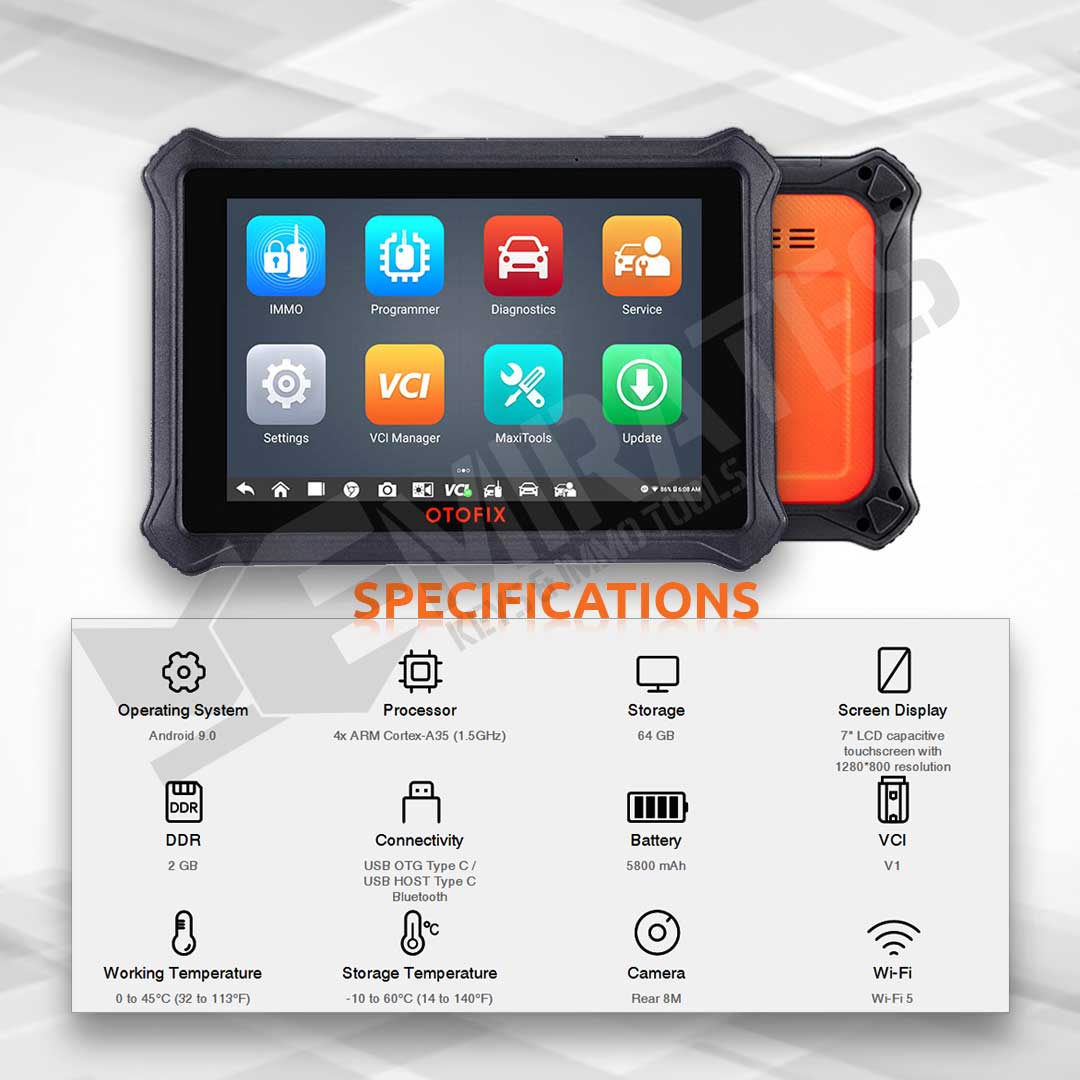

Specifications

Operating System Android 9.0
Processor 4x ARM Cortex-A35 (1.5GHz)
Storage 64 GB
Screen Display 7" LCD capacitive touchscreen with 1280*800 resolution
DDR 2 GB
Connectivity USB OTG Type C / - USB HOST Type C - Bluetooth
Battery 5800 MAH
VCI V1
Working Temperature 0 to 45°C (32 to 113°F)
Storage Temperature -10 to 60°C (14 to 140°F)
Camera Rear 8M
Wi-Fi Wi-Fi 5

Operating System - Processor - Storage - Screen Display - DDR

Function Autel IM508

 professional car key programmer and immobilizer that combines key programming

OTOFIX IM1

MaxiIM IM1 is a fast, easy-to-use, and ultraportable immobilizer and key programming device

Function in detail
Common Immo Key Programming Yes Yes Can do as the same as the similar programmer
Diagnostic function Yes, full-system diagnosis +lots of Service Reset Yes, pay extra on advanced feature Read DTC, clear DTC, scan systems, read datastream etc
Mercedes Benz Advanced key programming Yes Yes All keys lost (fast programming via obd) Renew IMMO
BMW Advanced key programming Yes Yes ECU replacement (CAS1, CAS2, CAS3, CAS3) Read ISN code directly via engine
VAG Advanced key programming Yes Yes Replace MQB ECU Replace 4th IMMO ECU Read MED17 ISN via OBD Read DME ISN on bench
Toyota Advanced key programming Yes Yes Toyota H All Keys Lost
Ford/Mazda Advanced key programming Yes Yes bypass pincod for 2020 Mazda 3/CX30 Chinese Ford and Mazda PMI Mazda 2013- parameter reset
Mitsubishi Advanced programming Yes Yes ID47 proximity all keys lost
Remote Desktop Support Yes Yes Remote technical support
Update 1-year free update. 1-year free update. Autel and Otofix update frequently

Downloads

Quick Guide

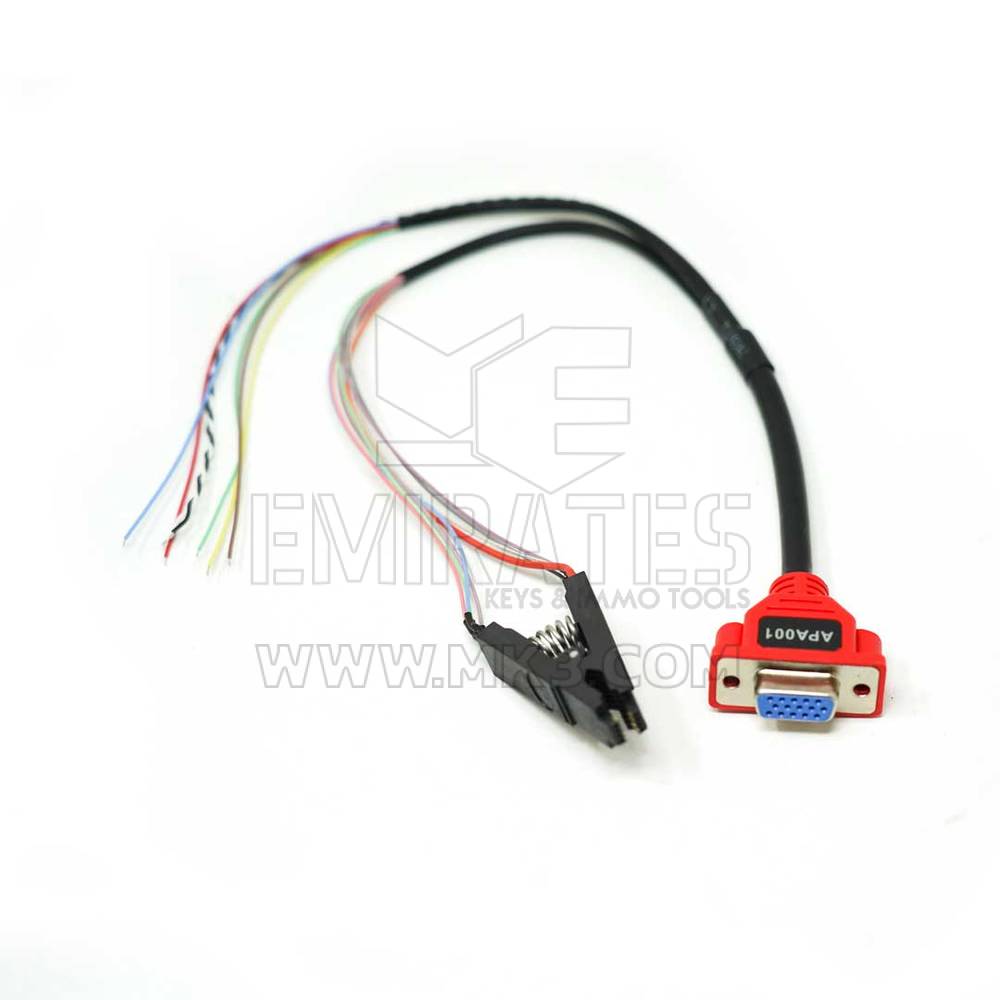

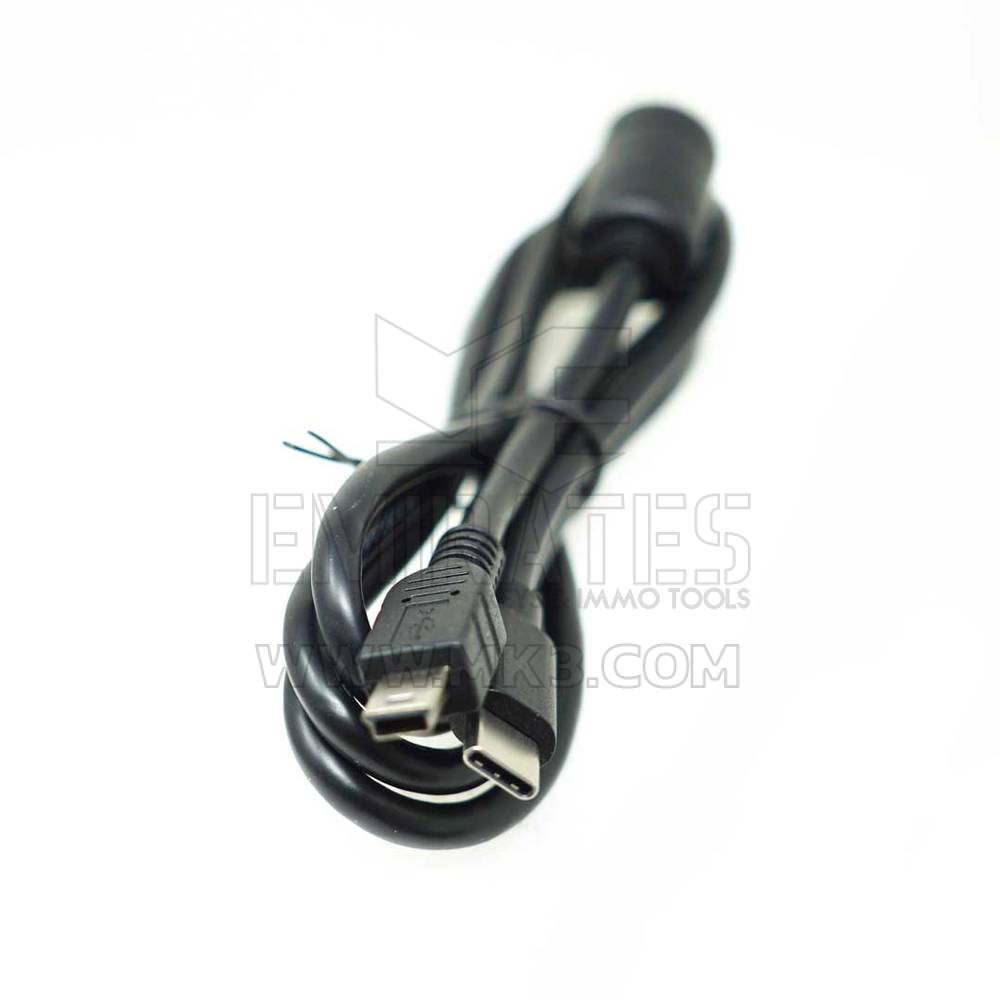

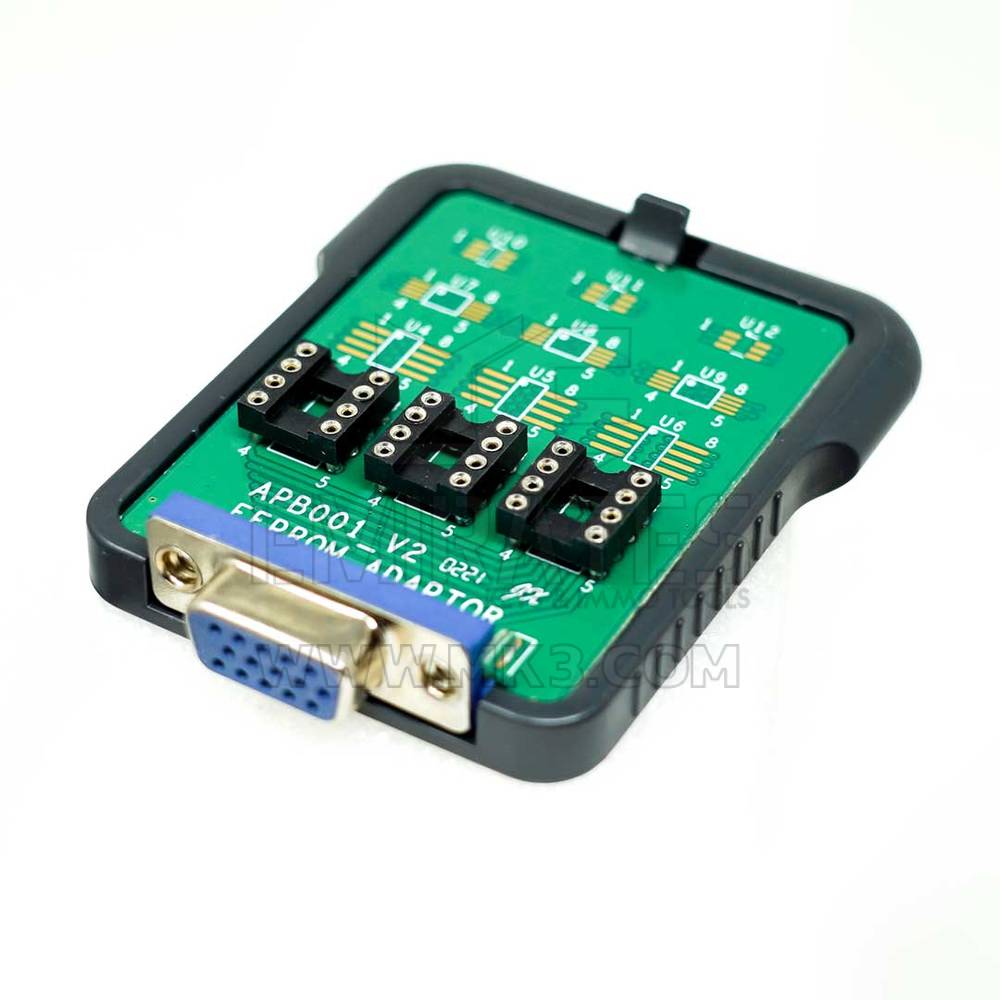

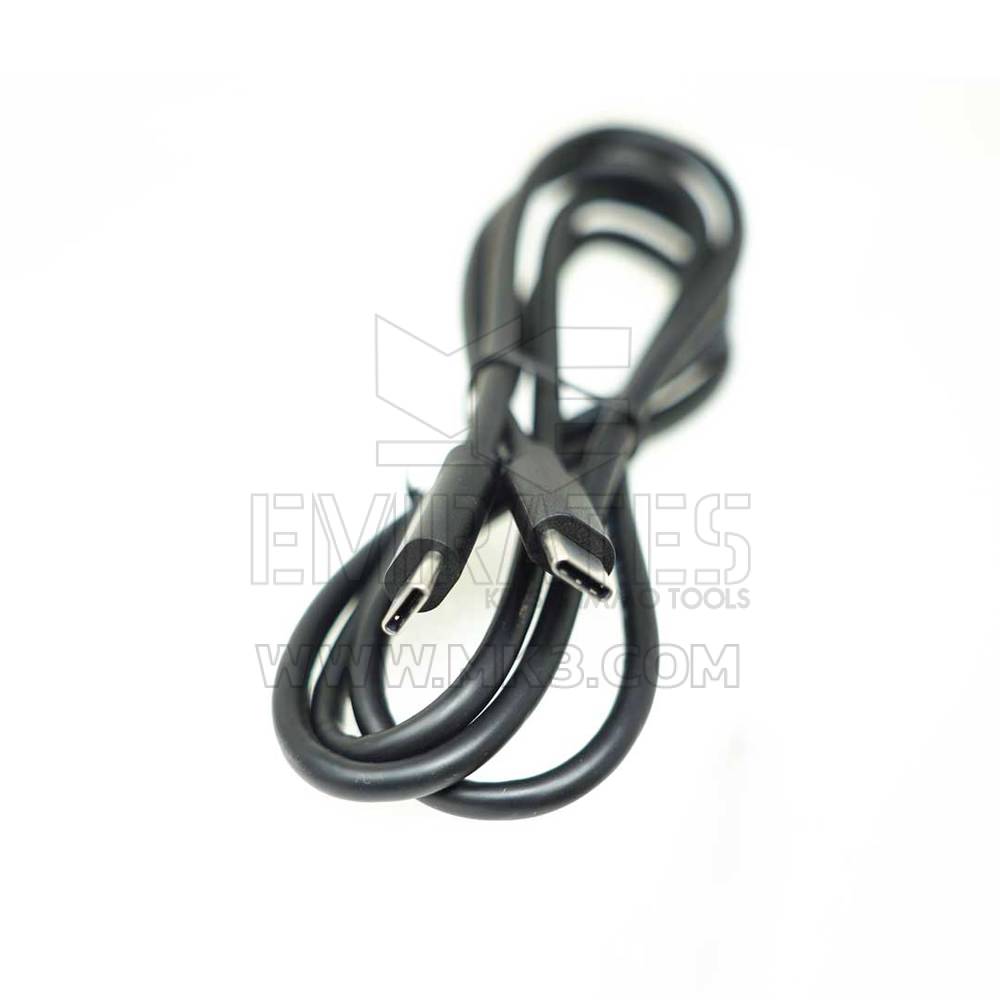

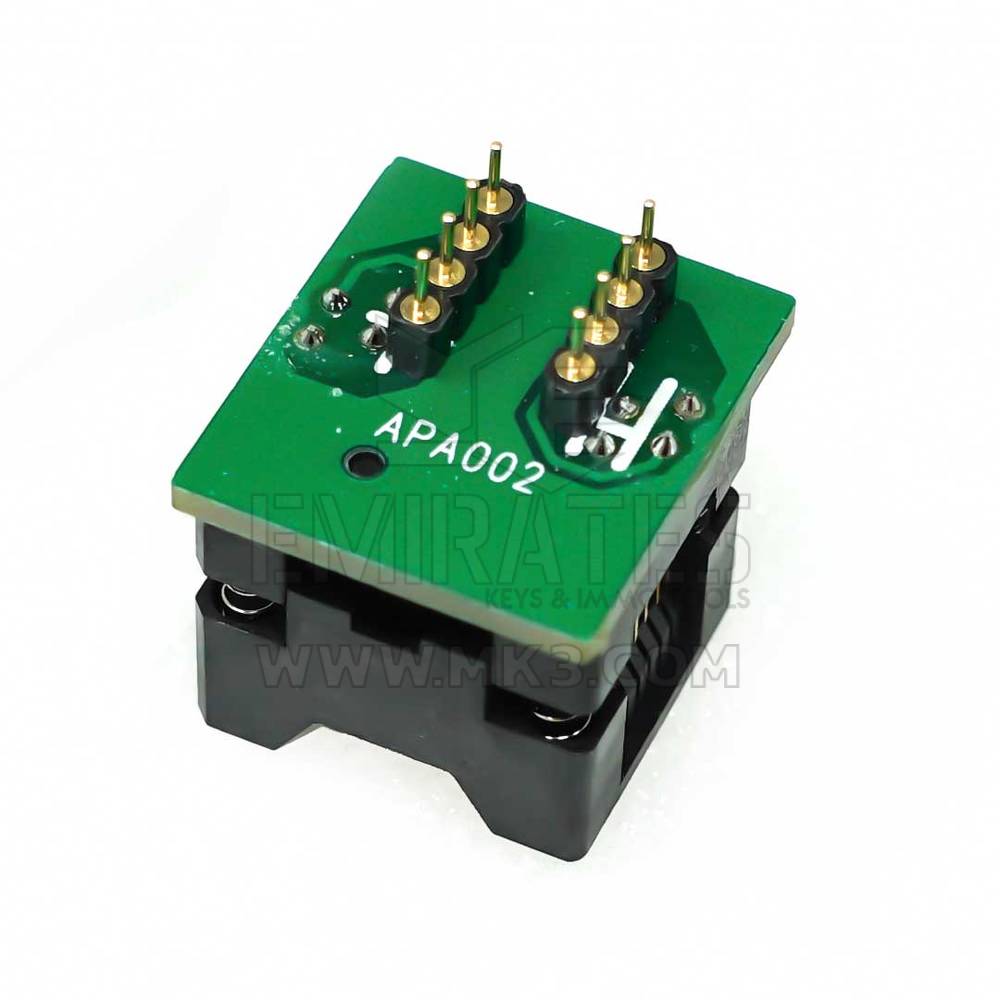

Accessories

Note: 1 Year update subscription is included with the device.
