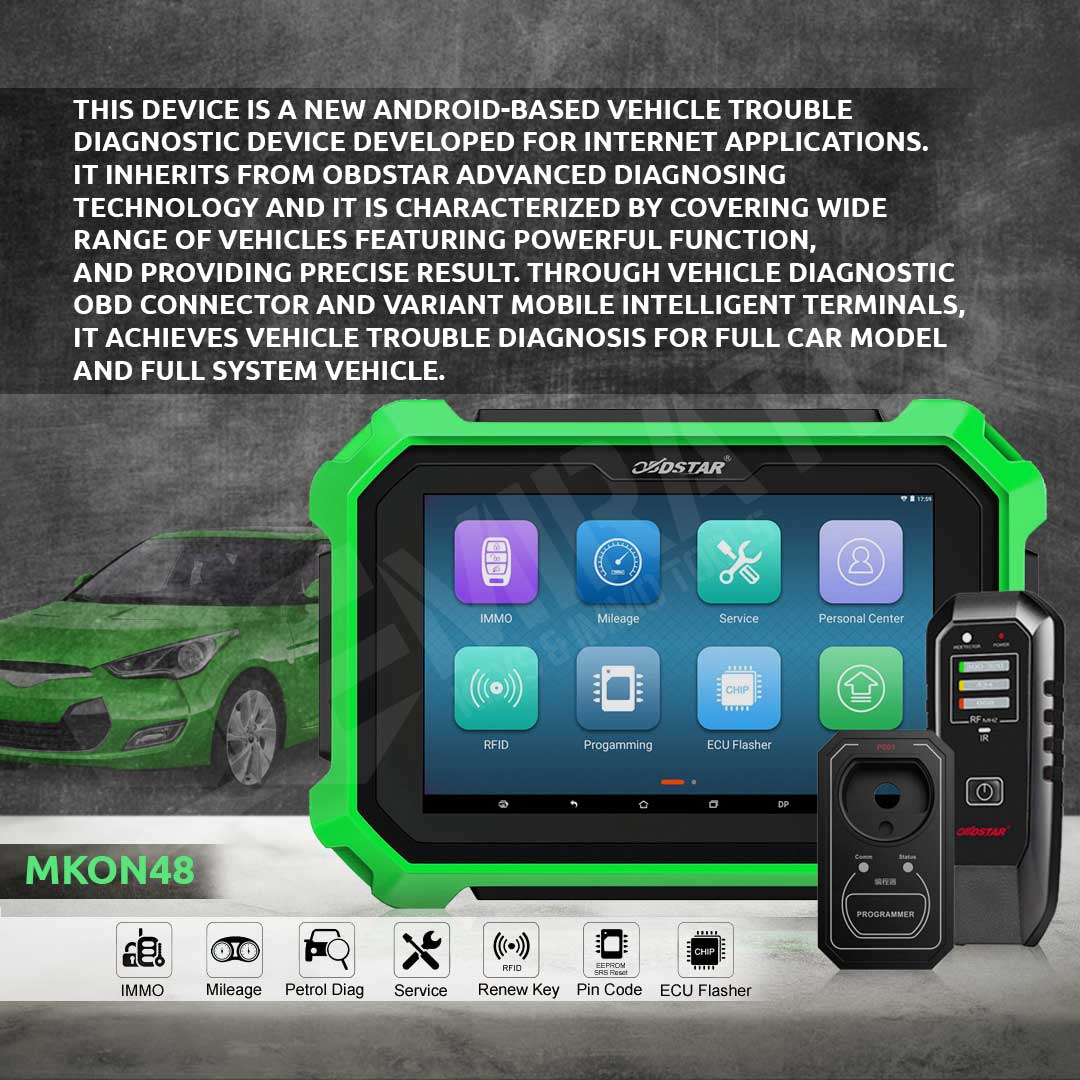

Key Master DP Plus OBDSTAR Full C Package with 2 Year Free Update

Key Master DP Plus OBDSTAR Full C Package with 2 Year Free Update

Product Description:

Key Programming / ECU Diagnostics Tools From OBDSTAR with Product Number: MKON48
This Weight Product: 7700g

Specs:

Manufacturer: OBDSTAR
Condition: New

obdstar-x300-dp-plus-user-manual

KEY MASTER DP PLUS VEHCİLES COVERAGE

Why buy Key Master DP Plus from us?

1. Online Technical service. We provide instant online technical service, for any questions, you can feel free to WhatsApp us or send us an email, or just click an online chat on our website. We have a professional engineer team to answer your question and fix your problem.
2. It is a full version Key Master DP PLUS: Immobilizer + Mileage correction/Odometer Adjustment + Diagnosis + Special function (Oil reset +ABS + Battery matching + ECU programming + EPB + Throttle programming + Airbag rest + TPMS + Steering angle reset + OBDII + DPF + Injector code + Suspension matching + CVT learning + EEPROM + Key renewing + ECU cloning) Adapter (P001 programmer + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota smart key Emulator) + Ignition coil + Remote tester.

What do I need to pay attention to before buying Key Master DP Plus?

• Please register first after receiving the product. OBDSTAR Distributor code: 0086A001
• Key Master DP PLUS Registration and Upgrade Guide
• Key Master DP Plus supports English only
• It doesn't support the following car models: DAIHATSU/ PROTON/ MAHINDRA/ MARUTI/ TATA/ HOLDEN/ LADA/ PERODUA/ IRAN. (Please contact local dealers from your area to get authorization)
• Please check the supported car list of vehicle functions on the official website before you buy this device. If you are not sure whether the function or vehicle is supported, please feel free to inquiry us online.
• One-year free update online, after that, 500USD for a one-year update subscription.

Key Master DP Plus C Full Configuration Diagnostic Function:

• Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCS, Clear DTCS, Read data stream, Special functions etc.
• Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, EPB, Immobilizer, TPMS (low tire) reset, Cluster calibrate, ECU programming, steering angle reset.
• Specially designed for Android platform with clear and user-friendly interface.

Key Master DP Plus C Full Configuration Software Advantages:

1: ECU Clone

ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2.Clone directly when replacing a new or a used ECU

Without online matching in the 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3.Three features for ECU Clone:

1. Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry
2. Simplified operation procedures: realize foolproof operation
3. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch activation function:

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CAN BUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add “Help “functions:

• Contain built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
• Car list: directly get it on the device
• Upgrade Announcement: all details are available on the device
• Customers can look up the features or uniquely support functions on the device
• Help notes: built-in help notes for each model or function
• Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

OBDSTAR Key Master DP Plus C Full Configuration Hardware Advantages:

• Built-in VCI box, communication more stable
• 8-inch touchscreen, more intuitionistic
• Can be charged directly via OBD interface

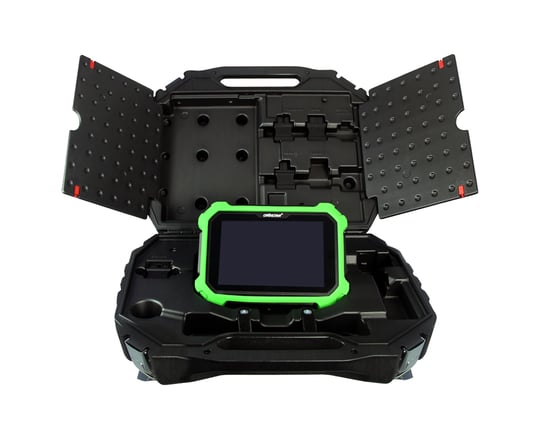

• Practical and high-end gift box

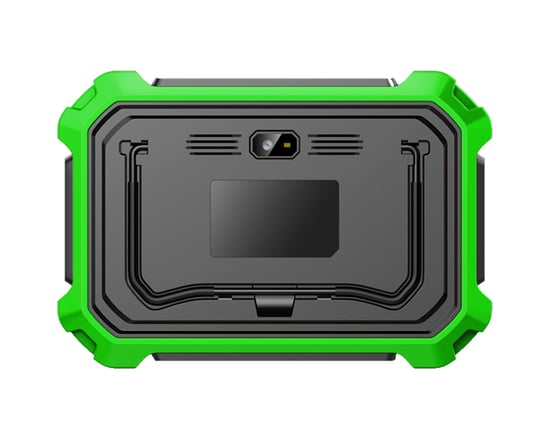

• Industrial design with silicone case
• Back bracket design: Can propone the steering wheel or stand on the table, easier to operate
• With simulated key 1 applies to the vehicle with 94/D4 type of smart key.

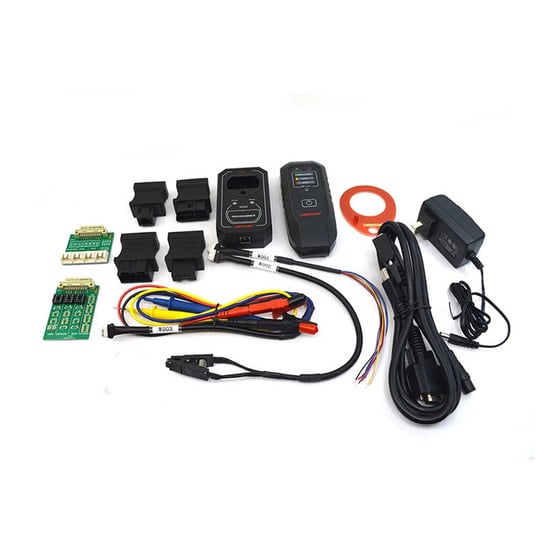

• 3 in 1 P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter
• Add the clip of reading SOP 8PIN EEPROM

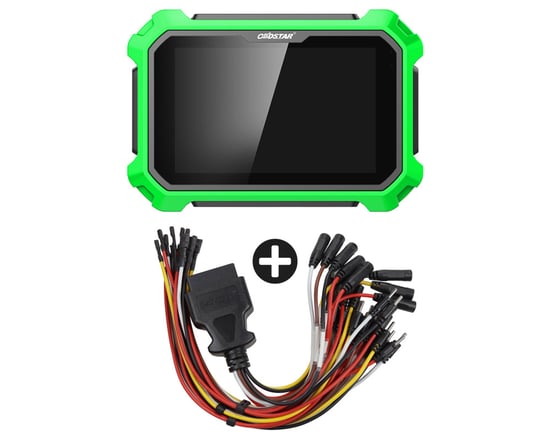

• Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
• Maintenance Database
• Remote Assistant
• One Key Upgrade

How to use OBDSTAR Key Master DP Plus Induction Coil?

1. Functional Overview:

Induction Coil is used to detect the key induction coil failure of the vehicle.

2.Application Method:

Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good; the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

OBDSTAR Key Master DP Plus A+B+C Full Configuration Technical Parameters

• Operation system: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
• Battery: 3700mA, rechargeable polymer lithium battery
• Extension memory card: 32G Micro SD (TF) card supported
• Memory capacity:1GB
• Storage capacity: 32GB
• LCD: 8.0 inch
• LCD resolution: 1280*800
• Touch screen: Capacitive touch screen
• Camera: 5 mega rear-view camera
• Wi-Fi: supported
• Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
• Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
• Weight: about 1.0 Kg
• Dimension: 254mm*174*mm*35mm

Other Configuration:

A Package:

Immobilizer + Special function (EEPROM + Key Renewing) Adapter (P001 programmer+ C001circuit board + C002 circuit board + W001 cable + W002 data cable + W003 data cable ) +others (Ignition coil + Remote tester)

B Package:

Immobilizer+Special function (EEPROM+Key Renewing) +Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable )+others(Ignition coil+Remote tester)

Extra Details:
