Key Master DP Plus OBDSTAR Full Immobilizer

A Package Device with 2 Year Free Update

Write Review
$1,359.00 (€1,250.28)
Add to Wishlist
Product Code: MK15793
Categories Key Programming Tools
Manufacturer OBDSTAR
Product Specifications
Manufacturer OBDSTAR
Condition New

Key Master DP Plus OBDSTAR Full Immobilizer A Package Device with 2 Year Free Update


Product Description:

Key Master DP Plus OBDSTAR A Configuration Supports Immobilizer & Special functions with 2 Year Free Update

Key Programming / ECU Diagnostics Tools From OBDSTAR with Product Number: MK5793
This Weight Product: 7500g

Key Master DP Plus Specs:

Manufacturer: OBDSTAR
Condition: New

obdstar-x300-dp-plus-user-manual

KEY MASTER DP PLUS VEHCİLES COVERAGE

Distributor code: 0086A001

OBDSTAR Key Master DP Plus A Configuration:

Immobilizer + Special function (EEPROM + Key Renewing) Adapter (P001 programmer+C001 circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable ) +others (Ignition coil + Remote tester)

It doesn't support the following car models: DAIHATSU, PROTON, MAHINDRA, MARUTI, TATA, HOLDEN, LADA, PERODUA, IRAN (Please contact local dealers from your area to get authorization)

Differences among OBDSTAR Key Master DP Plus C Package (Full Version), A Package and B Package:

Functions

Regional market

Software Configuration

Key Master DP plus

Remark





A package

B package

C package



Immobilizer / Remote programming

European cars

VW/Audi/Skoda/Seat (Standard)



VW/Audi/Skoda/Seat (Advanced)

add NEC 24C64 2014-key programming.

BMW (Standard)









BMW (Advanced)

Add FEM/BDC key programming, ISN code reading etc.

Volvo



The other European cars



Asian cars

Hyundai /Kia (Standard)









Hyundai /Kia (Advanced)

Add 47/8A/46 smart key pin code reading

Toyota /Lexus (Standard)









Toyota /Lexus (Advanced)

For Middle east cars, it adds H chip all keys lost (Immo box reset)

The Asian cars



North American cars

Ford(Standard)









Ford (Advanced)

Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.

GM(Standard)









GM(Advanced)



The other American & Chinese cars

Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.

Cluster Calibration



All cars cluster calibration









4-system diagnosis







Engine, Transmission, ABS, airbag reset

OBDII Diagnosis



Full functions diagnosis





Full-system all-cars diagnosis

Special function



Oil service reset





Reset the Oil Service Light on



Manual remote setting







Some cars only supports manual remote setting.



ABS bleeding





After replace the ABS pump and related components.



Battery matching





After the battery is changed, you need to match the battery.



ECU programming









The car with EPB replace brake pads





Electronic Parking Brake release



Throttle programming





Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.



Airbag reset





Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused



TPMS reset





Used for reset after tire pressure alarm



Steering angle reset





Replacement of data lost after steering angle change or power off



OBDII Engine





Used to diagnose the car with OBD protocol.



DPF Regeneration





Diesel Particulate Filter Operational



Injector coding





Used to match and code the injector after replacement



Suspension match





Used to match and set the suspension after adjusting.



Gear learning





Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)



CVT learning





Used to reset the learning value after maintenance of CVT transmission



EEPROM





Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft



Key Renew





Renew the used keys to solve the problem that used keys cannot be matched to other models



Steering angle repair





Used for the repair of lost data of vehicle steering angle sensor



ECU Clone





Used for copying the program when replacing the new/second-hand computer.



Switch activation







Hardware



P001 Programmer unit





C001 circuit board





C002 circuit board





W001 data cable





W002 data cable





W003 data cable





Toyota smart key emulators





Remote Tester





Anti-theft Induction coil

Used to test if the coil can send out the transmit signal.

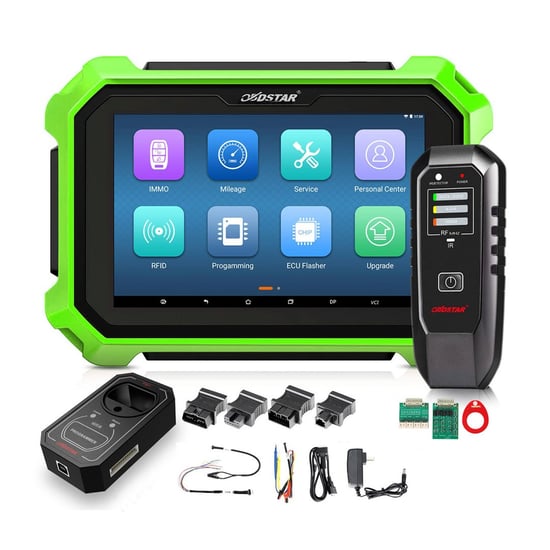

OBDSTAR Key Master DP Plus A Configuration Hardware Advantages:

  • Built-in VCI box, communication more stable
  • 8-inch touchscreen, more intuitionistic
  • Can be charged directly via OBD interface

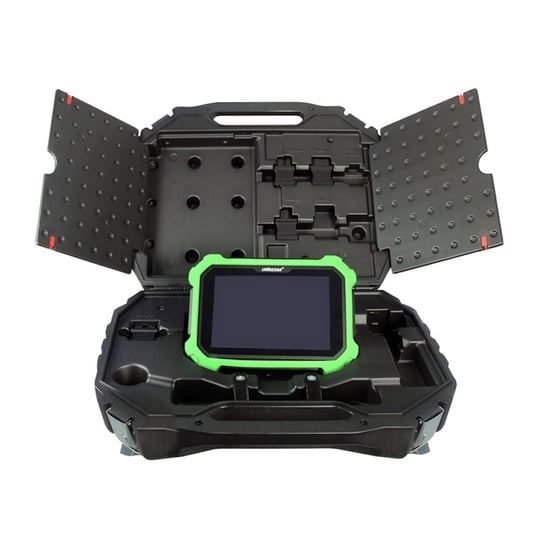

  • Practical and high-end gift box
  • Industrial design with silicone case

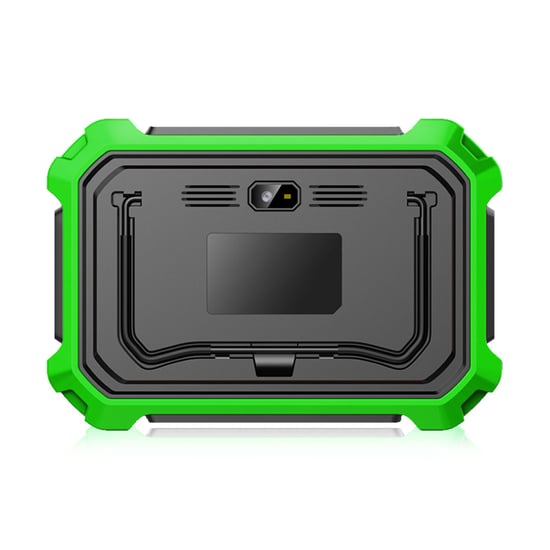

  • Back bracket design: Can propone the steering wheel or stand on the table, easier to operate
  • With 4 Toyota simulation keys (the fifth is coming soon)
  • 3 in 1, P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter
  • Add the clip of reading SOP 8PIN EEPROM
  • Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Key Master DP Plus Software Advantages:

IMMO:

  1. EEPROM
  2. Renew Key
  3. Key programming
  4. Remote programming

Cluster Calibrate: wild vehicle coverage, pls check the Carlist

Diagnosis: realize all vehicle systems diagnosis

Key Master DP Plus Special Functions:

  • TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
  • Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/Value Reset

ECU Clone

  1. ECU Clone, means ECU duplication.
    • The device copies all the data from the original vehicle ECU and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
  2. Clone directly when replacing a new or a used ECU!
    • Without online matching in the 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!
  3. Three features for ECU Clone:
    • Free of 4S online: break monopoly from 4S, benefiting the automobile maintenance industry
    • Simplified operation procedures: realize foolproof operation
    • Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate the secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add "Help" Functions

  1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
  2. Carlist and upgrade announcement, all details are available on the device
  3. Customers can look up the features or uniquely support functions on the device
  4. Help notes: built-in help notes for each model or function
  5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

OBDSTAR Key Master DP Plus A Configuration Software Advantages:

  • Add “Help “functions: Contain built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
  • Carlist: can directly get on the device
  • Upgrade Announcement: all details are available on the device
  • Customers can look up the features or uniquely support functions on the device
  • Help notes: built-in help notes for each model or function
  • Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

How to use OBDSTAR Key Master DP Plus Induction Coil?

I. Functional Overview:

Induction Coil is used to detect the key induction coil failure of the vehicle.

How_to_use_OBDSTAR_X300_DP_Plus_Induction_Coil

II. Application Method:

Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good; the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

OBDSTAR Key Master DP Plus A Configuration Technical Parameters

  • Operation system: Android 5.1.1
  • CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
  • Battery: 3700mA, rechargeable polymer lithium battery
  • Extension memory card: 32G Micro SD (TF) card supported
  • Memory capacity:1GB
  • Storage capacity: 32GB
  • LCD: 8.0 inch
  • LCD resolution: 1280*800
  • Touch screen: Capacitive touch screen
  • Camera: 5 mega rear-view camera
  • Wi-Fi: supported
  • Working temperature: -10℃ ~ 55℃(14℉ ~ 131℉ )
  • Storage temperature: -20℃ ~ 70℃(-4℉ ~ 158℉ )
  • Weight: about 1.0 Kg
  • Dimension: 254mm*174*mm*35mm

Other Configurations:

B Package:

Immobilizer+Special function (EEPROM+Key Renewing) +Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)

C Package:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil reset +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag reset+TPMS+Steering angle reset+OBDII+DPF+Injector coding+Suspension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning) Adapter (P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable ) +others (Ignition coil+Remote tester)
