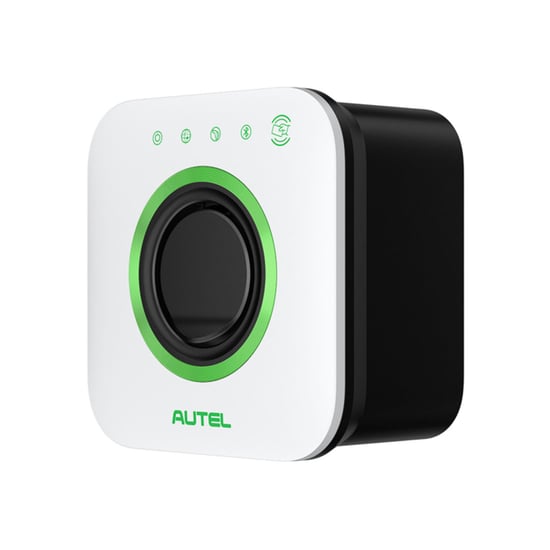

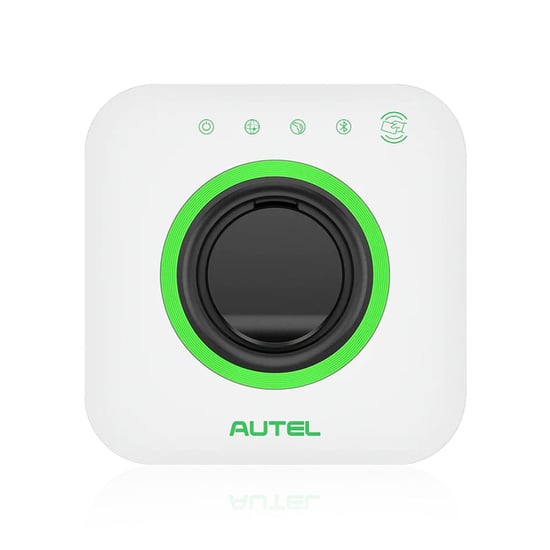

Autel MaxiCharger AC Compact 22kW-WH-Socket

Be the first to review this product
$600.00
Category: EV Chargers
Manufacturer: Autel
Availability: In stock
SKU: EV-AUT-24047
Old SKU: MK24047
GTIN: 3841624122917
Products specifications
Attribute name Attribute value
Color White
Manufacturer Autel
Condition New
Full Description:

Autel MaxiCharger AC Compact 22kW-WH-Socket

Autel MaxiCharger AC Compact 22kW-WH-Socket Description:

New Autel MaxiCharger AC Compact 22kW-WH-Socket It Is Easier Than Ever To Install And Maintain At Lower Costs

EV Chargers From Autel with Product Number: MK24047
This Weight Product: 750g

Autel MaxiCharger AC Compact 22kW-WH-Socket Specification



Product information:

Charging mode Mode 3
Input/output power rating and current Single phase up to 7.4kW/32A; Three phase up to 22kW/32A
Input/output voltage 230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)
Network type Single phase 3 Wire – L1, N, PE
Three phase 5 Wire – L1, L2, L3, N, PE

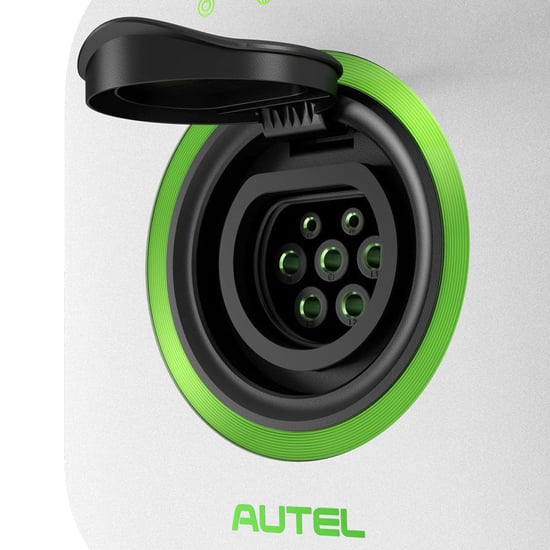

Connector type IEC 62196 type 2 normal socket
Residual current detection AC 30mA + DC 6mA
Protection Overcurrent, overvoltage, undervoltage, integrated surge protection
Card reader (Optional) ISO 14443
Power measurement accuracy +/- 2.0%



General Features :

IP rating IP54
Operating altitude 2,000 m
Operating temperature range -30℃~+50℃
Storage temperature range -40℃~+70℃
Mounting  Wall or floor standing using a pedestal
Dimensions (H × W × D)  202 × 202 × 115 mm



User Interface:

Status display LED/APP
User interface Autel Charge APP; Autel Charge Cloud
Connectivity Bluetooth, Wi-Fi, Ethernet, RS485, 4G, Modbus TCP/IP
Communication protocols             OCPP 1.6J
User authentication APP, AutoStart, RFID card
Software update  OTA updates via web portal



Certification and Standards:

Safety and Compliance                          IEC 61851-1, EN 50663, EN 50665, IEC/EN62955
Certification CE (TÜV)
Warranty  36 months, warranty extension possible
