Name: Launch ELT-500 EV Battery Pack Airtightness Tester
Brand: Launch
SKU: MK23291
Price: 2799 USD
Availability: InStock

No IP Restriction

Write Review

$2,799.00 (€2,603.07)

In Stock

Product Specifications

Manufacturer	Launch
Condition	New
Weight	12000 g

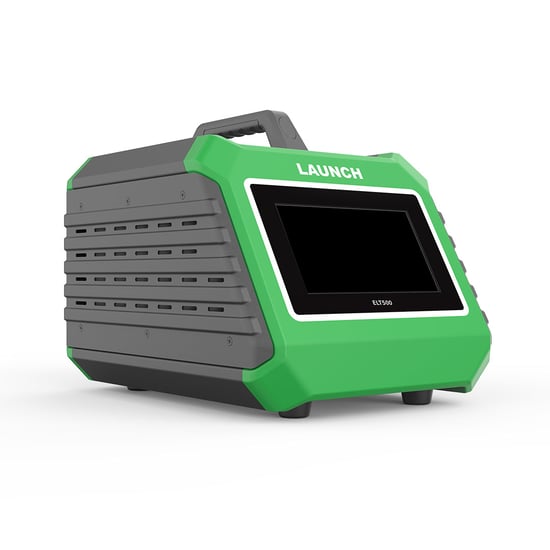

Launch ELT-500 EV Battery Pack Airtightness Tester

Launch ELT-500 EV Battery Pack Airtightness Tester Description:

New Launch ELT-500 EV Battery Pack Airtightness Tester is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.

Battery Service From Launch with Product Number: MK23291
This Weight Product: 12000g

Launch ELT-500 EV Battery Pack Airtightness Tester Features:

1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.

2. High-sensitivity pressure sensing, greatly improving test accuracy and stability.

3. The test process can display the progress time of each stage.

4. Real-time display of pressure dial and display of process pressure curve.

5. The test parameters of standard parts can be preset and used directly, which is convenient and quick.

6. Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.

7. Sound and light alarm will be issued when the test is abnormal or failed.

Launch ELT-500 EV Battery Pack Airtightness Tester Specification:

Power	20W(Max)
Test Pressure Range	0~30Kpa
Sensor Resolution	1Pa
Test Accuracy	±5Pa
Communication Interface	RS485/USB
Data Storage Method	Internal storage, or data upload to USB drive
Power Supply	AC 90~265V
Air Source Requirements	0.1~1.0 Mpa dry compressed air
Intake Port/Test Port	φ6mm/φ6mm
Working Temperature/Humidity	-10~55℃/10%~90% @25℃
Dimension/Weight	280276360(mm)/4.5kg

Product Code:	MK23291
Categories	Automotive Workshop Equipment
Manufacturer	Launch
