Name: Launch X-613 Portable 3D Wheel Aligner
Brand: Launch
SKU: MK26437
Price: 5500 USD
Availability: InStock

Launch X-613 Portable 3D Wheel Aligner

Write Review

$5,500.00 (€4,675.00)

In Stock

New Arrival

Product Specifications

Manufacturer	Launch
Condition	New
Weight	150000 g

Launch X-613 Portable 3D Wheel Aligner

Launch X-613 Portable 3D Wheel Aligner Description:

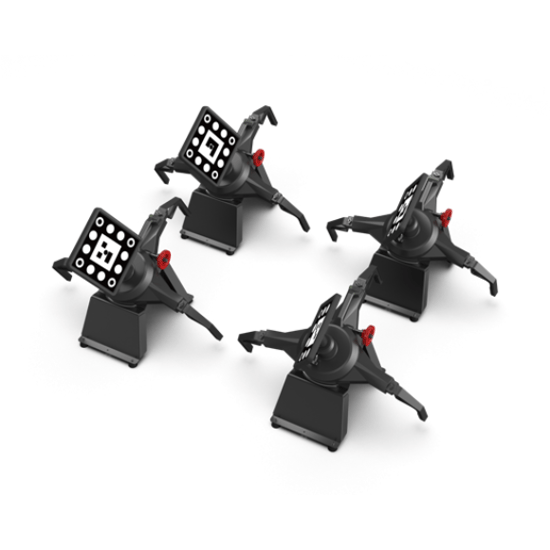

New Launch X-613 Portable 3D Wheel Aligner Composed of two magnetic measurement units and four wheel clamp targets, connected via a wireless network, the X-613 is another wireless, ready-to-use four-wheel aligner for repair shops. Unlike traditional 3D wheel aligners, the X-613 eliminates the need for beams and cabinets, pairing with the LAUNCH diagnostic tool(X-431 PAD9/7/5 LINK) to perform precise four-wheel alignment detection. The X-613 supports both standard measurement and quick measurement, including key parameters such as toe, camber, caster, kingpin inclination, and thrust angle, as well as additional measurements including track width, wheelbase, wheel offset, axle offset, diagonal offset, and center offset.

Adas And Calibration Tools Automotive Workshop Equipment Alignment Equipment From Launch with Product Number: MK26437
This Weight Product: 150Kg

Launch X-613 Portable 3D Wheel Aligner USER MANUAL

Launch X-613 Portable 3D Wheel Aligner

Launch X-613 Portable 3D Wheel Aligner Features:

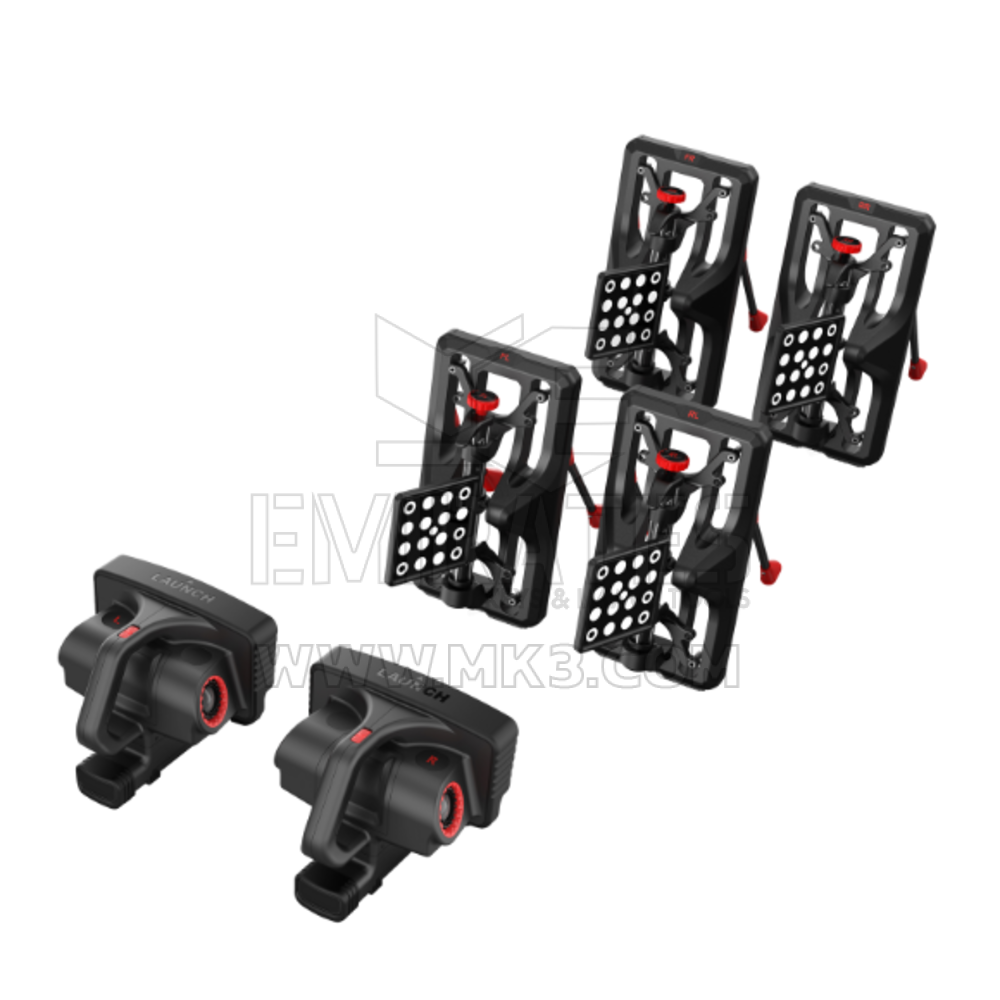

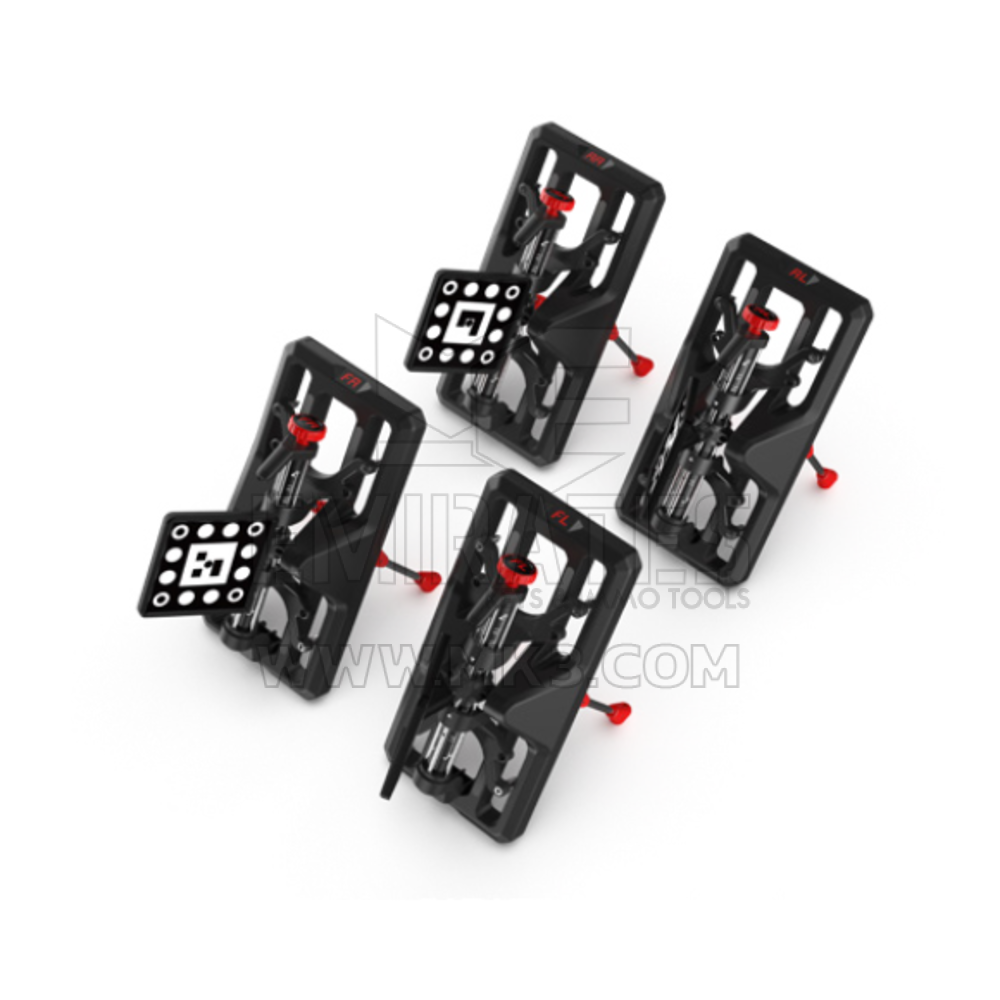

2 MAGNETIC MEASUREMENT UNITS + 4 WHEEL CLAMP TARGETS

· SUPER SAVING

No wiring, ready to use by screwing targets onto wheel clamps, saving space and costs on tablets and apps when paired with the LAUNCH diagnostic tool.

Launch X-613 Portable 3D Wheel Aligner Features

Save Time and Effort

No wiring required. Ready to use by simply screwing the targets onto the wheel clamps.

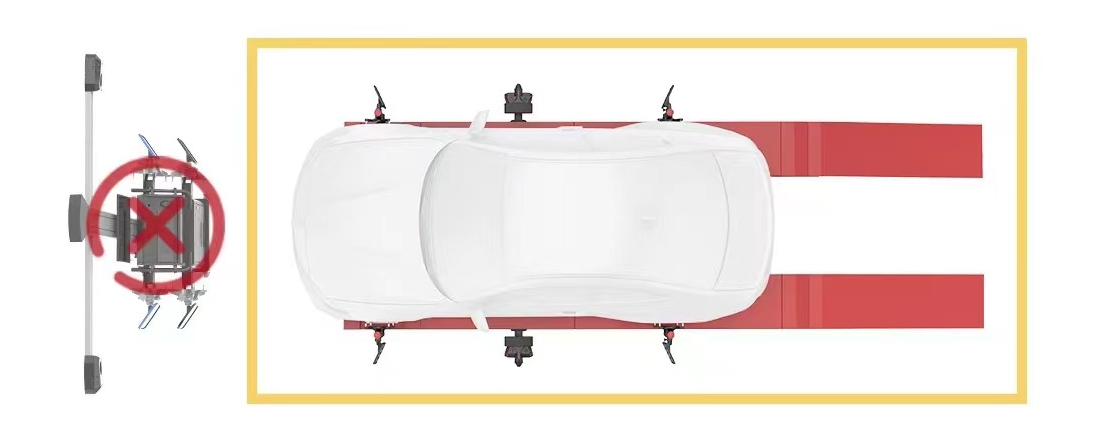

Save Space

No beams or cabinets for preinstallation, making it ideal for repair shops with limited space.

Save Money

If you already have an X-431 PAD9/7/5 LINK, which includes the APP, you’ll save on both tablet and APP costs.

Launch X-613 Portable 3D Wheel Aligner Features

· 50000+

Supports alignment data for 50,000+ vehicle models worldwide and allows user customizations.

· 30S

Generates wheel alignment measurement results within 30 seconds.

· COMPATIBLE

Works with the X-431 PAD9/7/5 LINK scan tools and can be applied to both Big Scissor Lift Platforms and Four-post Lift Platforms.

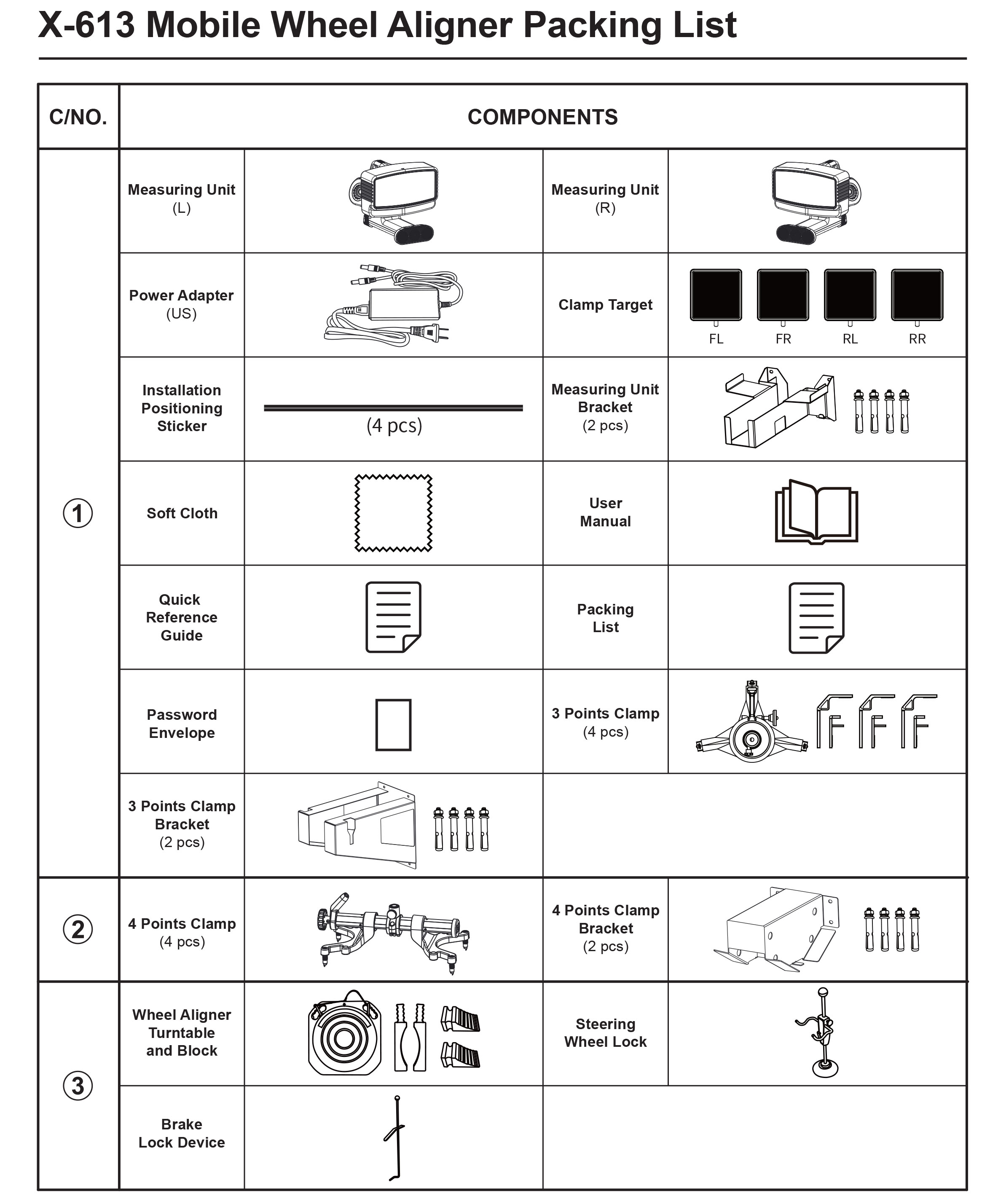

Launch X-613 Portable 3D Wheel Aligner Packing List

Launch X-613 Portable 3D Wheel Aligner Specification:

Measurement Item	Measurement Range
Toe Angle	±20°
Camber Angle	±10°
Kingpin Castor Angle	±20°
Kingpin Inclination Angle	±20°
Track Width	1290~1900 mm
Wheelbase	1940~4600 mm
Wheel Hub Diameter	275~640 mm

Product Code:	MK26437
Categories	Adas And Calibration Tools, Automotive Workshop Equipment
Manufacturer	Launch
