Yanhua ACDP module 28 ZF- 9HP gearbox clone


Product Description:

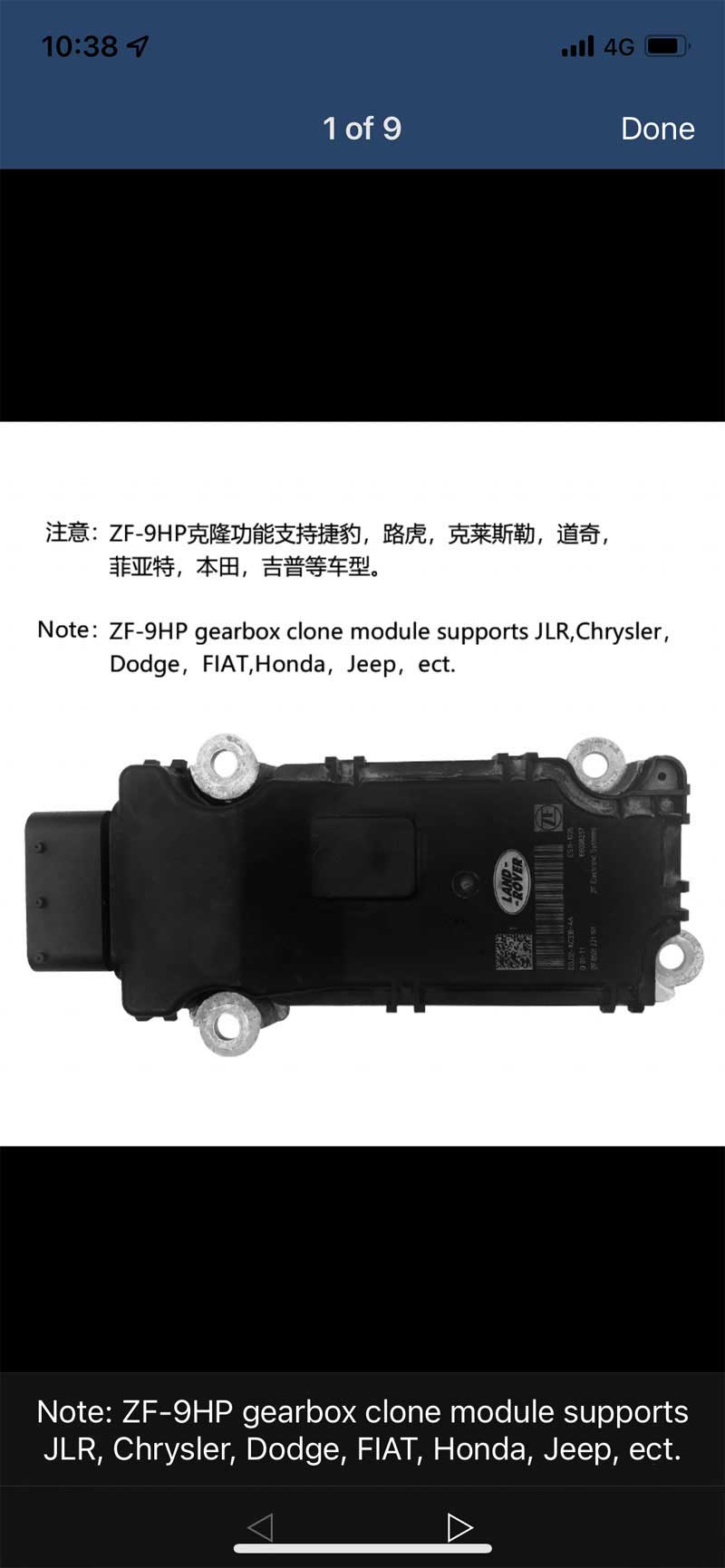

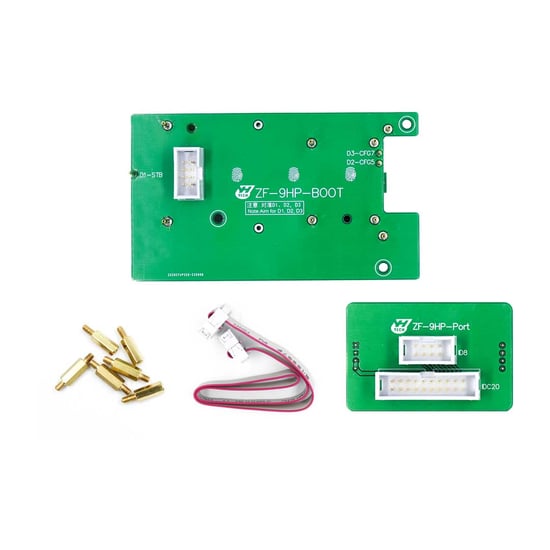

Yanhua ACDP module 28 ZF- 9HP gearbox clone Supports Jaguar, Land rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models...

Additional Adapter From YanhuaACDP with Product Number: MK4717

Specs:

Manufacturer: YanhuaACDP
Condition: New

Yanhua ACDP module 28 ZF- 9HP gearbox clone features:
1. The interface board can be inserted blindly to align with the boot test point, no need magnifying glass for calibration or complex probe workbench operation.
2. Boot test point with pin detection function, data read and write safe and reliable.
3. The special interface board replaced the cable which is simple, efficient, safe, and reliable.


Connection Diagram Comparison:

ACDP BOOT mode:
Interface Board Blind insertion
Boot test point with pin detection function

Traditional BOOT mode:
Boot point needs to be aligned by human eye with magnifying glass.
cable connection, risky operation.

How to Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28?

First of all connect interface with gearbox module follow the wiring diagrams

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 1
 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 2

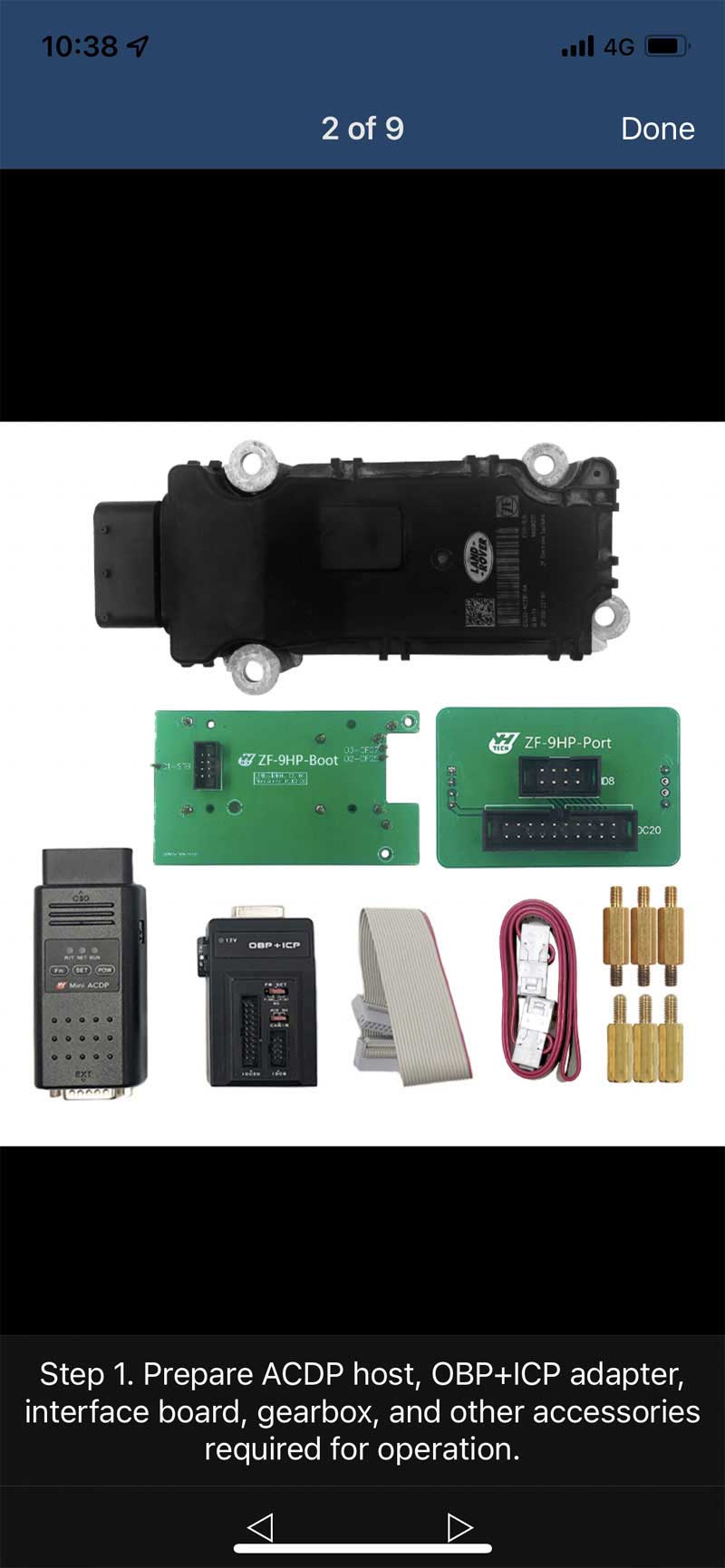

Step 2: Prepare ACDP host, OBD+ICP adapter, interface board, gearbox and other accessories required for operation.

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 3

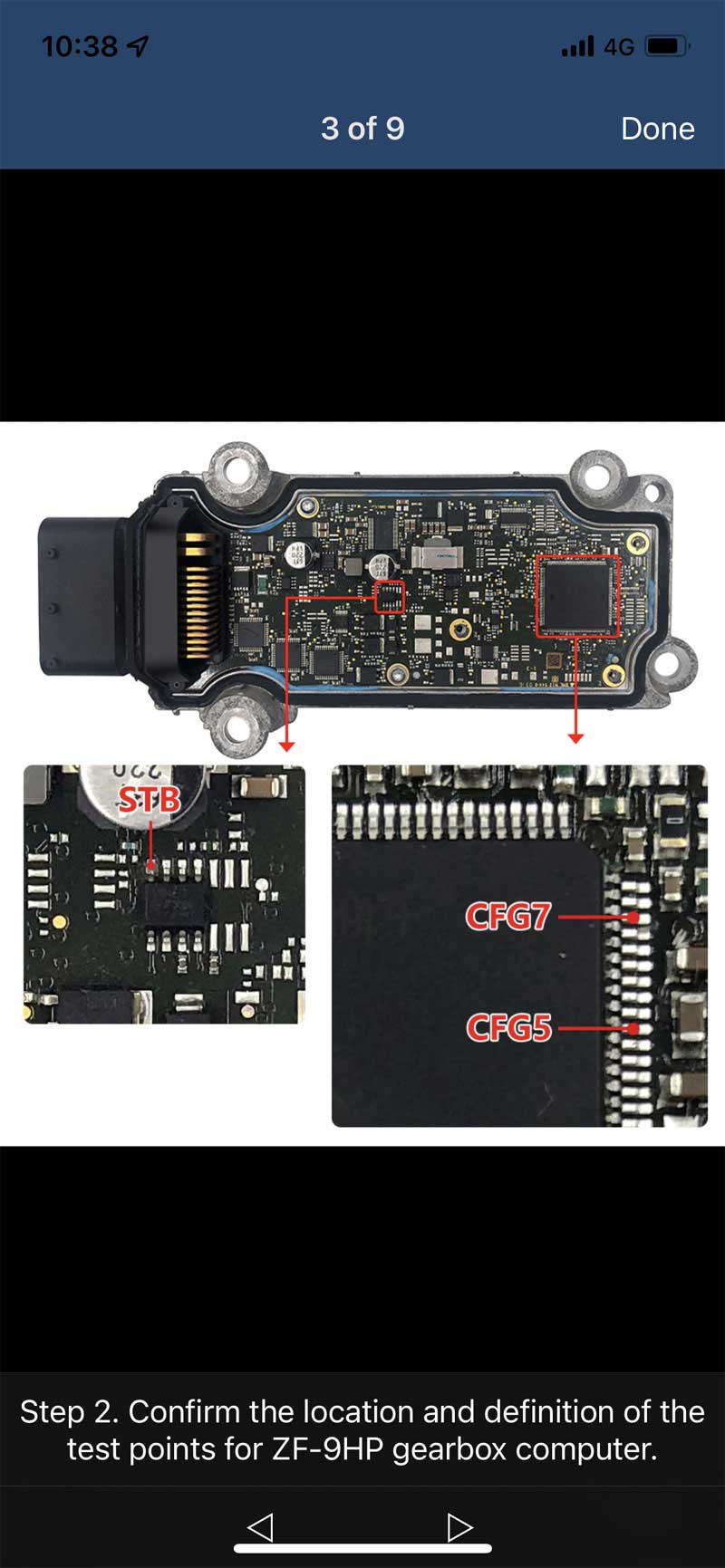

Step 2: Confirm the location and definition of the test points for ZF-9HP gearbox computer

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 4

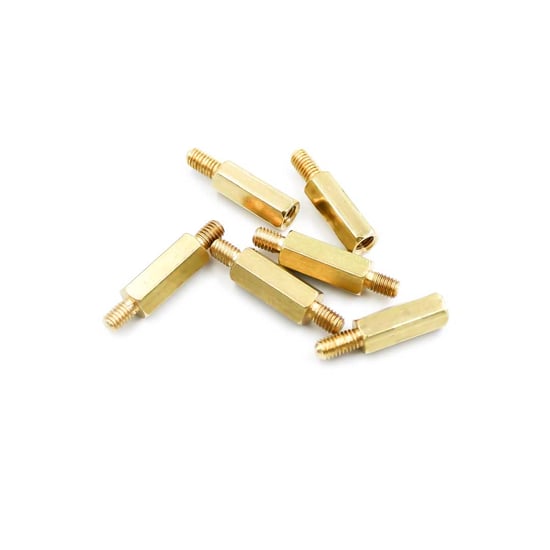

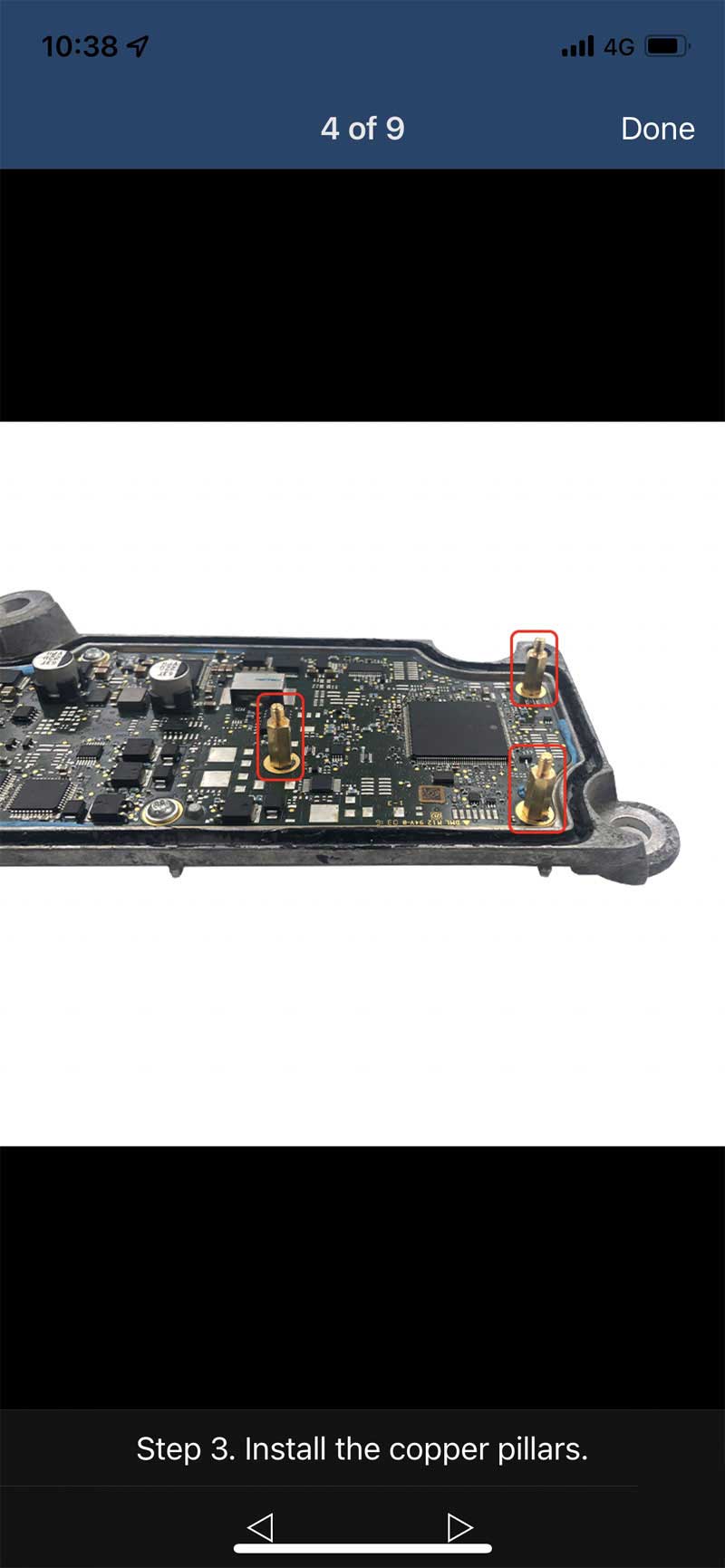

Step 3: Install the copper pillars

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 5

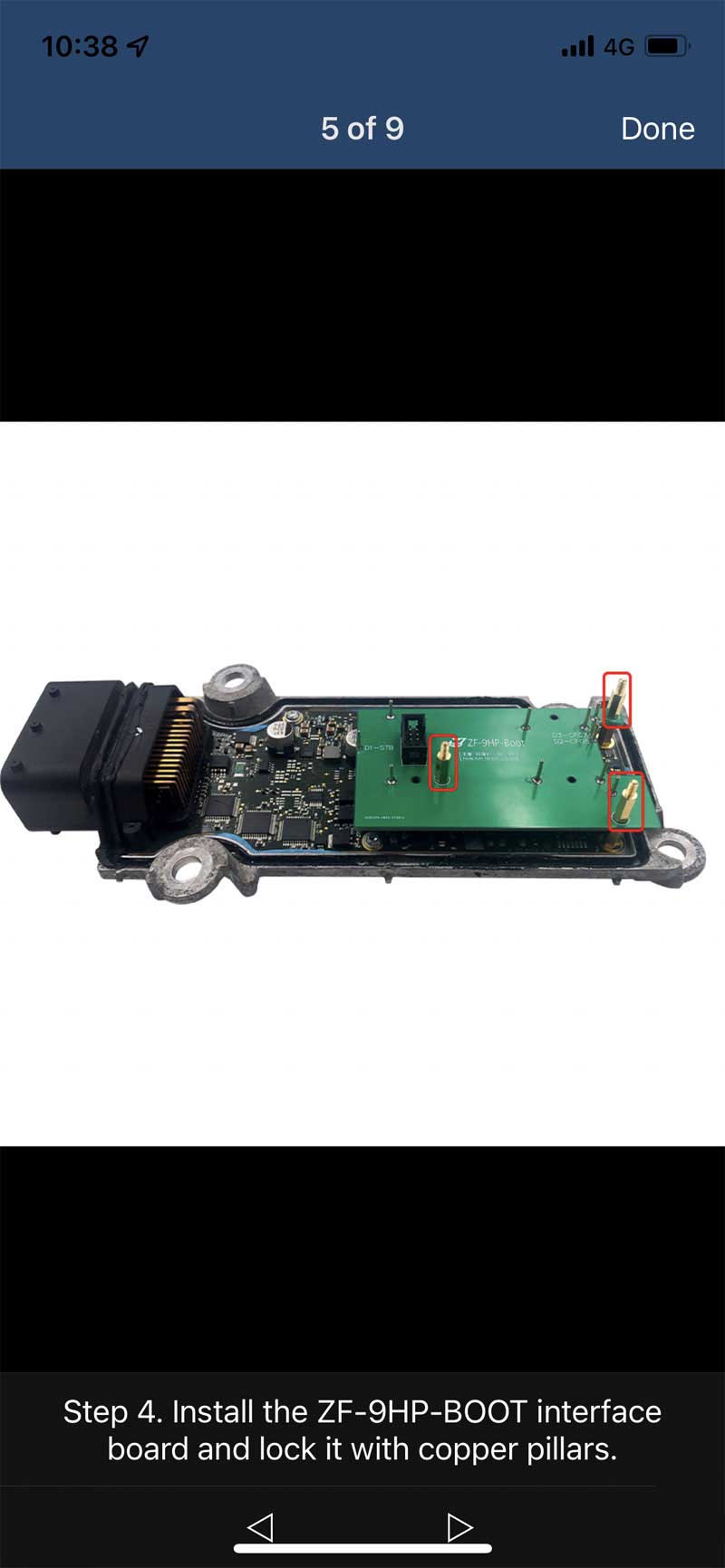

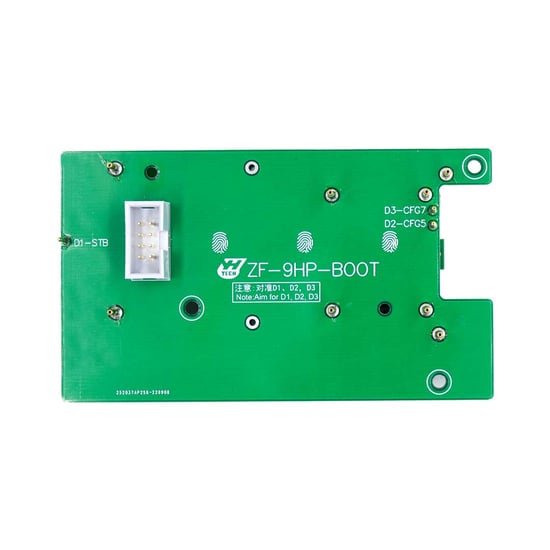

Step 4: Install the ZF-9HP boot interface board and lock it with copper pillars.

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 6

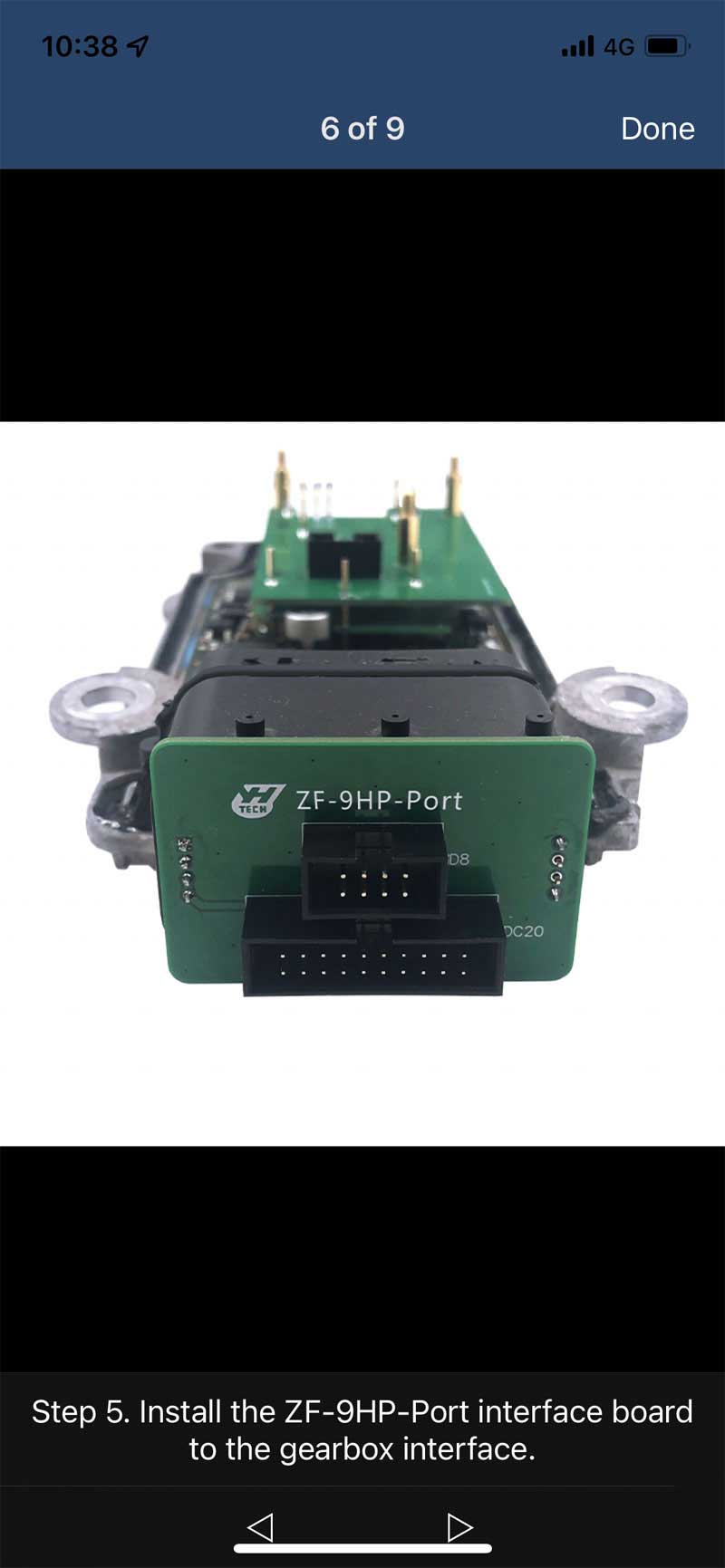

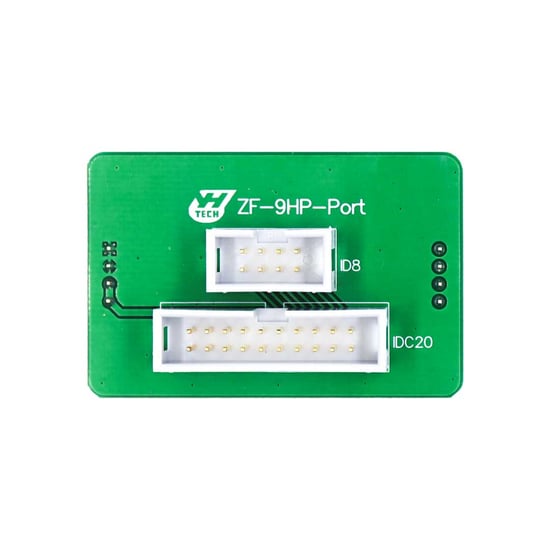

Step 5: Install the ZF-9HP port interface board to the gearbox interface

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 7

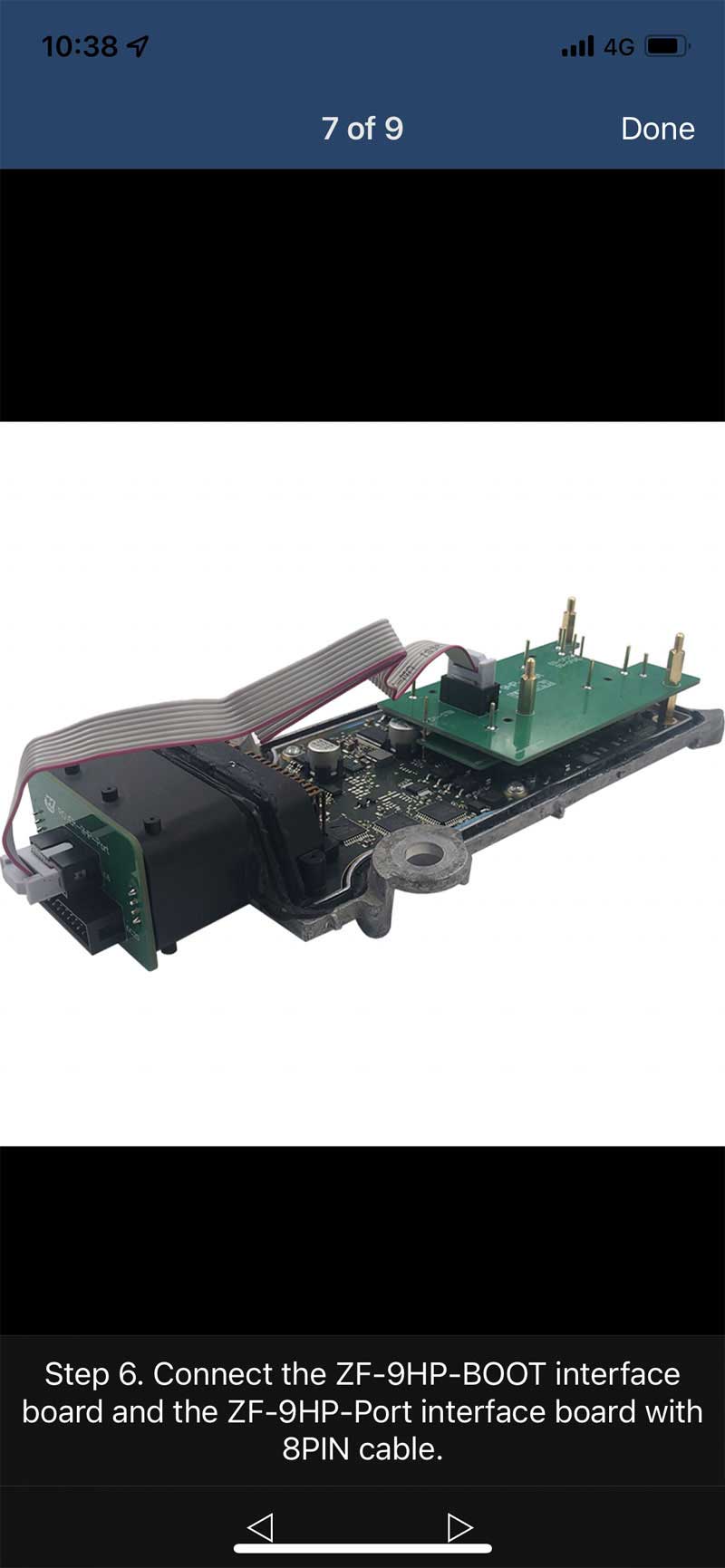

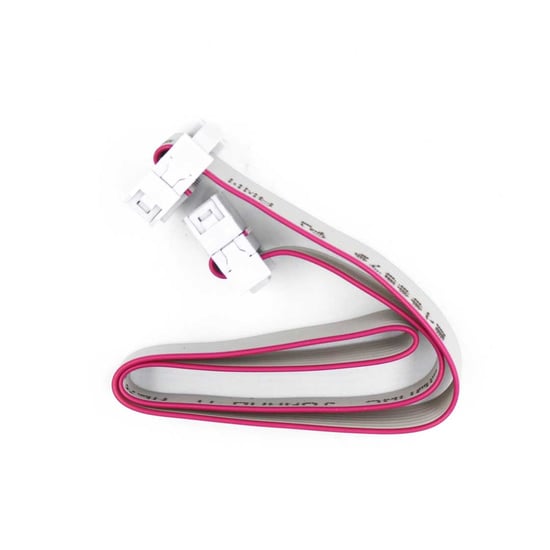

Step 6: Connect the ZF-9HP boot interface and the ZF-9HP port interface board with 8PIN cable

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 8

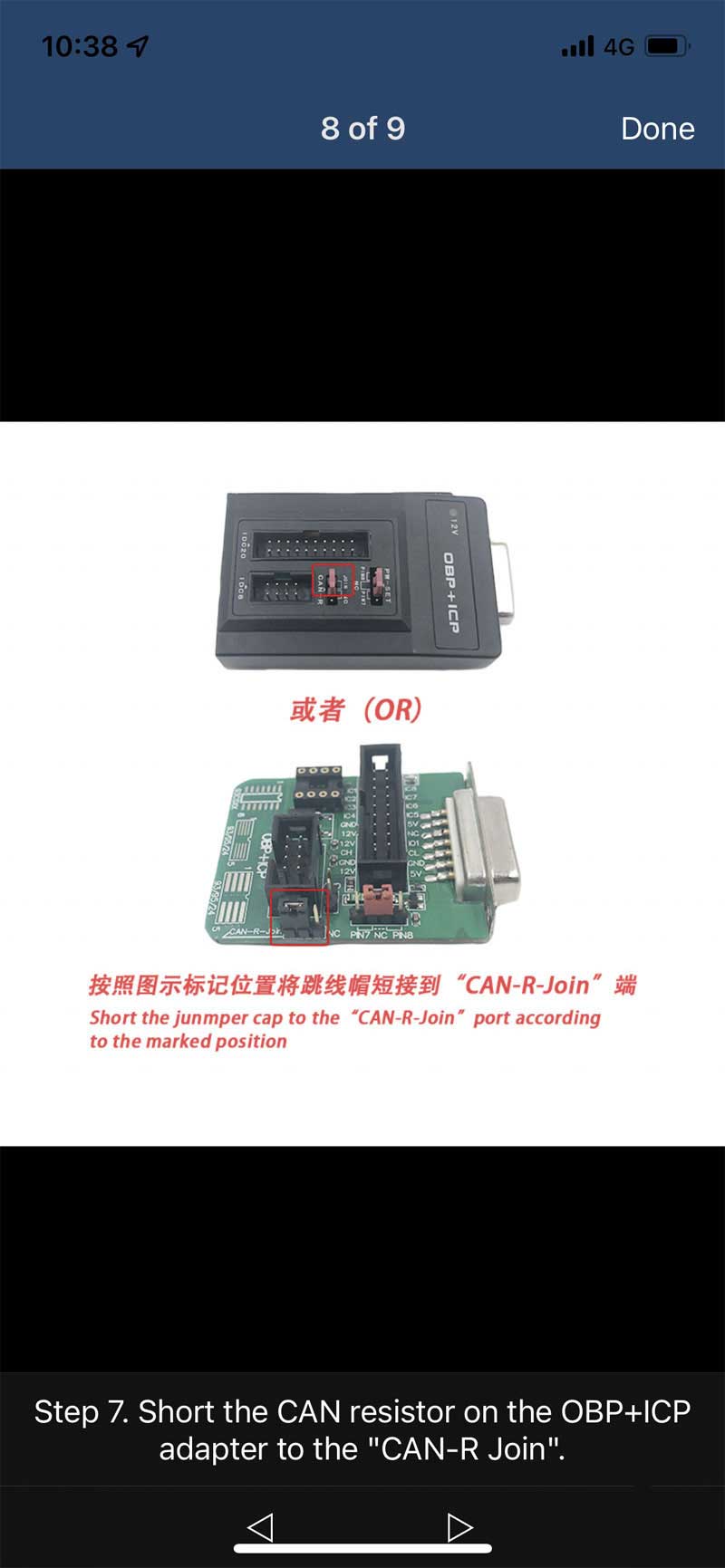

Step 7: Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 9

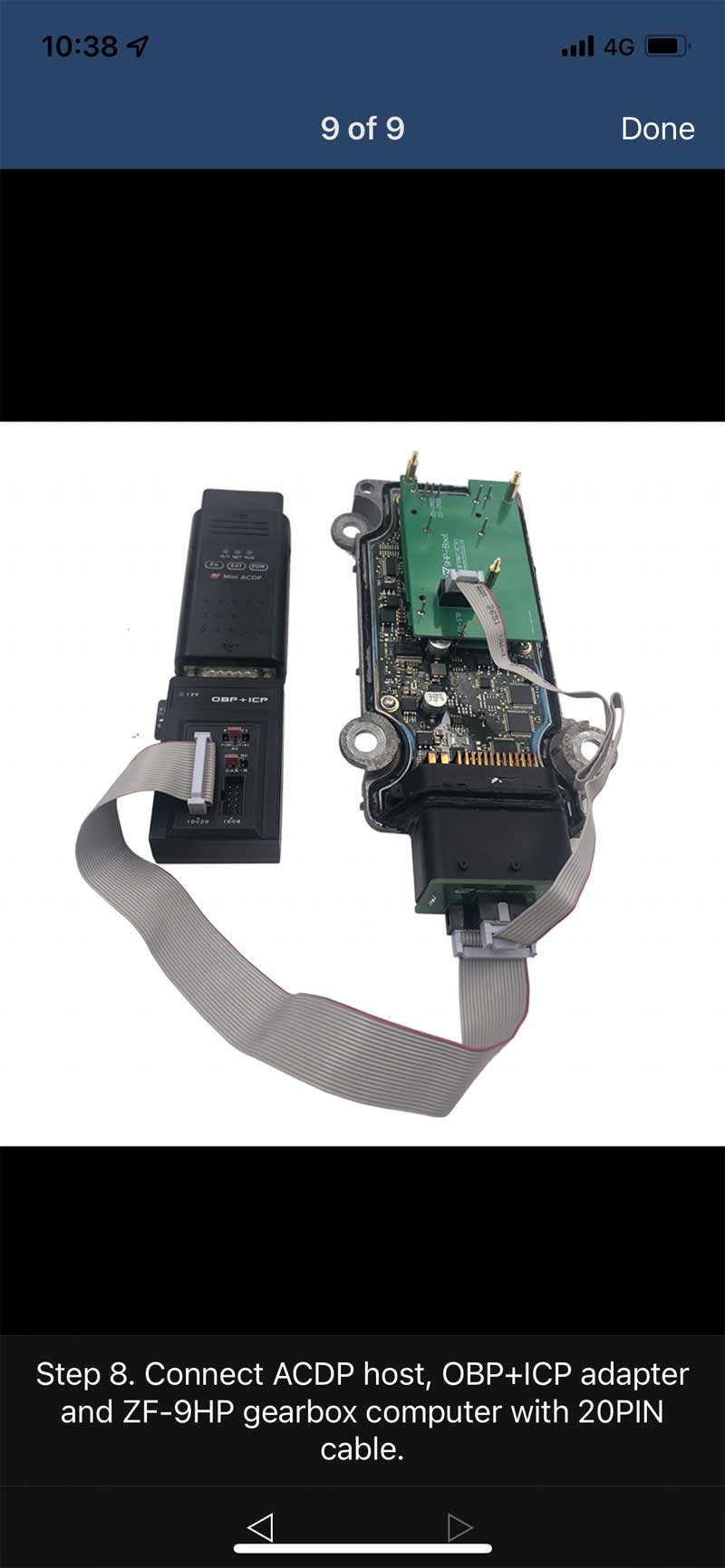

Step 8: Connect ACDP host, OBP+ICP adapter and ZF-9HP gearbox computer with 20PIN cable.

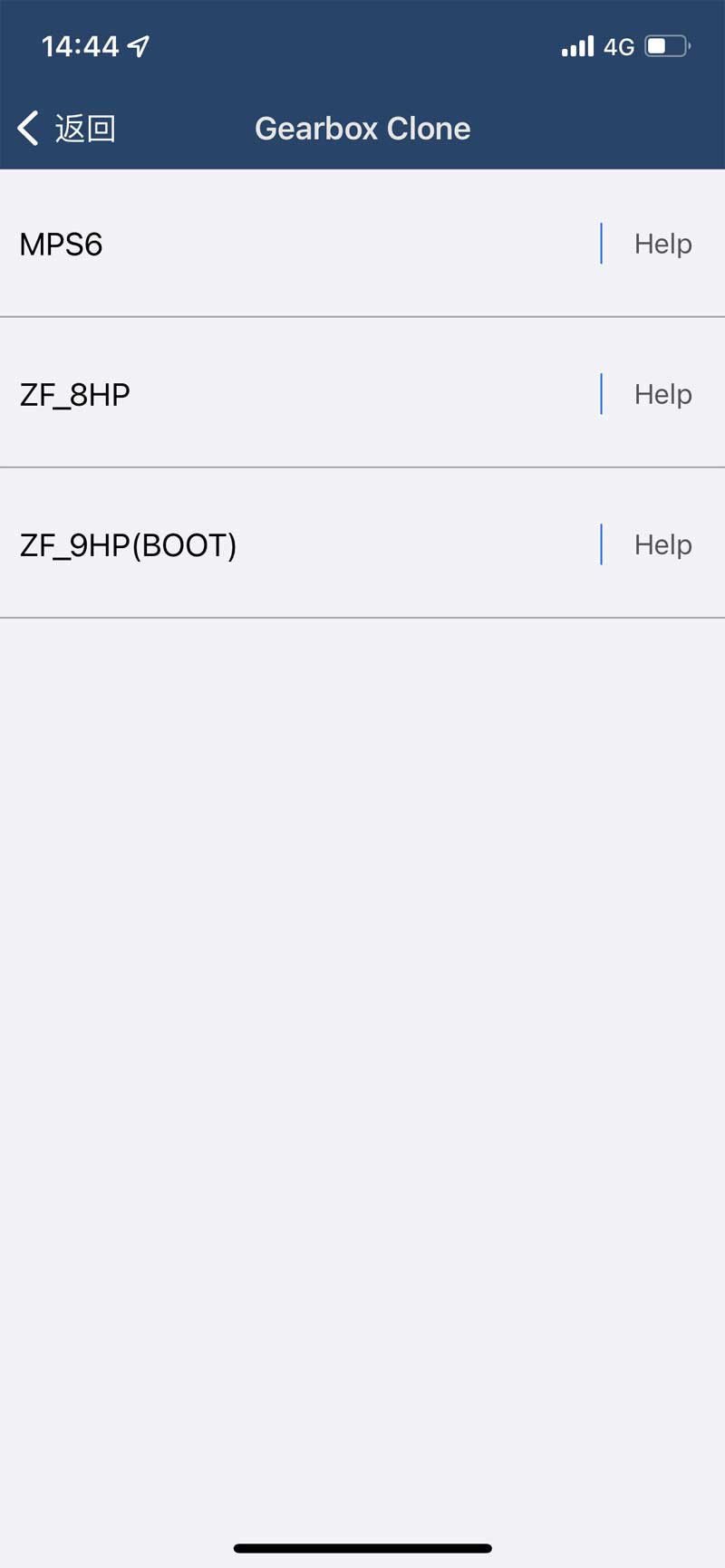

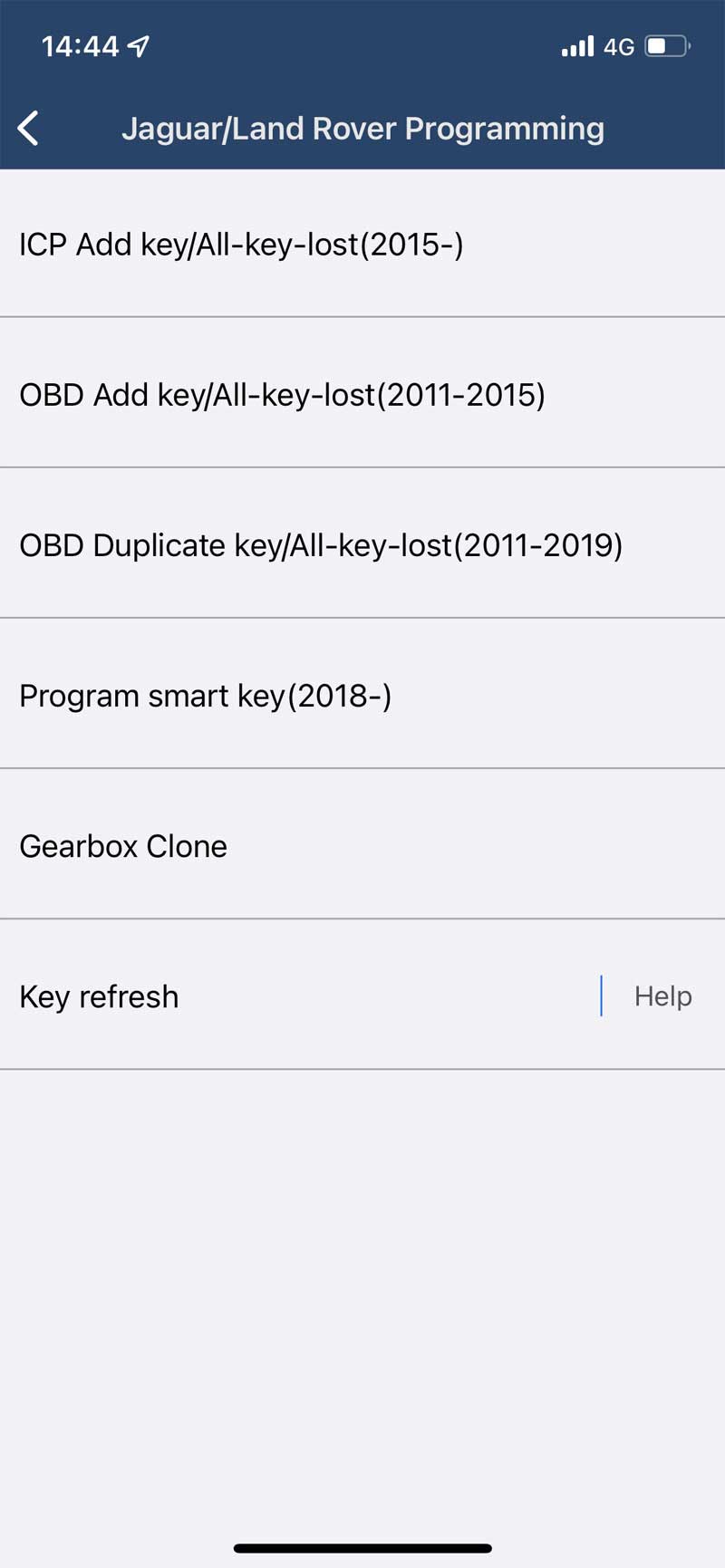

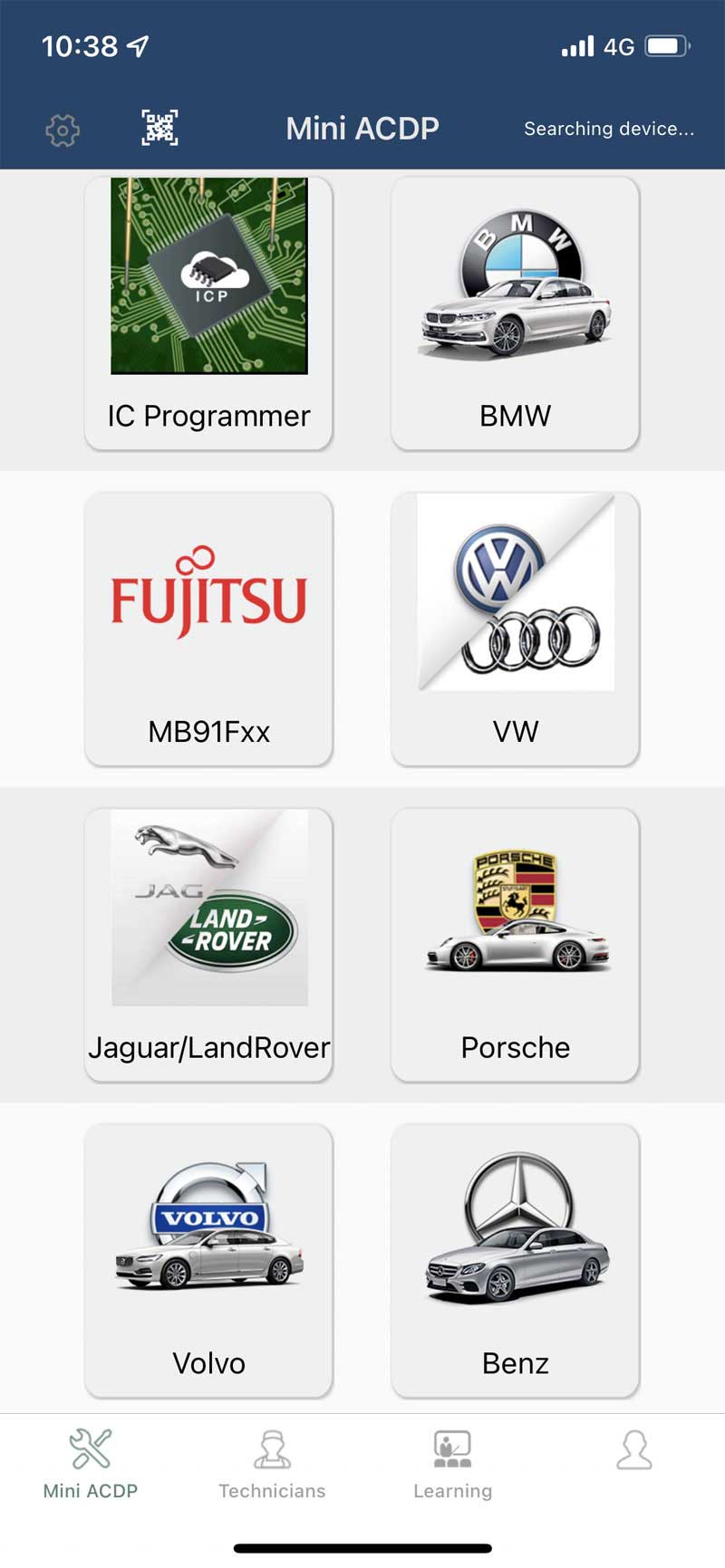

Run ACDP Mini App, go to Jaguar/Land rover-> Gearbox Clone->ZF-9HP (Boot)

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 10

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 11
 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 12

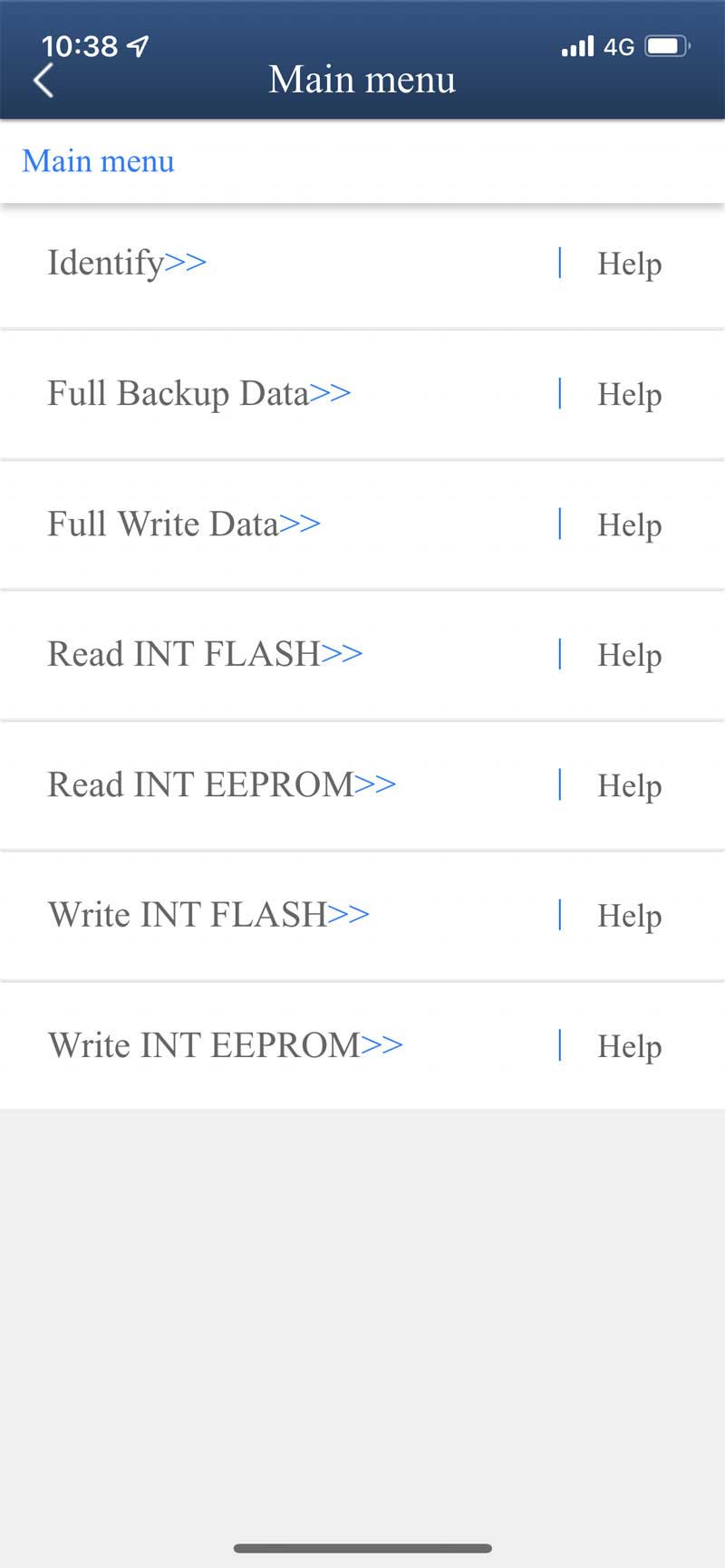

Identify

Full read to backup data

Full write data

 Clone ZF-9HP Gearbox with Yanhua Mini ACDP Module 28 13

NOTE: For Honda, Fiat, Dodge and other models with 9HP gearbox, you enter same menu path as Jaguar Land rover.
