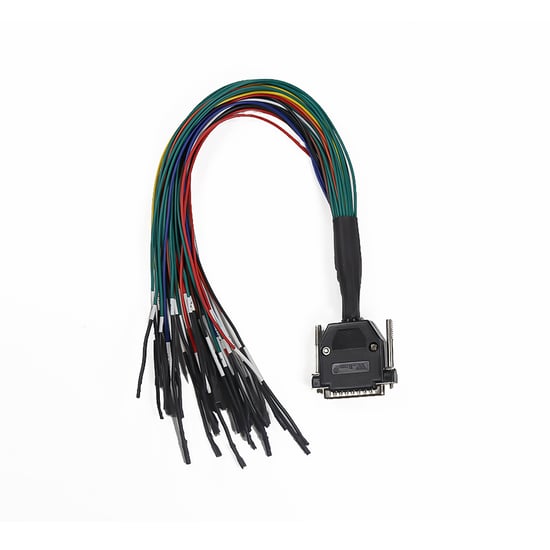

Automotive Universal Test Platform Tool Universal

Product Description:

Key Programming Tools From Aftermarket with Product Number: MK9595
This Weight Product: 1400g

Automotive Universal Test Platform Specs:

Condition: New
Manufacturer: Aftermarket

Automotive Universal Test Platform Product Brief:

This test platform supports all cars to connect all control units on the bench, and supports CAN-BUS communication and LIN-BUS communication. The cables are made of Japanese materials with high quality and low price, which suitable for all automotive electronics and locksmith personnel in the market.

MK9595_Product_Manual

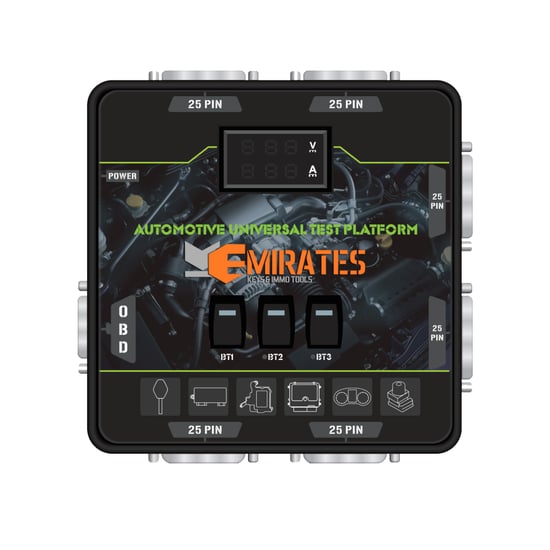

                            Automotive Universal Test Platform

This test platform supports all cars to connect all control units on the bench, and supports CAN-BUS communication and LIN-BUS communication.	.

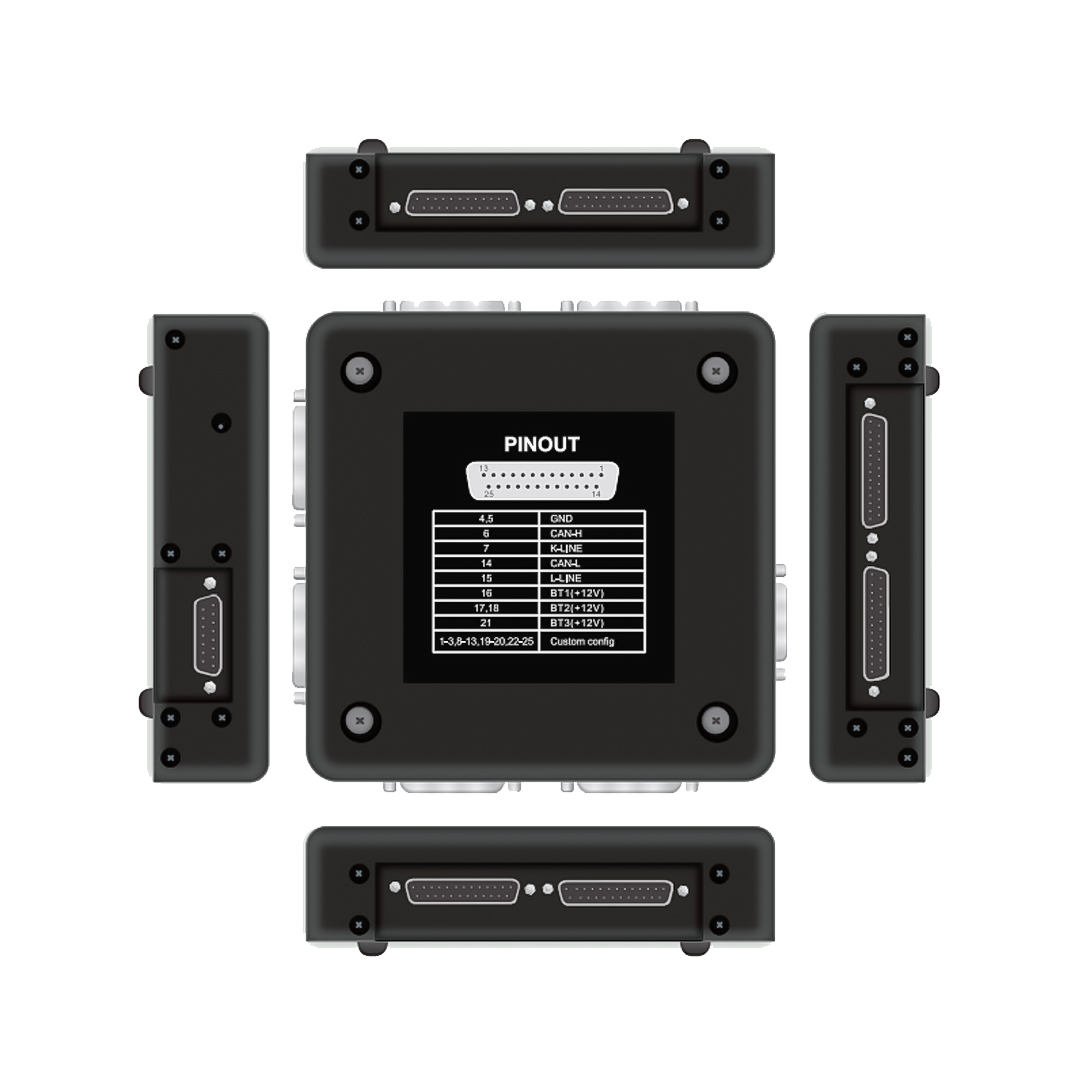

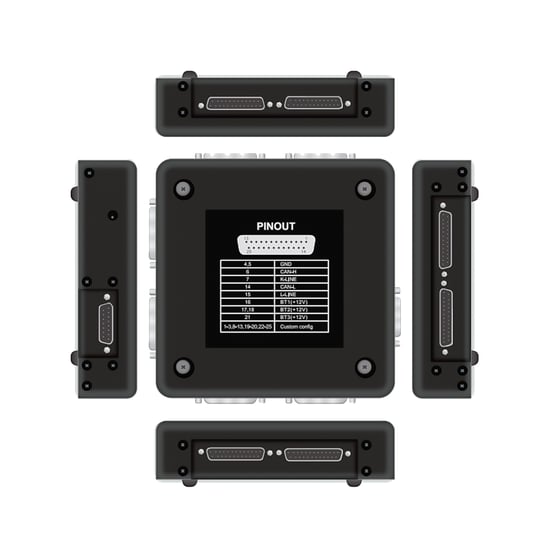

The test platform cable has 6 positions to insert DB25P cable, which is convenient for users to connect any control unit together and complete programming, diagnosis and other work on the bench.

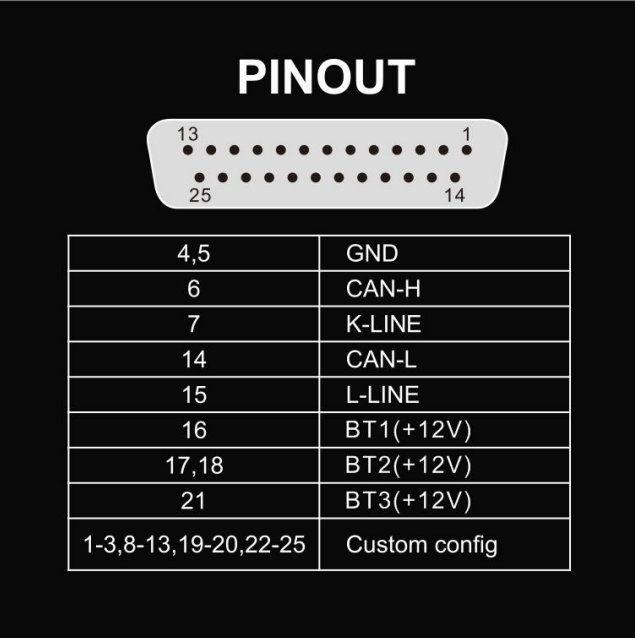

Here are the directions of the products	This is DB25P PINOUT among them

 How to use our products on Mercedes 722.9 7G control unit?

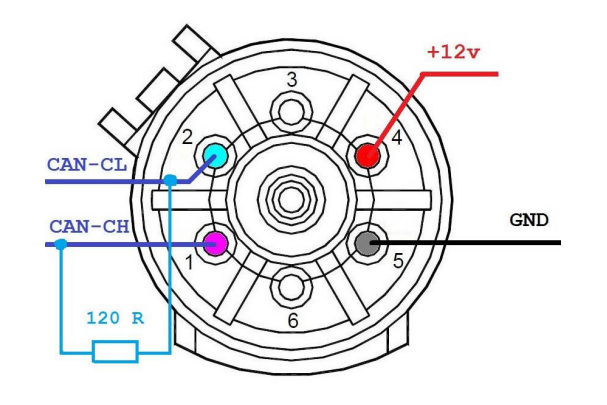

1. 1.  PINOUT Layout:
   1.

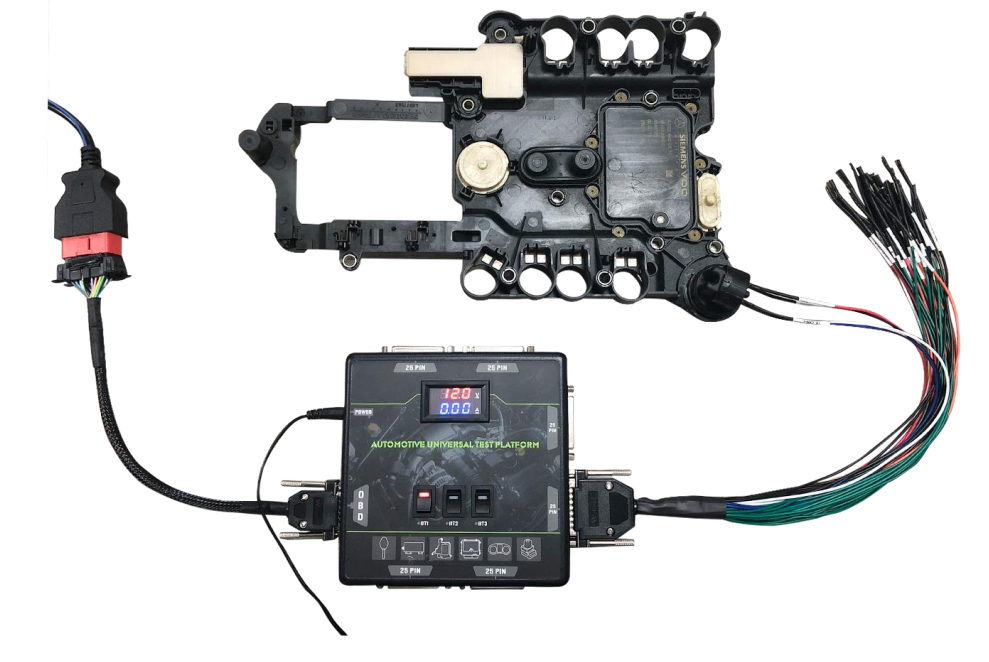

2. Connect on the bench:

Then you can diagnose or program or renew through any programmer

How to use our products on Mercedes 204 207 212?

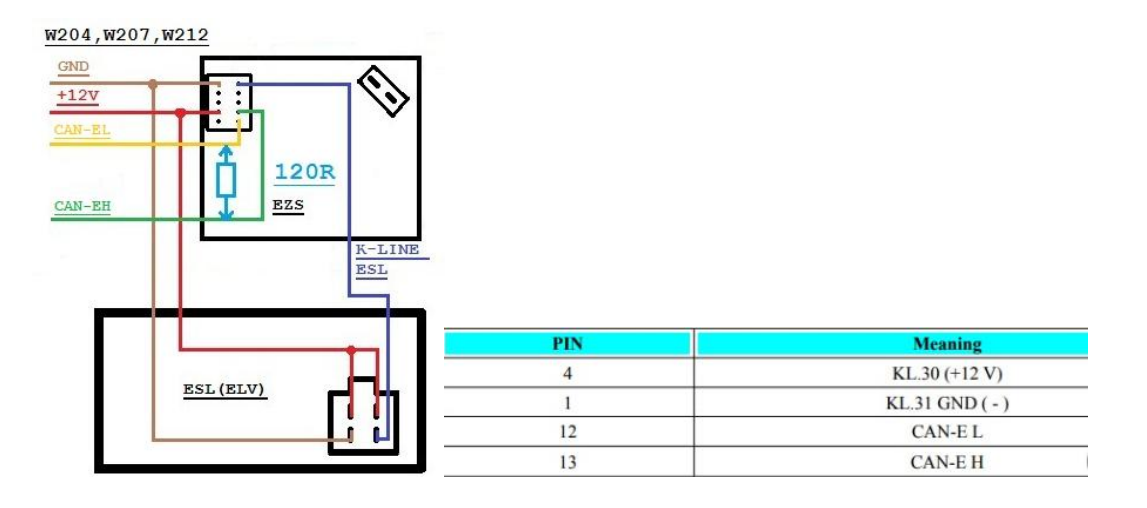

This is PINOUT of the DASH ESL EIS

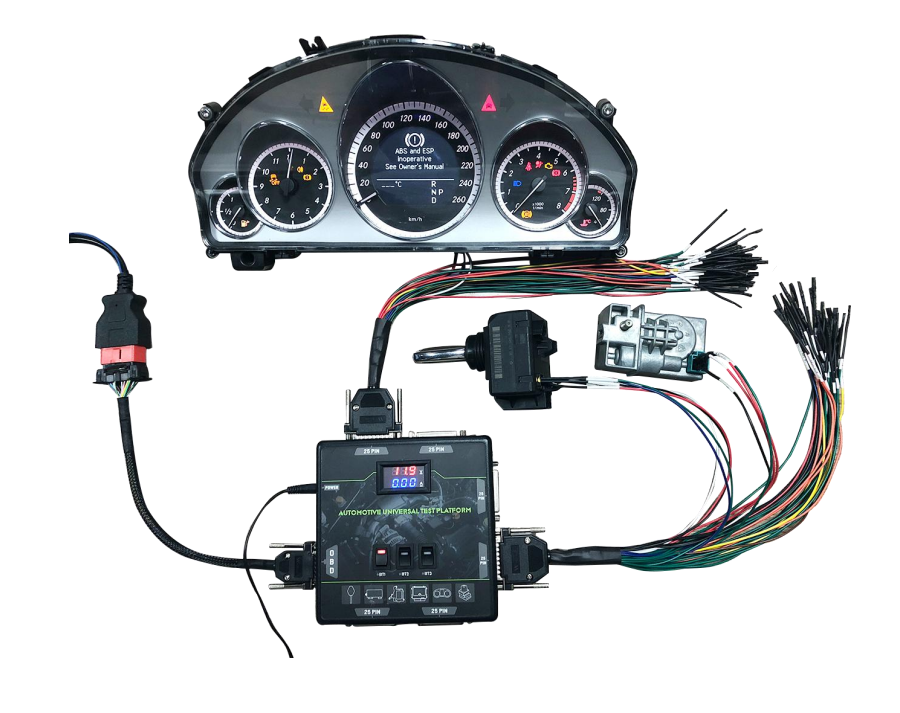

Using our products, connect on the bench:

You can then diagnose or program or renew through any programmer

The cables are made of Japanese materials with high quality and low price, which suitable for

all automotive electronics and locksmith personnel in the market.

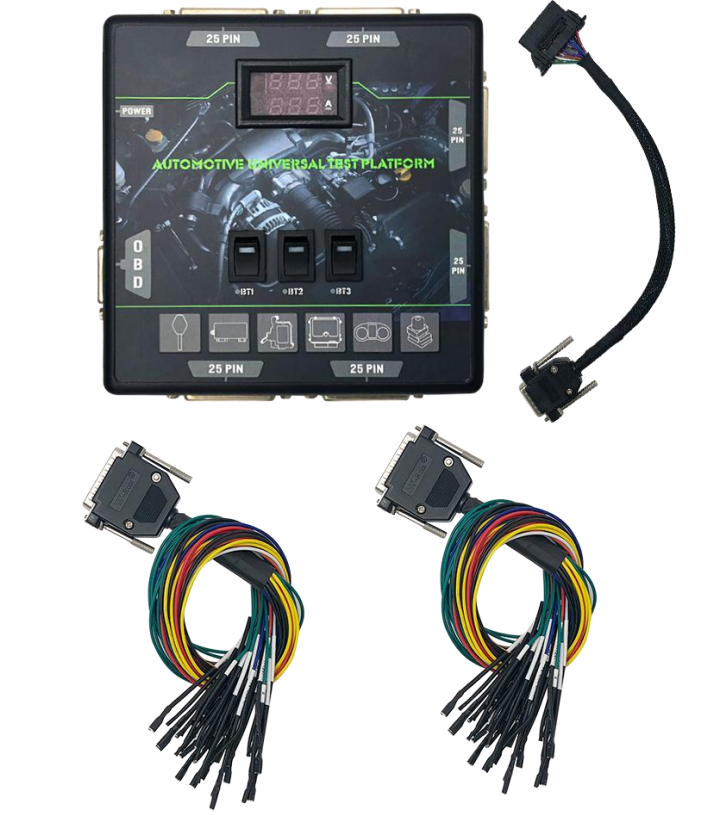

Automotive Universal Test Platform Packing details:

• 1PCS Test platform Box

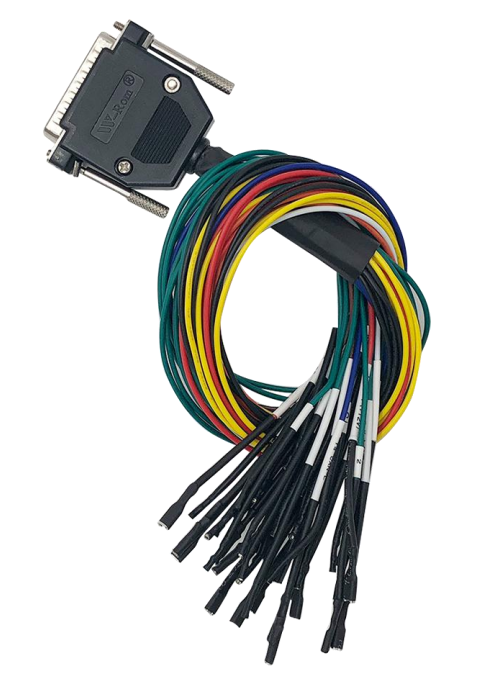

• 2PCS DB25P cable

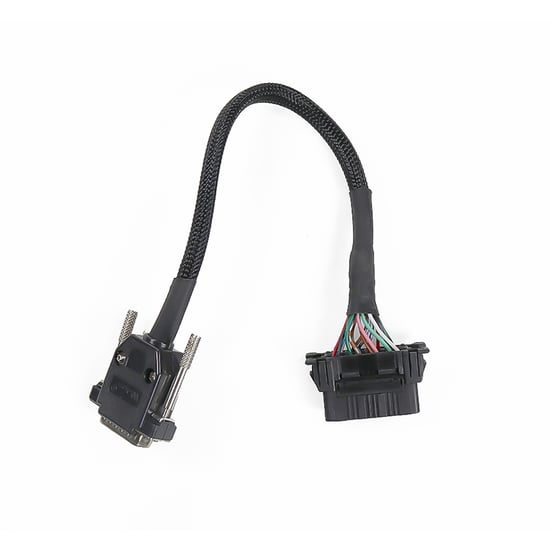

• 1PCS OBD2 cable If you need more DB25P cable, you can contact our sales staff
