Xtool Charging Docks for H6 Pro

Xtool Charging Docks for H6 Pro

Product Description:

Accessories From X-Tool with Product Number: MK6976
This Weight Product: 715g

Specs:

Condition: New
Manufacturer: Xtool

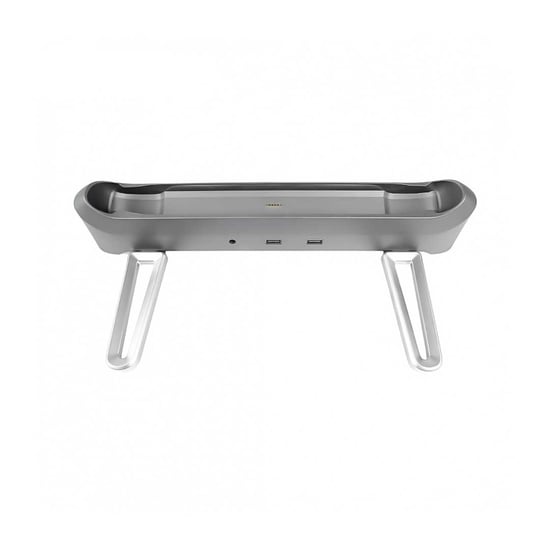

1. Charging Indicator
2. Power Port Charging For Diagnosis Device
3. DC Port - Connecting With Power Adapter
4. USB Port - Charging For Others Device

Specifications

Input Voltage : Dc 12v 3a
Output Voltage : 5v 2.1a Single Output/5V La Double Output
Operating Temp : -20~60°c
Storage Temp : -20~70°c
Dimensions (W*h*d) : 348.8mm*160mm 64mm
Weight : 555

Notice

Different Colors Of The Charging Indicator Light Indicate Different Charging States.
Green : Illuminates Green When The Diagnostic Device Is Fully Charged.
Blue : Illuminates Blue When The Power Adapter Is Connected, But The Diagnostic Device Is Not In Place.
Red : Illuminates Red When The Diagnostic Device Is Not Fully Charged, And The Light Will Turns From Light To Dark Repeatedly Like Breathing.

Extra Details:
