Autel MaxiBAS BT506 Auto Battery and Electrical System Analysis Tool
AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool that enables technicians to view the health status of a vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, and its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold-cranking ability and reserve capacity, which is vital to determine a battery’s true health.
AUTEL MaxiBAS BT506 Highlights
- Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
- Battery Health Report / Temperature Compensation / Cloud-based Service
- Battery Ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
- In-vehicle testing of Battery, Starter, Charging system voltage (not amps)
- Test 6- and 12-volt Batteries: 100 - 2000 CCA
- Test 12- and 24-volt Cranking/Charging Systems
Main Features of AUTEL MaxiBAS BT506
The BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.

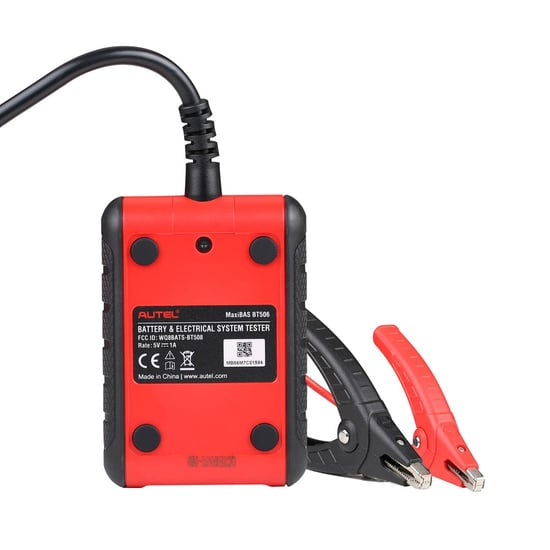

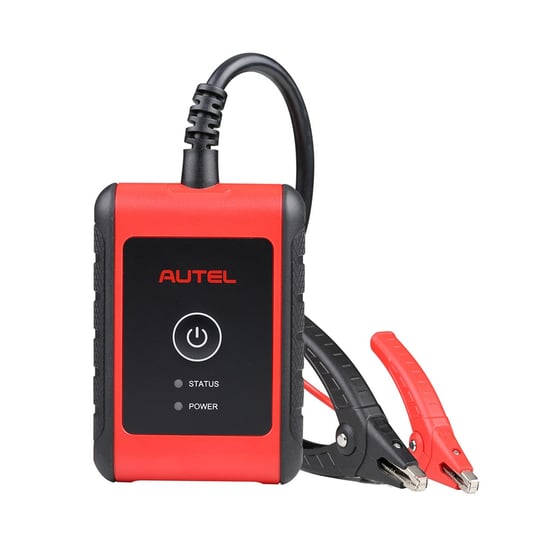

Autel MaxiBAS BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color-coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.
The tester is Bluetooth enabled and that's how it shares the test information with the app.
AUTEL MaxiBAS BT506 Specifications

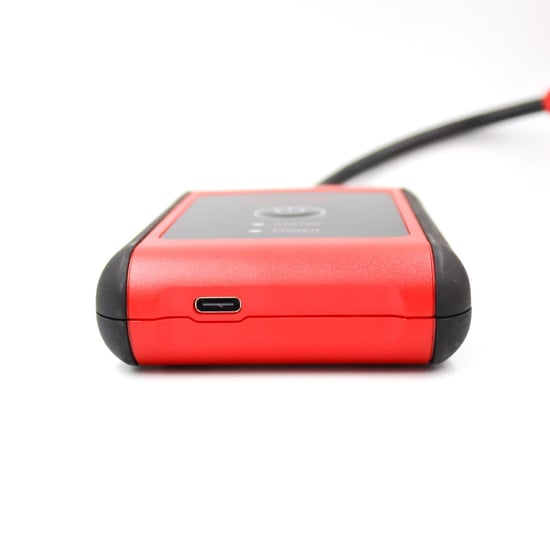

Connectivity: USB 2.0, Type C and Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
