Autel MaxiDAS DS900BT DS900-BT Diagnostics Tool

Autel MaxiDAS DS900BT DS900-BT Diagnostics Tool

Autel MaxiDAS DS900BT Description:

Diagnostic Tools From Autel with Product Number: MK22334
This Weight Product: 12250g

1. 2 Years update subscription is included with the device.
2. Ip Restriction (works only in India, Middle East and Africa ).

• 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display
• MaxiVCI V150 for wireless connection
• Read/clear codes for all available systems
• Display live data in text, graph & analog for easy data review
• Features DoIP and CAN FD protocols
• AutoVIN technology can automatically identify the vehicle’s make, model and year information in no time
• Support Pre & Post Scan function
• Reset service mileage and service intervals
• Relearn parking brake pad after replacement
• Forced regeneration and adjusting injectors
• Support battery registration and reset
• Reset Steering Angle Sensor (SAS)

Top Reasons To Buy Autel MaxiDAS DS900-BT

• Advanced ECU Coding: The MaxiDAS DS900-BT offers ECU coding functions that allow you to replace ECU modules, customize your car, deactivate unnecessary functions, and unlock hidden features.
• Bi-Directional Control/Active Test: This function similarly to the MS906/MS906BT models but without any additional cost. The DS900-BT scan tool can send commands to ECUs, read ECU data, and monitor the operation of actuators.
• OE-Level All System Diagnostics: Similar to the Snap-on Scanner, the Autel DS900-BT Diagnostic Scanner provides access to all available systems for performing OE-level diagnostics. It allows you to read and clear codes, retrieve ECU information, freeze frames, and view data frames.
• Enhanced Hardware: As an upgraded version, the MaxiDAS DS900-BT is equipped with more powerful hardware, including Android 11.0 OS, and dual WiFi 2.4 & 5GHz, 7700mAh Battery Capacity, 8M Camera, and V150 for Wireless Connection, providing faster performance.
• 40+ Hot Services: The DS900-BT comes with 40+ advanced hot services that assist in resolving complex repairs, such as ABS bleed, injector coding, oil reset, EPB, SAS, DPF, BMS, IMMO, and more.
• Wide Coverage: The DS900-BT has extensive coverage of 150+ brands worldwide, spanning from 1996 to 2023.
• 21+ Multi-Language Supported: The DS900-BT supports 21+ languages, including English, Spanish, French, German, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, and more.
• FCA AutoAuth Access: The MaxiDAS DS900-BT features FCA AutoAuth Access for 2017+ newer vehicles and Renault Access.
• Extensive Functions: Pre & Post Scan, Scan VIN, Scan License, DoIP CAN FD Protocol, and WIFI Print. It can also work with MV108S endoscope and BT506 Battery Tester.
• 3-year Free Update Service: With the DS900-BT, you will enjoy a 1-year free warranty and a 3-year free software update. The update fee is lower than that of the MS906/MS906BT models.

Autel MaxiDAS DS900BT Come With ECU Coding Function

Same as Autel MaxiSys MS906 Pro, Autel MaxiDAS DS900-BT also enables advanced ECU Coding functions. You can use it to:

ECU Replacement

Featuring ECU/Module replacement functions, MaxiDAS DS900-BT Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

Customize Your Own Car

• After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
• By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
• ECU Online Coding is available for BMW/Porsche/VW, etc.

Unlock Hidden Functions

Activate higher-level car functions, like making the pointer move and perform self check etc. Disable the annoying car settings such as the Automatic Start/Stop etc.

Note:

• ECU Coding does not imply changing the software! It only changes pre-programmed options already existent in the software.
• ECU Coding and Unlock Hidden Functions require the device on active software subscription.
• ECU related functions are not universal, please kindly check compatibility with us before order.

Autel MaxiDAS DS900BT with 40+ Hot Service Functions

The Autel MaxiDAS DS900-BT OBD2 diagnosis scanner not only has powerful diagnostic functions but also has a vast range of service functions, which will help you easily complete repair work. A money saver for home technicians and money maker for car workshops.

• Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
• Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
• GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
• Key Coding--- Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
• Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;
• SAS Reset--- Perform steering angle sensor calibration and clear records;
• BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.
• ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
• Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
• DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
• Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.

Autel MaxiDAS DS900BT Diagnostics Tool Full Bi-directional Control Automotive Scanner

Full Capability in Bi-directional Control/ Component Tests

MaxiDAS DS900-BT 2023 newest car scanner diagnostic tool features full bi-directional control ability, to send commands to the vehicle's systems/components, to verify system input/output without using the vehicle's controls.

• Fuel Injector Balance, Injector Tests
• Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
• Cycling ABS Pump Motor, EVAP Tests
• Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
• Cooling fan motor command, Interior lighting test, High beam test

OE-Level Diagnosis Same as Original Factory Equipment

Autel MaxiDAS DS900-BT car diagnosis expert can read DTCs and data streams for all available systems, and perform active test on the most extensive vehicles.

For instance:

• Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.

Autel MaxiDAS DS900BT in Extensive Vehicle Coverage

USA:

GM, Ford, FordEU, Chrysler, Dodge, Jeep

Asia:

Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion

Europe:

Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Citroen, Dacia, Ford, Jaguar, Lambor Ghini

Autel MaxiDAS DS900-BT 10+ High-end Functions

Work with Battery Test BT506

With the extra Autel MaxiBAS BT506 Battery Tests, it can help you test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.

Work with Autel MV108S Camera

This function can provide you clear image, such as engine cylinders and other small part inspections, easy-to-see.

VAG Guided Functions

Step-by-step operation guidance, easy to master usage for beginners. Compatible with VW/ Audi/ Skoda/ Seat cars etc.

Autel MaxiDAS DS900BT Specifications :

Autel MaxiDAS DS900BT Comparison:

MaxiDAS DS900-BT User Manual (PDF)

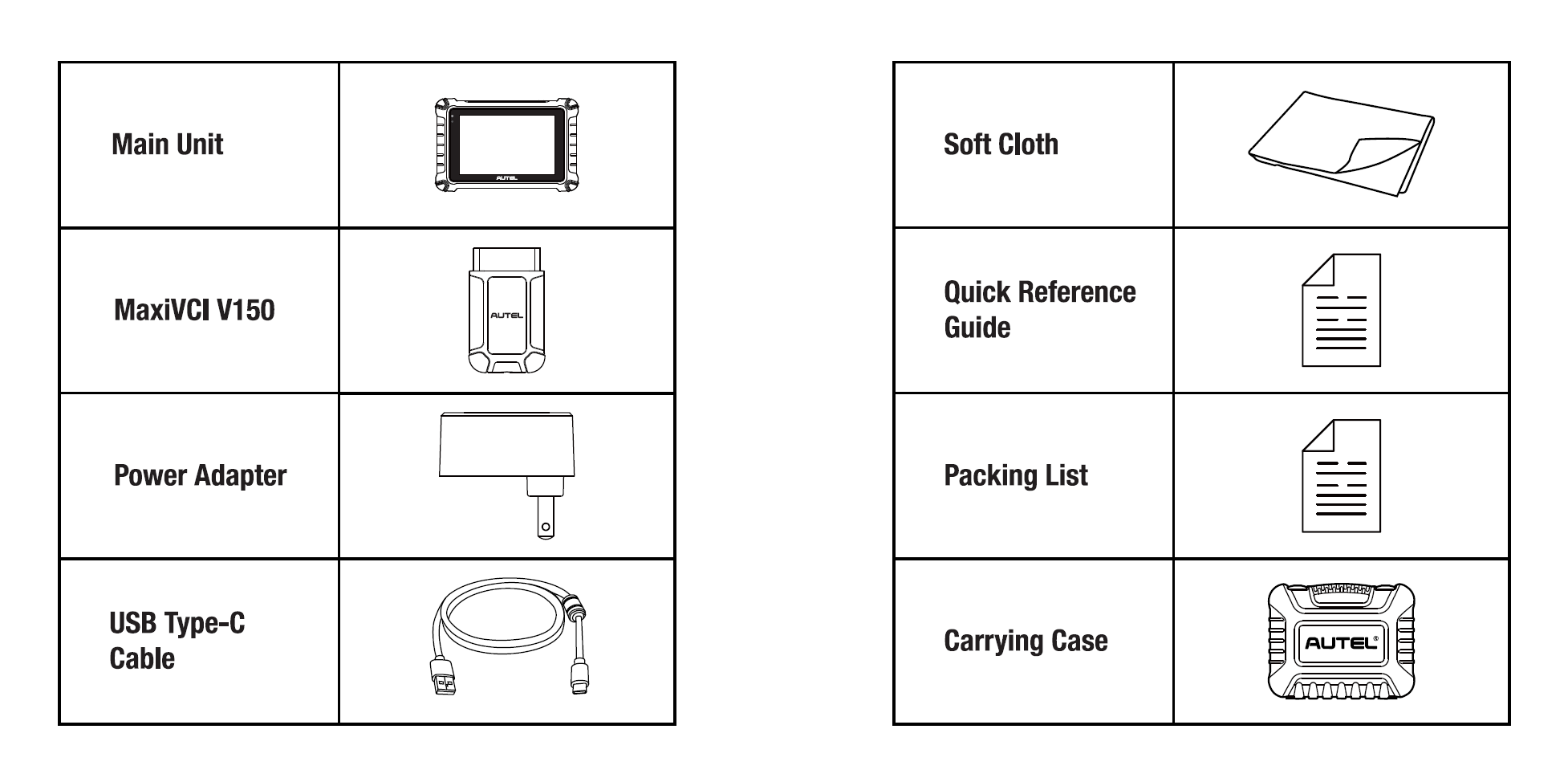

MaxiDAS DS900-BT Package List
