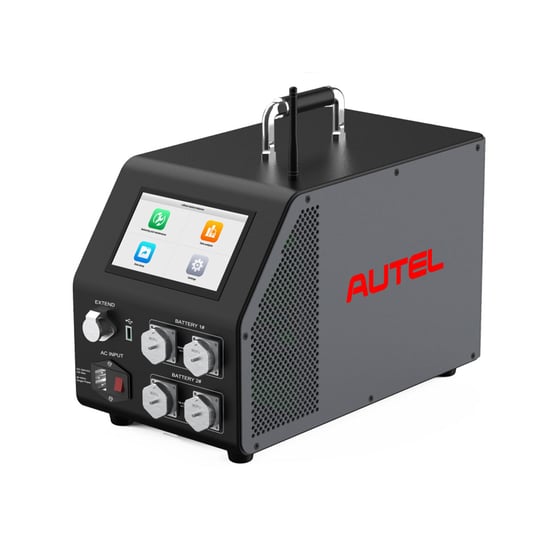

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Ev Battery Pack Cell Balancer MK26791
Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer
Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer

Ev Battery Pack Cell Balancer

Write Review
$6,400.00 (€5,504.00)
Notify me when available Add to Wishlist
Product Code: MK26791
Categories Automotive Workshop Equipment
Manufacturer Autel
Product Specifications
Manufacturer Autel
Condition New
Weight 15000 g

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Ev Battery Pack Cell Balancer

Product Description:

New Autel MaxiEV CDT100 is a high voltage battery charger and discharger. Improve battery pack capacity with constant current charge, and discharge modes. The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit). Zoom-in and zoom-out display capability. Industry applications include electric vehicle transporters, collision and mechanical repair shops, and salvage yards and vehicle warehouses.

Battery Service Automotive Workshop Equipment From Autel with Product Number: MK26791
This Weight Product: 15000g



Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer User Manual



Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Features:

•Detect and charge module cells evenly and prevent overcharging of cells.

•Ensure accurate measurements by detecting and correcting voltage and current values.

•Overvoltage protection technology ensures that the cell voltage is close to the target threshold during the testing process.

•Additional protections for undervoltage, overcurrent, short circuit and reverse polarity



Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Specs:

CHARGE AND DISCHARGE VOLTAGE RANGE 1.8-5V
CHARGE AND DISCHARGE CURRENT RANGE 0.1-5A
VOLTAGE DETECTION ACCURACY ±0.1%FS±2mV ( maximum range 5 V)
CURRENT SAMPLING ACCURACY ±1%FS±0.05A ( maximum range 5 A)
CHARGE AND DISCHARGE POWER 600W Max
TEST CELL QUANTITY Max 2 Packs and 12 Cells (max)
Per Pack (Supports 2X12 / 1X24)
POWER INPUT AC 110V/220V
CHARGE CONTROL Constant Current and Voltage Charging
DISCHARGE WORKING MODE Constant Current
PROTECTIVE FUNCTION Input Over-Current and Over-Voltage Protection
Output Over-Current and Over-Temperature Protection
DIMENSIONS 496x246x262mm
