Item |

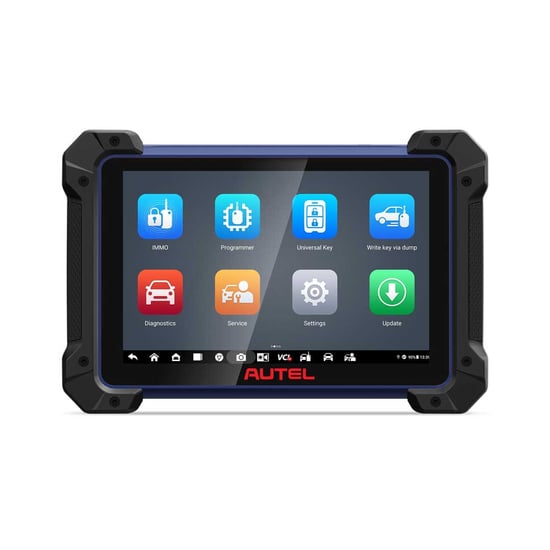

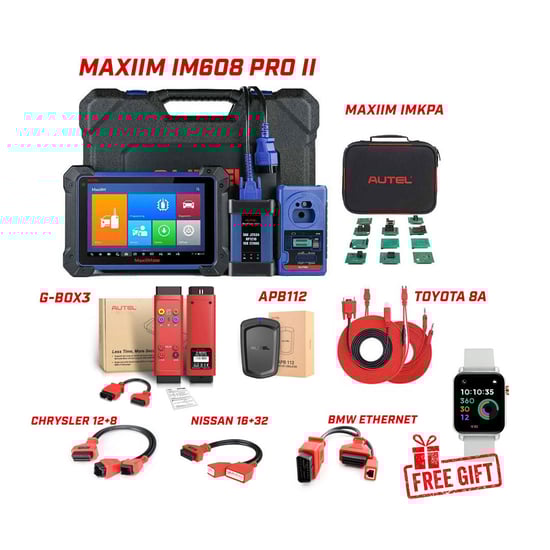

Autel IM608 PRO II/ IM608 II/ IM608S II |
Autel IM608 PRO/ IM608 |
Autel IM508 |
Autel KM100 |
Hardware |
Touch screen tablet & programmer |
Touch screen tablet & programmer |
Touch screen tablet & programmer |
Touch screen handset |
VCI |
√ (Bluetooth connection) |
√ (Bluetooth connection) |
√ (wire connection) |
√ (Bluetooth connection) |
Automatic scan |
√ |
√ |
√ |
√ |
Immo scan |
√ |
√ |
√ |
√ |
Immo function |
Support program keys by OBD/on-bench/boot, immo part replacement |
Support program keys by OBD/on-bench/boot, immo part replacement |
Support program keys by OBD/on-bench/boot, immo part replacement |
Support program keys by OBD |
Diagnostic function |
Medium diagnosis, BMW & Benz immo programming |
Medium diagnosis, BMW & Benz immo programming |
Basic diagnosis |
× |
Remote expert |
√ (coming soon) |
× |
× |
× |
Processor |
Qualcomm SDM660 Octa-core |
Samsung Exynos T5260 6-Core |
Rockchip RK3188 Quad core |
PX30 4x ARM Cortex-A35 |
System |
Android 10.0 |
Android 4.4.2, KitKat |
Android 4.4.4 |
Android 9.0 |
RAM |
4G |
2G |
1G |
2G |
ROM |
128G |
64G |
32G(64G after 2021) |
64G |
Screen |
10.1inches, 1920*1200 |
10.1inches, 1920*1200 |
7inches, 1024*600 |
5.5inches, 1280*700 |
WiFi |
√ |
√ |
√ |
√ |
Bluetooth |
V5.0+BR/EDR |
V2.1+EDR |
× |
√ |
USB |
USB 2.0 (2 USB host type A, 1 USB mini device) |
USB 2.0 (2 USB host type A, 1 USB mini device) |
USB 2.0 (1 USB host type A, 1 USB mini device) |
× |
HDMI |
HDMI 2.0 |
HDMI 1.4A |
× |
× |
SD Card |
√ (support up to 64G) |
√ (support up to 32G) |
√ (support up to 32G) |
× |
Headphone jack |
√ |
√ |
× |
× |
Microphone |
1MIC |
1MIC |
× |
× |
Loudspeaker |
2 |
2 |
× |
× |
GPS |
√ |
× |
× |
× |
Light sensation |
√ |
√ |
× |
× |
Buttons |
1 power button |
1 power button |
1 power button |
× |
Battery |
3.8V, 15000mAh |
3.8V, 15000mAh |
3.7V, 5000mAh |
4950mAh |
Camera |
Rear 16 megapixel, AF with flashlight |
Rear 8 megapixel, AF with flashlight |
× |
× |
Lower computer |

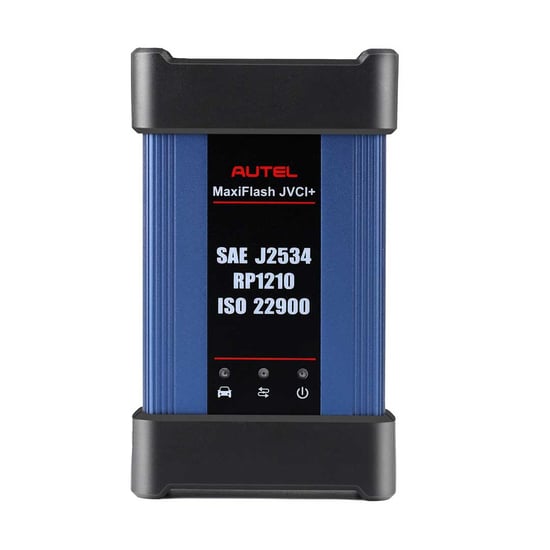

JVCI+ |
JVCI |
All-in-one |
× |
Programmer |

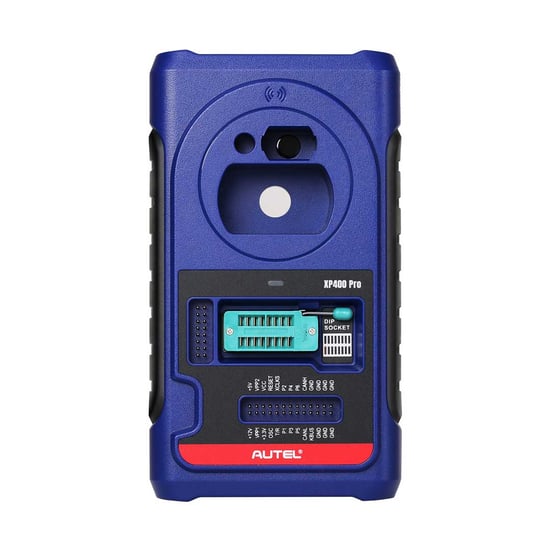

XP400 PRO |
XP400 PRO |
XP200 |
V200 |
Connection |
Bluetooth/USB |
Bluetooth/USB |
All-in-one |
Bluetooth |
Read & write EEPROM |
√ |
√ |
√ |
× |
Read & write MCU |
√ |
√ |
√ (less coverage) |
× |
Read & write ECU |
√ |
√ |
√ (less coverage) |
× |
Read & write immo module |
√ |
√ |
√ (less coverage) |
× |
Read & write instrument/ airbag module |
√ |
√ |
√ (less coverage) |
× |
Key identify |
√ |
√ |
√ (less coverage) |
√ |
Read by eeprom |
√ |
√ |
× |
× |
Refresh key |
√ |
√ |
√ (need XP400 PRO) |
√ |
Detect frequency |
√ |
√ |
√ (need XP400 PRO) |
√ |
Generate transponder |
√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) |
√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) |
√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) |
√ |
Transponder simulation |

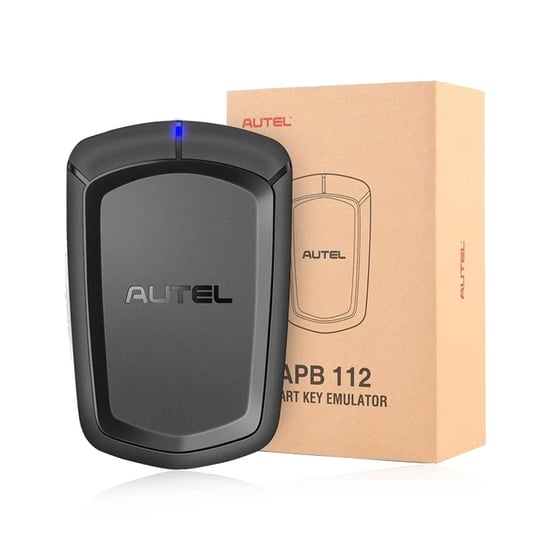

√ (need APB112) |
√ (need APB112) |
√ (need APB112) |
√ |
Detect ignition coil |
√ (need APB112) |
√ (need APB112) |
× |
√ |
Auto VIN |
√ |
√ |
√ |
× |
Read & clear fault codes |
√ |
√ |
√ |
× |
Live data |
√ |
√ |
√ |
× |
Freeze frame |
√ |
√ |
√ |
× |
Read ECU info |
√ |
√ |
√ |
× |
Action test |
√ |
√ |
√ |
× |
Services |
√ |
√ |
√ |
× |
Special function |
√ |
√ |
√ |
× |
Online coding |
√ |
√ |
× |
× |
Offline coding |
√ |
√ |
× |
× |
Hidden features |
√ |
√ |
× |
× |
Guidance |
√ |
√ |
× |
× |
Online programming |
√ (support partial Benz, BMW models) |
√ (IM608Pro supports partial Benz, BMW models) |
× |
× |
Report manage |
√ |
√ |
√ |
× |
Other functions |
Scan VIN, scan license, remote desk. D-PDU, RP1210, DoIP, CANFD diagnostic standard |
Remote desk, D-PDU, RP1210 diagnostic standard (DoIP/CANFD need adapter) |
Remote desk, CANFD diagnostic standard(need adapter) |
× |
Inspection camera |
√ (MV105/ MV108) |
√ (MV105/ MV108) |
√ (MV105/ MV108) |
× |
