Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI 2 Years Update Subscription 1 Year Warranty MK17346
Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI
Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI
Autel MaxiSYS MS906 Pro-TS Bi-Directional Diagnostic Scanner| MK3 -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail
New Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI | Emirates Keys -| thumbnail

Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI

2 Years Update Subscription

1 Year Warranty

Write Review
$1,650.00 (€1,518.00)
Add to Wishlist
Product Code: MK17346
Categories Diagnostic Tools
Manufacturer Autel
In StockIn Stock
Product Specifications
Manufacturer Autel
Condition New

Autel MaxiSYS MS906 Pro-TS OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI 2 Years Update Subscription


Product Description:

Autel MaxiSys MS906 PRO-TS TPMS service tool comes with comprehensive TPMS functions. It can diagnose newest models up to 2021 with frequent updates. It packed ALL TPMS service options: TPMS programming(MX-Sensors), sensors Relearn/Activation, TPMS Reset and TPMS health diagnose, read and clear DTCs and show DTC description on the screen, program MX-sensors, read sensor data, sensor live data, key fob frequency test, etc.

Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK7346
This Weight Product: 3100g

Autel MaxiSYS MS906 Pro-TS Specs:

Manufacturer: Autel
Condition: New

Important Notes for Autel MaxiSYS MS906 Pro-TS :

  1. 2 Years update subscription is included with the device.
  2. Ip Restriction (works only in India, Middle East and Africa ).

ِAutel MaxiSYS MS906Pro-TS is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs comprehensive TPMS servicing including 1-Sensor programming to its extensive vehicle diagnostics capability including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required).

Autel MaxiSYS MS906 Pro-TS Highlights:

  1. Global Version, No Blocking Problem
  2. Two Year Free Update Online
  3. Support both Full System Diagnosis and Complete TPMS Functions
  4. Cloud-based Accufix Repair Database: Access to vast database of repair and diagnostic tips along with proven filed fixes
  5. Remote Expert Service: Provide a place where you can turn to other professional mechanics for help to repair your vehicles Many features have not been listed yet
  6. Integrated TPMS Antenna Module for Performing Comprehensive TPMS Service, triggering known OEM TPMS sensors, program Autel MX-Sensor and perform TPMS sensor relearns
  7. Complete TPMS Functions As Professional TPMS Tool: With Complete TPMS modules, Autel MS906 PRO-TS integrated TPMS antenna module for performing comprehensive TPMS service: activate/ relearn 99% all-known OEM TPMS sensors, program MX-sensors, turn off TPMS light, retrieves the sensors' OEM part No. in seconds and provides with 3000+ built-in relearn procedures. Compared with competitors, Autel MS906 Pro-TS allows Auto Create 1-16 Sensors to program the new MX-Sensor at the same time.
  8. High-End ECU Online Coding Same as MS908/ MK908P: Same as MS908/ Elite/ MS906BT, MaxiSys MS906 Pro-TS assigns ECU online coding to allow reprogramming adaptive data to specific components after repair or replacement for Toyota, Nissan, Honda, Chrysler, VW, AUDI, GM, etc. which can disable annoying functions to improve car performance and flashing hidden function. Note: Autel MS906 PRO-TS can code B~W F and E chassis/ Porsche, Ford offline adaption.

Notes:

  1. English Language Available Only
  2. MaxiSYS MS906 Pro-TS Does Not Display Topology.
  3. Does Not Include OBD-I Cable and Adapters In the Package (Need to buy Seprately)
  4. Can Only Work for Autel MX Sensors, It Can't Program Any Other Brand Sensors.
  5. Requires the Nissan 16+32 ByPass Cable Adapter (Need to buy Seprately) for Nissan Sentra 2020 and newer models.

Autel MaxiSYS MS906 Pro-TS Features

Hardware:

  • 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
  • Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
  • MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols

Software:

  • Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
  • AutoScan: Scan all available systems, including ADAS identification
  • Read/Erase Codes, View Freeze Frame and Live Data
  • Integrated TPMS antenna module for performing comprehensive TPMS service
  • Perform Active Tests (bi-directional controls), Coding and Adaptations
  • AutoVIN/Scan VIN for rapid vehicle identification
  • Performs ADAS Calibrations with software upgrade and frame system purchase
  • Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel 1-Sensor to replace 99% of TPMS sensors on the road today.

New Software Features

  • Battery Analyzation Capability
  • Cloud-based Reports and Data Management
  • With additional purchase of the MaxiBAS BT506 battery and electrical system tester.
  • With purchase of ADAS calibration frame system and software

Vehicle Coverage

The MS906 Pro-TS covers domestic, asian and european vehicles (1996 to present) and includes a 1-year update subscription for diagnostics and TPMS. You can send ebay message to us first to check the Coverage details for vehicle diagnostics if needed.

Autel MaxiSYS MS906 Pro-TS Functions:


1. OE-Level All Systems Diagnostics

Autel MaxiSYS MS906 Pro-TS can access all electrical systems like ABS, SRS, TPMS, Engine, IC, Transmission, BCM, Chassis, Steering, Airbags, Air Conditioning, IMMO, Air Suspension, Air Suspension, Cruise Control etc. to perform SAME level of diagnostic and maintenance as Autel MS908/ MK908/ MaxiSys Elite. It enables scan all vehicle systems to read/ clear codes, view live data, freeze data frame, turn off the light to recover vehicle issues.

Autel MaxiSYS MS906 Pro-TS

2. ECU Coding & Adaptation

  • With ECU coding functions, Autel MS906 Pro TS will improve vehicle performance, customize individual customization, refresh hidden functions, disable the annoying functions, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models,etc to enhance fuel efficiency and ensure safe driving.
  • Refresh Hidden Functions: stimulate hidden functions like Auto Park function, tilting rear-view mirrors, one-button lift window, start and stop memory, cancel power-on rule statement, display digital speed, residual temperature control, adjust turn signal flashing times, single
  • Door opening Function, automatic window closing function for VW, BMW, Seat, Porsche, Renault, etc.
  • Customize Configurations: After component replacement and configuration change, the relevant vehicle system can re-recognize the new driver.
  • Customize Individual Customization: Set up functions only available in high-end vehicles, such as adaptive cruise holding system, vehicle positioning, remote start and air conditioning, etc.

    Autel MaxiSYS MS906 Pro-TS

3. Complete TPMS Function, Preventing Accidents, Driving Safety

How to distinguish the pros and cons of products?
In TPMS functions, MS906 Pro-TS>MS906TS>TS608>MP808TS>MK808TS
With complete TPMS models, Autel MaxiSys MS906 Pro-TS can penetrate into TPMS vehicle electronic system to Read/ Erase TPMS codes, Sensor Check, scan tire health status, which also enable activate all known sensors, relearn 99% sensors in the market, program MX-sensors, one-step check TPMS health status, check sensor ID, tire pressure, tire temperature, sensor battery, sensor position, and sensor frequency etc.

>Activate sensors: Activating sensor is an action that is performed in the process of Relearn sensor and Programming sensors, it does not need to be specifically activated.
>Relearn sensors: If the sensor is faulty or unavailable, you can copy information to MX-sensor through Copy by OBD after performing Read IDs from Vehicle in Relearn function, then you can relearn sensors and program sensors.
>Programming sensors: After replace new sensors to TPMS modules, MS906 Pro-TS allows you match MS-sensors to ECU modules by programming sensors.

4. Maintenance Reset Functions Settle Vehicles Faults

  1. Oil Reset: Reset service intervals after oil change and turn off the oil light
  2. EPB Reset: Reset brake pads after replacement of braking system.
  3. SAS Adjustment: Clear faulty steering Angle sensor memory, reset steering Angle sensor, turn off steering wheel warning light
  4. BMS Reset: Register new battery to the ECU after replacement
  5. Throttle Relearn: Reset throttle actuator to accurately adjust throttle (or idle engine) operation
  6. ABS Bleeding: Cycle the ABS pump to bleed the air out of the ABS to restore ABS braking sensitivity
  7. Injector Coding: Coding injectors after replacement.
  8. Transmission Match: Reset the adaptive shift point in the automatic transmission control unit.
  9. Windows Initialization: Initialize car window when the car window fails or after replacing the window
  10. VGT Learn: Activate the electronic water pump before venting the cooling system.
  11. Airbag Repair: Reset the airbag data to clear airbag collision/crash data

Autel Maxisys MS906 Series Comparison

Item MS906S MS906 Pro MS906 Pro-TS
Hardware
Connection Bluetooth MaxiSYS VCIMINI Bluetooth MaxiSYS VCI200 Bluetooth MaxiSYS VCI200
Screen 8-inch touchscreen, 1024*768 DPI/TFT-LCD Asahi Glass 8-inch touchscreen, 1920*1200 DPI/TFT-LCD Asahi Glass 8-inch touchscreen, 1920*1200 DPI/TFT-LCD Asahi Glass
Battery 10,000 mAh 11,600 mAh 11,600 mAh
Processor 1.7GHz+1GHz, Hexa-Core 2.3GHz+1.7GHz, Octa-Core 2.3GHz+1.7GHz, Octa-Core
Memory 64GB SSD/2GB RAM 128GB SSD/4GB RAM 128GB SSD/4GB RAM
Camera 8MP Rear 16MP Rear/ 5MP Front 16MP Rear/ 5MP Front
Docking Station × × ×
Software
Operating System Android 4.4 Android 7.0 Android 7.0
Software Updates 3 year free 3 year free 3 year free
Automatic Detection Auto-VIN/ Auto-Scan Auto-VIN/ Auto-Scan Scan VIN/ Plate Scan Auto-VIN/ Auto-Scan Scan VIN/ Plate Scan
License Plate Reader × Available on select vehicles Available on select vehicles
Vehicle Coverage Domestic, Asian & European(1996 & newer passenger/ light duty some medium duty) Domestic, Asian & European(1996 & newer passenger/ light duty some medium duty) Domestic, Asian & European(1996 & newer passenger/ light duty some medium duty)
OBDII Test Modes All 10 test modes(live& freeze frame/ enhanced mode 6) All 10 test modes(live& freeze frame/ enhanced mode 6) All 10 test modes(live& freeze frame/ enhanced mode 6)
Service Resets 26 service features 26 service features 26 service features
Diesel PM Reset diesel emissions(light & medium duty vehicles) Reset diesel emissions(light & medium duty vehicles) Reset diesel emissions(light & medium duty vehicles)
System Diagnostics Access all modules(in all systems) Access all modules(in all systems) Access all modules(in all systems)
Component Activations Bi-directional control Bi-directional control Bi-directional control
Enhanced Functions Coding + adaptations Advanced coding + adaptations Advanced coding + adaptations
ADAS Calibration × ADAS upgrade & frame kit(purchase required) ADAS upgrade & frame kit(purchase required)
Battery Analyzation × MaxiBAS software(with update, Autel MaxiBAS BT506) MaxiBAS software(with update, Autel MaxiBAS BT506)
Cloud Services × Remote programming, repair database & report storage(coming soon) Remote programming, repair database & report storage(coming soon)
Complete TPMS Function × × TPMS diagnostics, service & 1-sensor programming
Repair Assist × × ×
Topology Module Mapping × × ×
Relevant Cases × × ×
Technical Service Bulletins × × ×
VCMI 5-in-one Device × × ×
Split Screen Display × × ×

Autel MaxiSYS MS906 Pro-TS Specifications

MaxiSYS MS906 Pro-TS

Hardware
CPU

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory 4/128GB
Android Android 10.0
LCD 8” 1920*1200
Battery 11 600 mAh
Camera

Front:16 Megapixel

Rear: 16 Megapixel

Diagnostic Functions


Special Function

26
Guide Function

Support Volkswagen,Audi

Coding and Adaptation

BMW F and E chassis coding

Porsche Coding

Ford offline adaptation

Expanded Function
TPMS Included
ADAS Support
Battery and Electrical System Testing Support
Cloud Services Support
Remote Expert(Coming Soon) Support
Cloud Report Storage Support

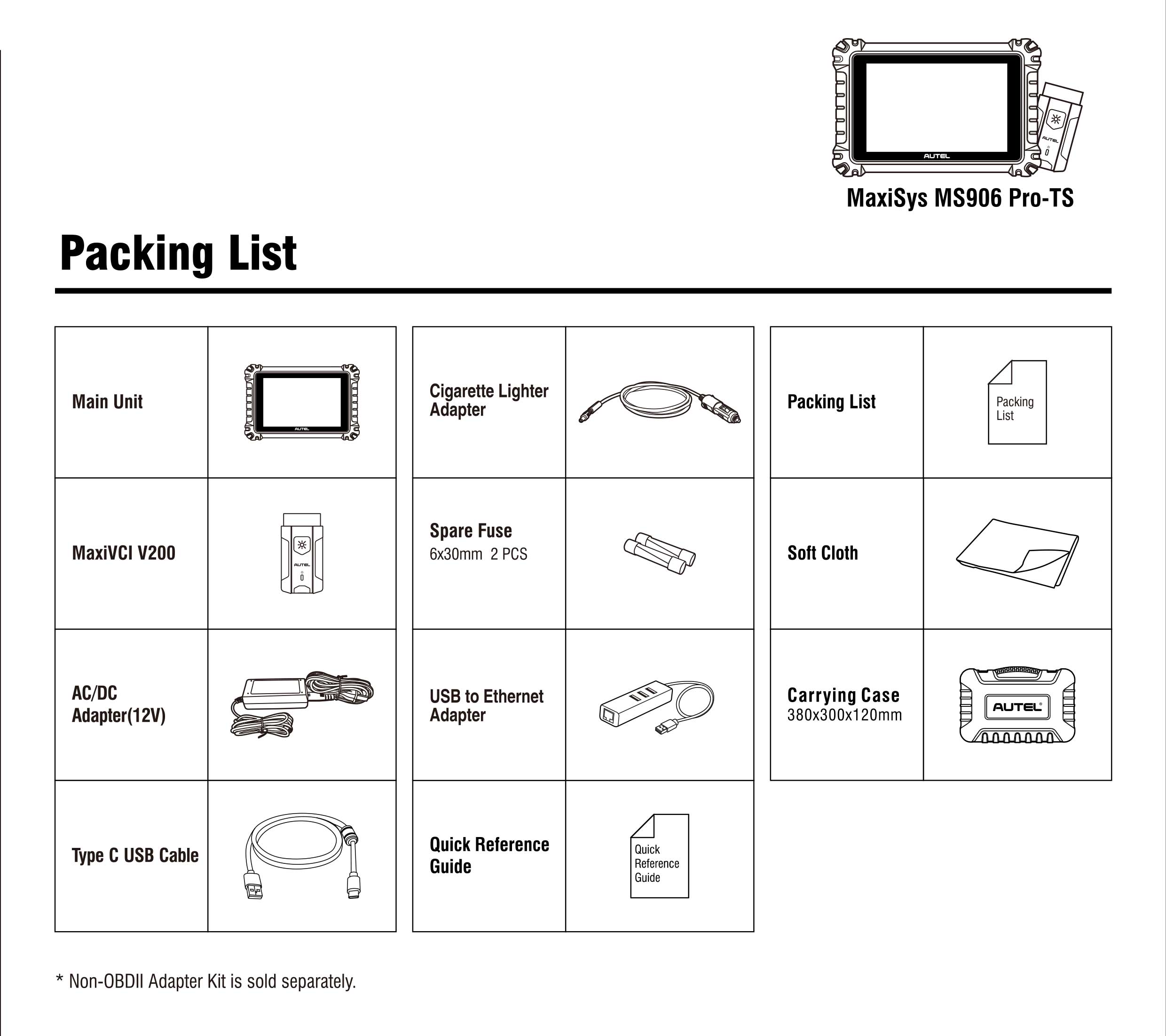

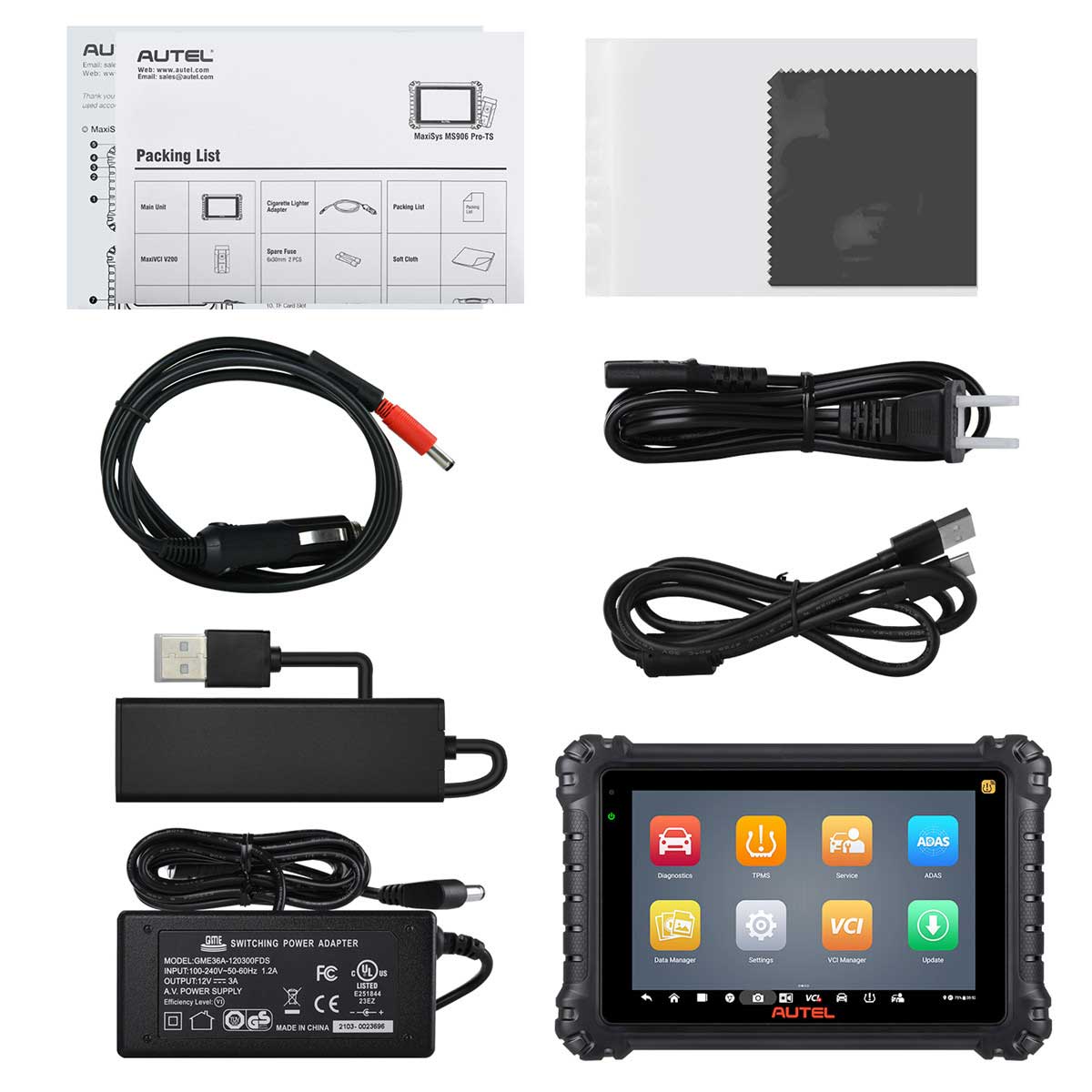

Autel MaxiSYS MS906 Pro-TS Package Content:

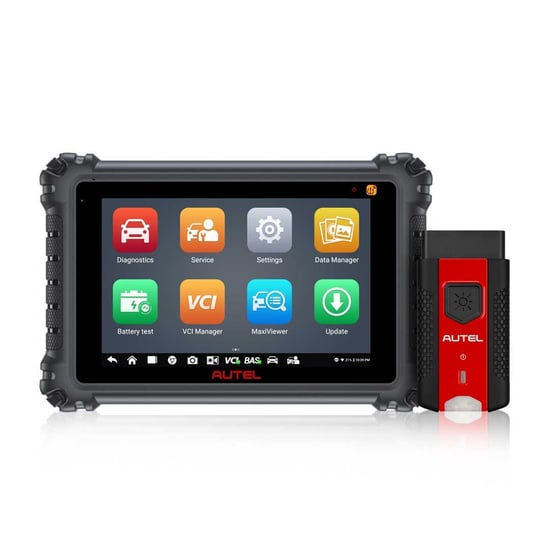

  • 1pc x Autel MS906 Pro-TS Tablet

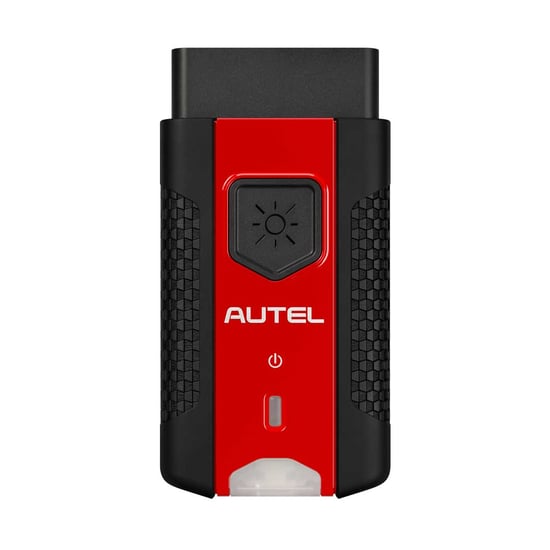

  • 1pc x MaxiVCI V200

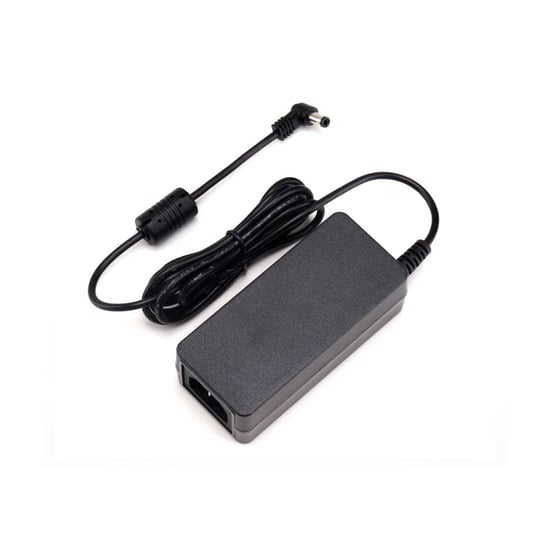

  • 1pc x AC/DC Adapter (12V)

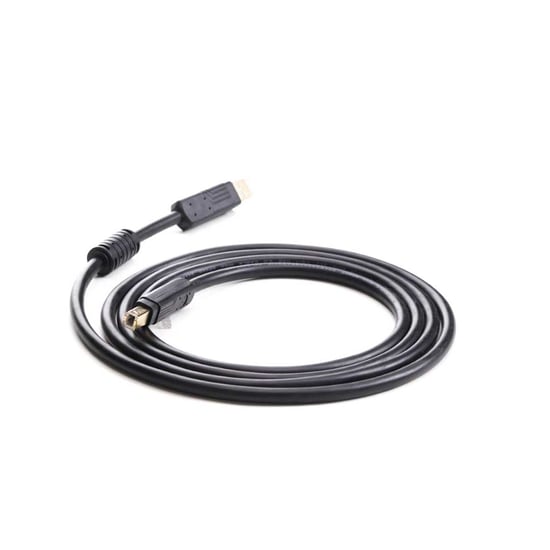

  • 1pc x Type C USB Cable

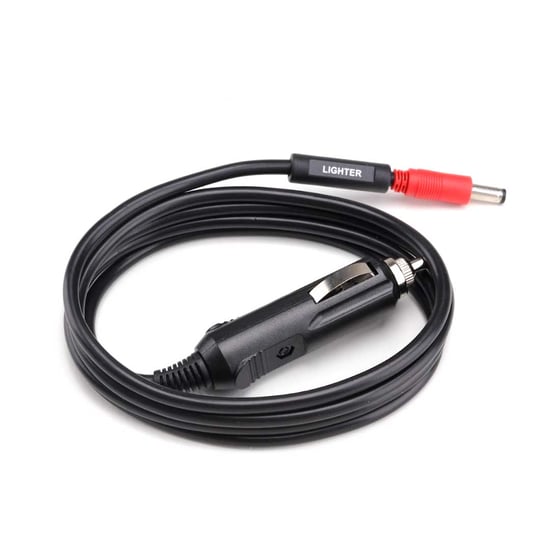

  • 1pc x Cigarette Lighter

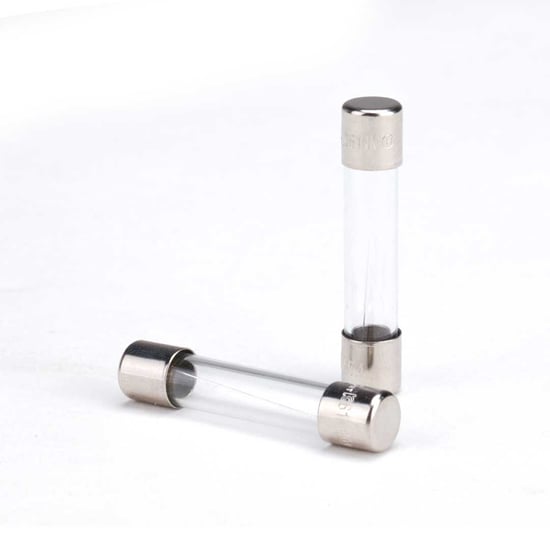

  • 2pcs x Light Fuse

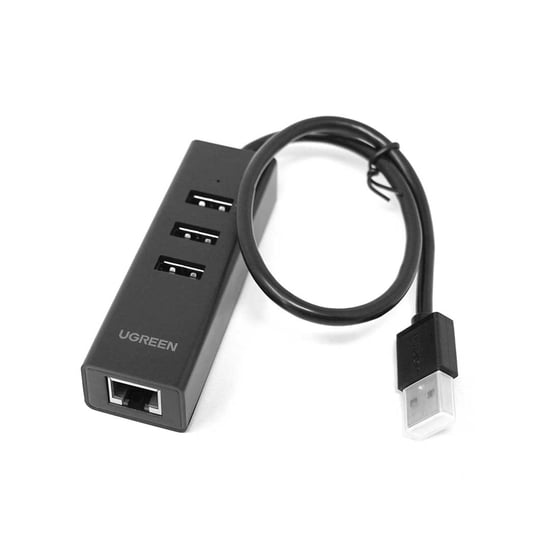

  • 1pc x USB to Ethernet Adapter
  • 1pc x Strap
  • 1pc x Quick Reference
  • 1pc x Package List
  • 1pc x Soft Cloth

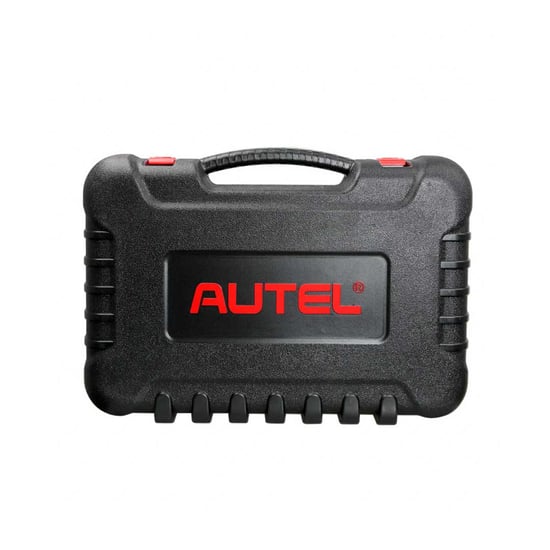

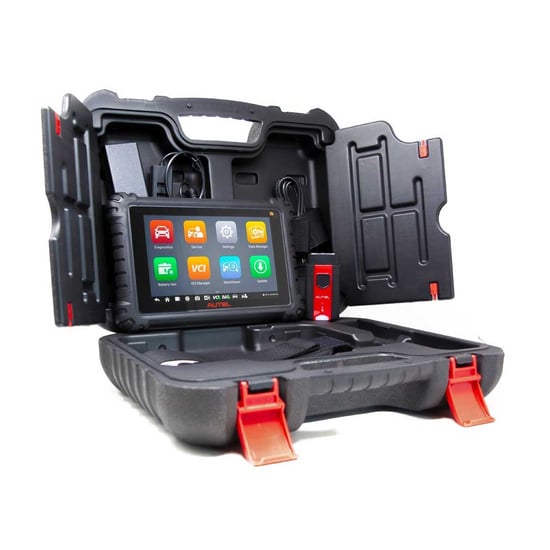

  • 1pc x Carrying Case

Autel MaxiSYS MS906 Pro-TS Bi-Directional Diagnostic Scanner Packing list
