OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer 1 Years Update Subscription MKON534
OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer
OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer
OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer | MK3 -| thumbnail
New Bundle OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle & OBDSTAR MP001 Multi-Function Programmer | Emirates Keys -| thumbnail

OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer

1 Years Update Subscription

Write Review
$1,550.00 (€1,317.50)
Add to Wishlist
Product Code: MKON534
Categories Diagnostic Tools
Manufacturer OBDSTAR
In StockIn Stock New ArrivalNew Arrival
Product Specifications
Manufacturer OBDSTAR
Condition New
Weight 3500 g

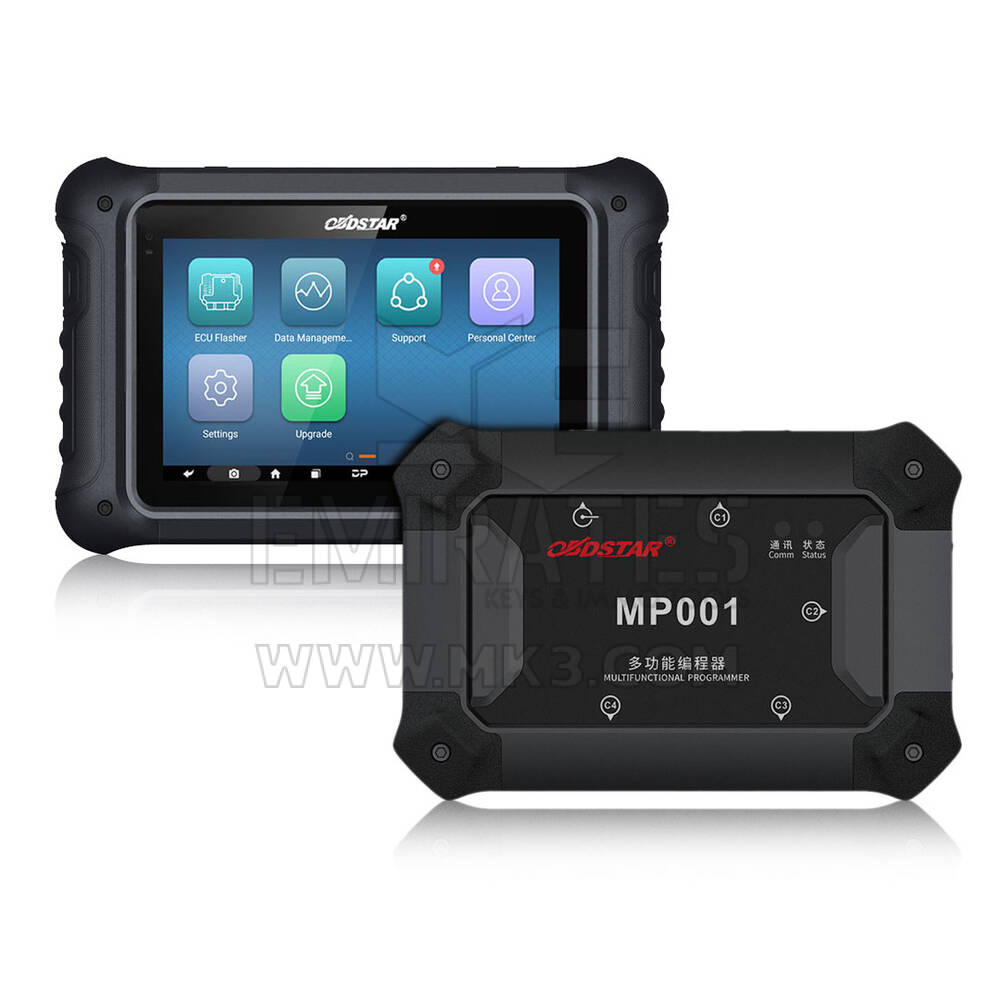

OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer


OBDSTAR DC706 ECU Tool Description:

New Bundle OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle & OBDSTAR MP001 Multi-Function Programmer

Diagnostic Tools From OBDSTAR with Product Number: MKON534
This Weight Product: 3500g

OBDSTAR DC706 ECU Tool Specs:

Manufacturer: OBDSTAR
Condition: New


OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming.  It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy.

OBDSTAR DC706 ECU Tool Coverage List



OBDSTAR DC706 ECU Tool Functions


ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)



OBDSTAR DC706 ECU Tool Supported ECU Manufacturers


    ALPS
    Autoliv
    Bosch
    Continental
    Delphi
    Denso
    Johnson Controls
    Lear
    Magneti Marelli
    Siemens
    Temic
    Valeo


OBDSTAR DC706 ECU Tool Supported Brands


Car:

    ASTON MARTIN
    BMW
    FAW
    FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
    FORD/LINCOLN
    GM/OPEL
    HYUNDAI/KIA
    LAND ROVER/JAGUAR
    LUXGEN
    MASERATI
    MAZDA
    MITSUBISHI
    NISSAN
    OPEL
    PSA
    SMART
    SUBARU
    SUZUKI
    VOLVO
    VW/AUDI/SEAT/SKODA


Motorcycle:

    APRILIA
    BRP
    CFMOTO
    DERBI
    GILERA
    GUZZI
    PEUGEOT
    PIAGGIO
    QJBENELLI
    VESPA


OBDSTAR DC706 ECU Tool Advanced Functions


1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter.)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode

More functions in developing...



OBDSTAR DC706 ECU Tool Different Configurations

Configuration Software
DC706_ EN A ECM
DC706_ EN_ B TCM
DC706_ EN_ C BODY
DC706_ EN D ECM+TCM
DC706_ EN E ECM+B0DY
DC706_ EN F TCM+B0DY
DC706_ EN_ FULL ECM+TCM+BODY



OBDSTAR DC706 ECU Tool Specifications:

Operation system

Android 5.1.1


CPU

RK3128 quad-core ARM cortex A7

Battery

3700mA, rechargeable polymer lithium battery

Extension memory card

32G micro SD (TF) card supported

Storage capacity

16GB

LCD

7.0 inch

LCD resolution

1024*600

Touch screen

Capacitive touch screen

Wifi Supported

Working temperature

-20℃~55℃ (14℉~131℉)

Storage temperature

-20℃~70℃ (-4℉~158℉)

Weight

About 1.3kg

Dimension

243mm*148mm*36mm



OBDSTAR DC706 ECU Tool Accessories:

 OBDSTAR DC706 ECU Tool Accessories:

OBDSTAR DC706 ECU Tool Package Includes:


1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger



OBDSTAR MP001 Multi-Function Programmer Software function


EEPROM/MCU reading and writing
Key flashing
Steering angle repair
Body computer data processing
Immo off
Pincode reading
Battery module repair
Instrument repair
and more functions are under development.


OBDSTAR MP001 Multi-Function Programmer Features:


1. MP001 covers P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
2. MP001 can replace P003P002 and P001 adapter as well.

Note:
MP001 has P003+, P003, P002 and P001 functions.

Different tablet device models require different configuration software.
To use MP001 programmer, you must have ECU bench jumper cables.



OBDSTAR MP001 Multi-Function Programmer Specification:


CPU

STM32F407VET6

Connector

DC,OBD female,OBD male,DB9,DB25

Input voltage

DC 12V/24V

Output voltage

500mA

Weight

260g

Working temperature

-10℃~55℃

Device Size

165*110*35mm

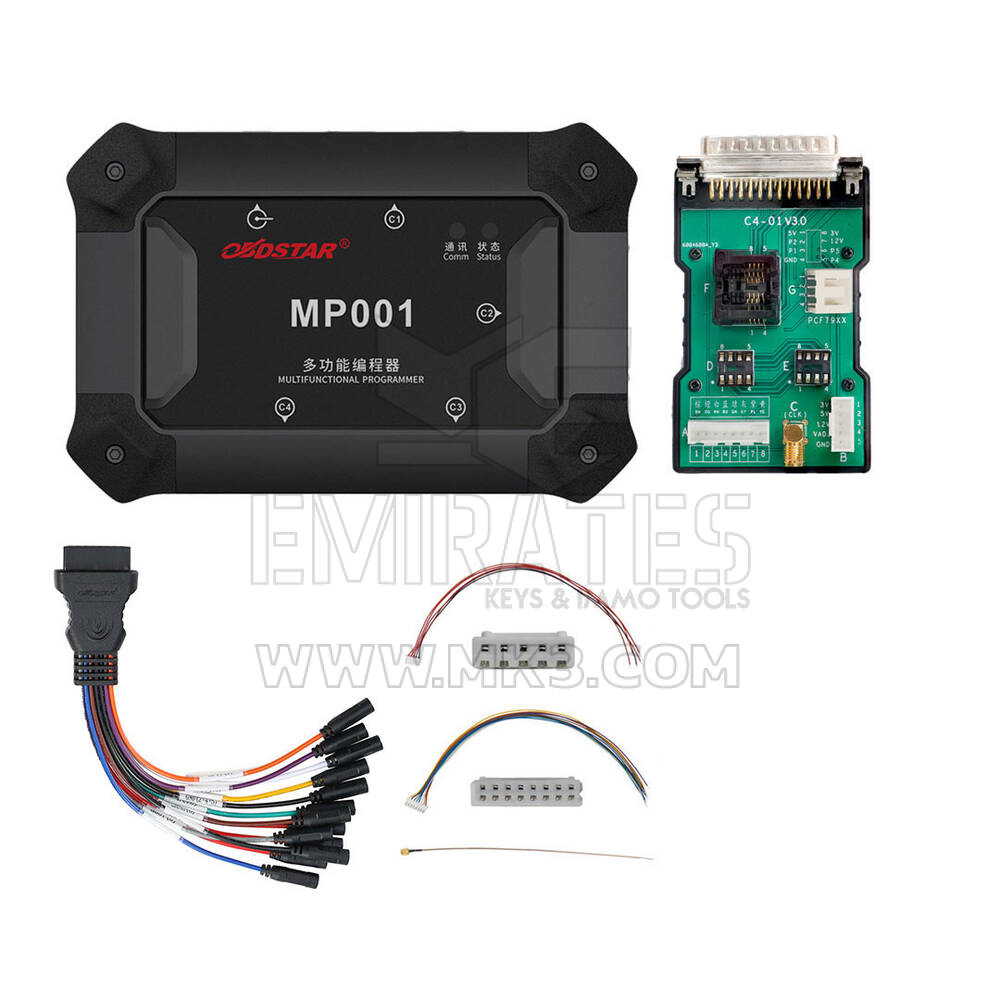

OBDSTAR MP001 Multi-Function Programmer Package List:


1pc x OBDSTAR MP001 Programmer
1pc x OBDSTAR C4-01 Host
1pc x W004 EEPROM and MCU Adapter
1pc x W005EEPROM and MCU Adapter
1pc x W006 EEPROM and MCU Adapter

 OBDSTAR MP001 Multi-Function Programmer Accessories

FAQ about OBDSTAR MP001 Multi-Function Programmer:



Q: I had purchased some cables that match P002 and P003 before, can these cables be used for MP001?



A: Yes, TOYOTA 8A all key lost cable, FORD all key lost cable, HONDA motorcycle immo cable, YAMAHA/SUZUKI motorcycle programming cable, etc. can be used directly with MP001.
