Product Description:

Key Programming Tools From TMPRO with Product Number: MKON529
This Weight Product: 430g

Specs:

Condition: New
Manufacturer: TMPro

TMPro2 works with immobilisers eeprom dumps. You must have electronic knowledges and to know how to use soldering-desoldering tools and memory devices programmers.It is your choice what programmer you will use for reading memory devices – TMPro2 memory device programmer or other progarmmer. In order to program transponder you have to remove immobox/BSI/UCH unit from car, open it, desolder memory device or solder wires on testpoints, and read it. Depending of vehicle memory device can be serial eeprom, Motorola MCU, Microchip PIC MCU, ST10F269 MCU, Texas Instruments MCU etc… Next step is to program transponder. Last step is to solder back memory device, reassemble immobox/BSI/UCH and fit back to car.

Working with TMPro2 is easy. You must have some electronic knowledges and equipment, like soldering iron, hot air gun, multimeter etc. Also you need to know which unit contains key data, and it`s location in vehicle. Remove unit from vehicle, open it and locate memory device. For some of units memory device is easy to be accessed, but for other it is not easy – you must cut a hole, dig a silicone etc.
When type of memory device is clear, you have to see how you can read/write it.
For 70% of softwares reading and writing of memory devices can be done either by TMPro2 or by other programmer.
For 5% of softwares reading and writing is mandatory to be made with TMPro2.
For 25% of softwares for reading and writing of memory devices you must use other programmer.
Memory device depends on unit, that contains key data. Memory device can be:
– Serial eeprom. Supported are all 93cXX, 24cXX, 25/95cXXX, X5328, S29190, X24c01, 95p08.To read or write serial eeproms, you must desolder it from board and solder on TMPro2 eeprom adapter. On adapter there are sockets for 3 different types – DIL, SMD and SSOP.
– Motorola 912/9S12 not locked, ST10F269 or Moric. To read or write these MCU you have to use cable with 8 stripped wires. Solder wires according to connection diagram for particular software.
– Motorola HC805P18. To read or write this Motorola you must use TMPro2 Motorola HC805P18 adapter. Desolder MCU from immobox and solder it on adapter.
– Microchip PIC. To read or write Microchip PIC you must use TMPro2 PIC adapter. Solder wires according to connection diagram for particular software.

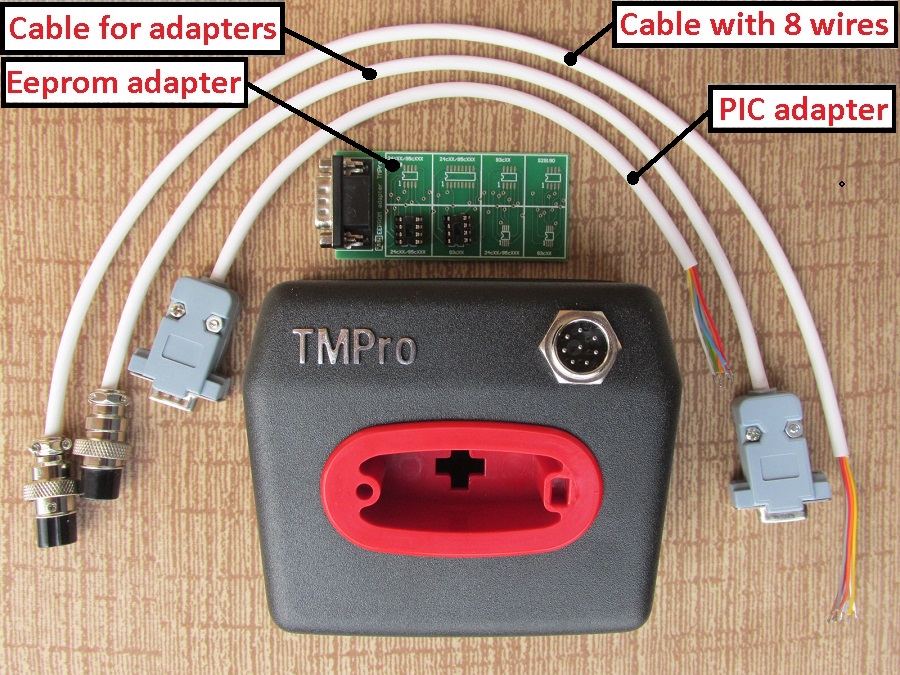

To connect adapters to TMPro2 box you must use cable for adapters.
– Motorola HC05/HC908/HC11, Motorola 9S12 locked, flash chip, TMS370C702. To read or write these memory devices you have to use other programmer.
NOTE:Microchip PIC adapter, eeprom adapter, cable with 8 stripped wires and cable for adapters are included in basic set of TMPro2.
NOTE:Motorola HC805P18 adapter is not included in basic set of TMPro2. You can buy it along with basic set or at later time.
After all connections are done, you have to press on Select and read memory device button, select correct memory device and press OK to process with reading. After reading is done if you wish you can save file read for your archive.
In case for to read and write memory devices you use other programmer, then after memory device is read and file is saved by your programmer you have to load this file in TMPro2 by clicking on Open file button.

TMPro 2 Original Transponder Key Programmer Full Software Activation Included Software modules:

Software module 1 - Fiat,Lancia,Citroen,Peugeot immobox Delphi - Transponder maker
Software module 2 - Fiat,Lancia IMM001-01 immobox Marelli - Transponder maker
Software module 3 - Fiat,Lancia IMM110-01 immobox Marelli - Transponder maker
Software module 4 - Alfa Romeo,Iveco CODE1 immobox Bosch - Transponder maker
Software module 5 - Alfa Romeo CODE2 immobox Bosch - Transponder maker,PIN calculator
Software module 6 - Fiat,Lancia,Alfa Romeo BSI Marelli - Transponder maker,PIN calculator
Software module 7 - Fiat,Lancia,Alfa Romeo BSI Delphi - Transponder maker,PIN calculator
Software module 8 - Fiat,Citroen,Peugeot CODE2 Delphi - Transponder maker,PIN calculator
Software module 9 - Fiat,Lancia IMM100-01 immobox Marelli - Transponder maker,PIN calculator
Software module 10 - Audi immobox Delphi - Transponder maker
Software module 11 - Peugeot,Fiat,Citroen immobox Siemens - Transponder maker,PIN calculator
Software module 12 - Peugeot,Citroen immobox Valeo - Transponder maker
Software module 13 - Peugeot,Fiat,Lancia,Citroen CPH Texton - Transponder maker,PIN calculator
Software module 14 - Peugeot 206 BSI Siemens - Transponder maker
Software module 15 - Peugeot 406 BSI Siemens - Transponder maker
Software module 16 - Daewoo immobox - Transponder maker
Software module 17 - Honda,Rover immobox Valeo - Transponder maker
Software module 18 - Honda,Acura immobox Megamos - Transponder maker
Software module 19 - Opel IMMO1 immobox Siemens - Transponder maker
Software module 20 - Opel IMMO2 immobox Siemens - Transponder maker
Software module 21 - Mitsubishi immobox Bosch - Transponder maker
Software module 22 - VW,Skoda,Seat IMMO1 immobox Siemens - Transponder maker
Software module 23 - VW,Seat IMMO2 immobox Siemens - Transponder maker
Software module 24 - VW,Seat,Ford IMMO3 immobox Valeo - Transponder maker
Software module 25 - Seat,Peugeot,Piaggio bikes immobox Marelli - Transponder maker
Software module 26 - Renault immobox Siemens - Transponder maker
Software module 27 - Renault immobox Valeo - Transponder maker
Software module 28 - Renault,Dacia immobox Sagem - Transponder maker,PIN calculator
Software module 29 - Renault BSI Valeo - Transponder maker
Software module 30 - Renault UCH Sagem - Transponder maker,PIN calculator
Software module 31 - Renault UCH Siemens - Transponder maker,PIN calculator
Software module 32 - Mercedes Sprinter,Vito immobox Temic - Transponder maker
Software module 33 - Peugeot bike engine ECU Marelli - Transponder maker
Software module 34 - Volvo IMMO3 immobox Bosch - Transponder maker
Software module 35 - Volvo CARTRONIC immobox Bosch - Transponder maker
Software module 36 - Iveco Daily/Truck immobox Bosch - Transponder maker,PIN calculator
Software module 37 - Mercedes Actros,Atego engine ECU Temic - Transponder maker
Software module 38 - Opel,Isuzu immobox Megamos - Transponder maker,PIN calculator
Software module 39 - PSA VAG Opel Nissan Ford Mitsubishi new chip - Transponder maker
Software module 40 - BMW,Rover,Mini immobox EWS - Transponder maker
Software module 41 - Mazda immobox Temic - Transponder maker
Software module 42 - Mazda immobox Lucas 19AS - Transponder maker
Software module 43 - Nissan,Subaru immobox Siemens - Transponder maker
Software module 44 - Renault UCH Sagem type 2 - Transponder maker,PIN calculator
Software module 45 - Fiat,Citroen,Peugeot,Iveco BSI Marelli type 2 - Transponder maker,PIN calculator
Software module 46 - Volvo IMMO1 immobox Bosch - Transponder maker
Software module 47 - Saab body module TWICE - Transponder maker
Software module 48 - Fiat New Panda BSI Siemens VDO - Transponder maker,PIN calculator
Software module 49 - Opel,Isuzu immobox Megamos type 2 - Transponder maker
Software module 50 - Jaguar immobox - Transponder maker
Software module 51 - Renault immobox Texton - Transponder maker
Software module 52 - Toyota immobox ID33 - Transponder maker
Software module 53 - MAN TGA module FFR - Transponder maker
Software module 54 - Porsche body module ID13 - Transponder maker
Software module 55 - GM Passkey3 immobox Delphi - Transponder maker
Software module 56 - Acura immobox - Transponder maker - Transponder maker
Software module 57 - Renault UCH Johnson Controls type 1 - Transponder maker,PIN calculator
Software module 58 - Ducati bikes dashboard Marelli - Transponder maker,PIN calculator
Software module 59 - Fiat Grande Punto BSI Delphi - Transponder maker,PIN calculator
Software module 60 - Polonez immobox Megamos - Transponder maker
Software module 61 - Tata Safari immobox Alltech - Transponder Maker
Software module 62 - Key copier for ID11,ID12,ID13 and ID33 fixed keys onto T5 transponder
Software module 63 - Key copier for ID33,ID41,ID42,ID44 VAG and ID45 keys onto PCF7935 transponder
Software module 64 - Key copier for 4C Texas fixed keys onto JMA TPX1 transponder
Software module 65 - Key copier for 4D Texas crypto keys onto JMA TPX2 transponder
Software module 66 - Yamaha bikes immobox Moric - Transponder maker
Software module 67 - Suzuki bikes engine ECU Denso - Transponder maker
Software module 68 - Kawasaki bikes engine ECU Denso - Transponder maker
Software module 69 - Mazda 3 dashboard YNS - Transponder maker
Software module 70 - Ford Focus dashboard Visteon - Transponder maker
Software module 71 - Jaguar dashboard - Transponder maker
Software module 72 - Ford engine ECU Delphi - Transponder maker
Software module 73 - Ford engine ECU EEC5 - Transponder maker
Software module 74 - Ford,Mazda engine ECU Siemens - Transponder maker
Software module 75 - Ford Galaxy immobox - Transponder maker
Software module 76 - Chrysler immobox SKIM - Transponder maker
Software module 77 - KIA immobox Shinchang - Transponder maker
Software module 78 - Suzuki immobox Mitsubishi - Transponder maker
Software module 79 - Renault Megane immobox Siemens - Transponder maker,PIN calculator
Software module 80 - Renault Megane UCH Siemens - Transponder maker,PIN calculator
Software module 81 - Mazda 6 engine ECU Denso - Transponder maker
Software module 82 - Mazda 6 engine ECU Mitsubishi - Transponder maker
Software module 83 - Toyota Avensis immobox Valeo with ID4D - Transponder maker
Software module 84 - Ford Transit 2008 BCM Siemens VDO - Transponder maker
Software module 85 - SsangYong immobox VDO - Transponder maker
Software module 86 - Chery,Samand immobox Siemens VDO - Transponder maker
Software module 87 - Toyota,Lexus ECU Bosch,Fujitsu,Denso - Transponder maker
Software module 88 - Scania truck module Coordinator - Transponder maker
Software module 89 - Mazda RX8 immobox Visteon - Transponder maker
Software module 90 - Yamaha scooter ECU Mitsuba - Transponder maker
Software module 91 - Opel,Isuzu immobox Tokai Rika - Transponder maker
Software module 92 - Toyota,Suzuki,Daihatsu immobox ID4C - Transponder maker
Software module 93 - DAF truck immobox VDO - Transponder maker
Software module 94 - Renault UCH Johnson Controls type 2 - Transponder maker
Software module 95 - Jeep immobox DaimlerChrysler - Transponder maker
Software module 96 - Honda bikes ECU Keihin,OKI - Transponder maker
Software module 97 - Suzuki scooter ECU Keihin - Transponder maker
Software module 98 - Aprilia scooter dashboard Digitek - Transponder maker
Software module 99 - Mitsubishi,Suzuki immobox ID4C type 2 - Transponder maker
Software module 100 - Fiat dashboard Marelli,VDO - Transponder maker,PIN calculator
Software module 101 - Ducati bikes dashboard Digitek - Transponder maker,PIN calculator
Software module 102 - Samand,Saipa,Chery,Mazda new chip - Transponder maker
Software module 103 - Texas Crypto new chip - Transponder maker
Software module 104 - Honda,Acura immobox Valeo ID46 - Transponder maker
Software module 105 - Honda immobox HIS-5 ID48 - Transponder maker
Software module 106 - Mazda 6 diesel ECU Denso - Transponder maker
Software module 107 - Hyundai,Kia engine ECU Kefico,Bosch - Transponder maker
Software module 108 - Yamaha bikes immobox Moric type 2 - Transponder maker
Software module 109 - BMW bikes engine ECU Bosch - Transponder maker
Software module 110 - Smart,Mitsubishi ETACS Siemens VDO - Transponder maker
Software module 111 - Saab column module CIM - Transponder maker,PIN calculator
Software module 112 - Fiat,Lancia,PSA BSI Marelli type 3 - Transponder maker,PIN calculator
Software module 113 - Daewoo,Chevrolet immobox ID48 - Transponder maker
Software module 114 - Mitsubishi immobox ID46 - Transponder maker
Software module 115 - Chevrolet BSI Siemens - Transponder maker
Software module 116 - Isuzu immobox SiemensVDO - Transponder maker
Software module 117 - Chevrolet,Opel immobox ID46 - Transponder maker
Software module 118 - Alfa Romeo,Fiat BSI Marelli type 4 - Transponder maker,PIN calculator
Software module 128 - Gilera,Piaggio bikes engine ECU EFI - Transponder maker
Software module 129 - KTM bikes immobox ZADI - Transponder maker
Software module 130 - BMW,Mini CAS SiemensVDO - Transponder maker
Software module 131 - Gilera,Piaggio bikes engine ECU Marelli - Transponder maker
Software module 132 - Nissan Sunny dashboard - Transponder maker
Software module 133 - Citroen Xantia CPH Texton ID48 - Transponder maker,PIN calculator
Software module 134 - Renault Twingo 2 UCH Temic - Transponder maker
Software module 135 - Subaru immobox Mitsubishi - Transponder maker
Software module 136 - Ford BSI Delphi - Transponder maker
Software module 137 - GM Passkey3+ immobox Delphi ID48 - Transponder maker
Software module 138 - GM Passkey immobox ID46 - Transponder maker
Software module 139 - SsangYong,Proton engine ECU VDO - Transponder maker
Software module 140 - KIA immobox Texton ID13 - Transponder maker
Software module 141 - Suzuki Liana immobox - Transponder maker
Software module 142 - Ford engine ECU Siemens,EEC5 - Transponder maker
Software module 143 - Mitsubishi,Subaru immobox Mitsubishi ID4D - Transponder maker
Software module 144 - Renault UCH Johnson Controls type 3 - Transponder maker
Software module 145 - Key copier onto JMA TPX3/4 transponder - Transponder maker
Software module 146 - VW Audi Seat Skoda dealer key - Transponder maker
Software module 147 - Kia immobox Texton ID48 - Transponder maker
Software module 148 - Mercedes C,E,G masterchip ID44 - Transponder maker
Software module 149 - VW Passat 3C (B6/CC) - Transponder maker,PIN calculator
Software module 150 - VW Audi Seat Skoda CAN dashboard VDO - Transponder maker
Software module 151 - Renault truck immobox Delphi ID46 - Transponder maker
Software module 152 - VW Audi Seat Skoda new key CAN - Transponder maker
Software module 153 - Toyota,Lexus immobox ID4D-67,68,70 - Transponder maker
Software module 154 - Hana Benni immobox and ECU ID4D - Transponder maker
Software module 155 - VAG,Porsche KESSY Siemens-VDO - Transponder maker,PIN calculator
Software module 156 - Volvo CEM module ID48 with flash chip - Transponder maker
Software module 157 - Ford/Mazda/Lincoln/Chrysler/Subaru/Jeep/Renault/Isuzu new chip - Transponder maker
Software module 158 - Mitsubishi Grandis immobox - Transponder maker
Software module 159 - Honda engine ECU ID48 - Transponder maker
Software module 160 - Mitsubishi Outlander immobox - Transponder maker
Software module 161 - Proton Savvy immobox - Transponder maker
Software module 162 - Kawasaki JetSki Ultra engine ECU ID4D - Transponder maker
Software module 163 - Suzuki engine ECU ID46 - Transponder maker
Software module 164 - Jaguar S-type dashboard ID4D - Transponder maker
Software module 165 - Porsche body module PAS with ID48 - Transponder maker
Software module 166 - Huyndai,Kia immobox Shin Chang ID4D - Transponder maker
Software module 167 - Opel Astra J,Chevrolet Cruze BCM ID46 - Transponder maker,PIN calculator
Software module 168 - Peugeot JetForce dashboard - Transponder Maker
Software module 169 - Daihatsu,Perodua immobox Tokai-Rika ID4D-67 - Transponder Maker
Software module 170 - Mitsubishi Canter Fuso immobox Tokai-Rika - Transponder Maker
Software module 171 - MV Agusta bikes dashboard - Transponder Maker
Software module 172 - Chevrolet immobox Shin Chang ID4D - Transponder Maker
Software module 173 - Honda engine ECU ID13 - Transponder Maker
Software module 174 - Landrover,Range Rover immobox SAWDOC - Transponder Maker
Software module 175 - Fiat BSI Marelli type 5 - Transponder Maker,PIN calculator
Software module 176 - Volvo CEM Delphi with ID46 - Transponder Maker
Software module 177 - Ducati bikes dashboard MAE electronics - Transponder Maker
Software module 178 - Ducati bikes handsfree ZADI - Transponder maker
Software module 179 - Jaguar immobox ID48 - Transponder maker
Software module 180 - Unlocking PIC18F252 used in LandRover,Range Rover immobox SAWDOC
Software module 181 - Landrover Discovery 3 (LR3),Range Rover Sport CEM - Transponder Maker
Software module 182 - Ducati Panigale immobox ZADI - Transponder maker,PIN calculator
Software module 183 - KTM bikes immobox ZADI type 2 - Transponder Maker
Software module 184 - Mazda,Ford,Proton immobox Lucas,Mitsubishi - Transponder maker,PIN calculator
Software module 185 - Key copier onto Temic Crypto TK5561 transponder - Transponder maker
Software module 186 - BMW C600 C650,Husqvarna Nuda dashboard - Transponder maker
Software module 187 - Daewoo,Kia key copier onto TS48 transponder - Transponder maker
Software module 188 - Toyota,Lexus SMART key unit Denso - Transponder maker
Software module 189 - Ducati Hypermotard 2013 dashboard MAE - Transponder maker
Software module 190 - Subaru BCM Mitsubishi - Transponder maker
Software module 191 - BMW bike 2012 immobox EWS - Transponder maker
Software module 192 - Ducati 821 dashboard MTA - Transponder maker,PIN calculator
Software module 193 - Ducati 1200 dashboard COBO - Transponder maker,PIN calculator
Software module 194 - Fiat IMM009.10 immobox Marelli - Transponder maker,PIN calculator
Software module 195 - Great Wall immobox Delphi - Transponder maker,PIN calculator
Software module 196 - Kawasaki GTR1400 switch Asahi-Denso - Transponder maker
Software module 197 - Ducati Scrambler dashboard - Transponder maker
Software module 198 - BMW bikes handsfree unit HUF - Transponder maker
Software module 199 - Range Rover Vogue immobox - Transponder maker
Software module 200 - VAG,Porsche KESSY Continental - Transponder maker,PIN calculator
Software module 201 - Fiat BSI Continental type 1 - Transponder maker,PIN calculator
Software module 202 - Fiat BSI Continental type 2 - Transponder maker
Software module 203 - Aprilia Caponord dashboard - Transponder maker,PIN calculator
Software module 204 - KTM bikes handsfree ZADI - Transponder maker
Software module 205 - Ducati Multistrada dashboard MAE - Transponder maker,PIN calculator
Software module 206 - MV Agusta Veloce dashboard COBO - Transponder maker,PIN calculator
Software module 207 - Aprilia dashboard COBO - Transponder maker
Software module 208 - Moto Guzzi dashboard - Transponder maker
Software module 209 - Ducati Panigale V4 dashboard COBO - Transponder maker,PIN calculator
Software module 210 - Ducati Scrambler 1100 dashboard - Transponder maker,PIN calculator
Software module 211 - Moto Guzzi dashboard - Transponder maker
Software module 212 - Chevrolet BCM General Motors
Software module 213 - Scania trucks BCM Coordinator type 2
Software module 214 - Suzuki immobox Texton ID46
Software module 215 - Suzuki immobox Mitsubishi ID46
Software module 216 - VW Passat 3C ID46
Software module 217 – LDV vans BCM UAES
Software module 218 – Ford trucks dashboard Visteon
Software module 219 - Ford dashboard Visteon type 2
Software module 220 - Ford F-Series BCM FoMoCo
Software module 221 - Fiat BCM Megamos 88
Software module 222 - MAN trucks PTM Continental
Software module 223 - Honda bikes ECU Keihin type 2
Software module 224 - Toyota Yaris Smart key Valeo ID46
Software module 225 - Ford Cargo trucks dashboard type 2
Software module 226 - KTM bikes immobox SPARK
Software module 227 - Piaggio bikes handsfree SPARK
Software module 228 - Suzuki Liana immobox Delphi ID46
Software module 229 - Chevrolet dashboard ID46
Software module 230 - Yamaha Majesty 125 engine ECU
Software module 231 - KUBOTA digger engine ECU
Software module 232 - BMW bikes handsfree unit ZADI
Software module 233 - Ducati Scrambler 800 dashboard
Software module 234 - Mazda CX-9 BCM Mitsubishi
Software module 235 - Mitsubishi ETACS OMRON

Extra Details:

Accessories Products

• TMPRO VAG Porsche KESSY Continental Software Module 200
• TMPro2 Transponder Maker Pro 2 Key Programmer Basic Adapter
• TMPro MC68HC805P18 Motorola Adapter
