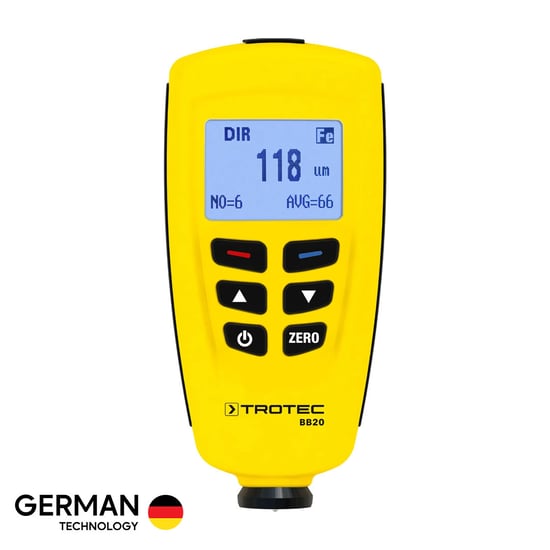

Trotec BB20 Coating Thickness Gauge


Trotec BB20 Coating Thickness Gauge Description:

Trotec BB20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals

Accessories Automotive Workshop Equipment From Trotec with Product Number: MK23769
This Weight Product: 770g

Trotec BB20 Coating Thickness Gauge Specs:

Manufacturer: Trotec
Condition: New

Trotec BB20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals

Trotec Bb20 Coating Thickness Gauge has an innovative dual sensor which enables you to measure the thickness of non-magnetic coatings like paint and varnishes, synthetic coatings, zinc coatings, enamel or chrome as well as steel or iron and non-iron metals like aluminum, magnesium, titanium etc.

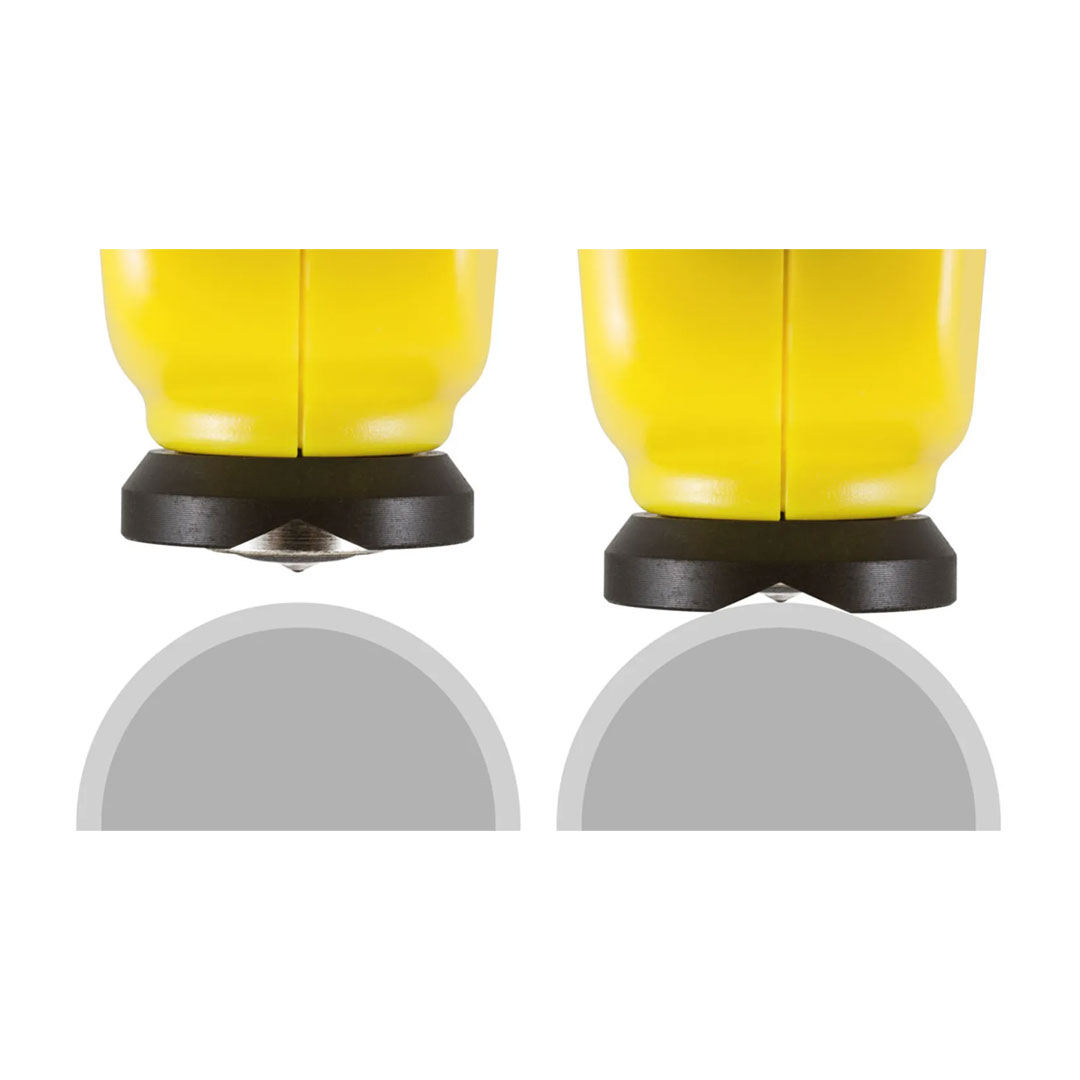

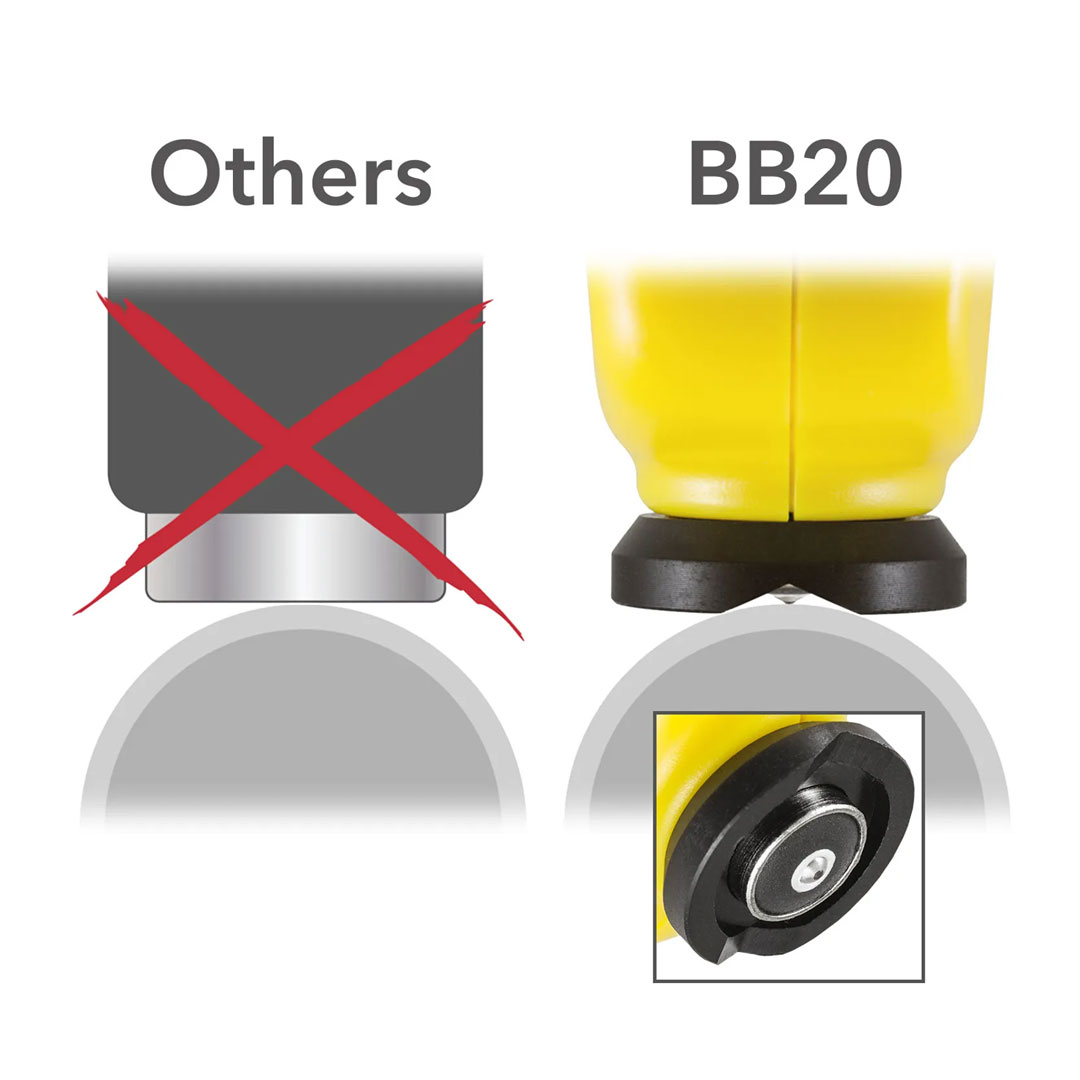

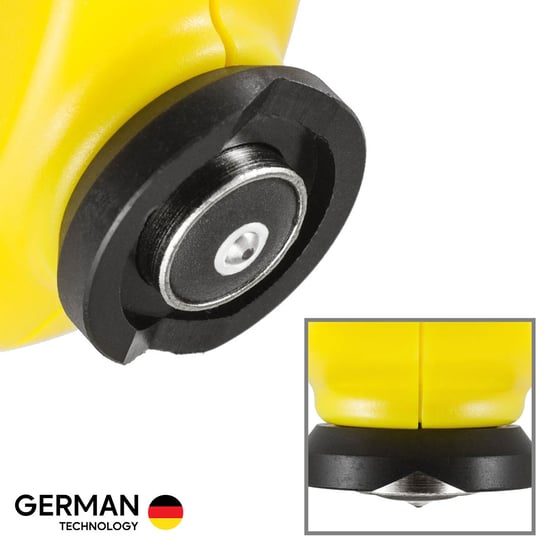

Trotec Bb20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals | Emirates KeysThe measuring head is spring-mounted and has a practical V groove. This makes it easier to carry out measurements on rounded objects like axes or hinges and prevents vibrations from distorting or affecting the measuring results.

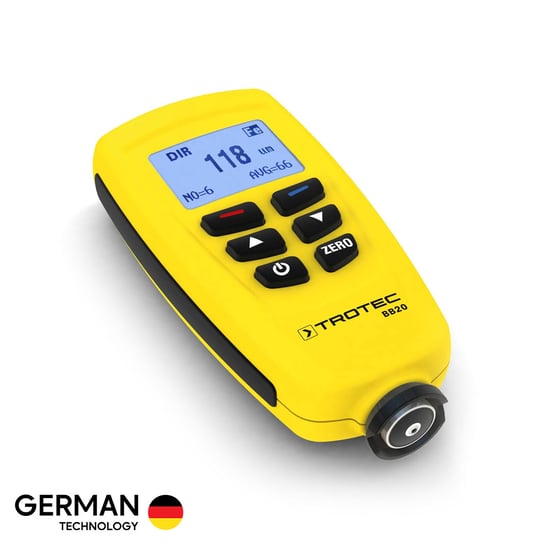

The measuring device is extremely compact and can be used with one hand only. It has an impressive measuring range from 0 to 1250 µm and guarantees precise measuring results with helpful statistical values and a practical alarm function which alerts the user when predefined thickness thresholds have been exceeded.

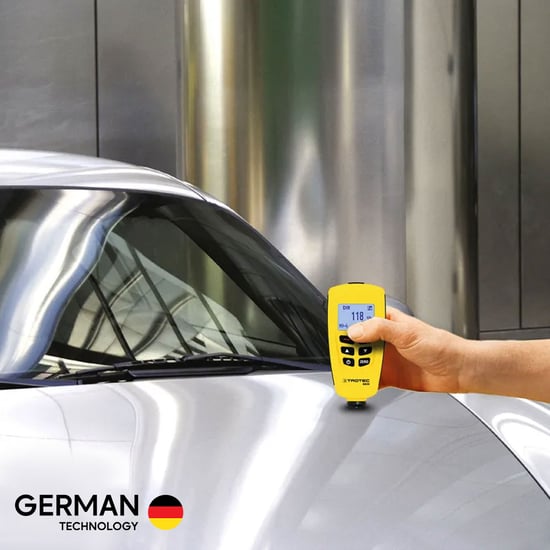

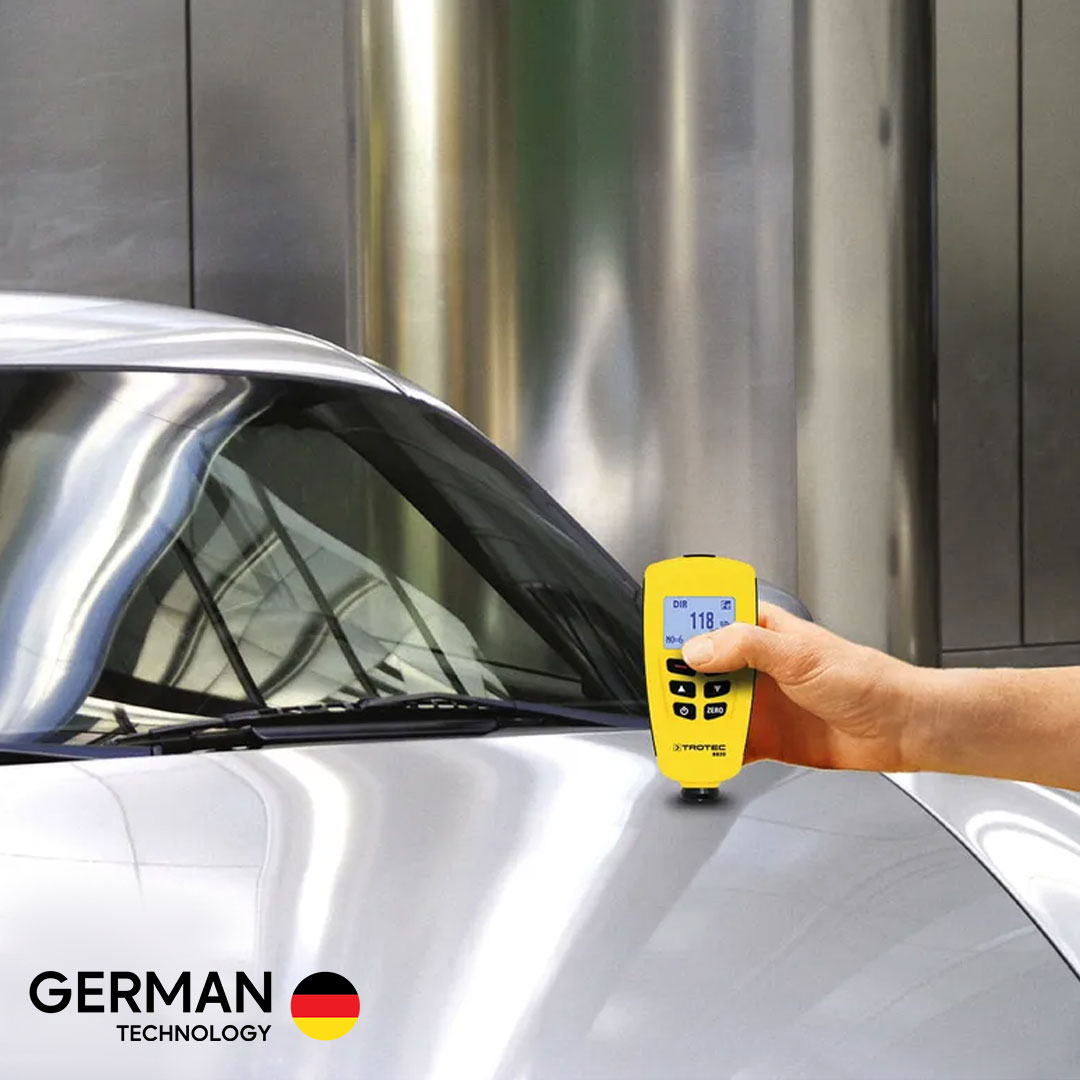

These professional functions and features make the Trotec Bb20 Coating Thickness Gauge ideal for use in the auto­mo­tive sector where it can be used to inspect the bodywork of cars and check whether a car has been involved in an accident or a new coat of paint has been applied. It can also be used to check just about everything ranging from paint thickness on railings to the coats of paint on a boat or ship as well as other protective coatings.

Benefits in practice:

  • Dual sensor designed to measure the thickness of non-magnetic coatings on all magnetic and non-magnetic metals
  • Broad measuring range from 0 to 1,250 µm
  • Alarm function that alerts the user when predefined thickness thresholds have been exceeded
  • A variety of useful statistical functions like minimum, maximum or average coating thickness
  • Two-point calibration for high level of accuracy
  • Memory for up to 400 measuring values

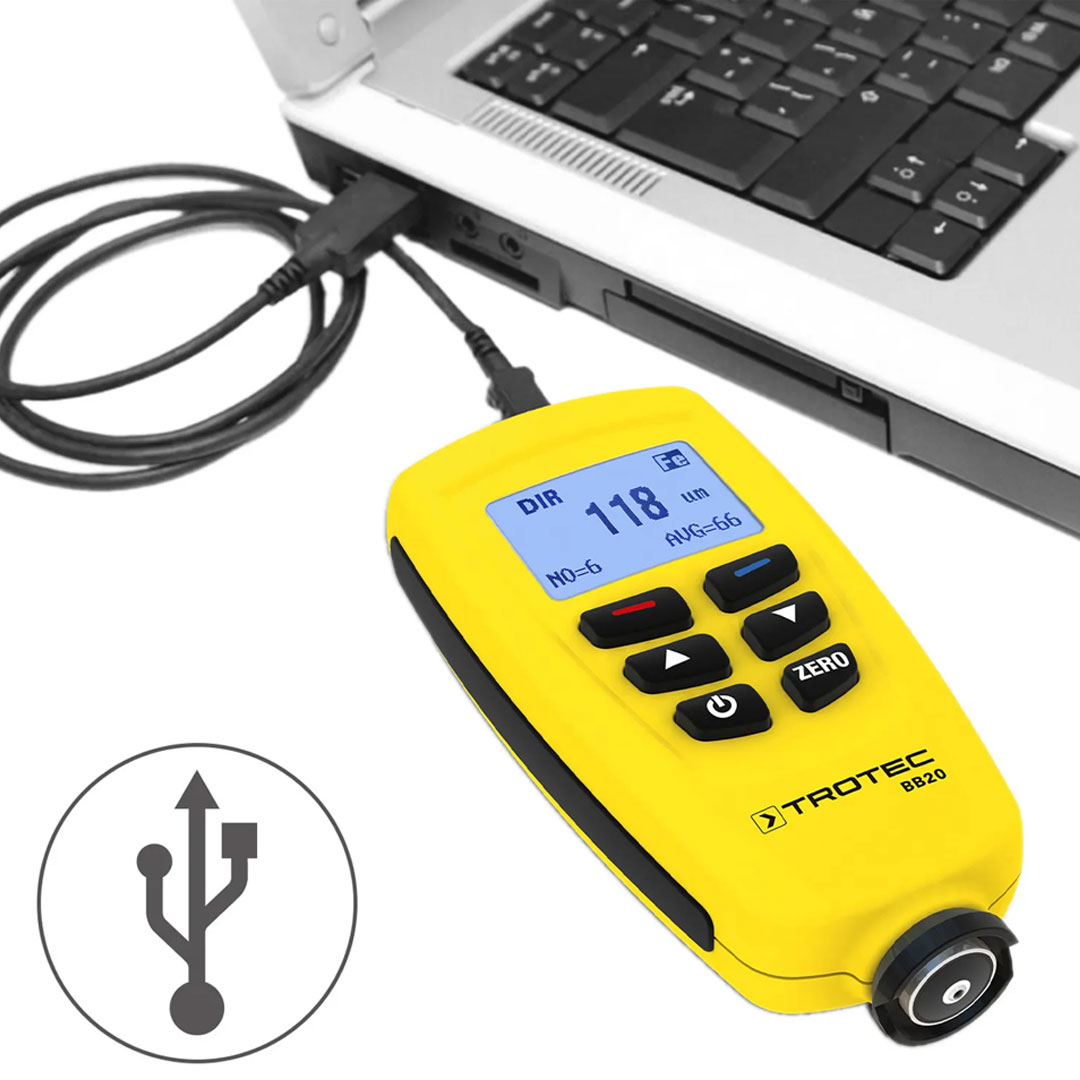

  • USB interface for PC measuring data transfer
  • Can be used with one hand only
  • Backlit display
  • Auto power off
  • Excellent value for money

Trotec Bb20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals | Emirates Keys

Trotec BB20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals | Emirates KeysTrotec Bb20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals | Emirates Keys

Trotec Bb20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals | Emirates Keys

Layer thickness measurement

Functional principle | Layer thickness Magnetic induction, Turbulent flow
Material | Layer thickness Ferromagnetic ground, Non-ferrous metal ground
Min. measuring range [µm] 0
Max. measuring range [µm] 1,250
Accuracy ±0.1 µm
Tolerance | Non-ferrous metal ground Guaranteed tolerance with ferromagnetic ground in the measuring range from 0 to 850 µm (±3 % + 1.5) µm of measured value
Tolerance | Non-ferrous metal ground Guaranteed tolerance with non-ferrous metal ground in the measuring range from 850 to 1,250 µm ±5 % of measured value
Tolerance | Ferromagnetic ground In the measuring range from 0 to 850 µm (±3 % + 1) µm of measured value
Tolerance | Ferromagnetic ground In the measuring range from 850 to 1,250 µm ±5 % of measured value
Minimum measuring surface with non-ferrous metal ground Ø 5 mm
Minimum bending radius with non-ferrous metal ground 3 mm
Critical primary layer thickness of non-ferrous metal ground 0.3 µm
Minimum measuring surface with ferromagnetic ground Ø 7 mm
Minimum bending radius of the measuring surface with ferromagnetic ground 1.5 mm
Critical primary layer thickness of ferromagnetic ground 0.5 µm

Memory organisation

Internal flash memory Up to 400 measured values
Recall of previous measurements
Display
LCD Yes
Monochrome Yes
Device control
Push buttons Yes
Ambient conditions
Operation - min. temperature [°C] 0
Operation - max. temperature [°C] 40
Operation – min. relative humidity [% r.F.] 20
Operation - max. relative humidity [% r.F.] 90

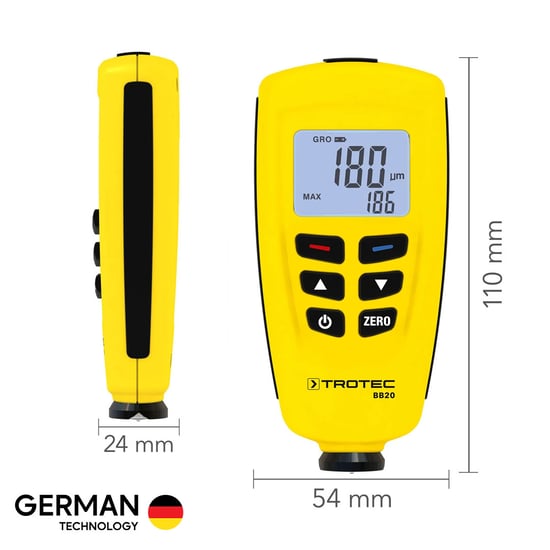

Dimensions
Length (packaging excluded) [mm] 110
Width (packaging excluded) [mm] 24
Height (packaging excluded) [mm] 54
Weight
(packaging excluded) [kg] 0.114

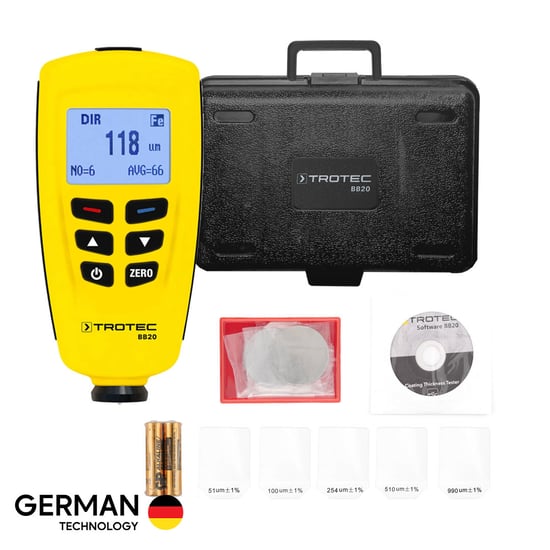

STANDARD SCOPE OF DELIVERY

Standard scope of delivery
Measuring device Yes
Transport case Yes
USB cable Yes
Software Yes
Calibration accessories Yes
Operating manual Yes

ASCERTAINABLE MEASURED VALUES AND FUNCTIONS

Internal sensors
Layer thickness [µm]
External sensors
Minimum value display Yes
Maximum value display Yes
Average value display Yes
Automatic switch-off Yes
Backlit display Yes
Acoustic alarm function Yes
Sensor for ferromagnetic ground Yes
Sensor for non-ferrous metal ground Yes
Two-point calibration Yes
Standard deviation Yes
Battery status indication Yes
