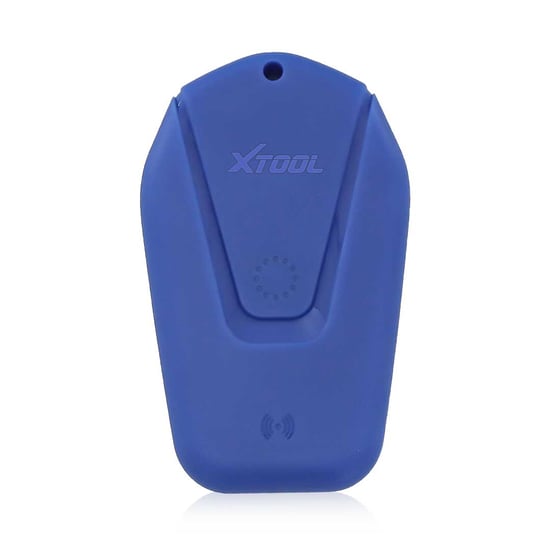

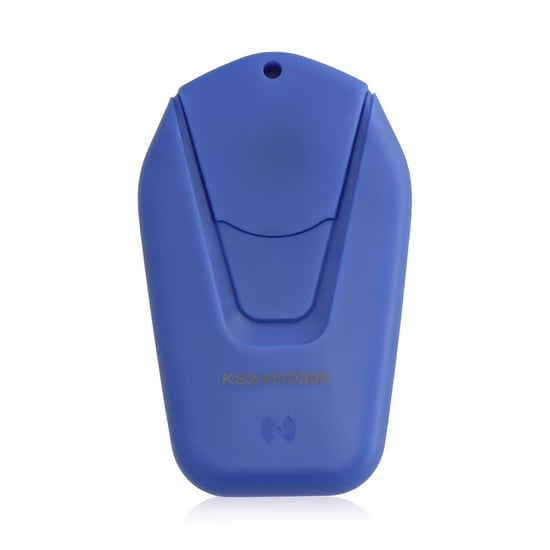

Xtool KS-2 Mitsubishi Smart Key Emulator Simulator

The KS-2 is a smart key emulator for Mitsubishi systems. It can read and store the vehicle’s immobilizer data through any AutoProPAD and PAD3 Elite programming device, then write it to the KS-2 and emulate a programmed master key. The emulated “key” will allow you to switch the ignition on, so you can perform active diagnostics. It will also allow you to program additional keys, as the emulated smart key serves as the master. This means the end-user need only purchase a single key for programming in the event of “All Keys Lost.”


this Mitsubishi 46 Emulator is for Generating a functioning emergency start key that can be used to add a Regular Proximity key in an All Keys Lost situation.

The KS2 Supports All-key’s-lost matching for ID46 Mitsubishi systems only. The KS2 eliminates the need to disassemble the Smart Unit on MITSUBISHI Vehicles.

The original car EEPROM data is read from the OBD & Calculated online to produce a working Key file onto the KS2 using the KC100.

The ignition can then be turned ON using KS2 & A New Smart key can then be Added Normally with XTOOL.

Suitable for the following vehicle(s):

Model	Year Range	Key Type	Support
Outlander	2008-	46	Yes
ASX	All	46	Yes
Lancer	2008-	46	Yes
Delica	All	46	Yes
Galant Fortis	2008-	46	Yes
Mirage	2012-2014	46	Yes
RVR	All	46	Yes
Attrage	2014	46	Yes
Space Star	2013-2014	46	Yes



KS-2 Speciafications

Parameter	Index
Battery	CR2025 3V 165mAh
Standby current	Standby current≤2μA
Reading and writing frequency	125kHz
Status indicator light	1pc (Mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading)
Update	Turn on for 2s and then turn off ;When comunicating, it is flashing 0.5s/time;
Working temperature	-20℃~60℃
Storage temperature	-20℃~70℃
Structure size	66mm*40mm*12mm

Works with the following:

X100 PAD3 Elite
X100 PAD3 SE
A80 Pro
