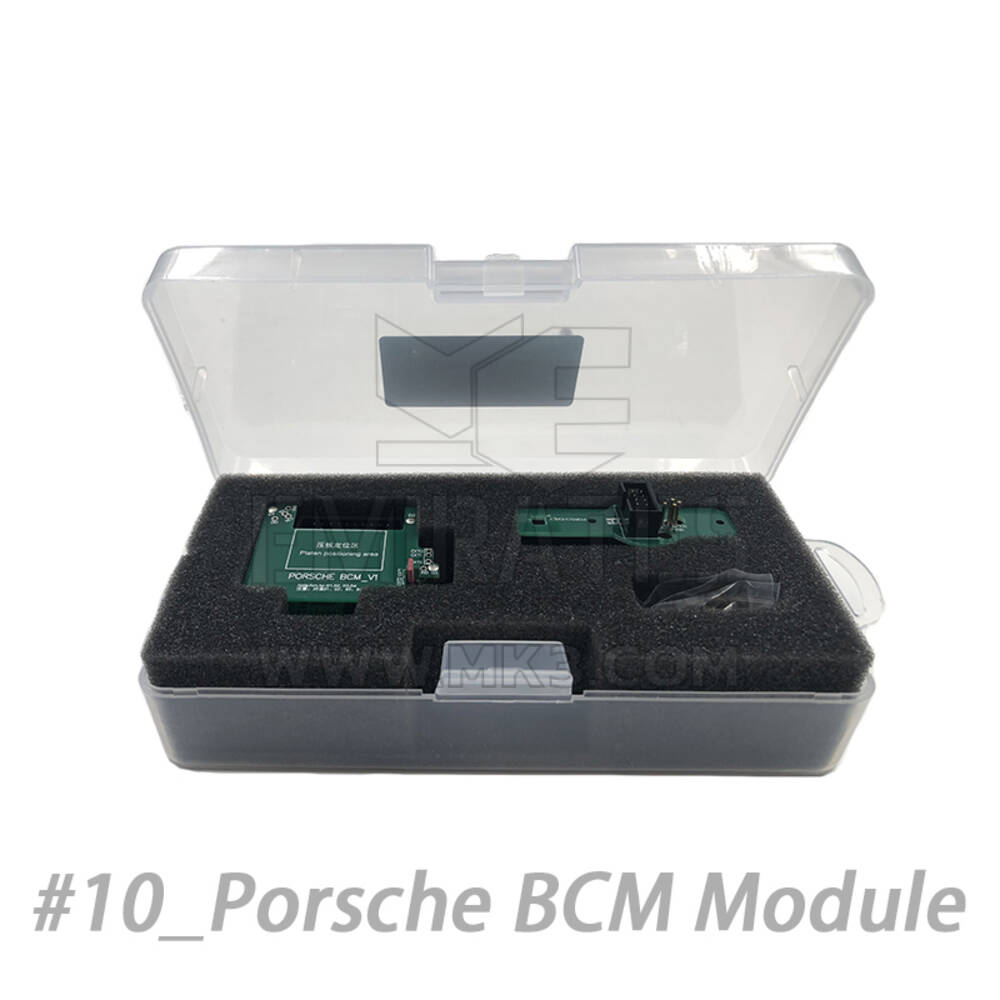

Yanhua ACDP Porsche Expanstion Set Module 10
Product Code: | MK19891 |
Categories | Additional Adapter |
Manufacturer | YanhuaACDP |
Product Code: | MK19891 |
Categories | Additional Adapter |
Manufacturer | YanhuaACDP |
Manufacturer | YanhuaACDP |
Condition | New |
Additional Adapter From YanhuaACDP with Product Number: MK9891
This Weight Product: 200g
Manufacturer: YanhuaACDP
Condition: New
Note: you need to have Mini ACDP Basic Module in order to use this set.

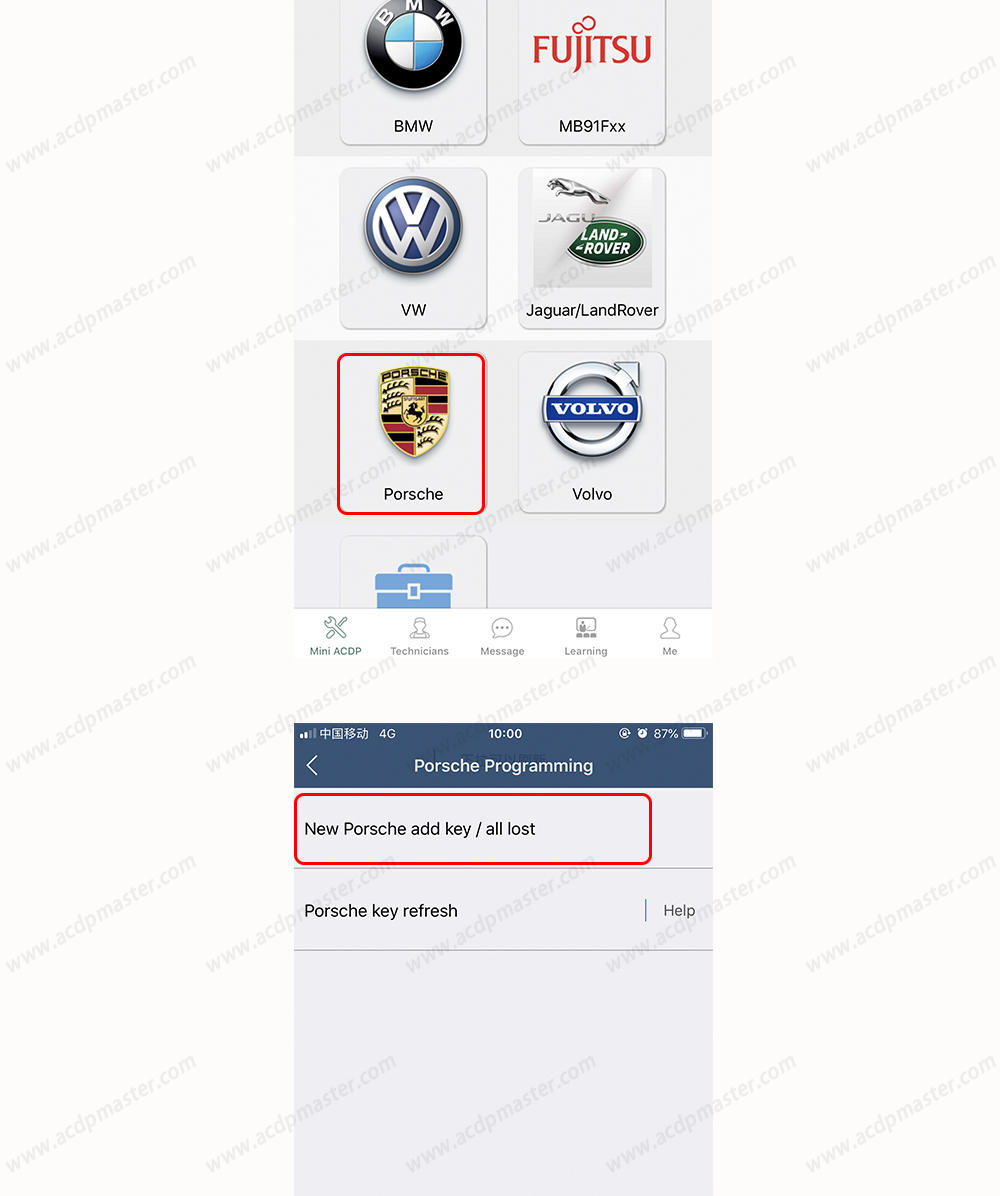

Yanhua Mini ACDP Module10 Porsche BCM Key Programming

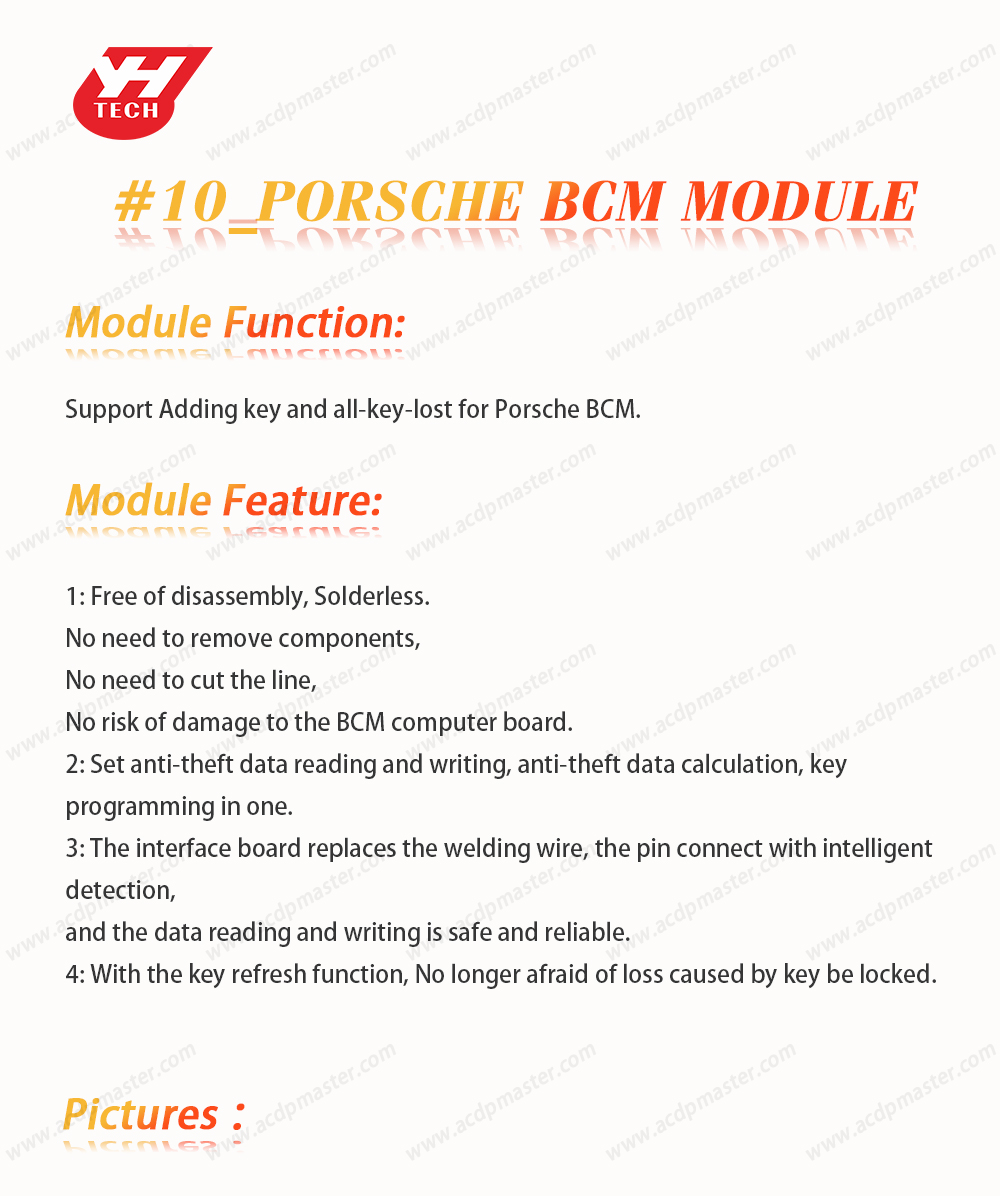

Module Function:
Supports Add Key and All Keys Lost for Porsche BCM
ACDP Makes Porsche BCM Advantages:
1. Free of disassembly, Solderless.
No need to remove components,
No need to cut the line, no risk of damage to the BCM computer board.
2. Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.

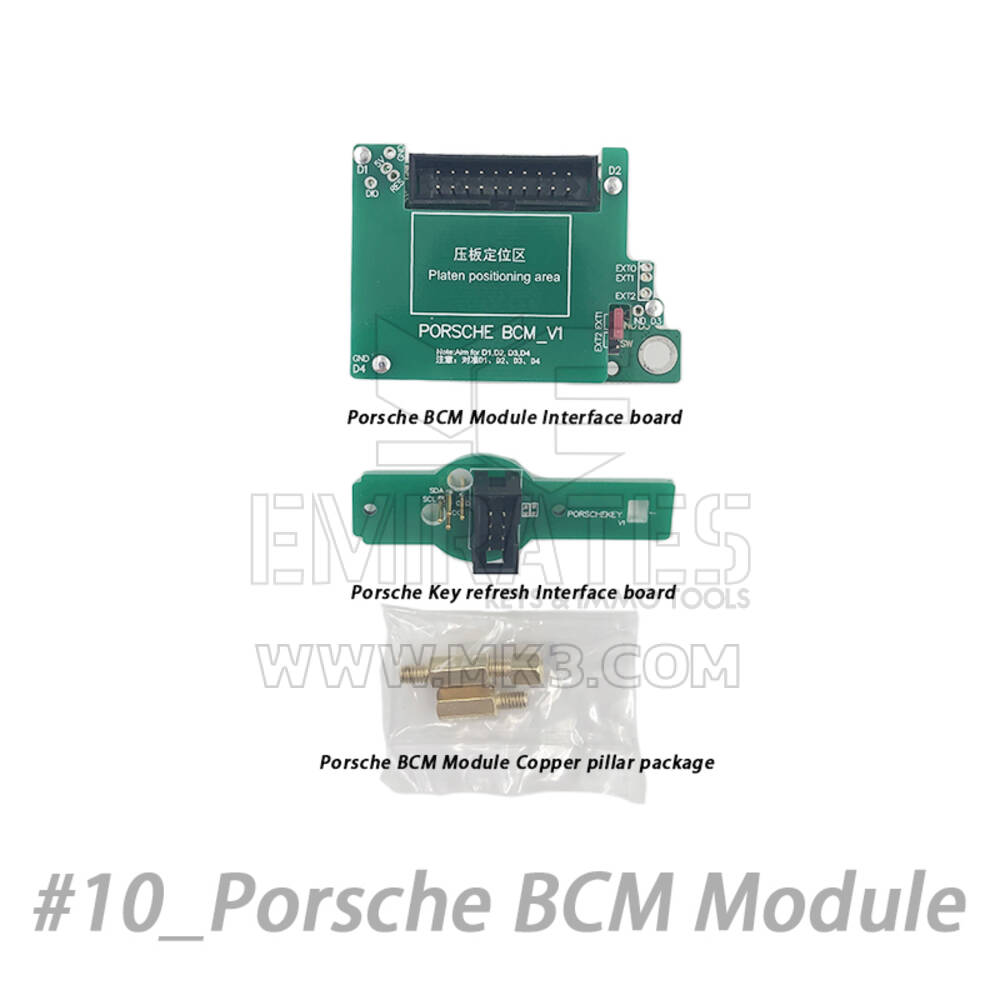

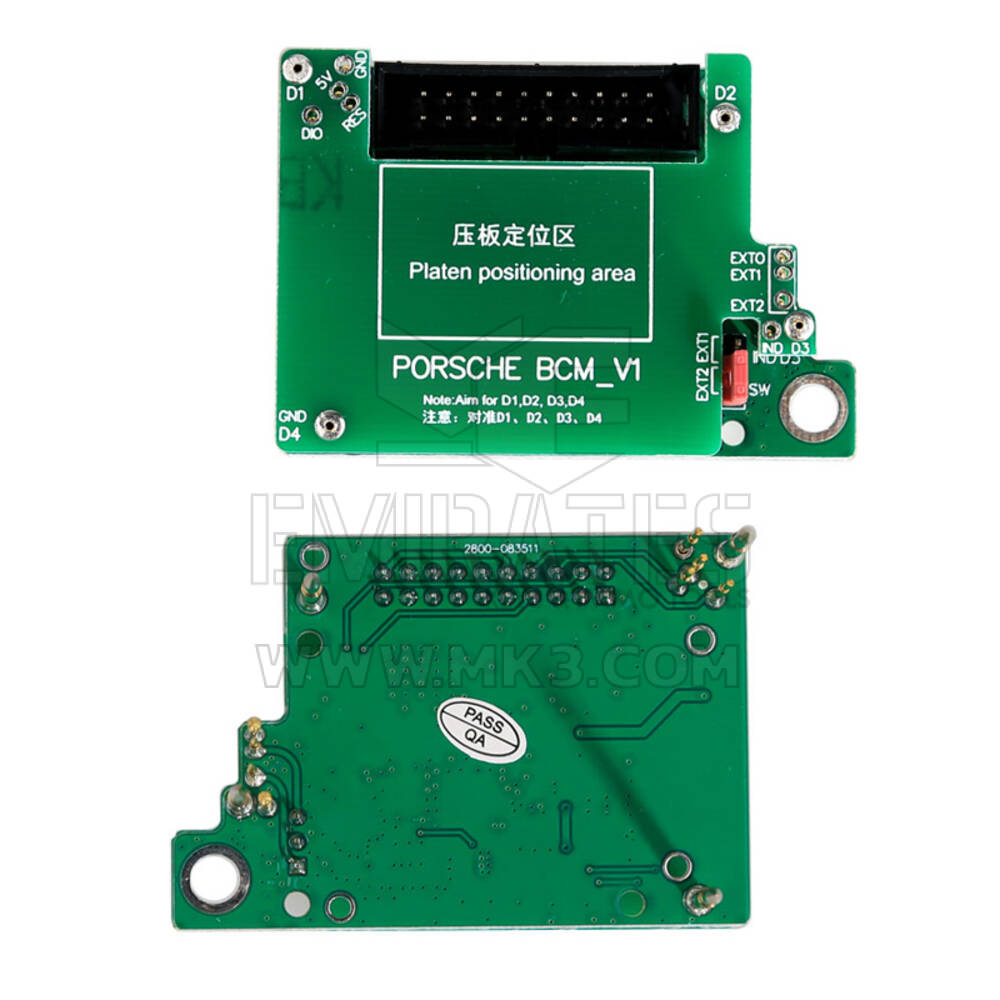

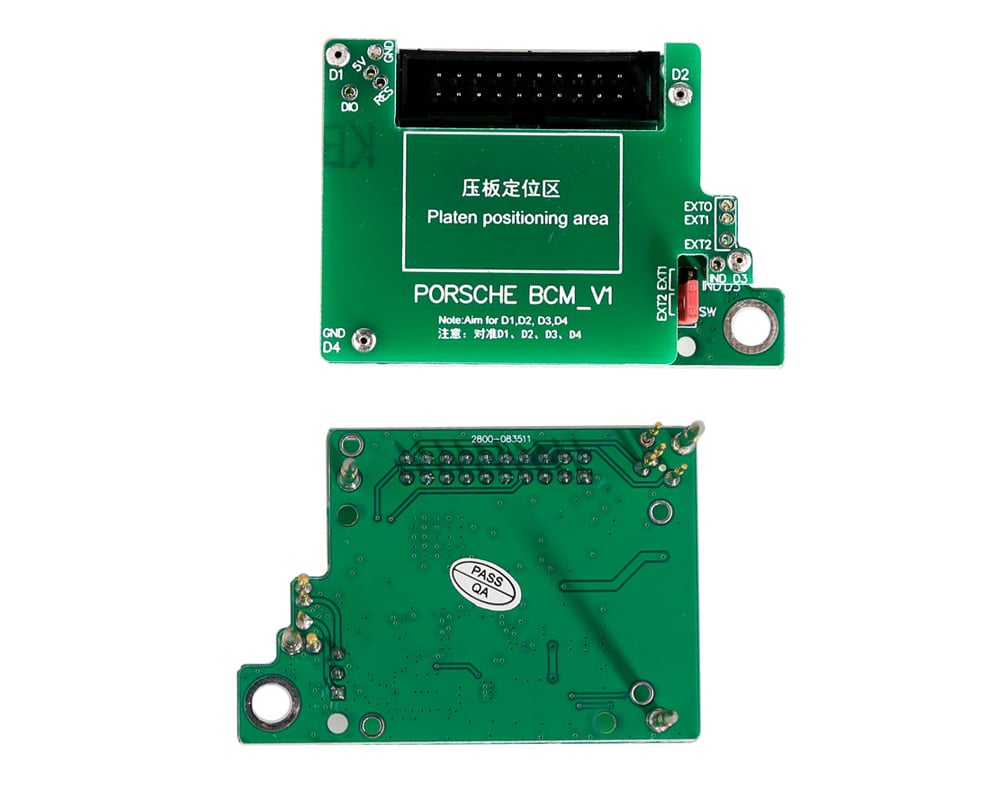

3. The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.

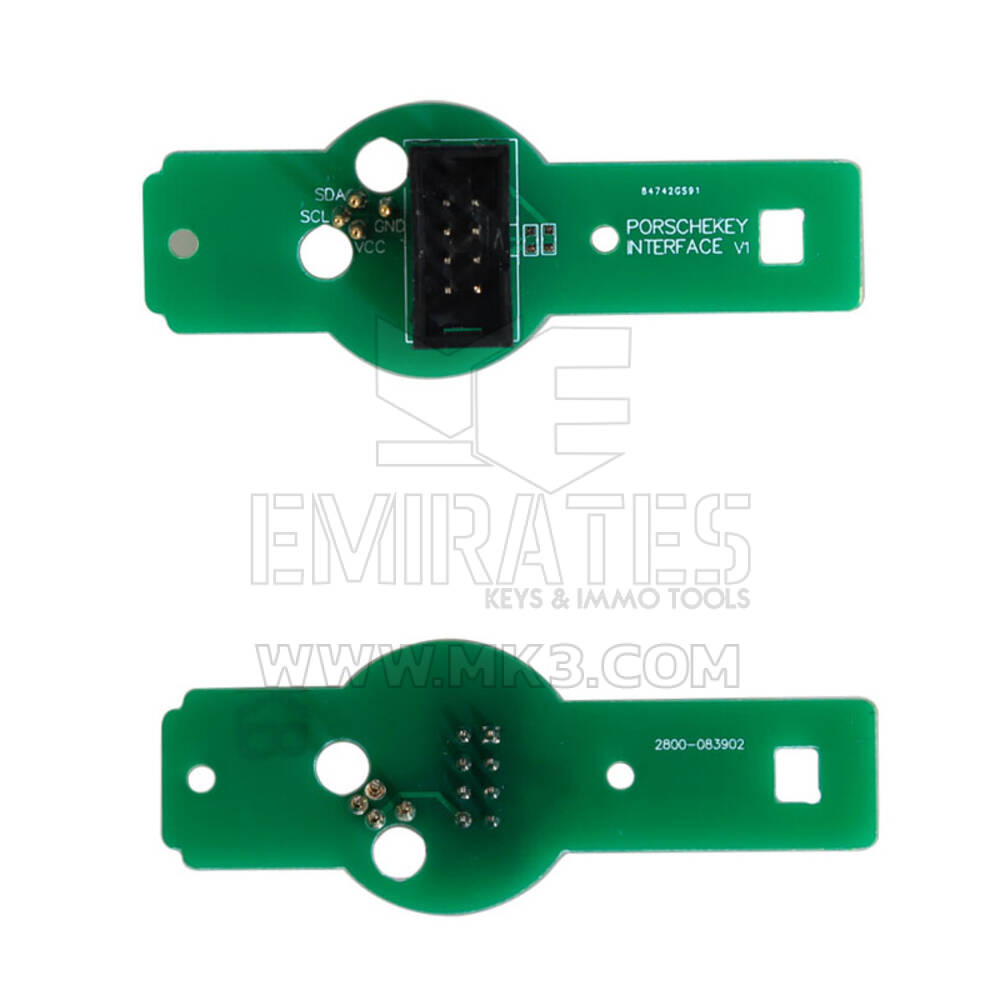

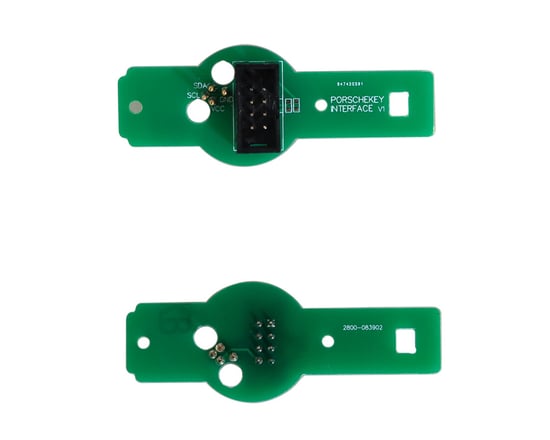

4. With the key refresh function, No longer afraid of loss caused by key be locked.
Supports new Porsche year 2010-2018
Cayenne 2011-
Panamera 2010-
Macan 2014-
911 2011-

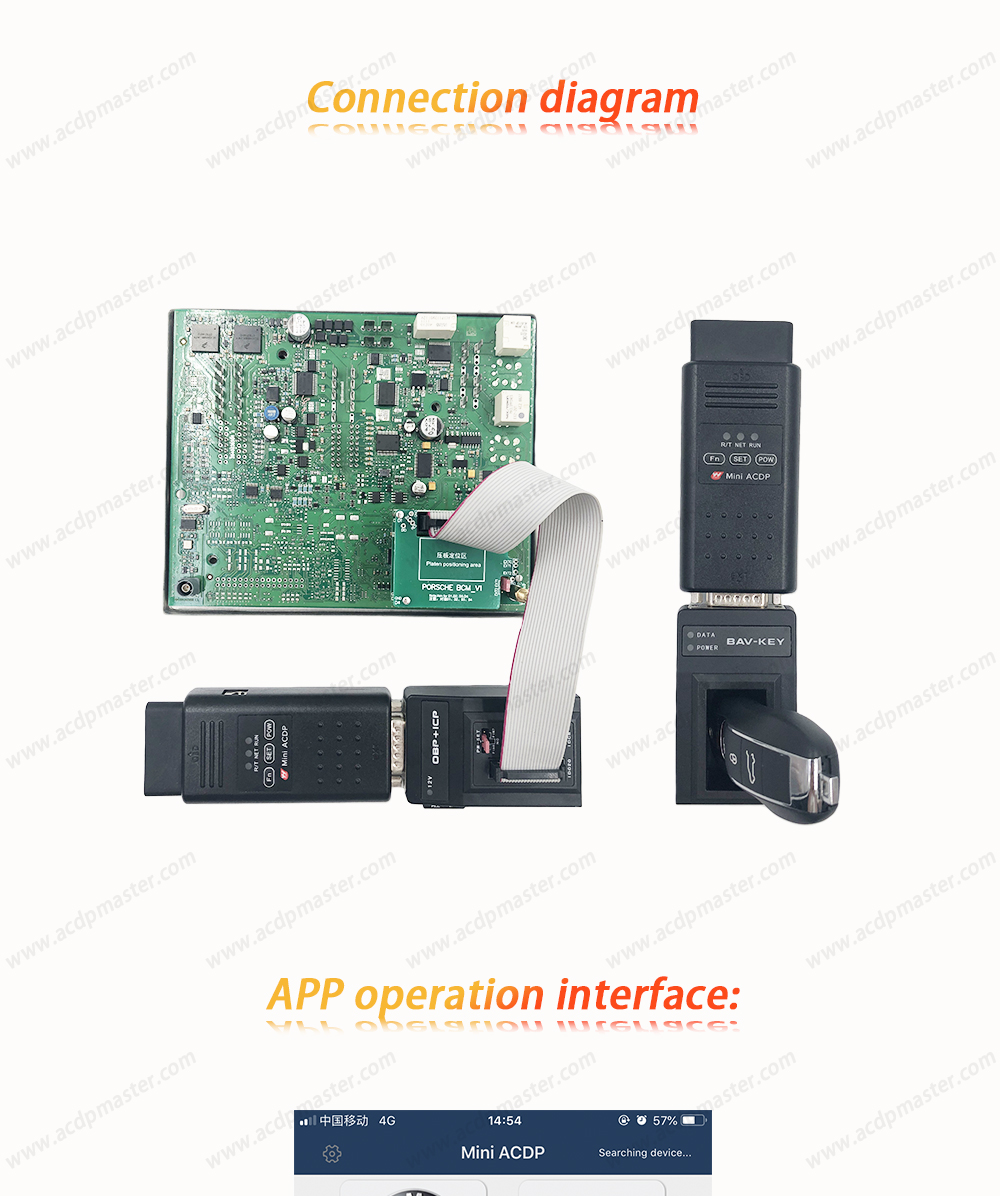

Connection Diagram:

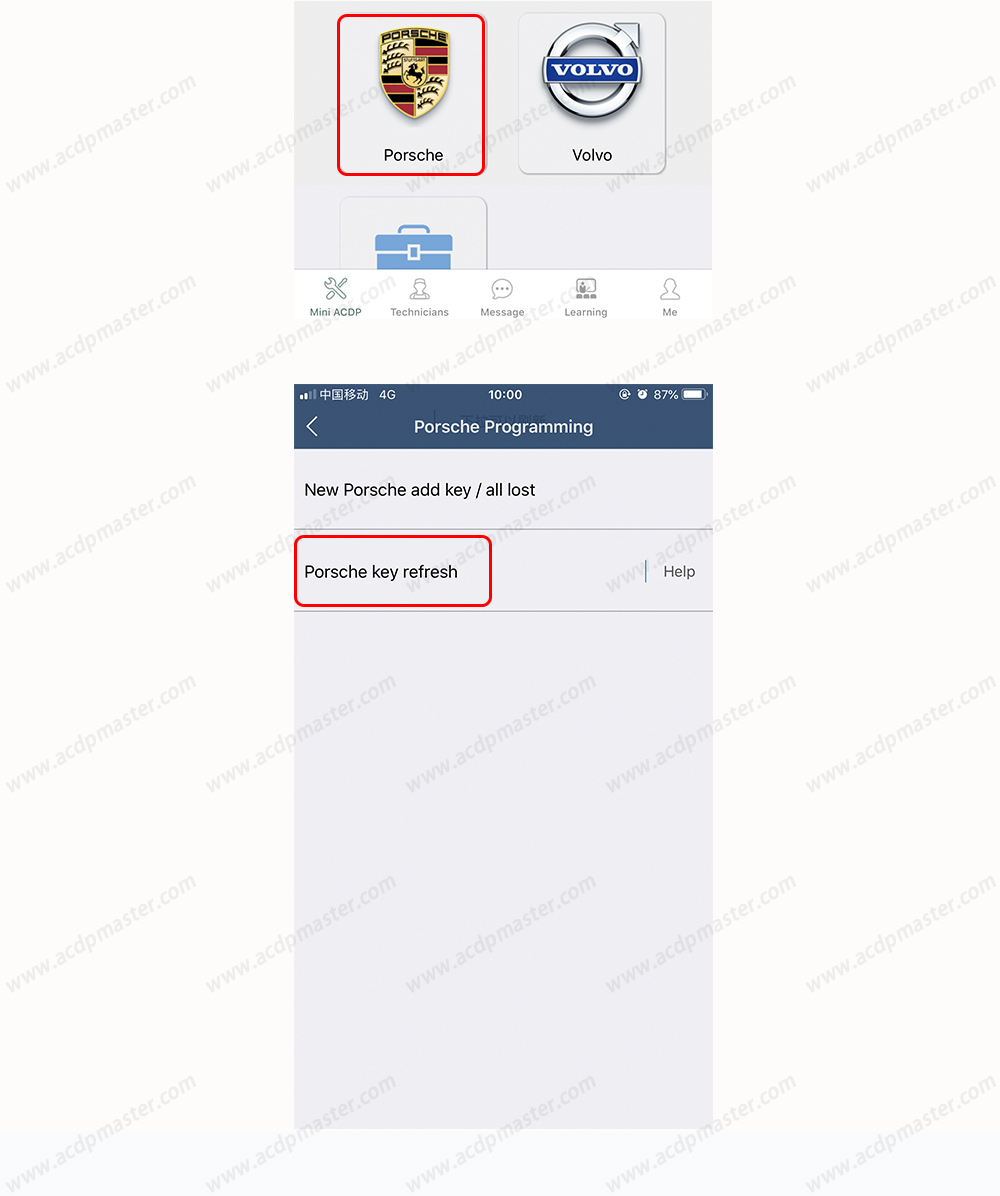

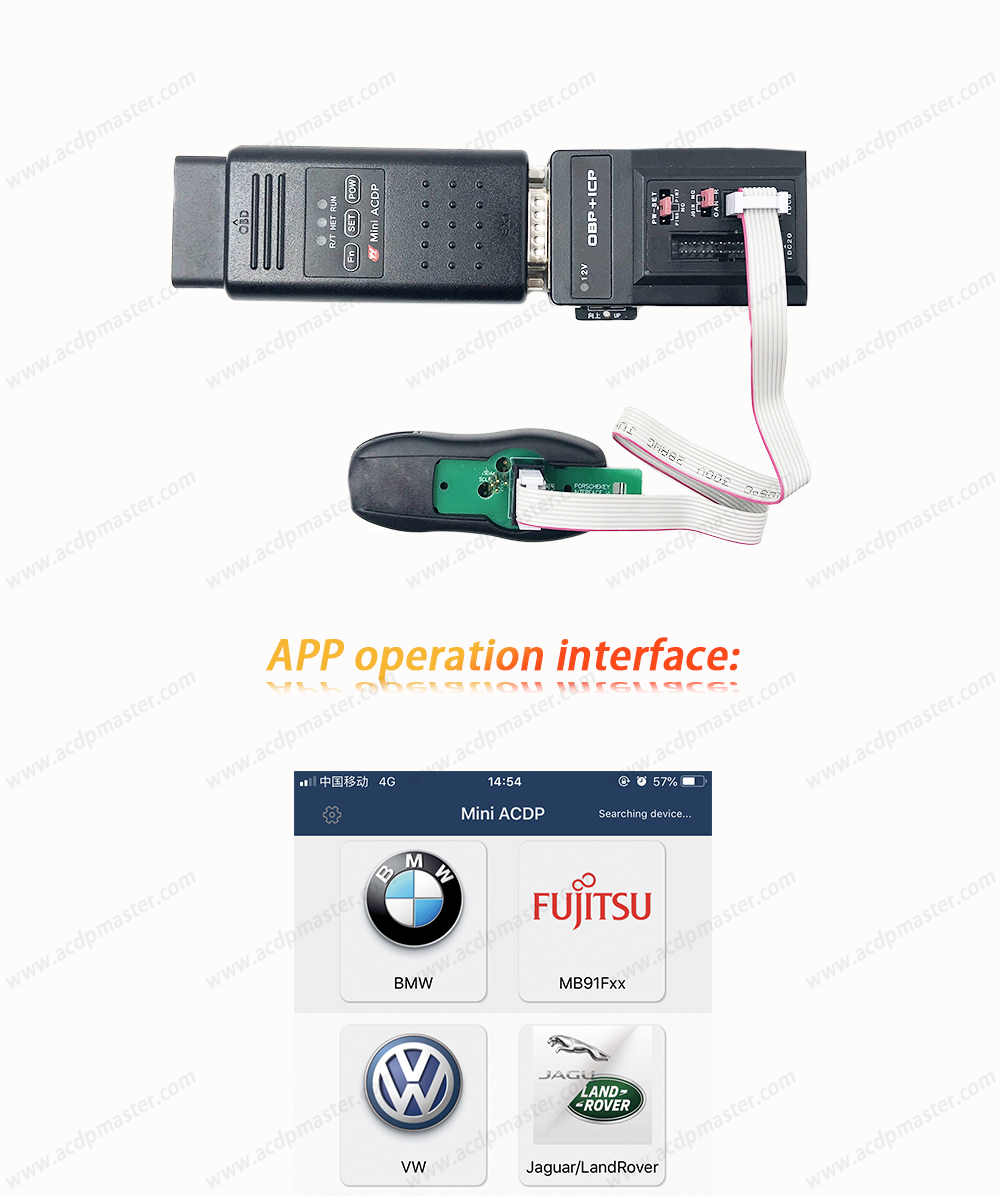

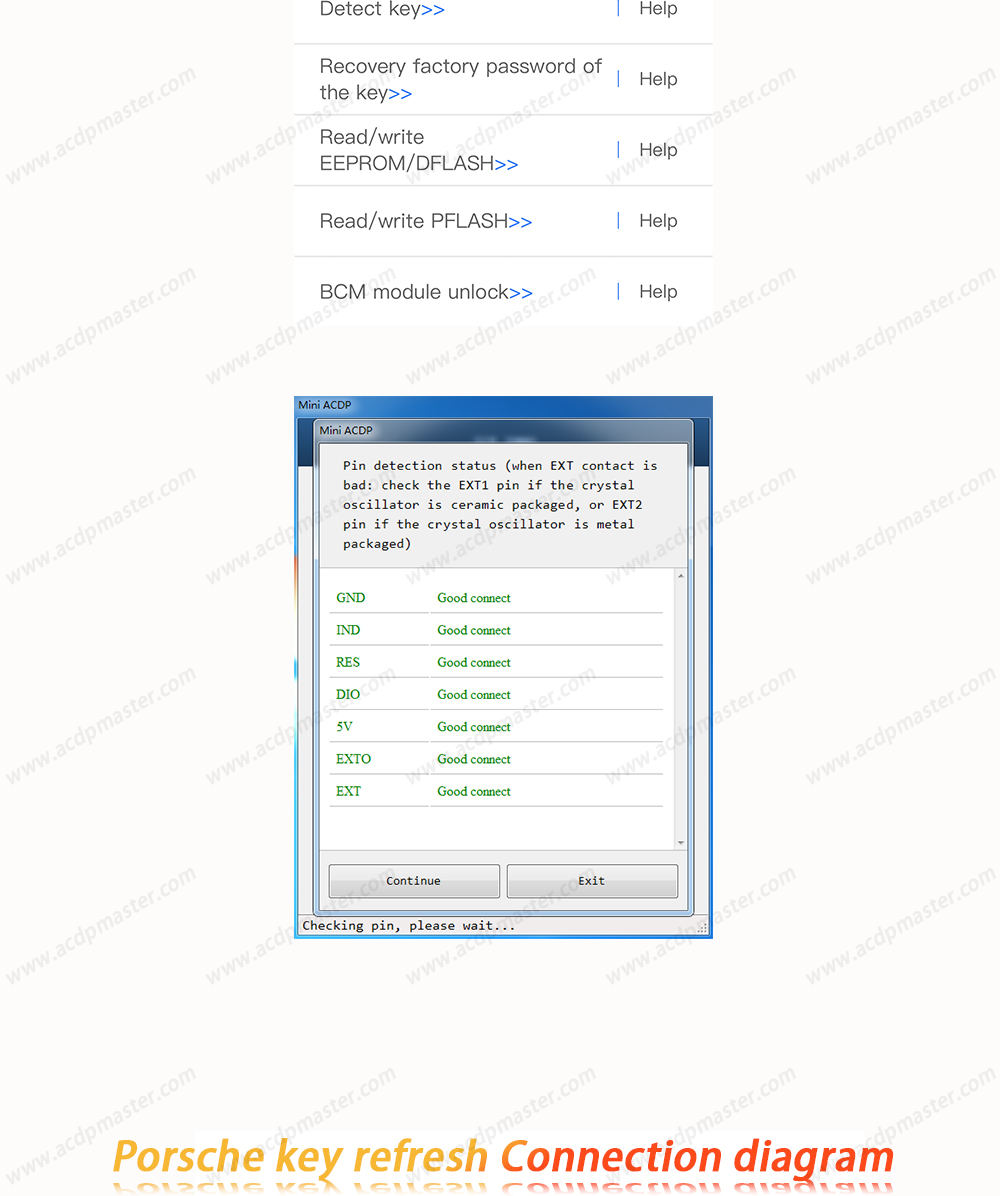

Porsche Key Refresh Connection Diagram:
Yanhua Mini ACDP Master Module Instruction:
Item No | Module Name | Function |
SK247 | ACDP Programmer | Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules. |
SK247-1 | CAS Module | (1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data. (2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data. |
SK247-2 | FEM/BDC Module | Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data. |
SK247-3 | ISN Module | Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell. |
SK247-4 | 35XX Module | Support erase/adjust mileage of 080DOWQ/T,160DOWQ/T EEPROM. |
SK247-5 | Fujitsu CPU MB91F Module | Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment. |
SK247-6 | MQB Module | Support parts of VDO mileage adjustment/key programming of VW MQB platform via OBD, and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode. |
SK247-7 | Refresh BMW key | Refresh BMW E chassis/F chassis (CAS) key to make BMW keys can be used repeatedly. |
SK247-8 | FRM module (FRM Footwell module) | Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data without coding. |
SK247-9 | Jaguar/Land Rover KVM Module | Support Adding key and all-key-lost for new Jaguar and land rover after year 2015. |
SK247-10 | Porsche BCM Module | Support Adding key and all-key-lost for Porsche BCM. |
SK247-11 | EGS Module | Support clearing ISN of BMW 8HP (F/G Chassis)/6HP (F Chassis) Gearbox |
SK247-12 | Volvo ECM Module | Adding Key & All Keys Lost from 2009-2018 |
Note: From SK247-1 to SK247-12, the package doesn't include the main unit. For the new user, you need to buy extra main unit (sk247), if you already have the main unit, just buy the authorization with adapter.

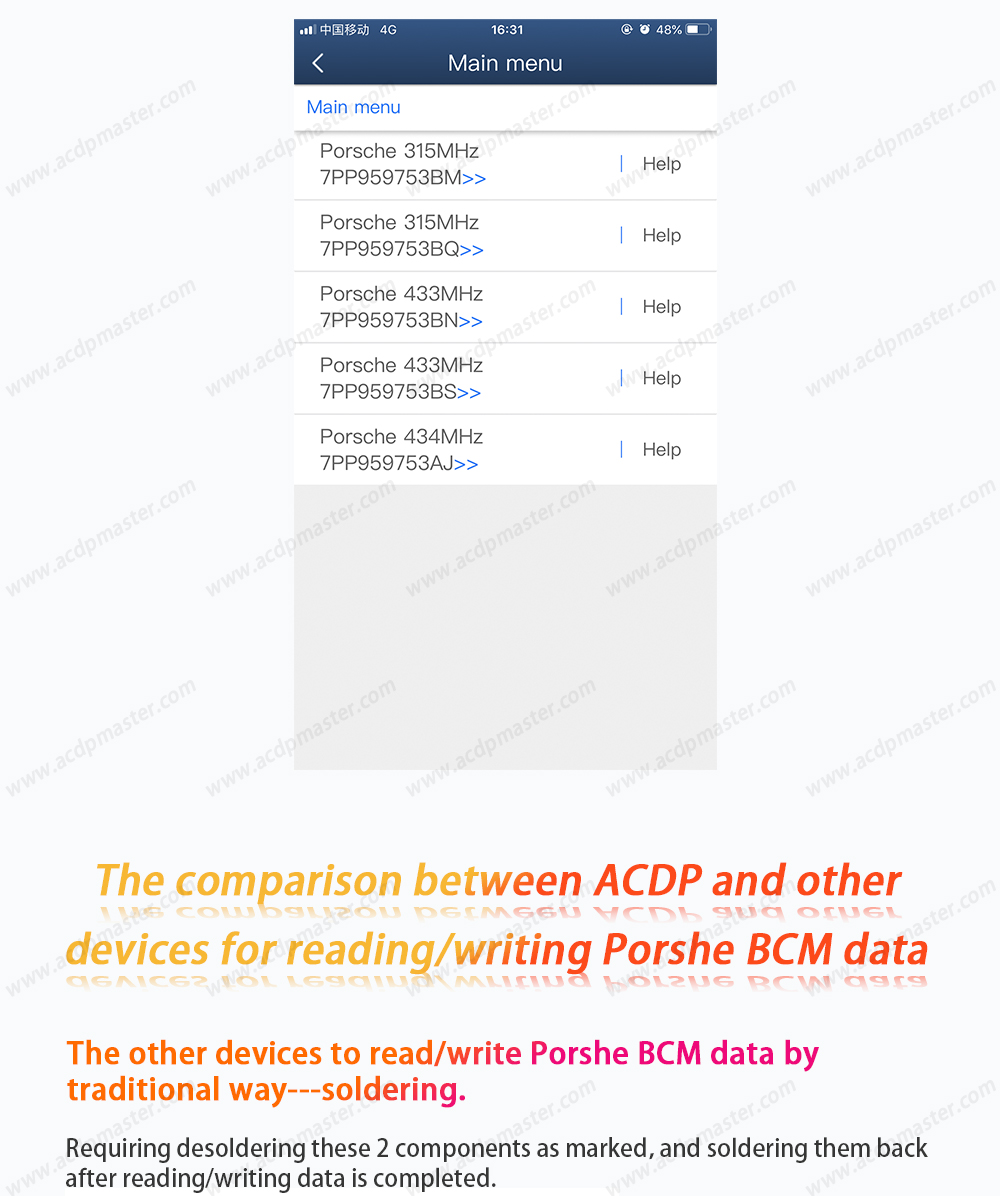

The comparison between ACDP and other devices for reading/writeing Porsche BCM data
--The other devices to read/write Porsche BCM data by traditional way--soldering
Requiring desoldering these 2 components as marked, and soldering them back afer reading/writing data is completed
Disadvantages:
1. Requiring soldering, which with complicated and long time operation
2. Requiring cutting lines and removing 2 components which may cause the risk of module damage
3. Manual soldering is risk and unreliable. Any faulty solder may case the data lost

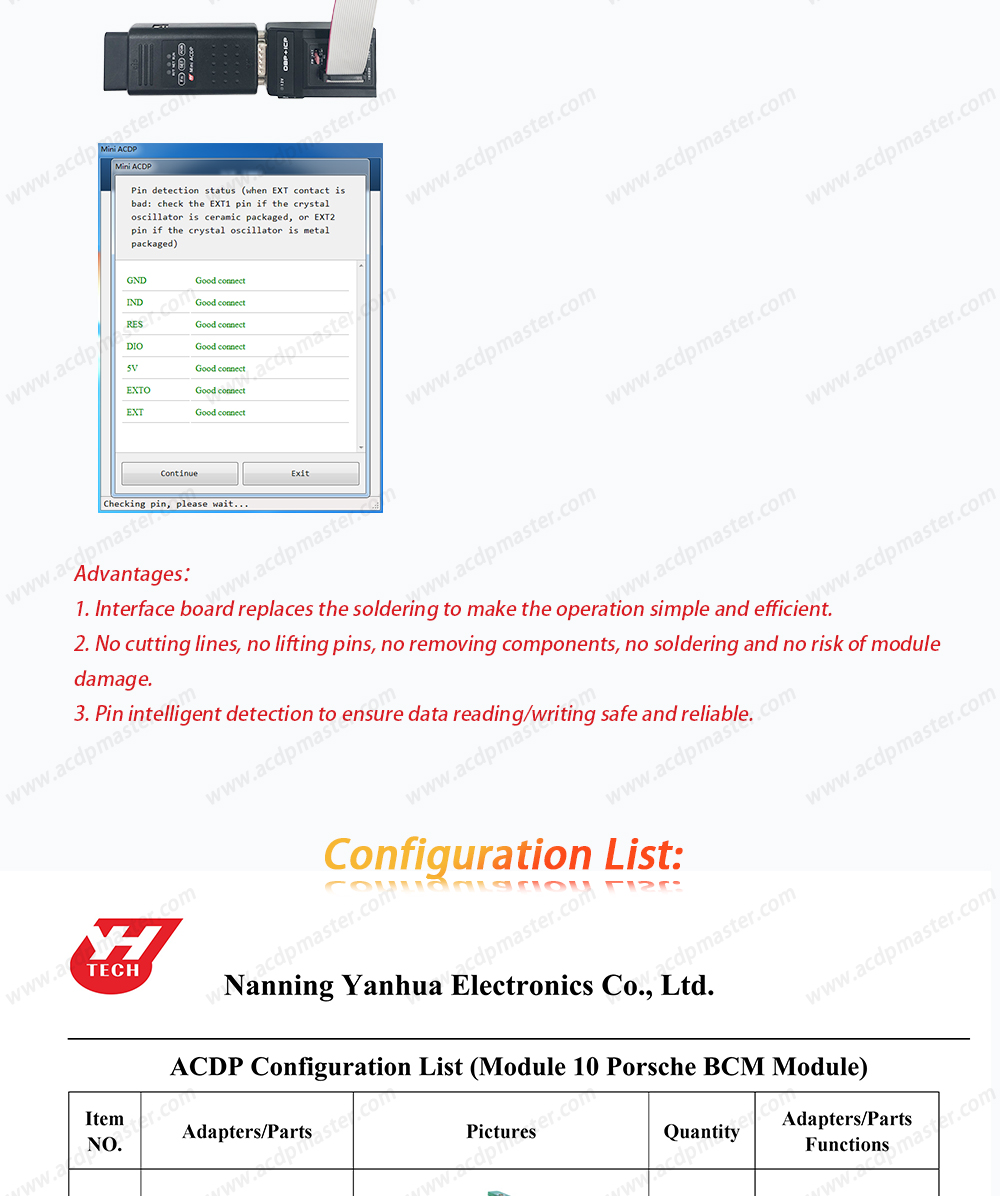

Advantages:
1. Interface board replaces the soldering to make the operation simple and efficient
2. No cutting lines, no lifting pins, no removing components, no soldering and no risk of module damage
3. Pin intelligent detection to ensure data reading/writing safe and reliable
