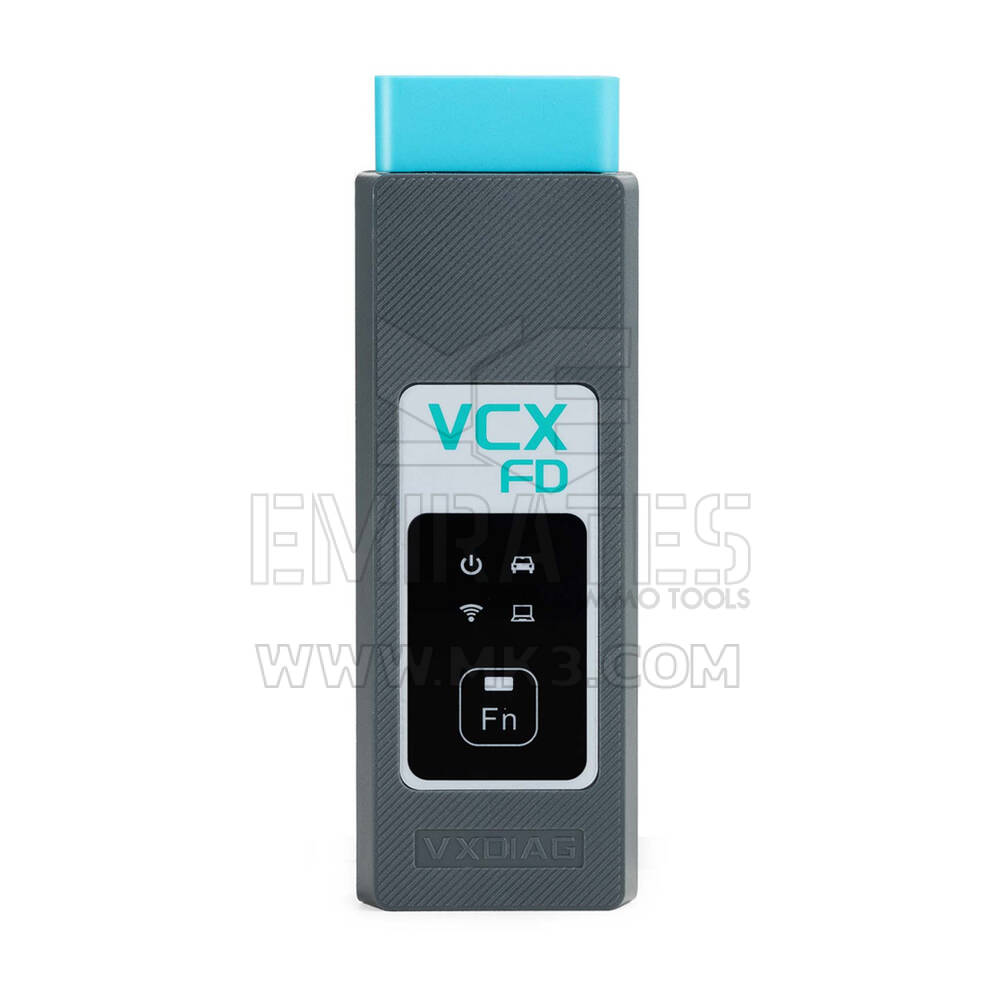

Name: ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool
Brand: ALLScanner
SKU: MK23746
Price: 250 USD
Availability: InStock
Rating: 4.00 (1 reviews)

Product Specifications

Manufacturer	ALLScanner
Condition	New
Weight	280 g

ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool WIFI Version

Product Description:

New ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool WIFI Version

Diagnostic Tools From ALLScanner with Product Number: MK23746
This Weight Product: 280g

Specs:

Manufacturer: ALLScanner
Condition: New

ALLScanner VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, which represents the diagnostic technology of the next generation. The product uses a newly upgraded dual-core high-speed processor to fully support multi-channel CAN-FD / DOIP and traditional diagnostic protocols, and compatible with more original diagnostic software.

VCX-FD also supports local and super remote dual-mode diagnosis to provide users with excellent diagnosis experience.

Supported Software:
GM GDS2 V2023.10.19 Tech2WIN 16.02.24
Ford IDS V130
MAZDA IDS V131

Advantages of VCX-FD Hardware:

ALLScanner VCX-FD is Extreme Performance Vehicle Diagnostic Interface

1. Dual -core architecture coordinated work, more communication performance

The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle BUS protocols.
The 560MHz MIPS network processor realizes the DOIP super diagnostic gateway.
Dual -core processors communicate through the Ethernet, high bandwidth and low latency.
The diagnostic communication speed has been several times more than the previous generation of products.

2. Dual operating system, the software is more stable

The RTOS real -time operating system guarantees the vehicle bus protocol multi -task and the communication.
OpenWRT network operating system flexibly connects a variety of network interfaces and vehicles.

3. Support more comprehensive vehicle BUS protocol

Integrate OBD intelligent protocol multi -router chips, all pins can intelligently switch any protocol.
Support 3-channel CAN-FD multi-channel complication, up to 5M BPS high-speed communication.
Support ISO-13400 standard dual-road DOIP interface Option 1 and Option 2.

4. Flexible and easy -to -use connection method

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built -in wireless route mode, diagnostic computers can wirelessly connect devices.
Support the wireless workstation mode, the device can access the wireless LAN, and any computer can connect the device.
Support the vehicle DOIP Ethernet into WLAN to achieve wireless DOIP diagnosis.

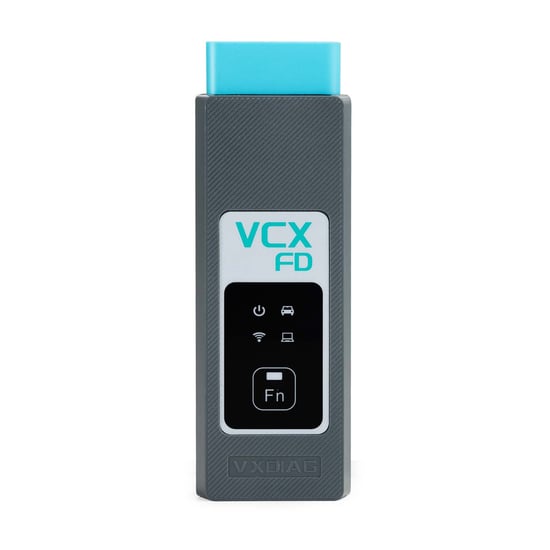

5. Brand New Design

Adopt an integrated design of integrated OBD-II interface, which is convenient to plug and play.

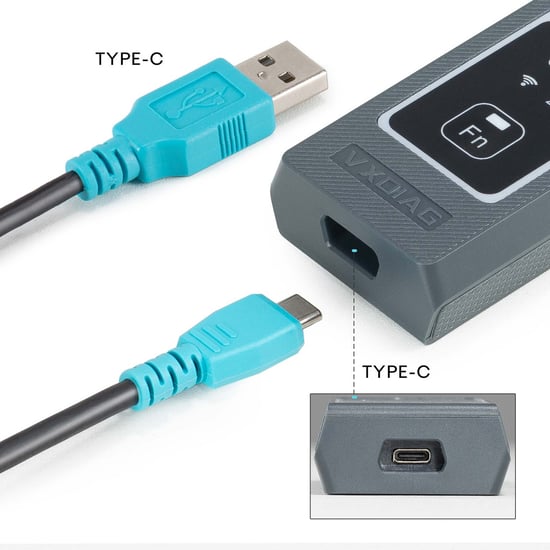

The reinforced Type-C interface can prevent shaking and falling off, and the connection is more reliable.

ALLScanner VCX-FD is More Powerful Vehicle Diagnostic Equipment

1. More comprehensive original vehicle diagnosis

The original diagnostic model brands that VCX-FD are now adapted to have 15 species.
After the hardware update, it fully supports new models and new original diagnostic software based on CAN-FD and DOIP.
Various advanced diagnosis and programming functions have reached the original level, and the speed even exceeds the original equipment.
Support one -click installation, uninstall and upgrade the original factory support driver, easy to use.

2. Upgraded international standard API interface

SAE-J2534-1/2 PASSTHRU V04.04 & V05.00
ISO-22900 D-PDU API for MVCI
RP-1210A/B/C API for VDA

3. Support J2534 Original Online ECU Programming (Needs original online account)

ECU software upgrade and calibration.
ECU replacement and programming.

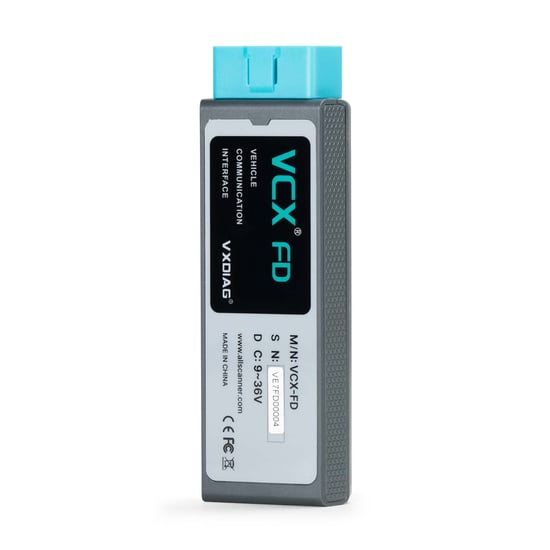

ALLScanner VXDIAG VCX FD Parameters:

Hardware Configuration:

Items	Description
Network processor	32bit 560MHz MIPS 32MB FLASH 128MB DDR
Protocol processor	32bit 550MHz ARM 1MB FLASH
Diagnostic interface (vehicle)	SAE-J1962 Standard OBD-II diagnostic interface
DoIP interface (vehicle)	ISO-13400-4 Option1/2 Ethernet
Wired interface (PC)	USB TYPE-C
Network interface (PC)	USB Type-C to RJ-45 Ethernet
Wireless interface (PC)	Wlan 802.11 B/G/N wireless network
Button	Fn Reset
Indicator light	5 LEDs: power, wireless, communication, vehicles and remote
Powered by	Vehicle power supply: DC 9V-36V (compatible 12V and 24V)
Power consumption	2W
Dimension	L x W x H = 140 x 50 x 25 (mm)
Weight	Equipment weight: 0.3kg Product +toolbox +packaging weight: 0.8kg
Shell	Reinforced plastic shell
Operating temperature	-20～+70 °C
Storage temperature	-40～+85 °C
Standard certification	EU CE and the US FCC

Support BUS Protocol


ISO-15765 CAN / CANFD	VAG TP16 CAN
ISO-13400 DoIP Option1/2	VAG KW81 (SAE J2818)
ISO-9141 K-Line	SAE-J2610 SCI (Chrysler)
ISO-14230 K-Line	SAE-J1567 CCD BUS (Chrysler)
ISO-17987 LIN BUS	SAE-J2740 GM ALDL
SAE-J1850-VPW (GM Class2)	SAE-J2809 HONDA DIAG-H
SAE-J1850-PWM (FORD SCP)	NISSAN DDL UART with CLOCK
ISO-11898-2 DWCAN	BMW DS2
ISO-11898-3 DWFTCAN	FORD UBP
SAE-J2411 SWCAN (GMLAN)	BENZ KWFB
VAG TP20 CAN (SAE-J2819)	BENZ MB-ISO

OBD-II pin BUS Protocol Coverage

PIN	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
POWER				GND	GND											BAT
DoIP-1			RX+					ACT			RX-	TX+	TX-
DoIP-2	RX+							ACT	RX-			TX+	TX-
CANFD1						H								L
CANFD2			H								L
CANFD3	H/L	H/L	H/L			H/L	H/L	H/L	H/L	H/L	H/L	H/L	H/L	H/L	H/L
SWCAN	X	X	X			X	X	X	X	X	X	X	X	X	X
PWM		H								L
VPW		X
J1708												H	L
K-LINE	X	X	X			X	X	X	X	X	X	X	X	X	X
UART	X	X	X			X	X	X	X	X	X	X	X	X	X
ADC	X	X	X			X	X	X	X	X	X	X	X	X	X
IO	X	X	X			X	X	X	X	X	X	X	X	X	X

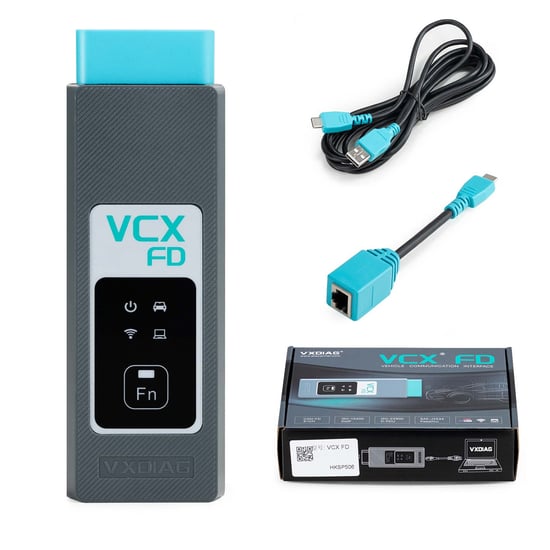

Package List:

1pc x VCX-FD Interface
1pc x Type-C USB Cable
1pc x RJ45 Lan Converter

Product Code:	MK23746
Categories	Diagnostic Tools
Manufacturer	ALLScanner
