Autel MaxiSys Ultra & EV Diagnostics Upgrade Kit Bundle

Autel MaxiSys Ultra & EV Diagnostics Upgrade Kit

Product Description:

Diagnostic Tools From Autel with Product Number: MKON330
This Weight Product: 27000g

Specs:

Manufacturer: Autel
Condition: New

1. 2 Years update subscription is included with the device.
2. Ip Restriction (works only in India, Middle East and Africa ).

Autel MaxiSys Ultra OBD2/CAN Specs:

Manufacturer: Autel
Condition: New

Note: 3 Years update subscription is included with the device.
Note: Ip Restriction (India, Middle East and Africa ).

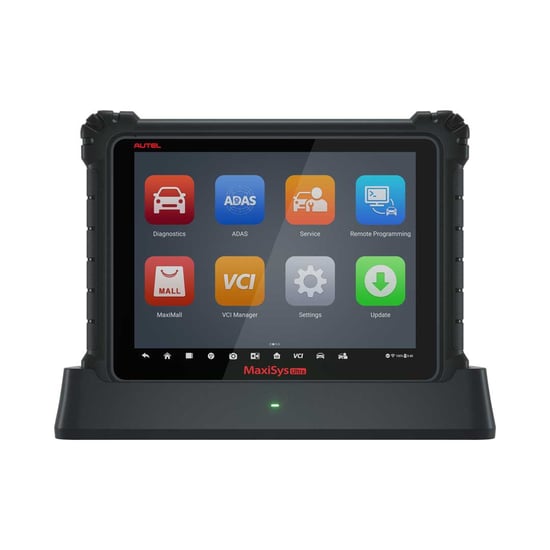

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel MaxiSys Ultra OBD2/CAN Features:

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MSUltra Highlights:

• Updated version of MK908P/ MS908P/ Elite/ MS909/ MS919; All-in-one comprehensive scanner for large repair workshops;
• D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols are supported; Wider vehicle coverage for 99.99% makes in the market;
• 5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester;
• Advanced J2534 Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.
• 36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus;
• One-stop Intelligent Diagnosis based on DTCs, helping you have a clear picture of vehicle status; the Ultra features the TSB, repair tips, DTC analysis, etc. For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions.
• Built-in Oscilloscope & Multimeter
• OE-level Topology Module Tree, helping you veiwing the vehicle's crux much more intuitively;
• Split-screen multi-application navigation with super fast running speed, greatly improving your work efficiency;
• 10+ highly advanced functions: Active Test/Guided Functions/Personalization/Modification/ etc.;
• Multiple repair guidance: Technical Service Bulletin (TSB), DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases;

Support D-PDU/ SAE J2534/ RP1210 & DoIP/ CAN FD:

D-PDU/ SAE J2534/RP1210 diagnostic protocols enable Ultra to diagnose and program more passenger and commercial vehicles, such as Volvo, VW, Benz, etc. Besides, with DoIP/ CAN FD protocols, which transmit data much faster than CAN, Ultra extends the diagnostic range for many new vehicle models, like GM (Post-2019); Volvo (Post-2018), Land Rover (Post-2017), Jaguar (Post-2017), BMW (G/E Chassis), etc.

1. Support D-PDU/J2534/RP1210 Diagnostic Protocols:

Autel MaxiSys Ultra supports API standard Communication Interface , with the Vehicle Communication Measurement Interface i.e. VCMI, we can perform OE-level diagnosis and programming for more accurate diagnosis and efficient car repair jobs to win more business!

2. Support CAN FD/DoIP Protocols

CAN-FD Bus Protocol is a much more efficient way of data tranmission than CAN data transfer protocol, its speed can be up to 4.05Mbit, which is 14 times faster than CAN2.0A/B. DoIP is based on a branch of UDS (better than CAN protocol), it is the unified standard of Diagnostics that have more conformity with the development of intelligent vehicles and faster data transmission, the quickest data rate is up to 100Mbit /s.The speed of diagnosis is 100-200 times faster than CAN, and the network upload rate is 300-400 times than CAN diagnosis.

NOTE: The CAN FD/DoIP protocols are not universal to all the vehicles. The CAN-FD Bus protocol is applicable for GM models produced in the second half of 2019, and the DOIP protocol mainly supports Volvo after 2018, Land Rover/ Jaguar after 2017, F chassis and G chassis BMW.

Top-level Configurations, OE-level Topology Module Tree

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

• Intuitively display the current module status (includes whether there is a DTC in a specific module, and the number of DTCs);
• Systematically show the communication structure between the modules;
• Directly display the fault code and enter the system execution function;
• Clearly view the color coded module status tree by zooming in and out;
• Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

Intelligent Diagnostics, One-Stop Solution for DTCs

Intelligent Diagnostics provides smart shortcuts for technicians to get information directly related to the fault code, rather than that isn’t relevant, helping technicians repair detected faults efficiently, making repair work 200% easier than ever.

One-Stop Solution to Guide Customers to Solve the Faults Step by Step

• Vehicle System and Detected DTC: displays the name of the vehicle system(s) and the detected DTC(s)
• Technical Service Bulletin (OEM Info): contains DTC-related recalls, TSB, and OEM campaigns.
• DTC Analysis: provides repair assistance information related to the fault code.
• Repair Assist: intelligently prioritizes DTCs and leads the user to the proper repair.
• Repair Tips: step by step guidance to efficiently to solve multiple faults
• Component Measurement: provides detailed information and instructional guides on using the oscilloscope to test components for faults.
• Relevant Case: offers relevant fault-clearing cases for reference.
• Compatible with: BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Mercedes-Benz, VW, etc.

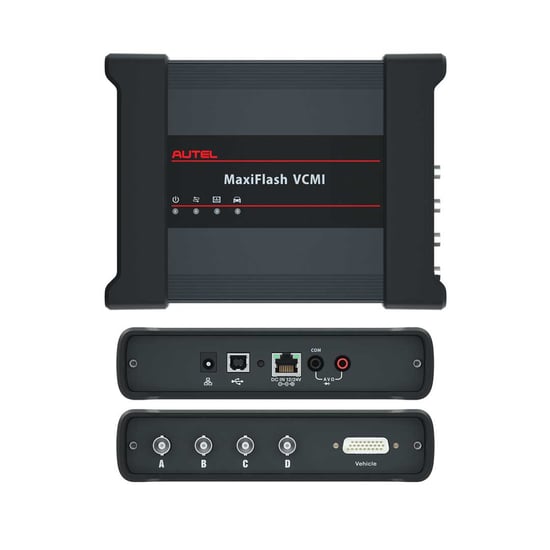

5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently
(VCI Connection + Oscilliscope + Waveform Generator + Multimeter + CAN UBS CHECK)

• 5-in-1: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
• More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

Advanced J2534 ECU Programming & Coding

The need to perform programming & coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:

also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

Autel top scanner MaxiSys Ultra with VCMI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool Maxisys Ultra provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

• Online ECU programming & coding without any special connectors for BMW (F & G chassis);
• Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
• Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
• ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
• The VCMI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.

36+ Maintenance Functions Greatly Improve Work Efficiency

• 26 Commonly Used Reset Functions for Fast Maintenance or Repairs:

Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

• 10+ Advanced Functions for Different Vehicle Models:

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

• Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
• ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
• Injector Coding, to write the new code to the ECU after replacement of injector.
• Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
• Anti-theft Matching, to disable the lost key and add the new key’s data for security.
• BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.
• Tire Pressure Reset, to look up the tire sensor IDs, reset tire pressure, and turn off the tire pressure MIL.
• DPF Reset, to retrieve/erase DPF-related codes, and reset the DPF light.
• Throttle Matching, to make initial settings to throttle actuators.
• Gearbox Matching, to achieve a more comfortable and ideal shift quality.
• WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, etc., and are still growing.

10+ Highly Advanced Features

• Bi-Directional Control (Active Test)

Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle related actuators; Compatible with most vehicle models on the market.

• Modifications

To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that haven't already in your vehicle, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc.；Compatible with Volkswagen, Audi, BMW, etc.

• Guided Functions

Come with the on-screen instructions to guide you on how to complete some complicated functions step by step; Compatible with Volkswagen, Audi, Skoda, Seat, etc.

• Personalization

Customize your car as you want. Help you make full use of the hidden functions and disable the annoying features; Available for BMW, Porsche, Toyota, Nissan, Peugeot, Citroen, Fiat, etc.

Autel MaxiSys Ultra Specifications

Autel MSUltra vs MS908P vs Maxisys Elite vs MS909 vs MS919

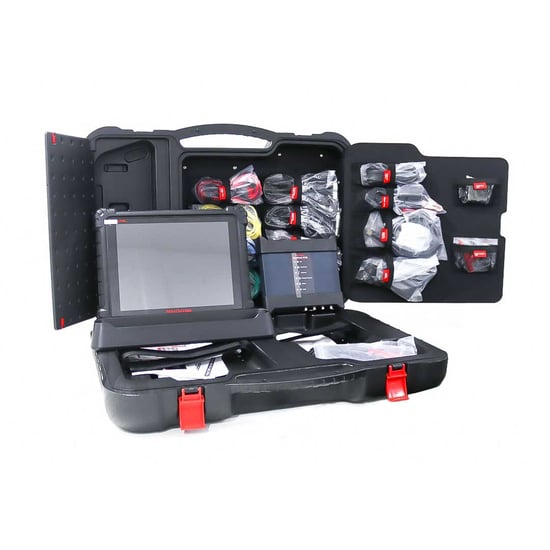

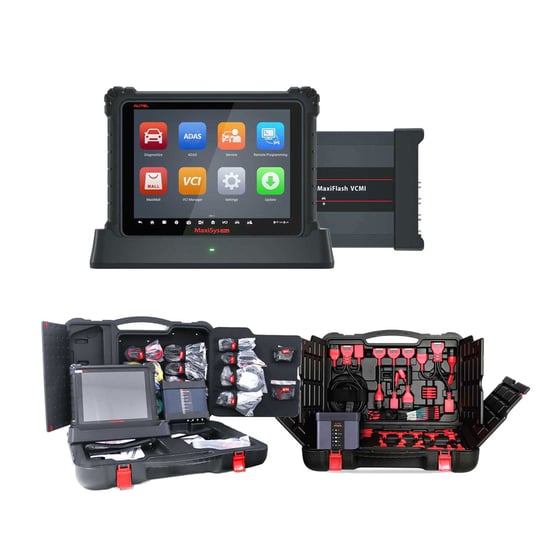

Autel MaxiSys Ultra OBD2/CAN Package Content:

1. 1pc x Main Unit
2. 1pc x MaxiFlash VCMI

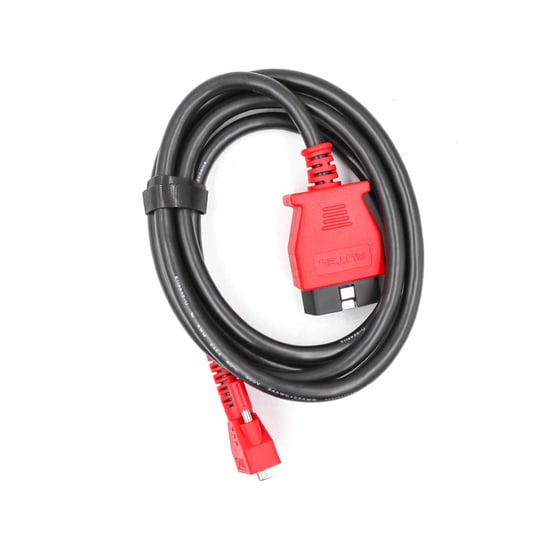

3. 1pc x Main Cable V2.0

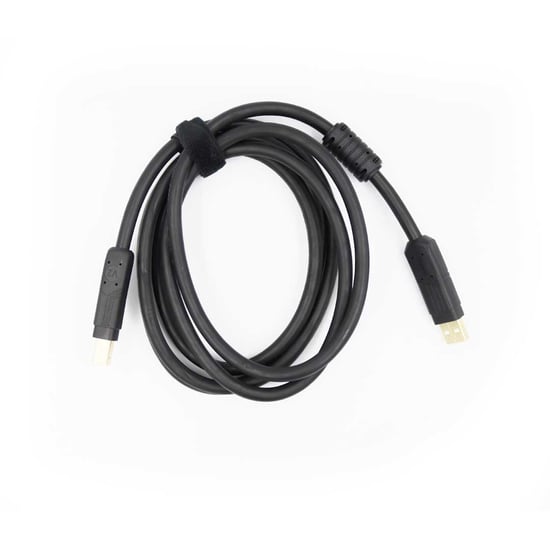

4. 1pc x USB 2.0 Cable V2

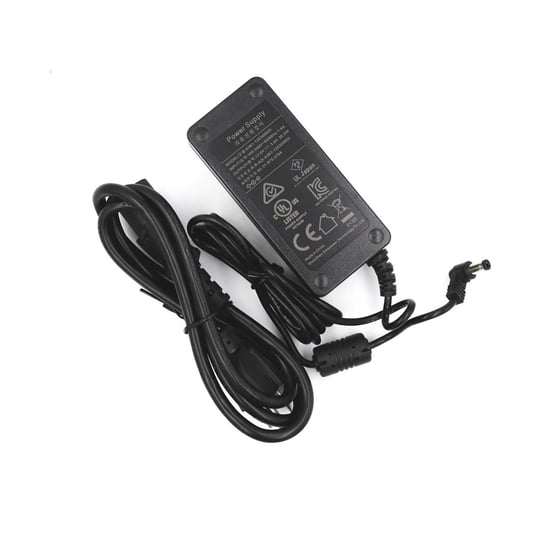

5. 1pc x AC/DC Adapter(12V)

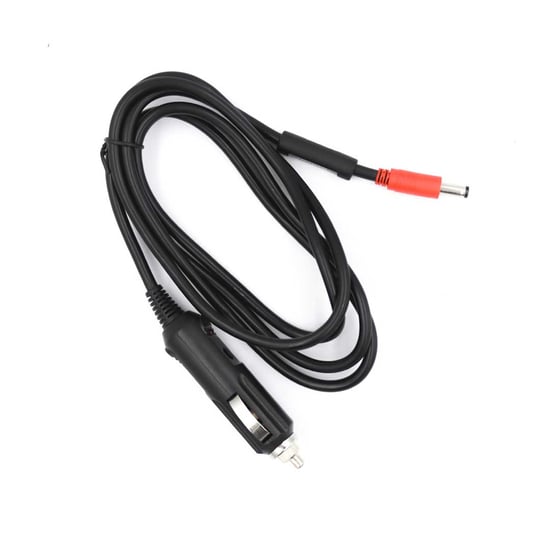

6. 1pc x Cigarette Lighter
7. 2pcs x Light Fuse 6x30mm

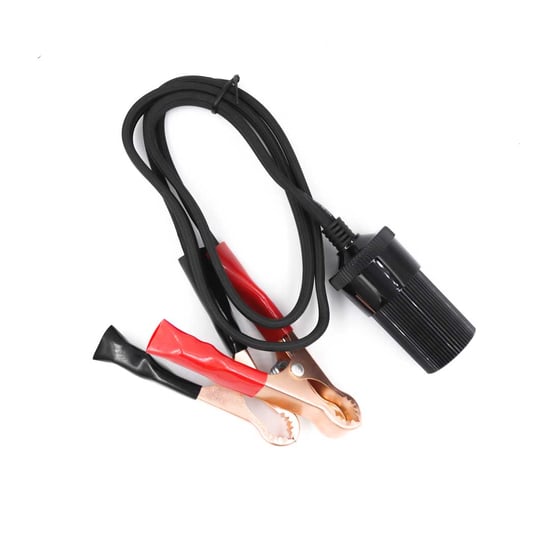

8. 1pc x Clipper Cable

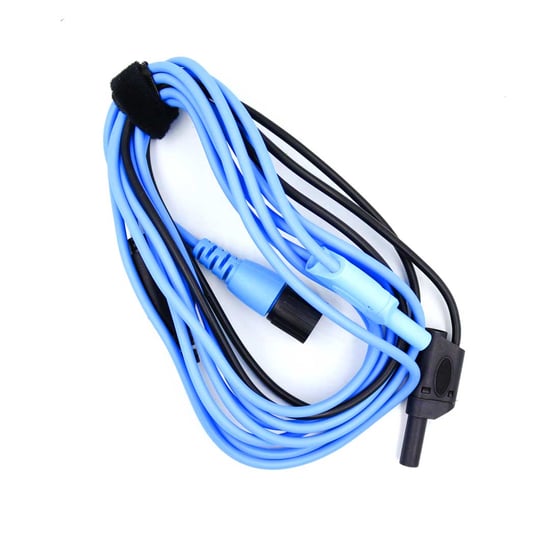

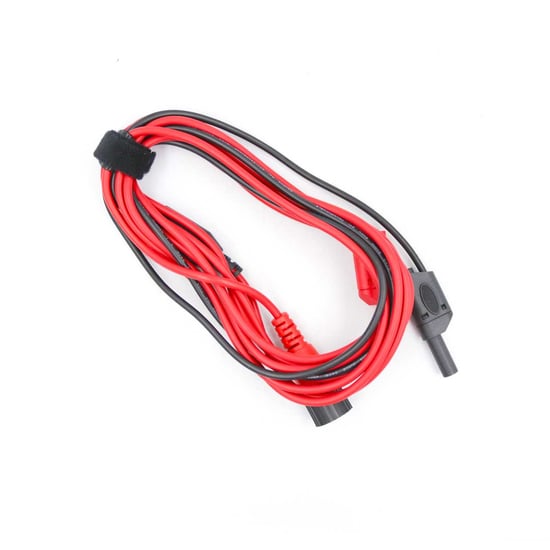

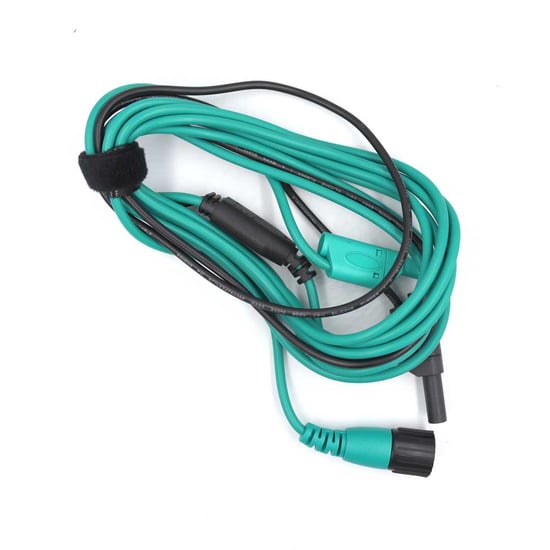

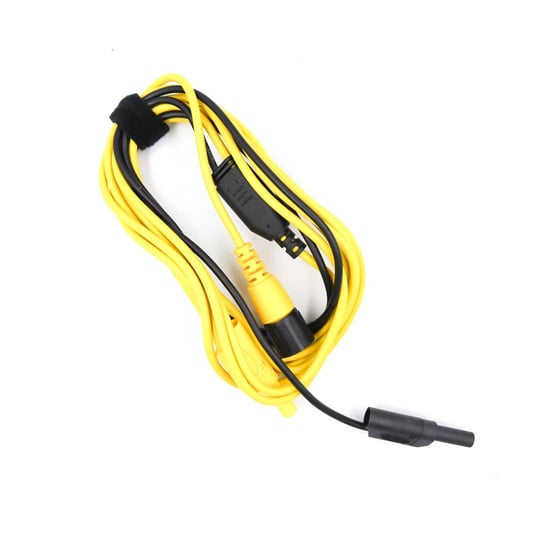

9. 4pcs x Scope Test Lead

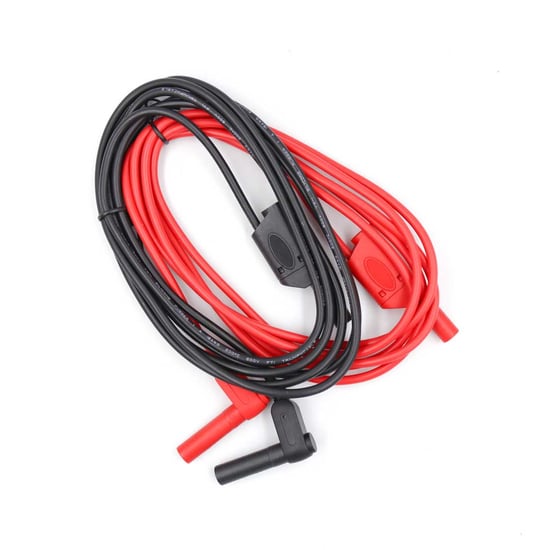

10. 2pcs x Multimeter Test Lead

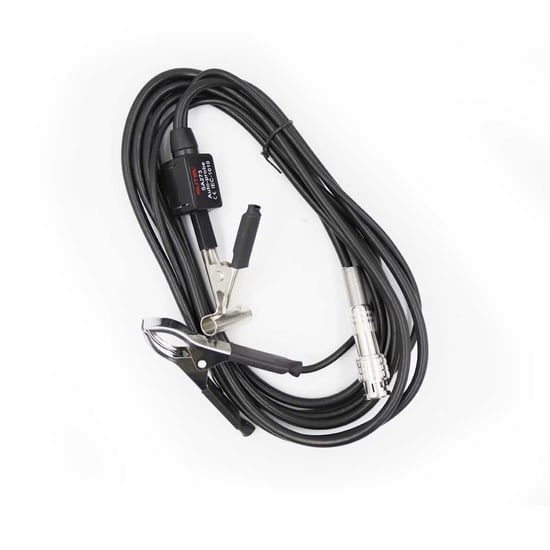

11. 2pcs x Secondary Ignition Pickup

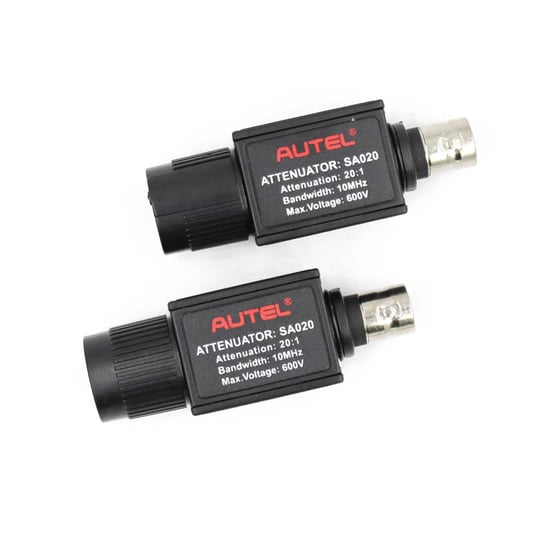

12. 2pcs x Attenuator 20:1

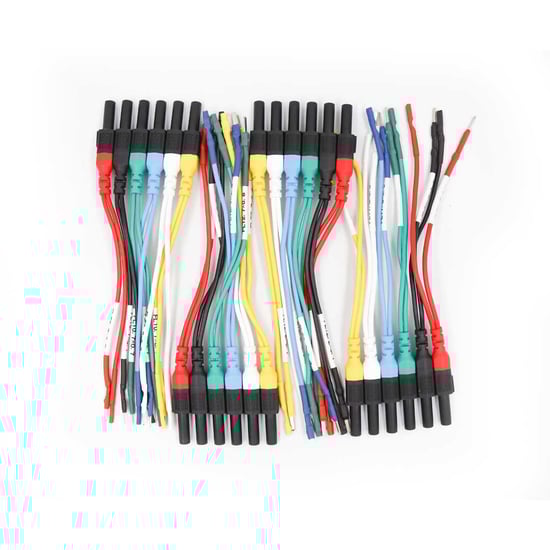

13. 1set x Breakout Lead 4x6 PCS

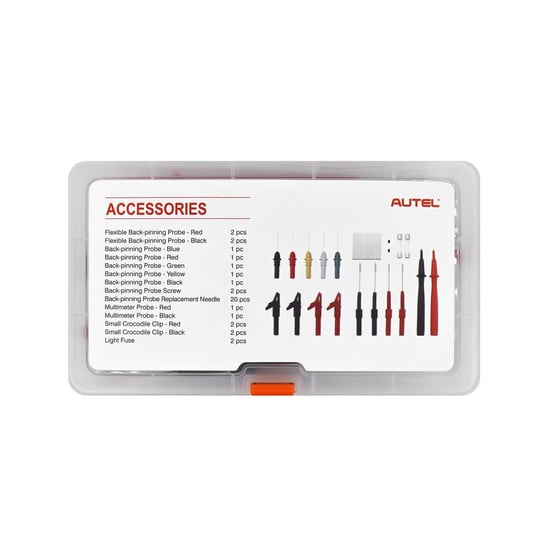

14. 2pcs x Multimeter Probe
15. 1set x Flexible Back-pinning Probe 2x2 PCS
16. 1set x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
17. 2pcs x Back-pinning Probe Screw
18. 20pcs x Back-pinning Probe Replacement Needle
19. 1set x Small Crocodile Clip 2x2 PCS

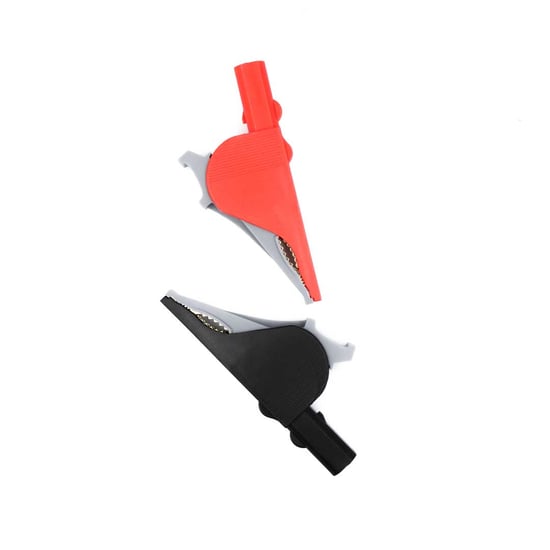

20. 1set x Large Dolphin Clip 1x2 PCS
21. 1pc x Quick Reference Guide
22. 1pc x Packing List
23. 1pc x Soft Cloth

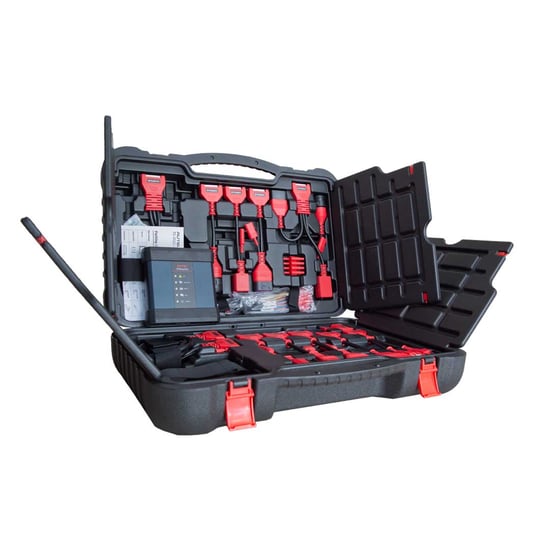

24. 1pc x Tool Box
25. 1pc x Carrying Case

Autel Ultral EV Diagnostics Upgrade Kit includes EVDiag Box

The EV Diagnostics Upgrade Kit includes EVDiag Box, testing software, and adapters for specific vehicles to enable testing of electric vehicle battery packs. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909.

• Includes EVDiag Box, breakout leads and BMW, Tesla, VW adapters
• Includes EV battery pack diagnostic software upgrade
• Compatible with MS Ultra, MS919 and MS909 tablets
• Diagnose battery State of Charge and State of Health
• Includes carrying case

Autel EV Diagnostics Upgrade Kit Accessories :

Autel MaxiSYS MS909EV Tablet Diagnostic Tool Package Includes:
