OBDSTAR RH850 / V850 Basic Adapter Kit

OBDSTAR RH850 / V850 Basic Adapter Kit for Airbag Reset, IMMO Data/Pincode Read, Dashboard, BCM, ELV

OBDSTAR RH850 / V850 Basic Adapter Kit Description:

Additional Adapter From OBDSTAR with Product Number: MK26446
This Weight Product: 280g

OBDSTAR RH850 / V850 Basic Adapter Kit Specs:

Manufacturer: OBDSTAR
Condition: New

OBDSTAR RH850 / V850 Basic Adapter Kit is for airbag reset, immo data/pincode read (Dashboard, BCM, ELV, etc.). And all data read is unencrypted, can be used on third party devices!

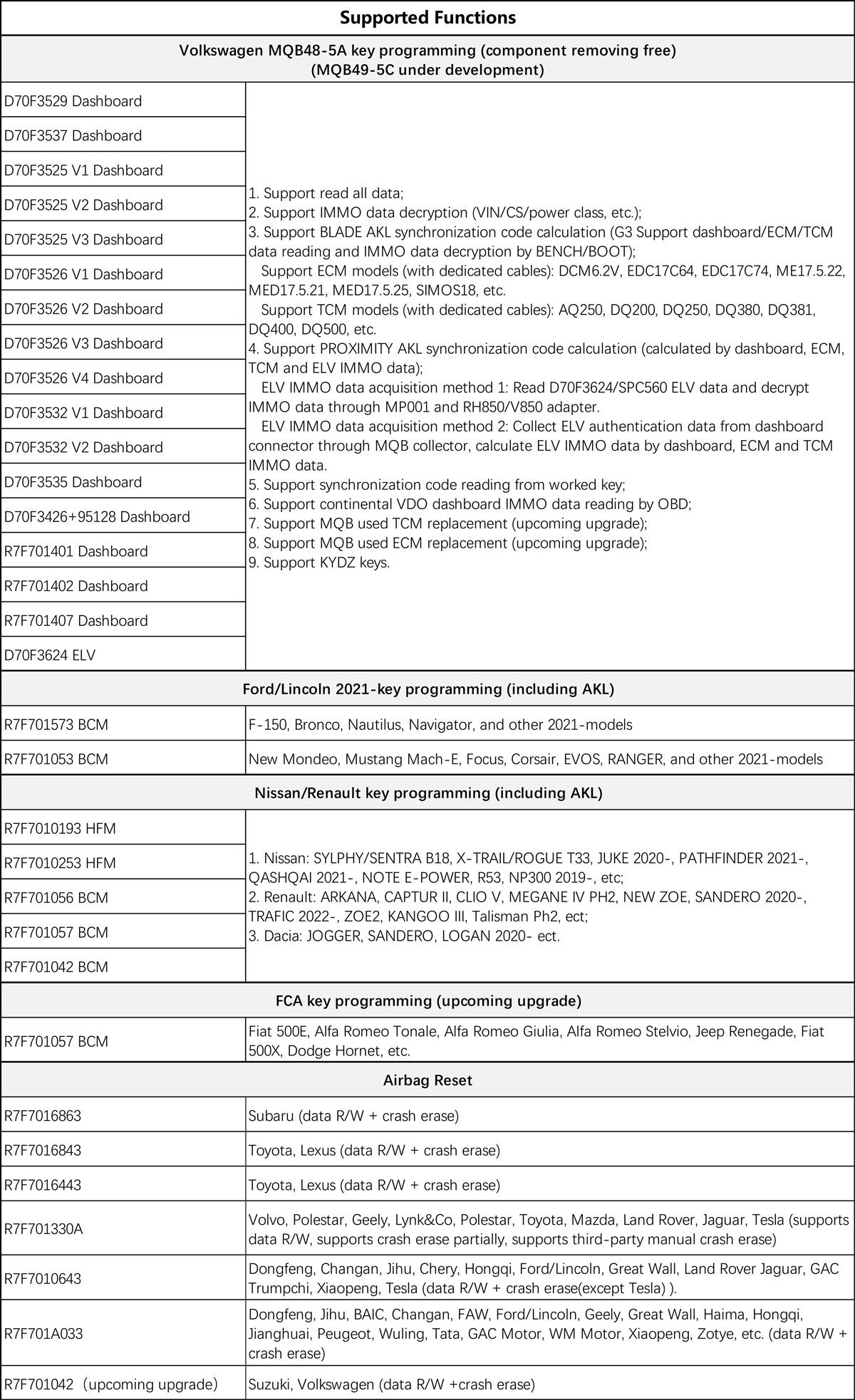

OBDSTAR RH850 / V850 Basic Adapter Kit Supported Tools:

X300 Classic G3/KEYMASTER G3 Basic IMMO version or Full version
X300 Pro4 /Key Master 5 (to use RH850 kit with X300 Pro4, you also need MP001 programmer
OBDSTAR P50 (to clear airbag crash R7F7016863/ R7F7016843/R7F7016443/R7F701330A etc. Also need MP001 programmer. )

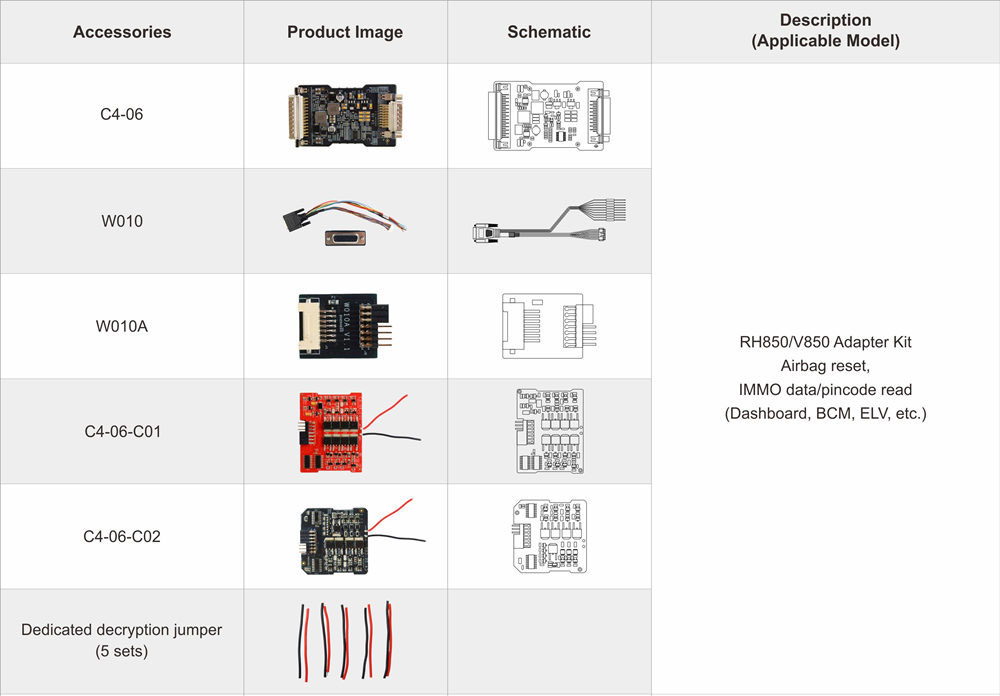

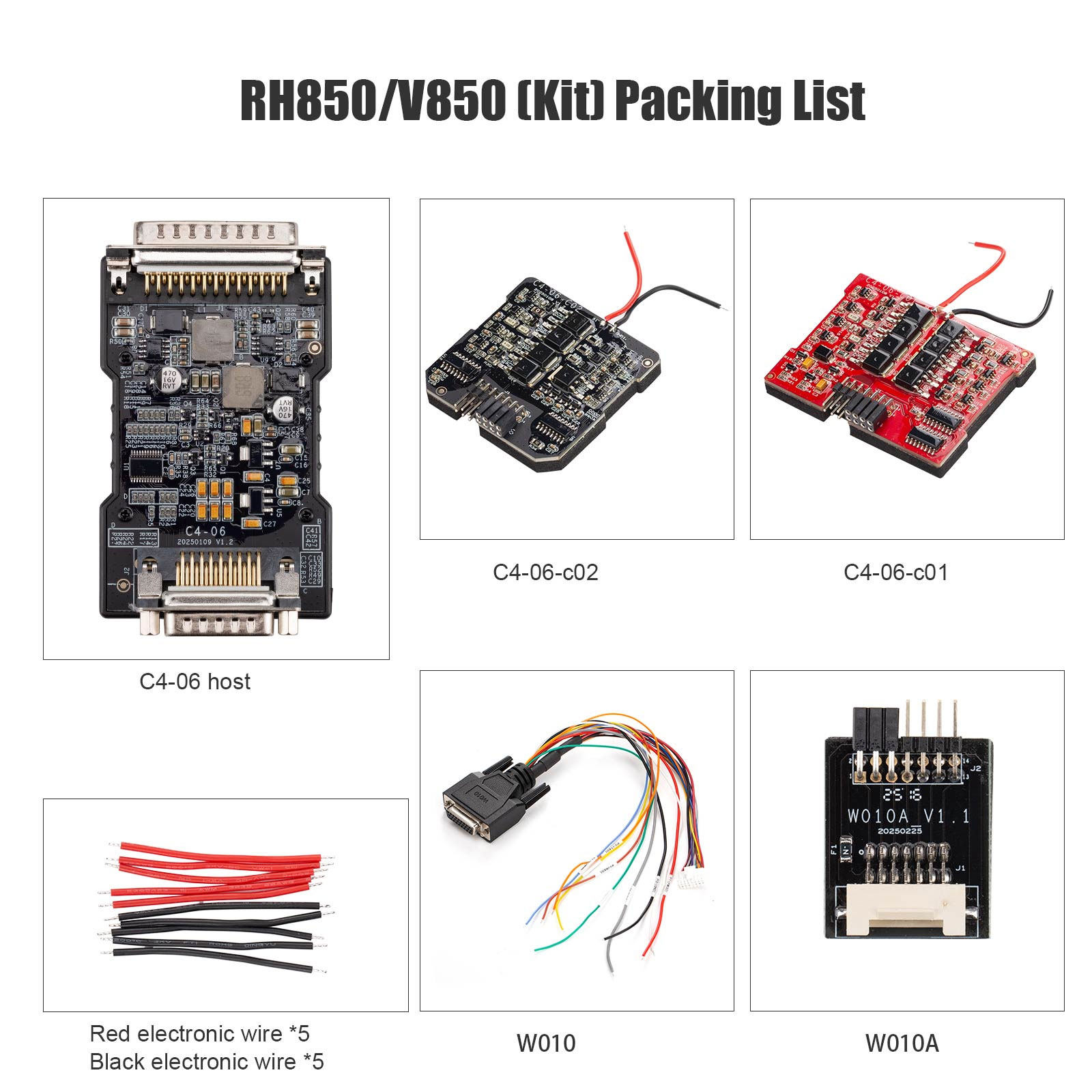

RH850/V850 Adapter Kit

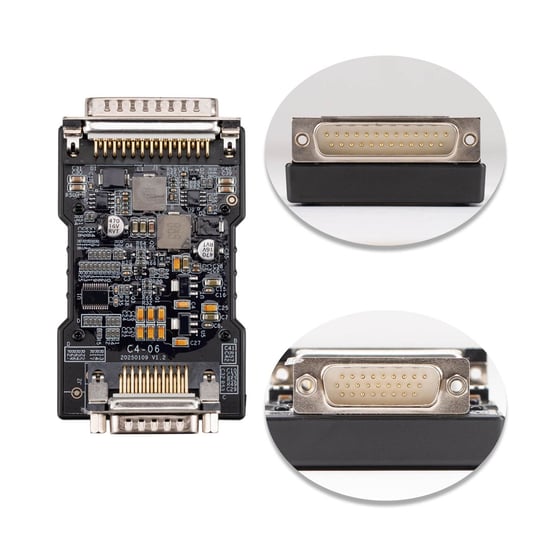

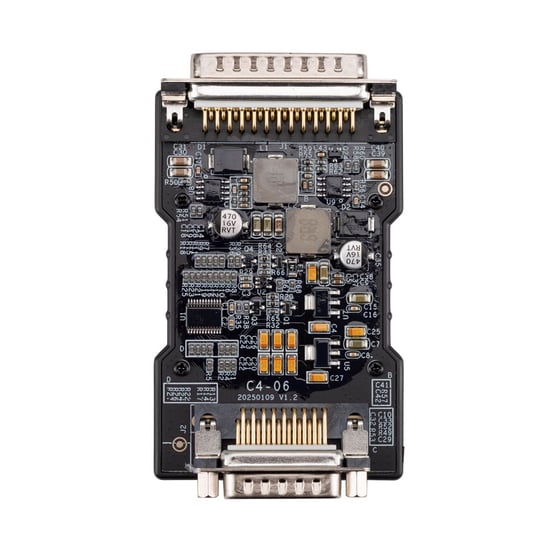

1. C4-06

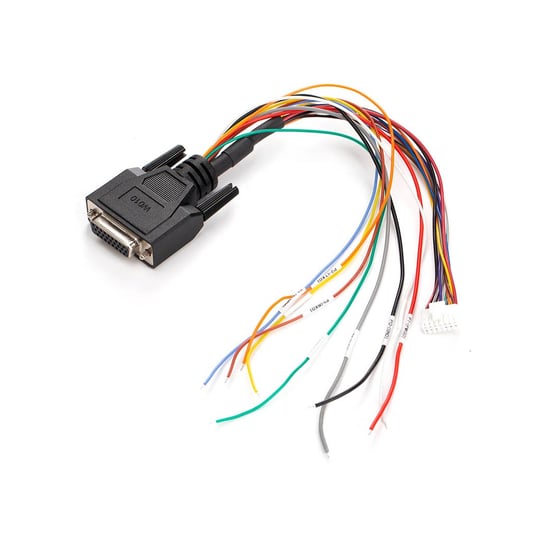

2. W010
3. W010A

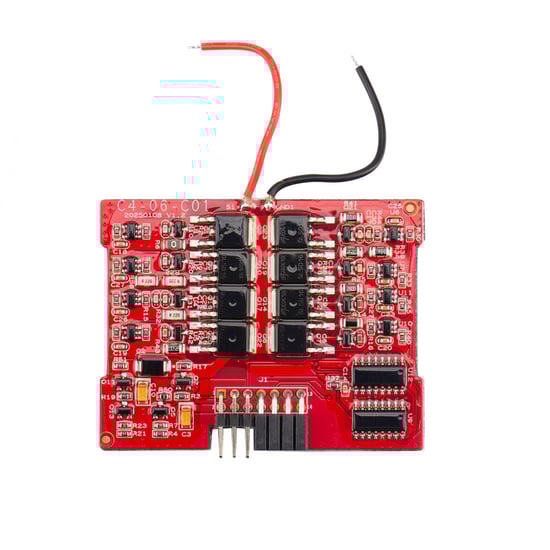

4. C4-06-C01

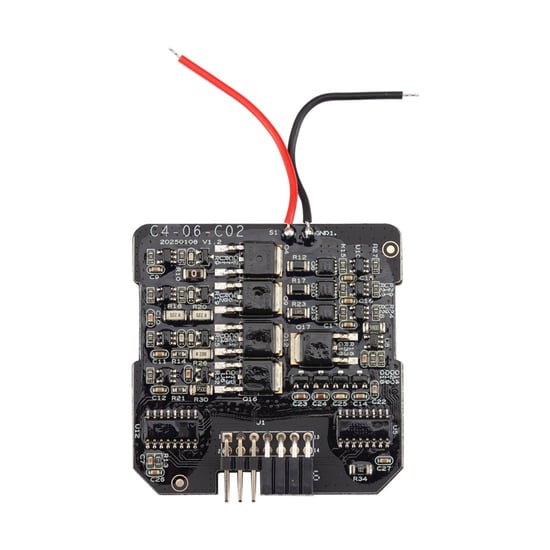

5. C4-06-C02
6. Dedicated decryption jumper (5 sets)
Note: Need to be used with MP001 multifunctional programmer

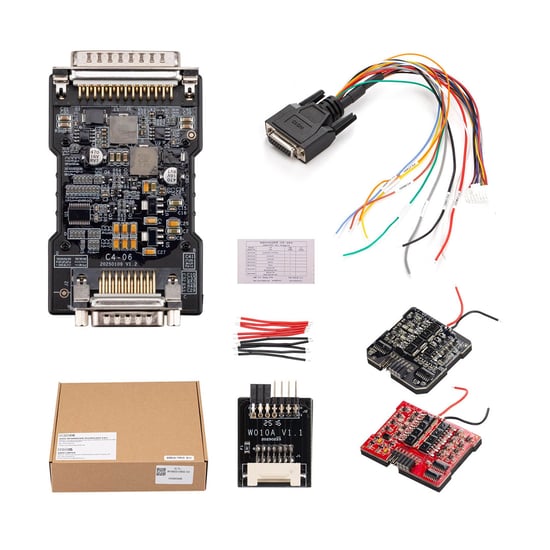

Package including

1pc x C4-06 Adapter
1pc x W010 Cable
1pc x W010A Adapter
1pc x C4-06-C01 Adapter
1pc x C4-06-C02 Adapter
5sets x dedicated decryption jumper

FAQS

Q: Volkswagen IMMO V specifically refers to which models?
A: Volkswagen IMMO V contains BCM2, MQB, MLB, of which MQB is divided into MQB5A, MQB5B, MQB5C;
MQB5A is the first generation variation on the MQB, the dashboard comes with V850(D70F35XX) processsor and the key  comes with Megamos-AES ID88 transponder;
MQB5B is the second generation variation on the MQB, the dashboard  comes with RH850 (R7F701401, R7F701402, R7F701407) processor, but the transponder  comes with Megamos-AES ID88, the process is basically the same as MQB5A;
MQB5C is the third generation variation on the MQB, the dashboard  comes with RH850 processor, and the dashboard has a crypto core which currently prevents the world from freely programming keys to this car type, the transponder uses Hitag-Pro (ID5C), MQB5C related IMMO functions are under development.


Q: How to read VW MQB48-5A/5B(ID88) dashboard data, need to remove the components?
A: Components removing free, use C4-06 adapter according to the PCB Pinout provided by the device to solder the wire to read the data.

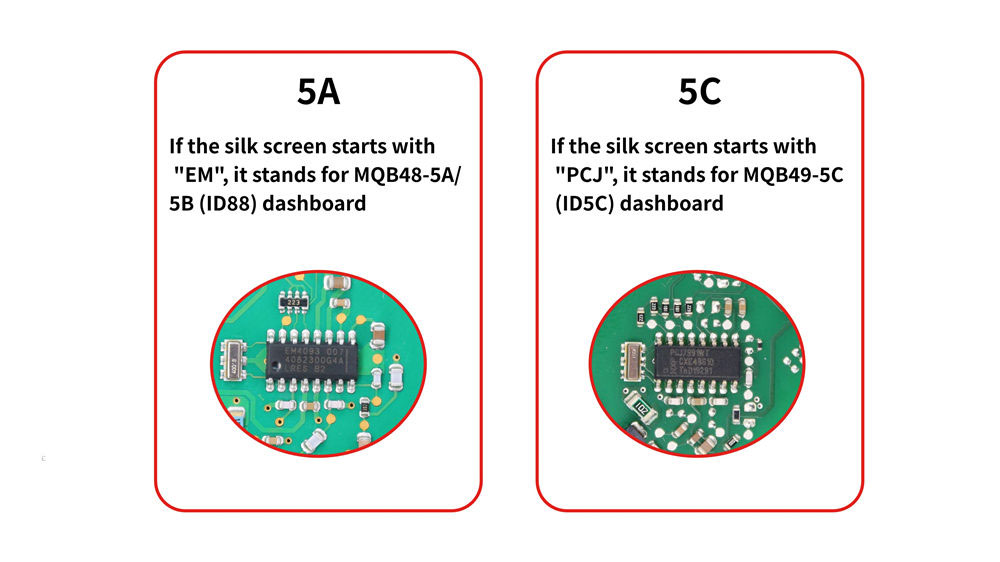

2) Disassemble the dashboard to confirm the dashboard type by the PCB silkscreen, such as the silkscreen start with“EM” , it stands for MQB48-5A/5B(ID88) dashboard, and “PCJ” stands for MQB48-5A/5B(ID88) dashboard.



Q: Does MQB support type 5C?
A: MQB49-5C(ID5C) is not supported at this time and is still under development.

Q: Why does the RH850/V850 adapter kit have so many accessories?
A: Because RH850/V850 adapter kit supports multiple MCU models to read/write data(with fullly coverage and good stability, so the R&D cost and BOM cost will be much higher), for example, it supports VW MQB48-5A encrypted dashboard data reading; Ford/Lincoln 2021-key programming (including all keys lost) encrypted BCM data reading; Nissan/Renault key programming (including all keys lost) encrypted HFM, BCM data reading; FCA key programming (upcoming upgrade) encrypted BCM data reading; Toyota, Subaru, domestic encrypted airbag data R/W, crash erase.

Q: What does the MQB Collector do?
A: The ELV module can be used directly through the dashboard connector to collect ELV/TCM authentication data and upload it to the server to calculate the ELV IMMO data without removing the ELV module.

Note: If you encounter the ECM, TCM is non-original, such as replacing used module and not programmed online at the dealer service station or IMMO OFF directly, you will not be able to calculate the 32-byte synchronization code!

Q: Is MQB Collector necessary for AKL?
A: Not necessary, but it takes longer time, you need to remove the ELV module, read the D70F3624 ELV data and encrypt the IMMO data through the MP001 programmer and C4-06 adapter (SPC560 will be upgraded soon, which supports using third-party devices to read the data). Note: ELV module in the steering column is difficult to disassemble, it is recommended to use the MQB Collector, efficient and safe!

Q: Does the MQB48-5A/5B(ID88) blade key and proximity key both support all keys lost synchronization code calculation?
A: Yes, the difference is that the proximity key needs to collect ELV module data.

Q: How to get the synchronization code?
A: Blade key: 32-byte synchronization code is calculated by loading dashboard CS code + ECM CS code + TCM CS code and uploading it to the server.
Proximity key: 32-byte synchronization code is calculated by loading dashboard CS code + ECM CS code + TCM CS code + ELV CS code and uploading it to the server.

Q: Is there a charge for synchronized code calculation?
A: Synchronization code calculation uses independent servers, free calculation, and supports 24 hours online calculating synchronized code, reducing the cost of locksmiths.

Q: Is the other accessories except RH850/V850 adapter kit necessary for ECU Flasher function??
A: It is highly recommended to buy other accessories combine with RH850/V850 adapter kit, otherwise you need to remove the ECM/ELV/TCM module to read the data by BENCH mode.

Q: Is it compatible with third-party devices?
A: It supports loading the unencrypted data read by a third party. Please consult the third party if the file is encrypted.
