X100PAD Elite2 Professional Key Programmer Description:

Key Programming Tools From X-Tool with Product Number: MKON555
This Weight Product: 4500g

X100PAD Elite2 Professional Key Programmer User Manual

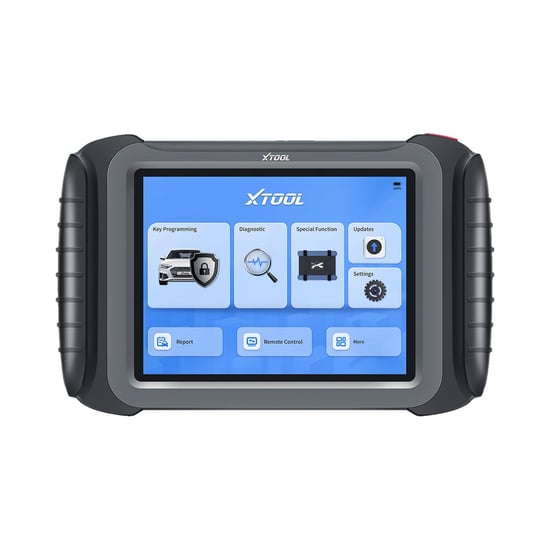

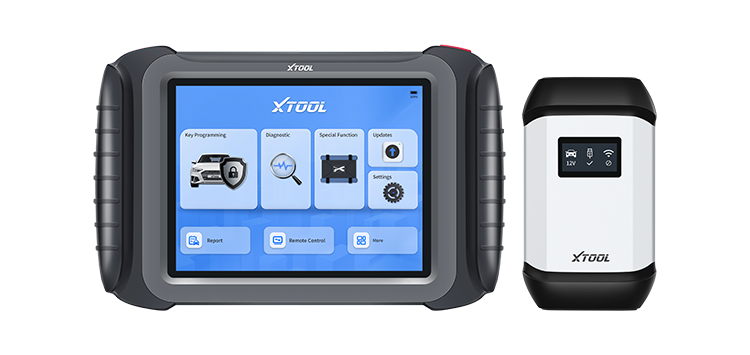

X100PAD Elite 2 is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions. X100PAD Elite2 can perform: Key programming,oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset etc.

● An excellent choice for locksmiths worldwide.
● Support key programming for over 90% of vehicles on the market.
● Can match keys in both add key and all keys lost situations.
● Read and modify immobilizer data, obtains PIN codes by various methods.
● Register new ECU/BCM/dashboard when modules need to be replaced.
● Include diagnostic functions to solve fault codes after the programming process.
● Contains 30+ special functions to assist with vehicle maintenance.

X100PAD Elite2 Professional Key Programmer Parameters:

• Operating System：Android 10.0
• Communication Method：Wi-Fi / Wireless
• Processor：Quad-core processor 1.5GHz
• Memory：4G RAM, 64G ROM
• Display：8.0-inch touch screen with 1024×768 resolution
• Connectivity：USB Type-C / WIFI 2.4/5G
• Sensors：Gravity Accelerometer, Ambient Light Sensor
• Auto Input/Output：Microphone, Speaker
• Battery：5000mAh, 7.3V lithium-polymer battery
• Working Voltage：9-36V
• Operating Temperature：-10 to 50℃
• Storage Temperature：-40 to 60℃
• Humidity：<90%
• Protocol compatibility：CANFD, DOIP, PWM

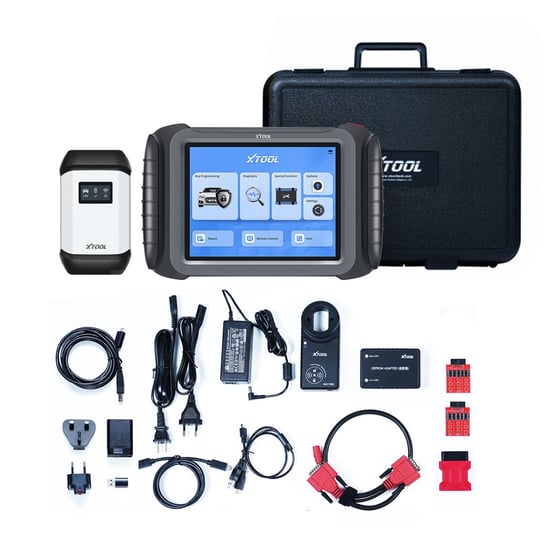

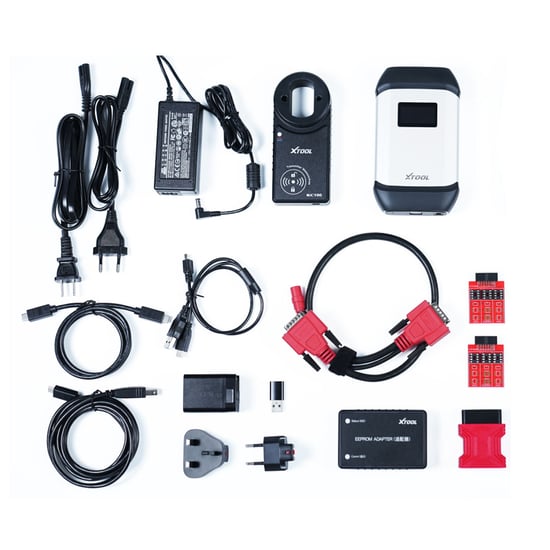

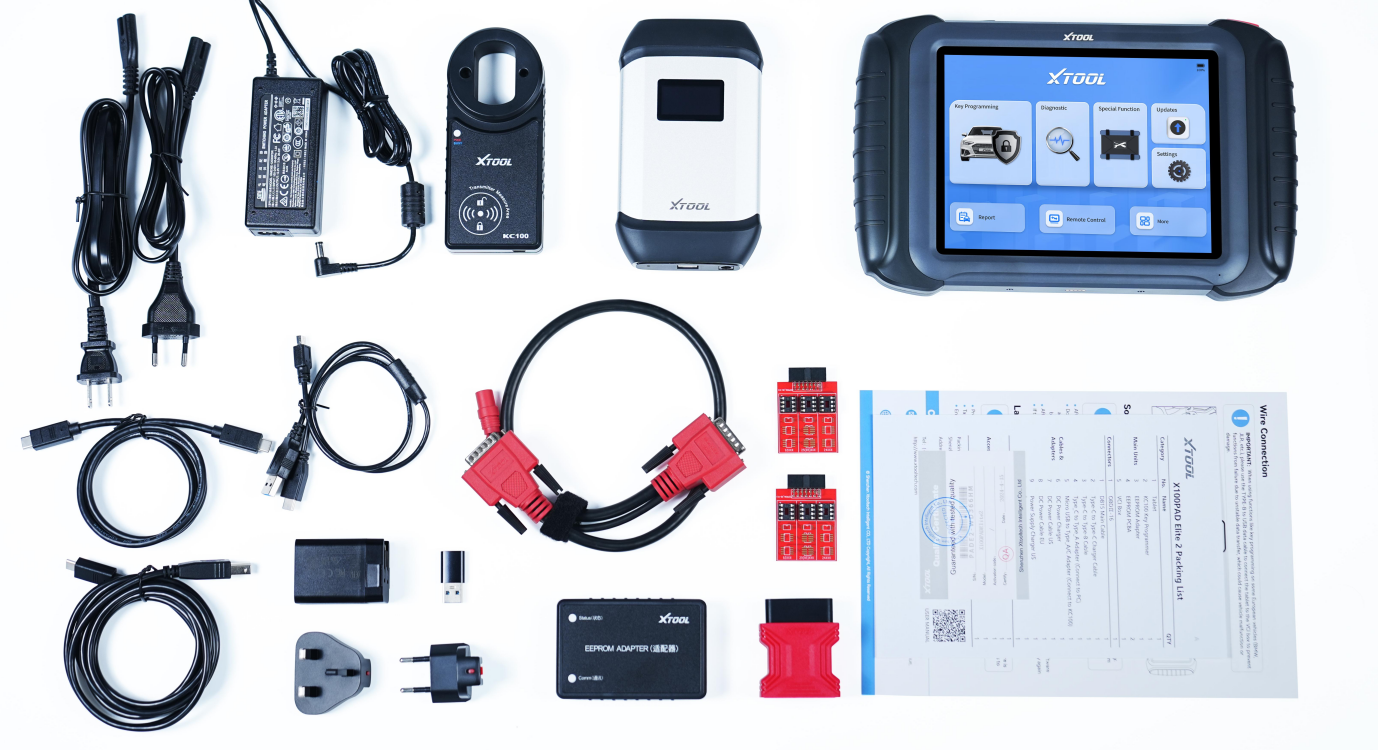

X100PAD Elite2 Professional Key Programmer Packing List:

Accessories

• Certificate of Quality
• Packing List
• Color Carton
• Tool Case
• Quick Guide

Cables & Adapters

• Power Supply Charger Adapter EU
• Type-C to Type-B Cable
• DB15 Main Cable
• Micro USB to Type A/C Adapter (Connect to KC100)
• Type-C to Type-C Charger Cable
• DC Power Cable EU
• Power Supply Charger Adapter UK
• DC Power Charger
• DC Power Cable US
• Power Supply Charger US

Main Units

• VCI Box
• Tablet
• EEPROM PCBA
• KC100 Key Programmer
• EEPROM Adapter

Test Connectors

• OBDⅡ-16

X100PAD Elite2 Professional Key Programmer Compare Similar:

	X100PADS	InPlus IK618E	X100PAD Elite2
Hardware
Processor	Quad-core processor 1.5GHz	Quad-core processor 1.5GHz	Quad-core processor 1.5GHz
OS	Android 10.0	Android 10.0	Android 10.0
Storage (RAM+ROM)	2+64G	2+64G	4+64G
Display	7 inch 1024*600	7 inch 1024*600	8 inch 1024*768
Camera	8MP rear	N	8MP rear
Connectivity	USB Type-C VGA	USB Type-C VGA	USB Type-C
Battery	2500mAh, 7.2V	2500mAh, 7.2V	5000mAh, 7.3V
WiFi	Y	Y	Y
Software
IMMO Functions	Y	Y	Y
OBD Key Programming	Y	Y	Y
EEPROM Modifications	Y	Y	Y
Bench programming	N	N	Y
Remote testing	N	N	Y/ Need M600+603
VW 4/5/MQB	Y/ Offline	Y/ Offline	Y/ Offline
GM key programming w/ CAN FD	Y/ Pin Required	Y/ Pin Required	Y/ Pin Required
BMW CAS1-4/FEM&BDC Ford Pincode Bypass	Y	Y	Y
Chrysler Pincode Bypass	Y	Y	Y
2018+ FCA SGW Bypass	Y/ Cable Needed	Y/ Cable Needed	Y/ Cable Needed
Read pin (Chrysler, VPW)	Y	Y	Y
Hyundai 4A key reading	Y	Y	Y
15-18 Land Rover/Jaguar key programming via OBD	Y/ KC501	Y/ Need KC501/M600 partly	Y/ Need KC501/M600 partly
Mercedes FBS3 AKL	Y/ KC501	Y/ Need Adaptor+KC501	Y/ Need KC501/M600
BMW ECU replacement & Read ISN by bench	N/ Partly	N/ Partly	Y/ Partly
2019+ Nissan Sentra programming	Y/ Cable needed	Y/ Cable needed	Y/ Cable needed
VW Read PIN by bench & OBD	Y/ Partly	Y/ Partly	Y/ Partly
2018+ Toyota smart key AKL	Y/ SK1	Y/ Need Anytoyo SK1	Y/ Need Anytoyo SK1
Renault Kwid/Logan programming	Y	Y	Y
Toyota 8A blade key AKL	Y/ KC100,M822	Y/ Need Adaptor,KC100/KS-1	Y/ Need Adaptor,KC100/KS-1
2020 Ford PIN bypass	Y	Y	Y
Mitsubishi ID47 AKL	Y	Y	Y
Full system diagnosis	Y/ Read+Clear DTC ,Live Data	Y	Y
Service Resets	36	36	34
Compatible Module
OBDI Connector	Y	Y	N
OBDII Connector	Y	Y	Y
EEPROM Adapter	Y	Y	Y
KC501	Optional	Optional	Optional
KC100	Optional	Y	Y

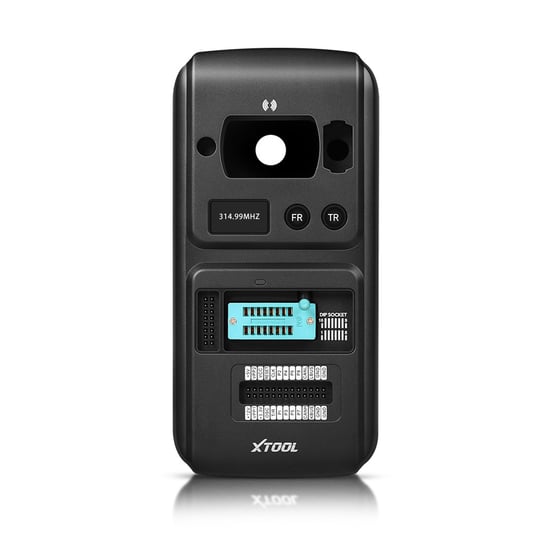

Xtool KC 501 Mercedes Key Tool Programming Tool Support MCU / EEPROM Chips Reading Writing Work With X100 Pad3 / Pad Elite/ A80 Pro

Xtool KC 501 May Be A Professional Key & Chip Programmer Which May Not Only Read, Write Keys, And Skim Key Remote Frequency, But Also Generate Dealer Keys.
It Supports Read And Writes MCU/EEPROM Chips, Read And Write Mercedes Key Tools.
Moreover, It Supports Pc Connection Which Brings You A Far Better User Experience.
Xtool KC 501 Mercedes Key Tool Programming Tool Support MCU/EEPROM Chips Reading&writing Work With Xtool X100 Pad3/a80 Pro.

Highlights Of Xtool KC 501

• Read And Write Keys
  KC 501 Support Read And Write Keys, Support Read Key Remote Frequency Also Generate Dealer's Key

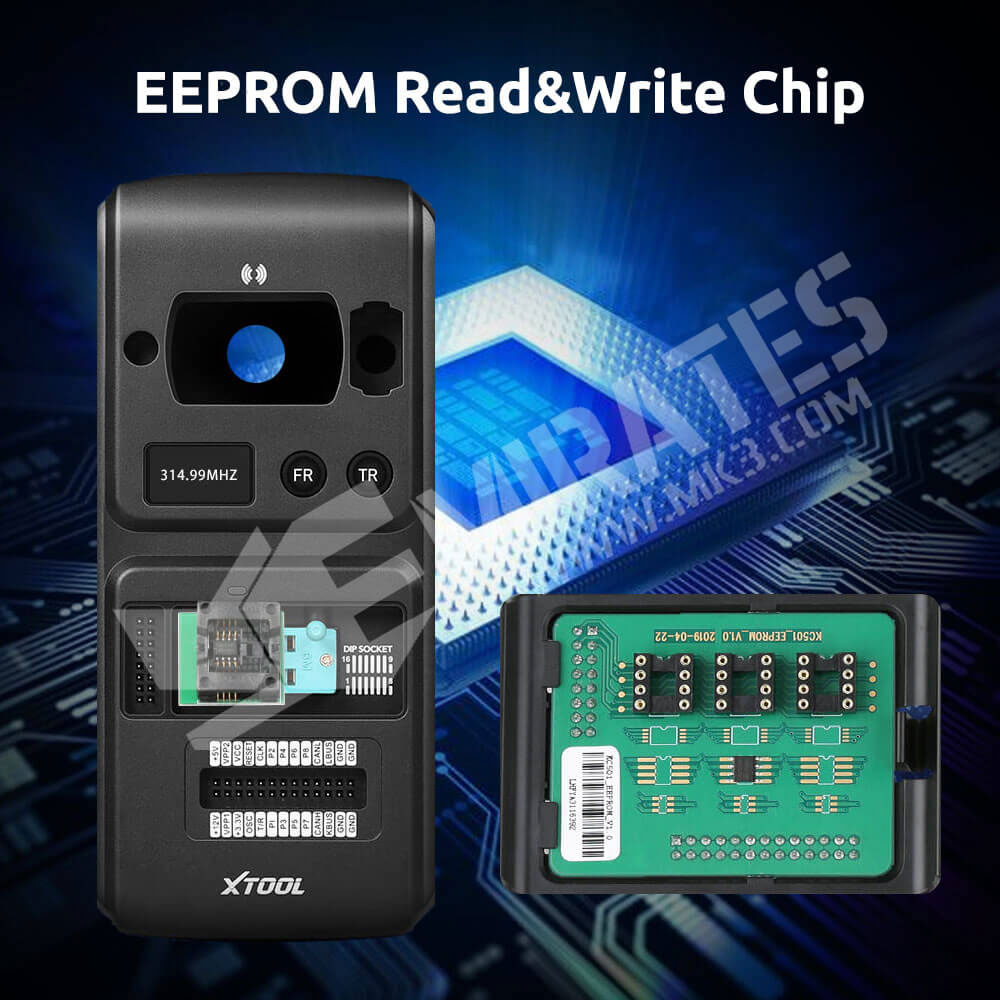

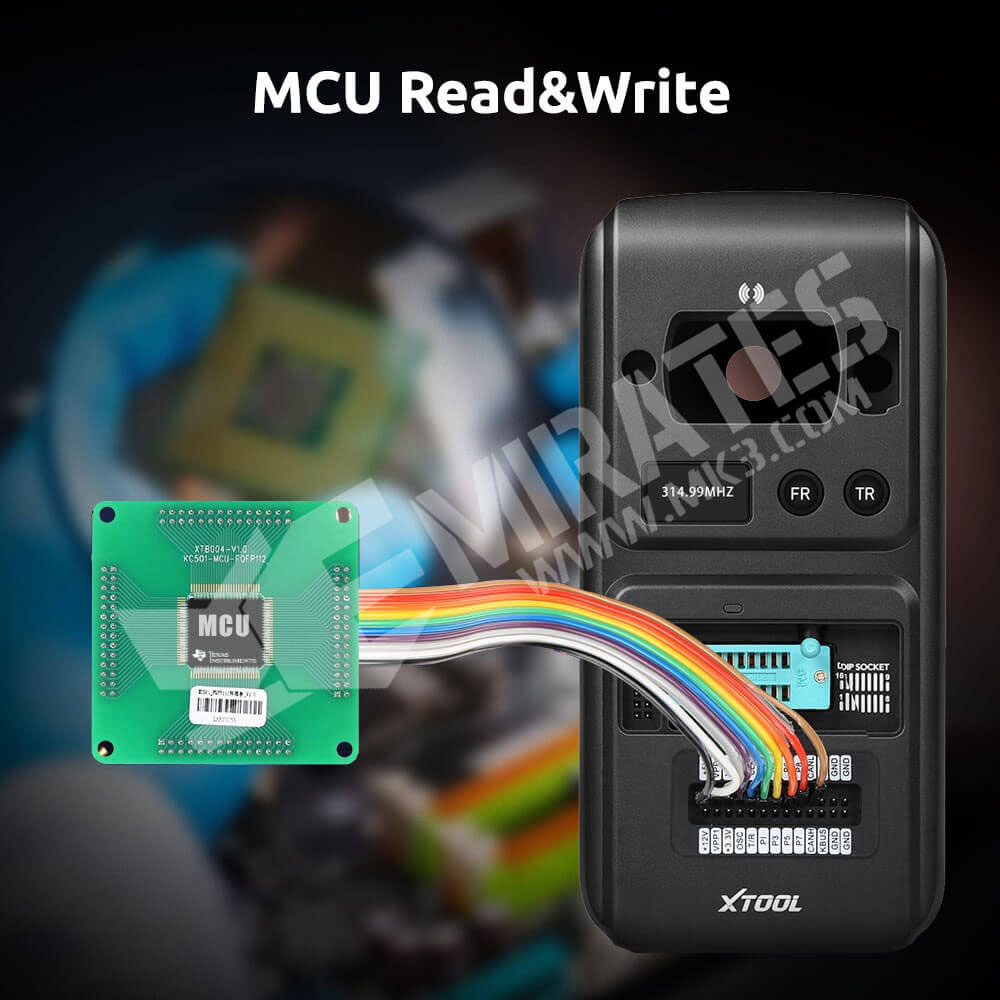

• Read And Write MCU/EEPROM Chips
• read And Write Mercedes Key Tools

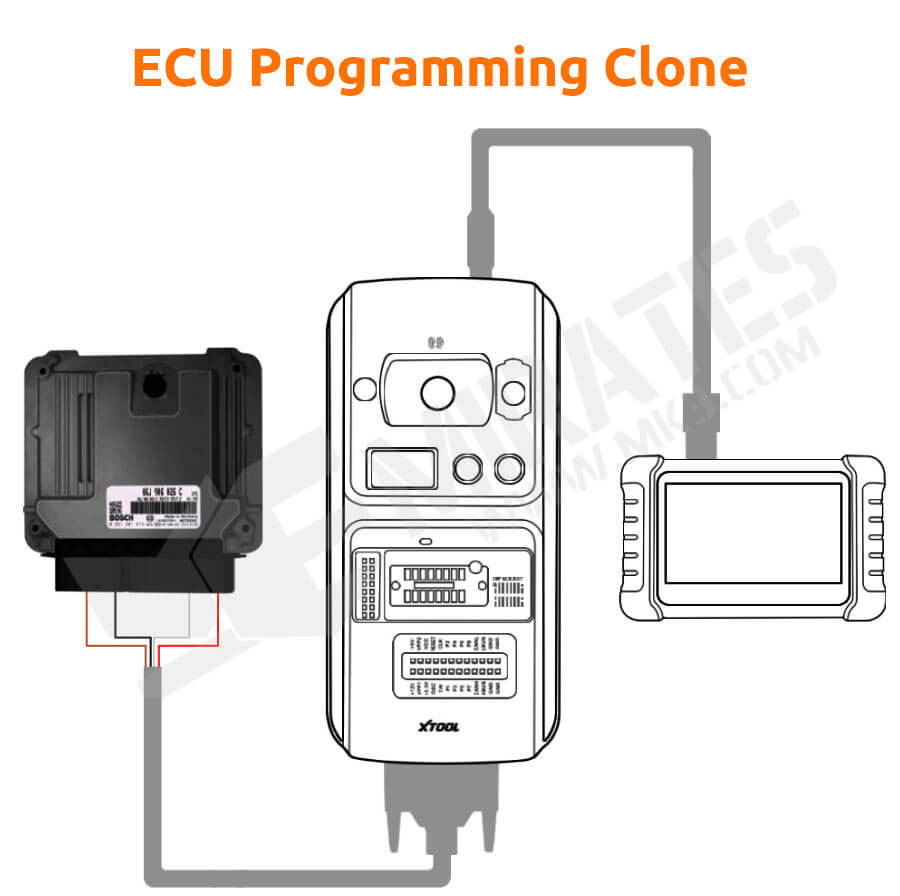

• ecu Read/write
• KC 501 Support Pc Connection Or Tablet
• generate Dealer Keys
• Read Remote Frequency
• Support 124 Sorts Of EEPROM, 7 Mcu、11 Ecu
• Mc9s12 Encrypted Chip Read / Write
• Can Work With Xtool Pad3 ,h6elite,h6eb,nitro Lt,autopropads,x100 Pad Elite,a80 Pro,a80 Pro Master,nitro Xt,nitro Gt,autopro Pad Elite

KC 501 Functions

• Support Registers, Microcontrollers, Key Programming And Other Sorts Of Chips Read/write, Anticipate, And Other Functions;
• Support Key Automatic Identification, Partial Key Reading, Key Generation, Key Reading Information, Key Check, Key Unlock, And Other Functions;
• Can Be Put In Use With Tablets For Immobilization.
• EZS For Mercedes Key Programming

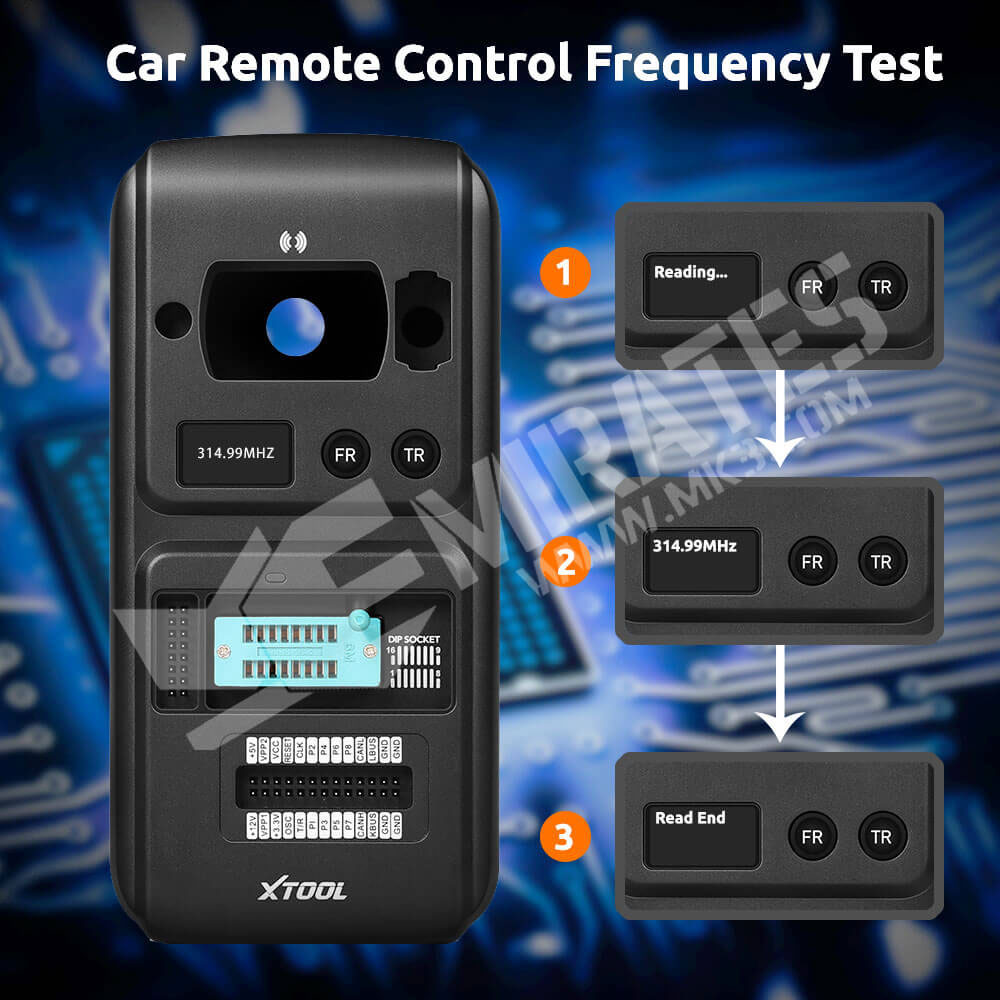

• Car Remote Frequency Test
• EEPROM Read&write Chip
• MCU Read Write
• ECU Programming Xtool Clone

Xtool KC 501 Features

1. Powerful Function For Chip Reading And Writing
KC 501 Supports Reading, Writing, Erasing, And Other Functions Of Varied Chips Like Registers, Microcontrollers, Anti-theft, Etc.
And Supports Quite 120 EEPROM, 7 Mcu, And 11 Ecu Read And Write Functions.

2. Full-featured Key Programming Function
It Supports Automatic Key Recognition, Partial Key Reading And Writing, Key Generation, Key Information Reading, Key Check Lock, XTools Unlock Extra, And Other Functions.

3. Compatible With Multiple Devices, Expanding Anti-theft Matching
It Is Often Connected To The Tablet As An Anti-theft Match And Supports The Connection Of X100 Pad3

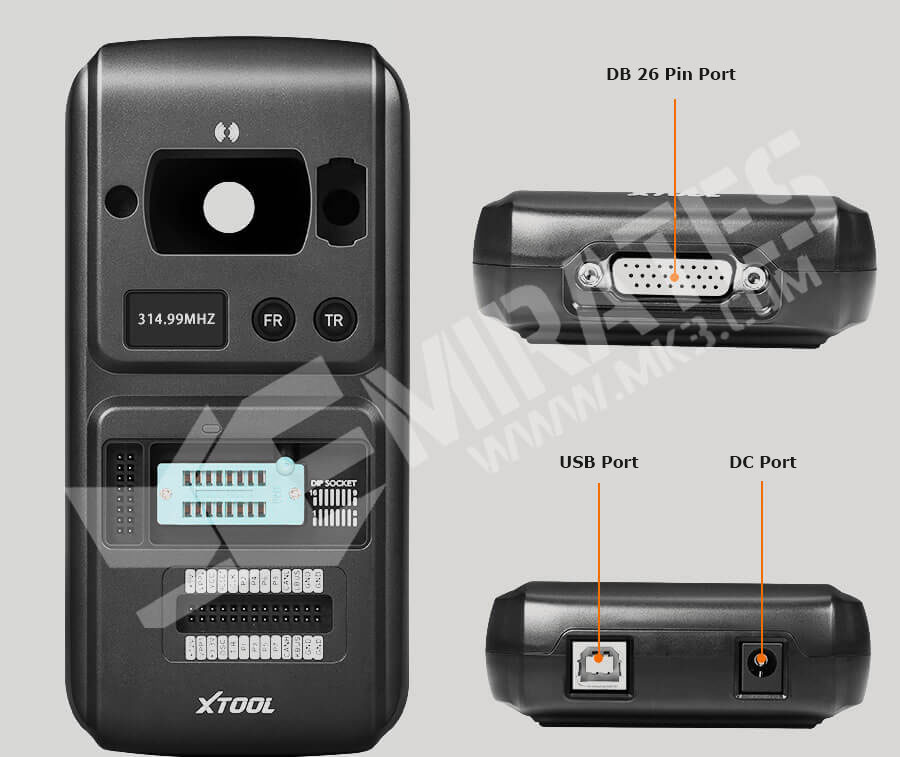

Xtool KC 501 Interface Instruction

1. Dc Port: It Provides A 12v Dc Power Supply.
2. USB Port: It Provides Digital Communication And A 5v Dc Power Supply. (The B USB Port Provides Digital Communication And Power Supply For Our Device, Pc, And KC 501.)
3. Db 26-pin Port: It Connects With The Mercedes Benz Infrared Cable, Ecu Cable, Mcu Cable, Mc9s12 Cable.
4. Cross Signal Pins: It Holds The MCU Board, MCU Spare Cable, Or Diy Signal Interface. (The Cross-shaped Signal Pin Is Employed To Put Mcu Board, MCU Spare Cable, Or Diy Signal Cable To Read Or Write Mcu And Ecu Chips.)
5. Locker: It Locks The EEPROM Component Transponder Slot To Make Sure Of Proper Functioning. (It Is Employed To Put An EEPROM Chip Or Socket To Read Or Write EEPROM Data.)
6. EEPROM Component Transponder Slot: It Holds The EEPROM Plug-in Transponder Or EEPROM Socket.
7. Status Led: It Indicates The Present Operating Status.
8. Ic Card Induction Area (It Is Employed To Read And Write Ic Card Data.)
9. Monitor (It Is Employed To Point Out Remote Frequency Or Transponder Id.)
10. Remote Frequency Button (Press This Button To Point Out Remote Frequency Within The Monitor .)
11. Transponder Id Button (Press This Button To Point Out Transponder Id On The Monitor .)
12. Transponder Slot: It Holds The Transponder. (It Is Employed To Carry The Transponder To Read Or Write Transponder Data.)
13. Vehicle Key Slot: It Holds The Vehicle Key. (It Is Employed To Carry The Vehicle Key To Read Or Write Vehicle Key Data.)
14. Remote Transponder Induction Area (It Is Employed To Read And Write Remote Transponder Data.)
15. Mercedes Key Tool Slot: It Holds The Mercedes Key Tool. (It Is Employed To Carry Mercedes Key Tool To Read Or Write Mercedes Vehicle Key Data.)

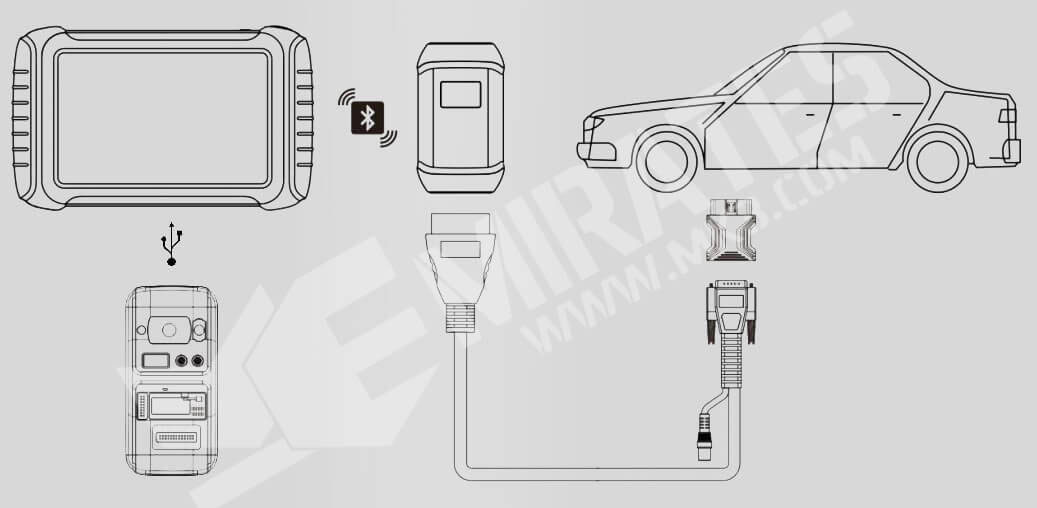

Bluetooth Device Operation Steps

1. Connect Vci And Main Cable With Car's Obd Port, Which Is Typically Under The Dashboard.
2. Activate Our Device And Pair Bluetooth With Vci.
3. Connect Our Device And KC 501 With A USB Cable. Then Enter The Immobilization Menu And Follow The Instructions On The Device.

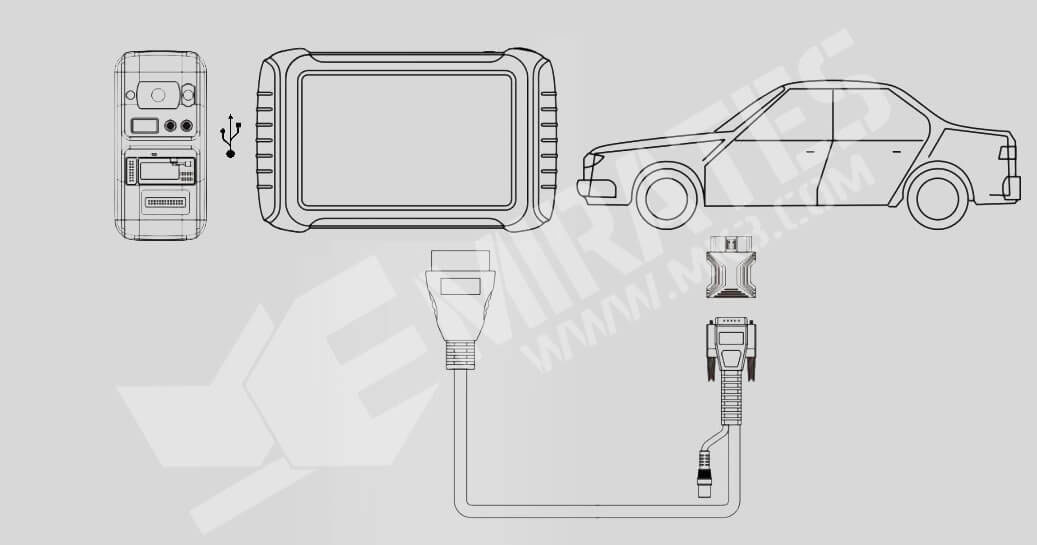

Wire Device Operation Steps

1. Activate Our Device.
2. Connect Car's Obd Port With Wire. Obd Port Is Typically Under The Dashboard.
3. Connect Our Device And KC 501 With A USB Cable.
Then Enter The Immobilization Menu And Follow The Instructions On The Device.

Parameters

Display Screen&:320x480 Dpi TFT Colorful Screen
Working Voltage&:9v-18v
Working Temperature&:-10℃-60℃
Storage Temperature&:-20-60℃
Power Supply&:12v Dc
Appearance Size&:177 Mm* 85 Mm* 32 Mm
Weight&:0.32 Kg

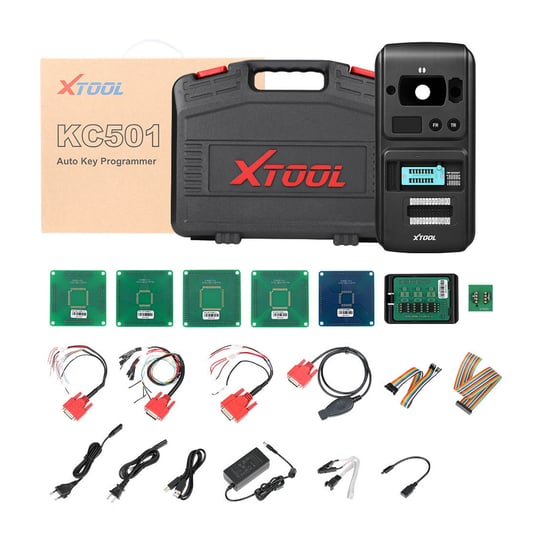

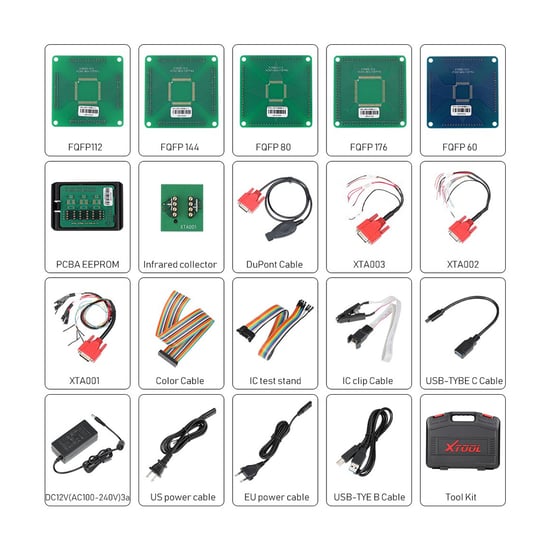

Package List

KC 501 Key & Chip Key Programmer
Usb_type-b
Usb_type-c
Charger (With Power Supply Cable)
Benz Infrared Cable
Mcu Fqfp176
Mcu Fqfp64
Xta001 Clamp
Ic Clamp
Mcu Fqfp112
Mcu Fqfp144
Mcu Fqfp80
Ic EEPROM Socket
EEPROM Adaptor (With Bracket)
Xta002 Clamp
Xta003 Clamp
26 Pin Cable
24awg Cable
Tool Case
Certificate Of Quality
Packing List
User Manual
Carton

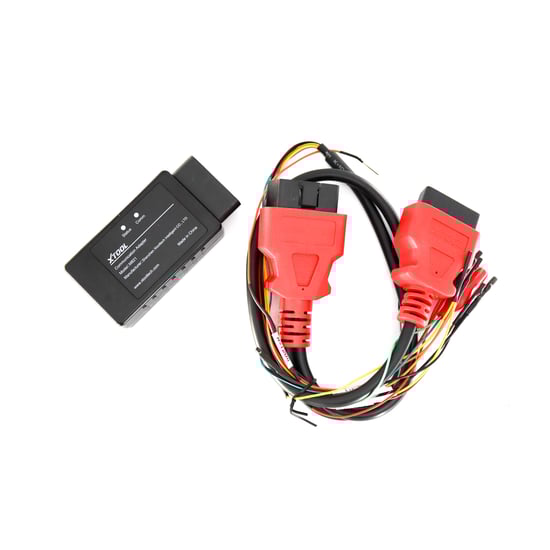

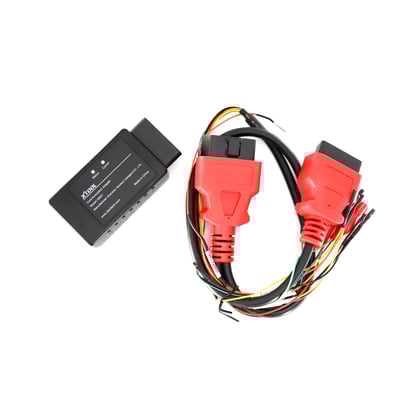

XTOOL M821 mercedes-benz all key lost communication adapter is used for finishing and optimizing all key lost programming for multiple Mercedes-Benz modules.With M821 adapter, you can save as much as 65% of the calculation time on the process,or save you from plugging the key emulator in and out for hundreds of times

Important Using Tips

1.Please make sure that the software version of Mercedes-Benz key programming software is above V27.10.
2.M821 adapter can only be used with advanced XTOOL key programming/diagnosis tablets that supports KC501.
3.Mercedes-Benz all key lost programming functionis should be done online.Please make sure that you are connecting to a table network when processing.
4.Need work with PAD3,PAD3 SE,KC501

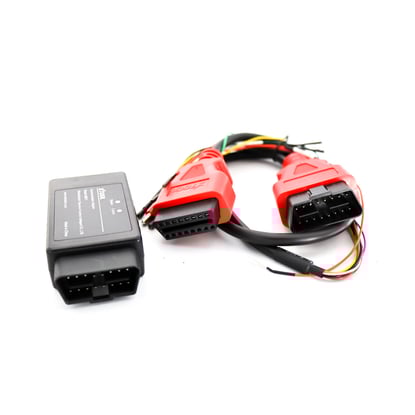

Xtool M821 Description

1. OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables.
*Caution: Don't connect to the OBD port on the car directly.
2. Status Light: Shows the power status of the adapter. When the red lights are on, that indicates the power is on.
3. Comm Light: Shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.
4.DB15 port: Used to connect to the main cable of XTOOL tablets.
*Note: Before connected to M821 Adapter, please disconnect the OBD2-16 connector from the main cable.

M821 Mercedes Adapter Connection Method

1. Connect KC501 to the device via USB.
2. Connect Mercedes-Benz IR emulator onto KC501.
3. Disconnect the OBD2 connector from the main cable, then connect the device (or the VCI box) with the M821 Adapter using the main cable.
4. Connect 12V power supply onto the main cable.
5. Connect the EIS/EZS module with the M821 Adapter using the J1K02_BENZ cable. Please check the device for connection details.
*Note: Please check the pictures in the device when connecting M821 Adapter and EIS/EZS module via J1K02_BENZ cable.
*Note: The Mercedes-Benz IR emulator should be plugged into the slot of the module when operating.
*Note: For devices which comes up with a VCI box, connect the M821 Adapter with the VCI box using the main cable, and keep the VCI box connected with the device via Bluetooth.
You can check the connection details for such devices in the device.

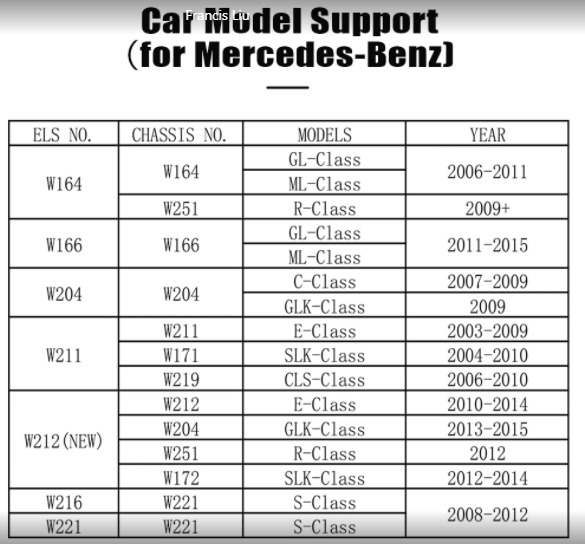

Car Model Support

    (for Mercedes-Benz)
